2-car Garage with Ground Floor Workshop and Upstairs Lounge

Plan 68990VR

  • 900

    Heated s.f.

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 2-car detached garage gives you parking for 2 cars on the ground floor and a workshop with sink tucked in the back.
  • The upper floor gives you a wall-to-wall open lounge-like area with a kitchenette and a full bath.
  • Use this as a work-from-home space, a man cave or a souped-up playhouse.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

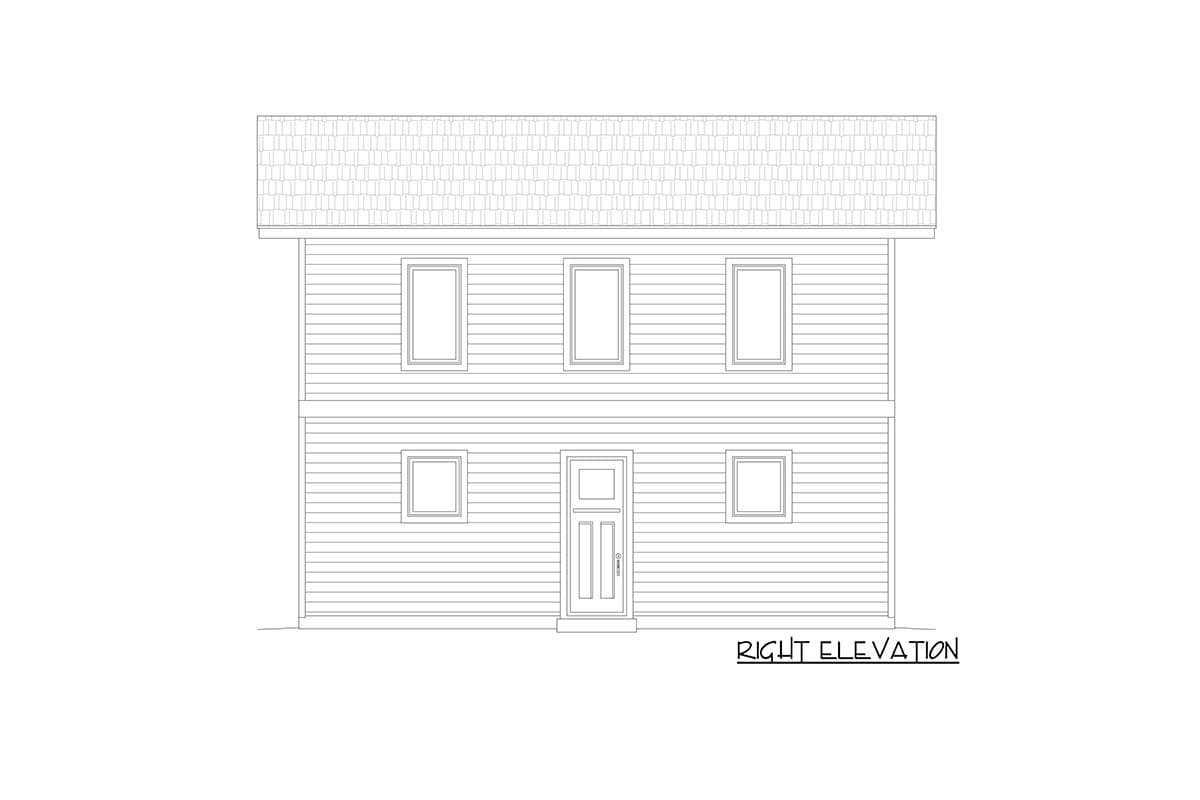

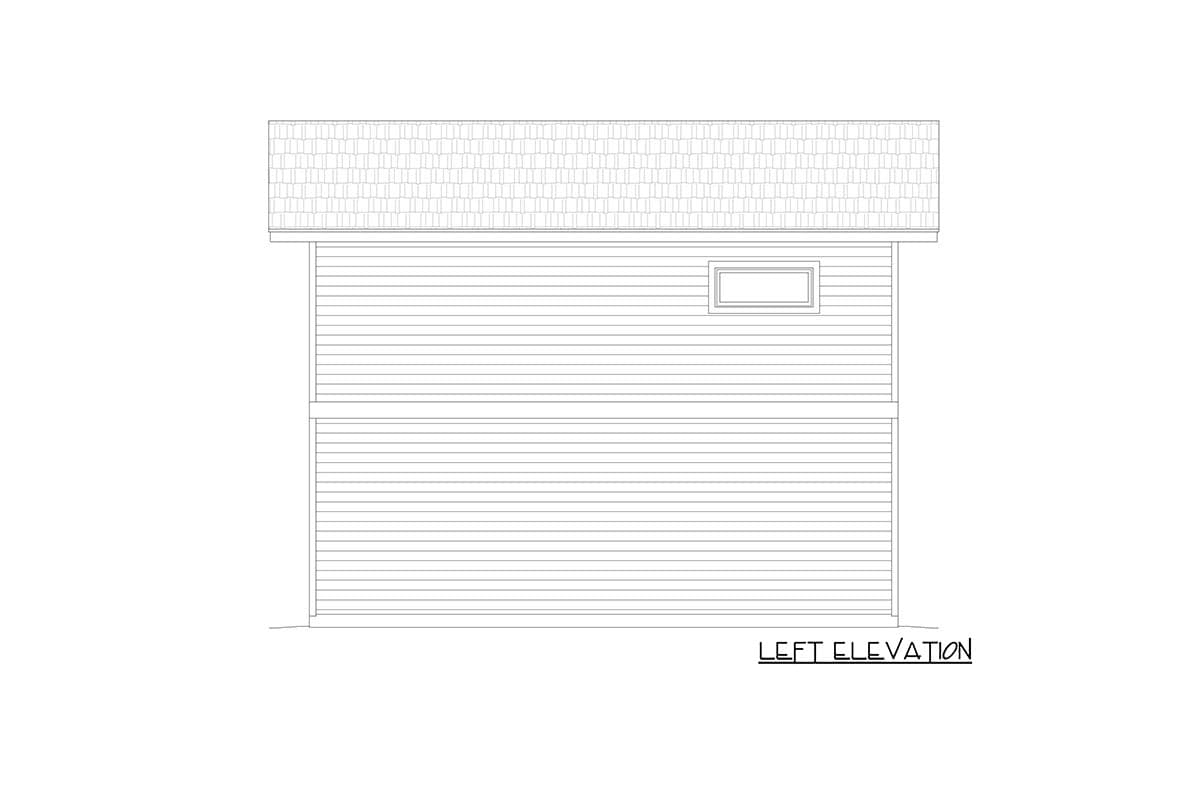

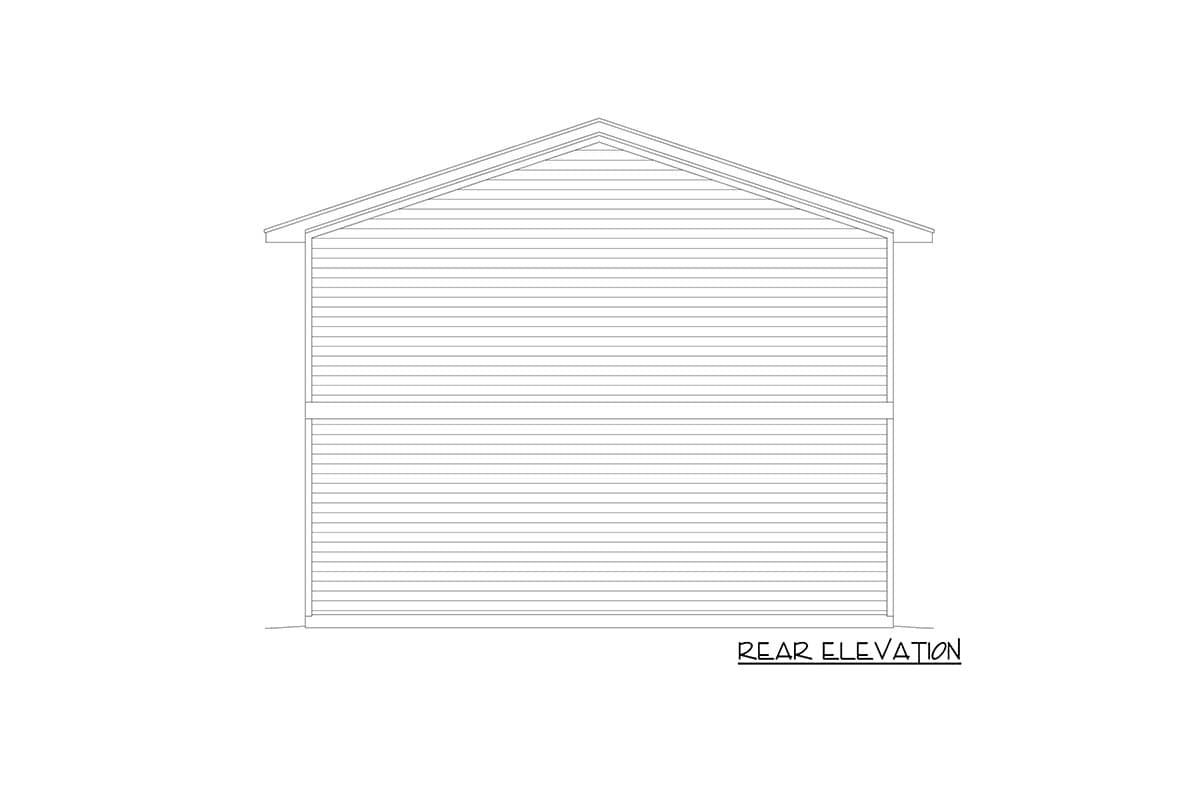

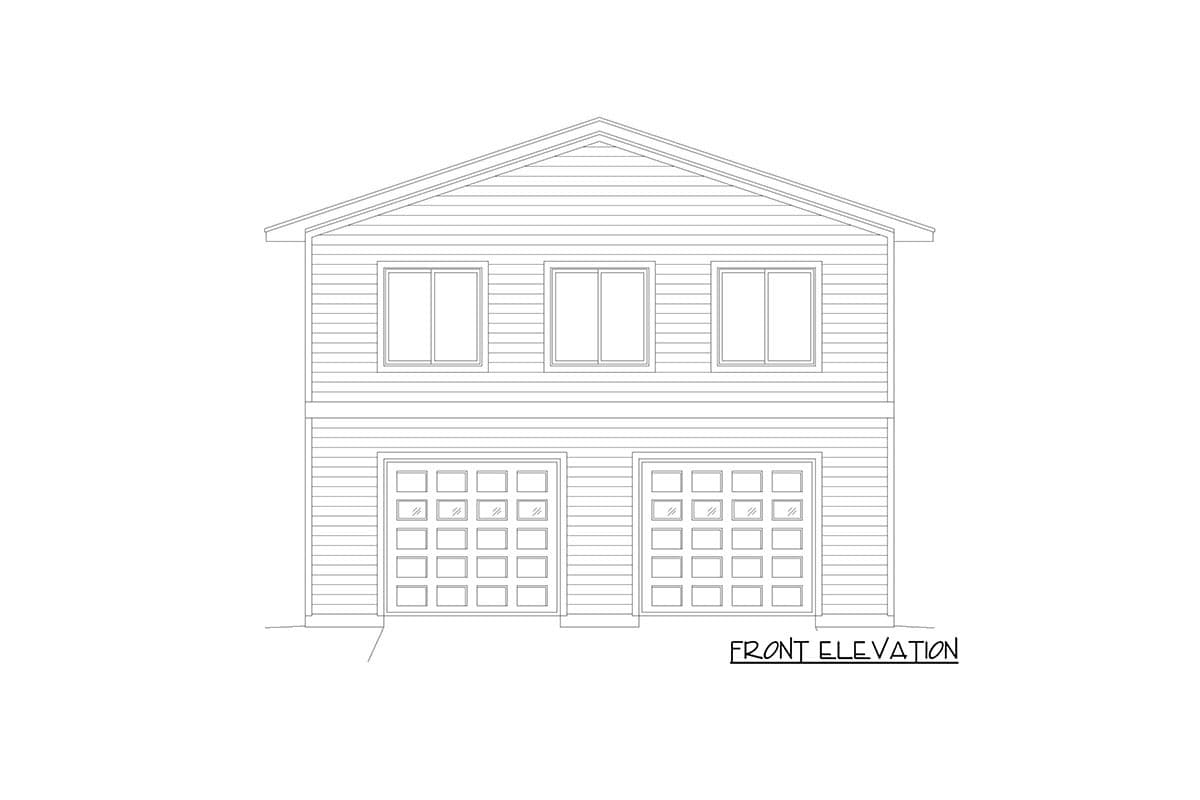

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

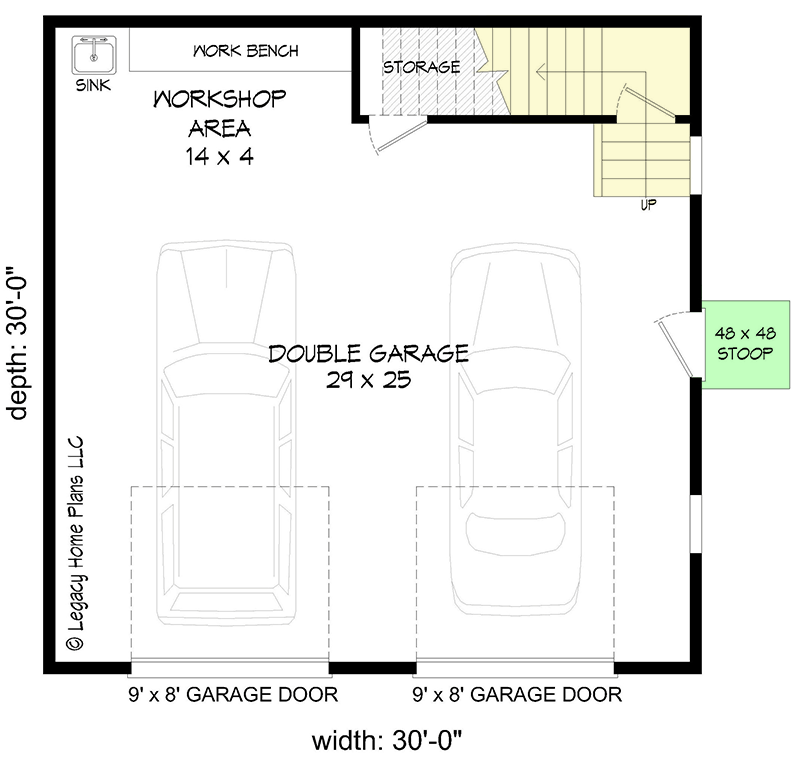

2-car Garage with Ground Floor Workshop and Upstairs Lounge - 68990VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

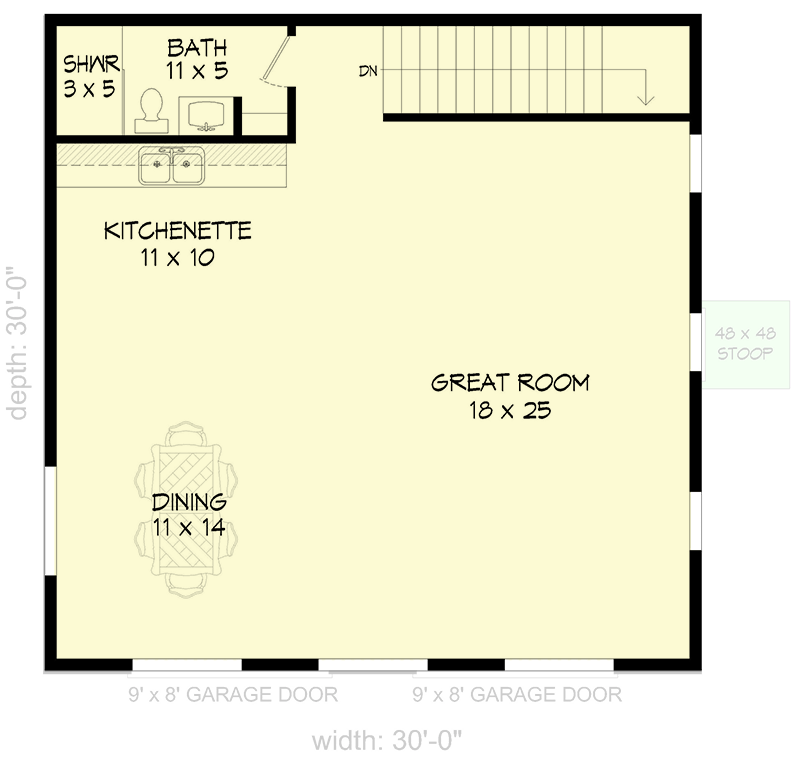

2-car Garage with Ground Floor Workshop and Upstairs Lounge - 68990VR floor plan - 2nd Floor

Architectural Style

Special features

Plan Collections

2-car Garage with Ground Floor Workshop and Upstairs Lounge

  • 900

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 900 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 30' 0"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
