Plan 89971AH
2 Story Arch-Topped Entry
Heated S.F.
2,604
Beds
3
Baths
2.5
Stories
2
Cars
3
Videos
What's Included
Plan Details
  • This 3 bed master-down house plan has a wood and stone exterior and a 2-story covere entry with an arched opening to greet you and your friends.
  • The high entry invites you into the great room with a 2-story ceiling and a full wall of windows that fill the room with natural lighting.
  • The kitchen island overlooks the great room and creates a living area that is large and comfortable. A large pantry and the proximity to the garage entrance makes unloading groceries a breeze.
  • The master suite features a step ceiling, spacious walk-in closet and dual sinks.
  • Two bedrooms, each with walk-in closet and a full bath reside upstairs where you'll also find a view of the great room below.
  • The three-stall garage has ample room for extra storage.
  • VIDEO: See this house plan from all angles in our YouTube video



What's Included

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2 Story Arch-Topped Entry

  • 2,604

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

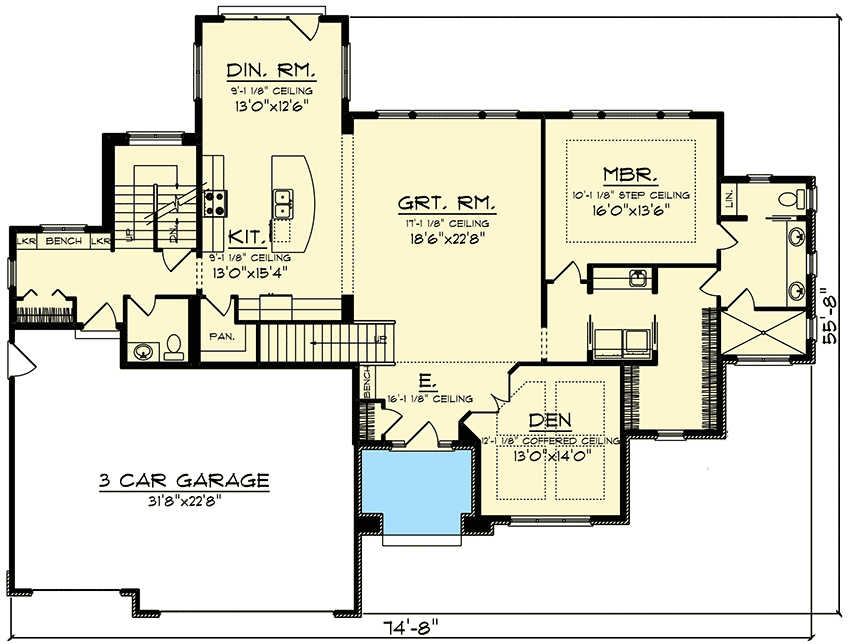

Floor Plan

  • Main Level

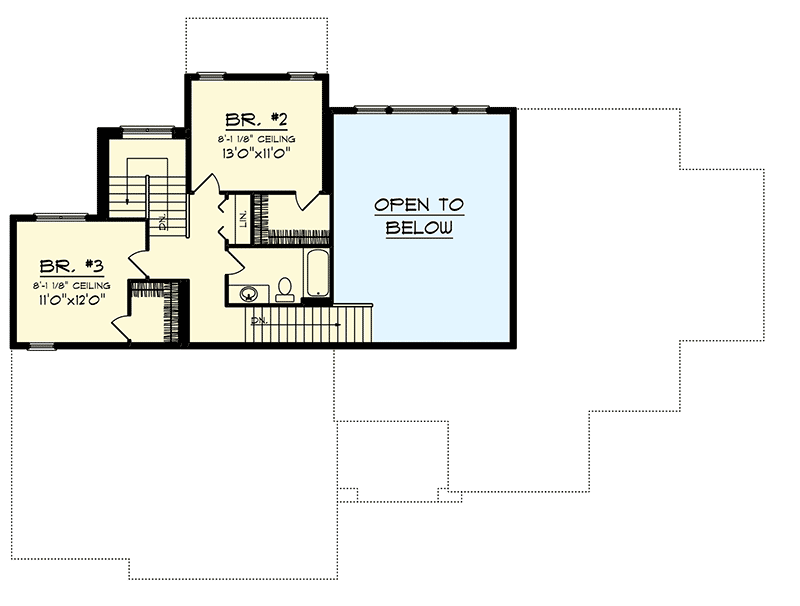

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,604 sq. ft.
  • 1st Floor: 2,030 sq. ft.
  • 2nd Floor: 574 sq. ft.

Dimensions

  • Width: 74' 8"
  • Depth: 55' 8"
  • Max ridge height: 31' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 717 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
