2-Story Ceilings Abound

Plan 36353TX

  • 12,268

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 5

    Cars

  • Steep roof lines and plenty of windows create a sophisticated aura around this 5 bedroom luxury home plan.
  • The spacious first-floor plan including a large patio with a fireplace, veranda, and guest suite balcony is great for entertaining family and friends.
  • You'll enjoy having the elegant master suite on the main floor. It provides privacy and relaxation with a special feature of a fireplace separating the suite and sitting area.
  • The chef's kitchen serves the dining room through the butler's pantry.
  • The library, like many rooms on this floor, has soaring 2-story ceilings. And the library stair gives you access to the upper loggia and yet another way to get upstairs.
  • The first level also features a fitness area and billiards.
  • The second floor boasts three-bedroom suites as well as a trophy room, media room, lounge, and bonus area.
  • An underground wine cellar lies underneath a small section of the home by the breakfast nook or you can choose to keep the foundation all slab.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

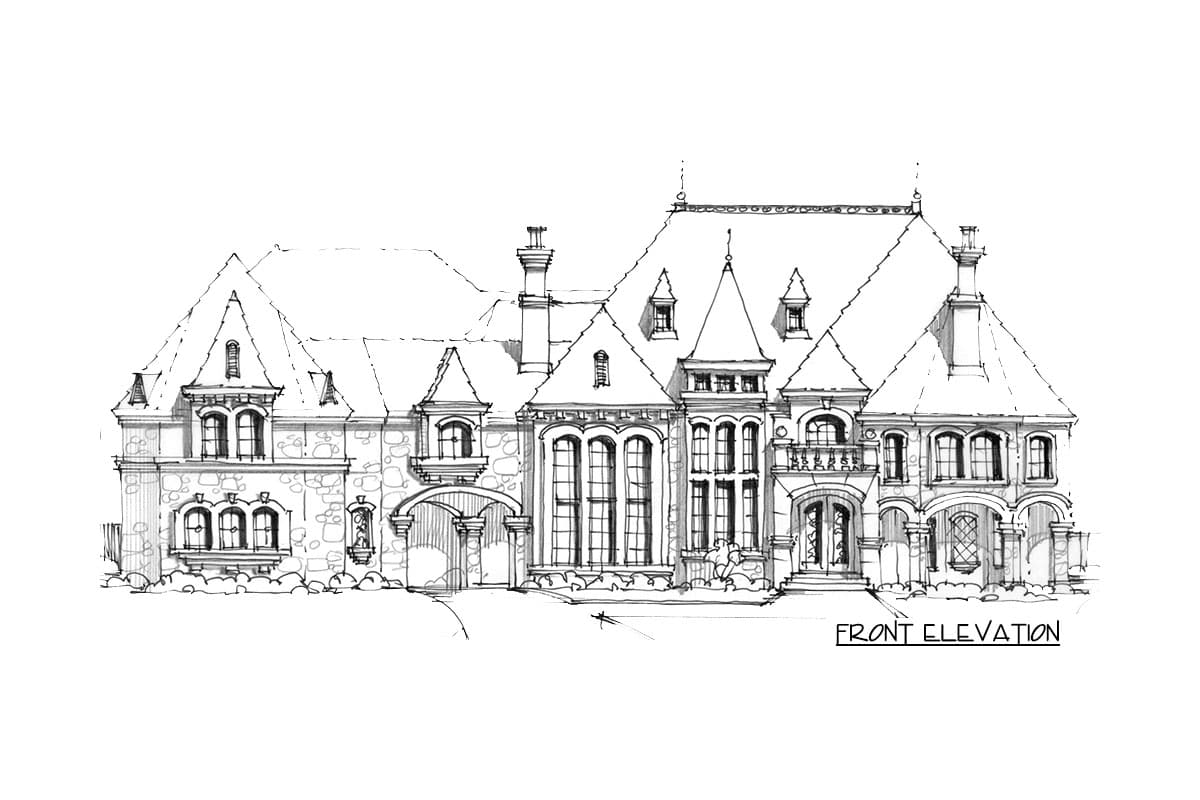

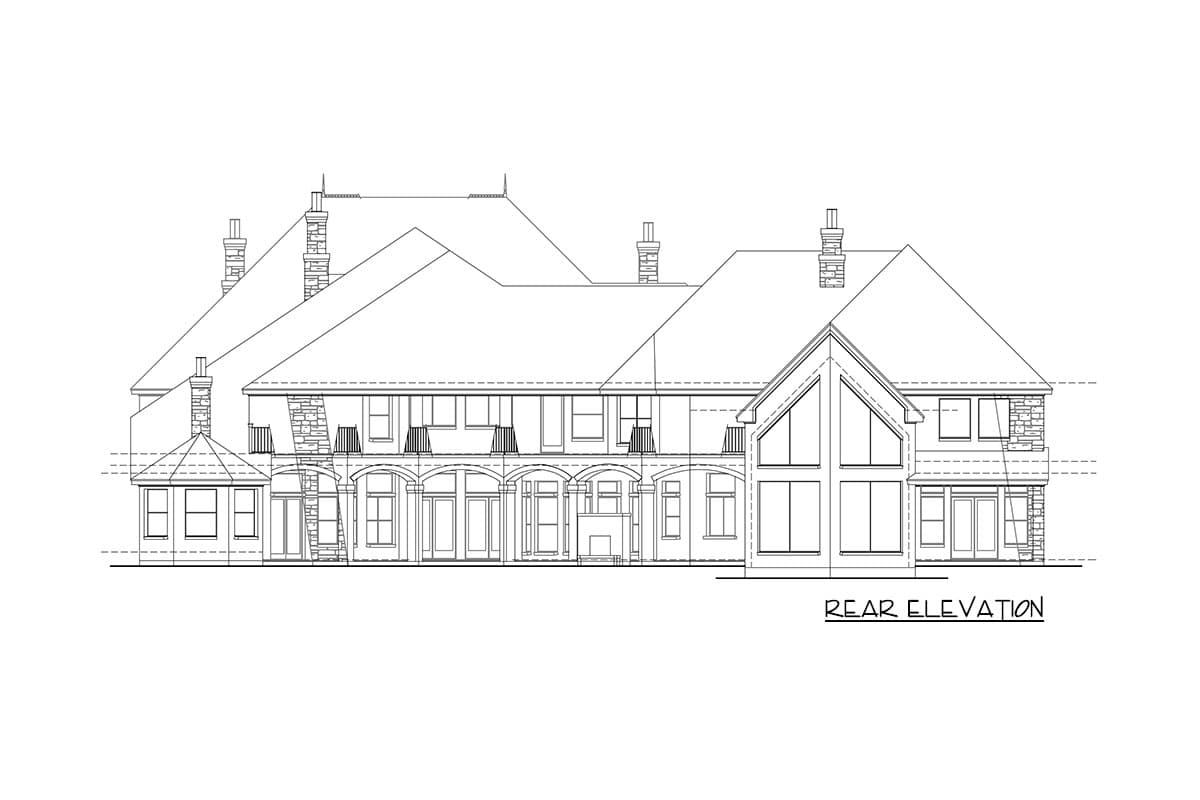

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

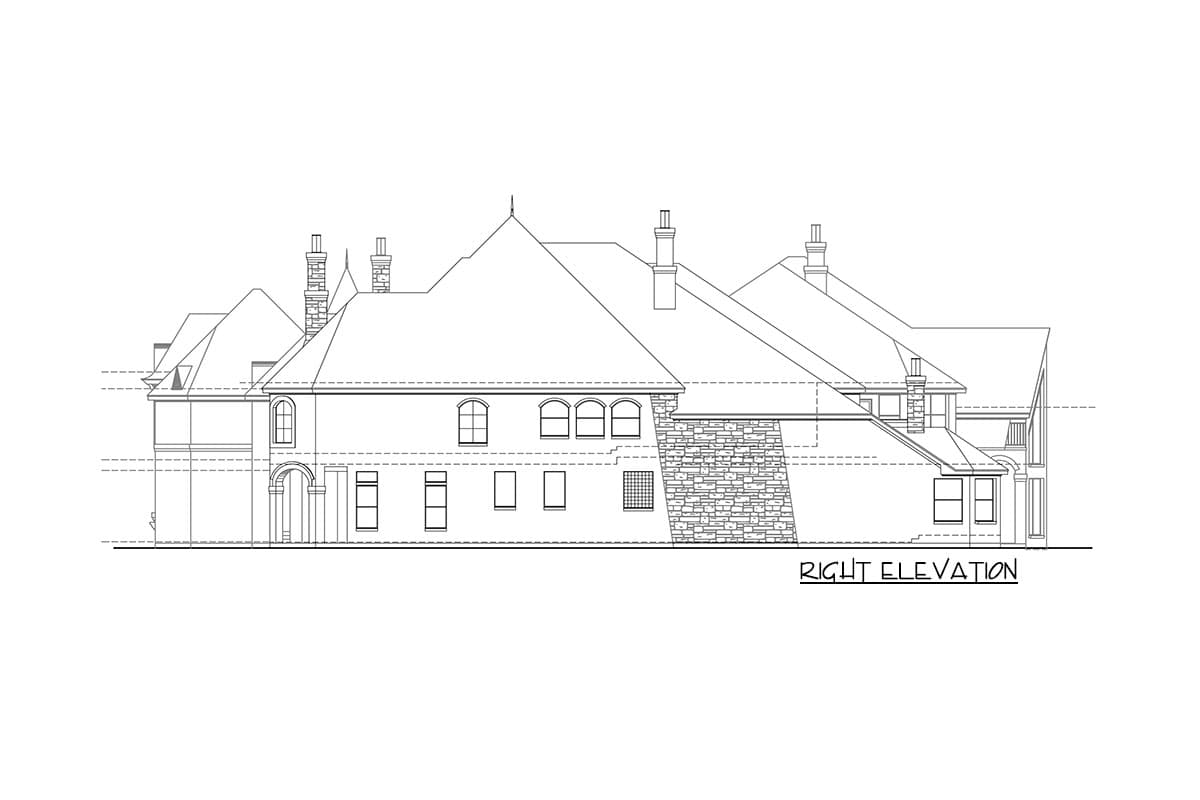

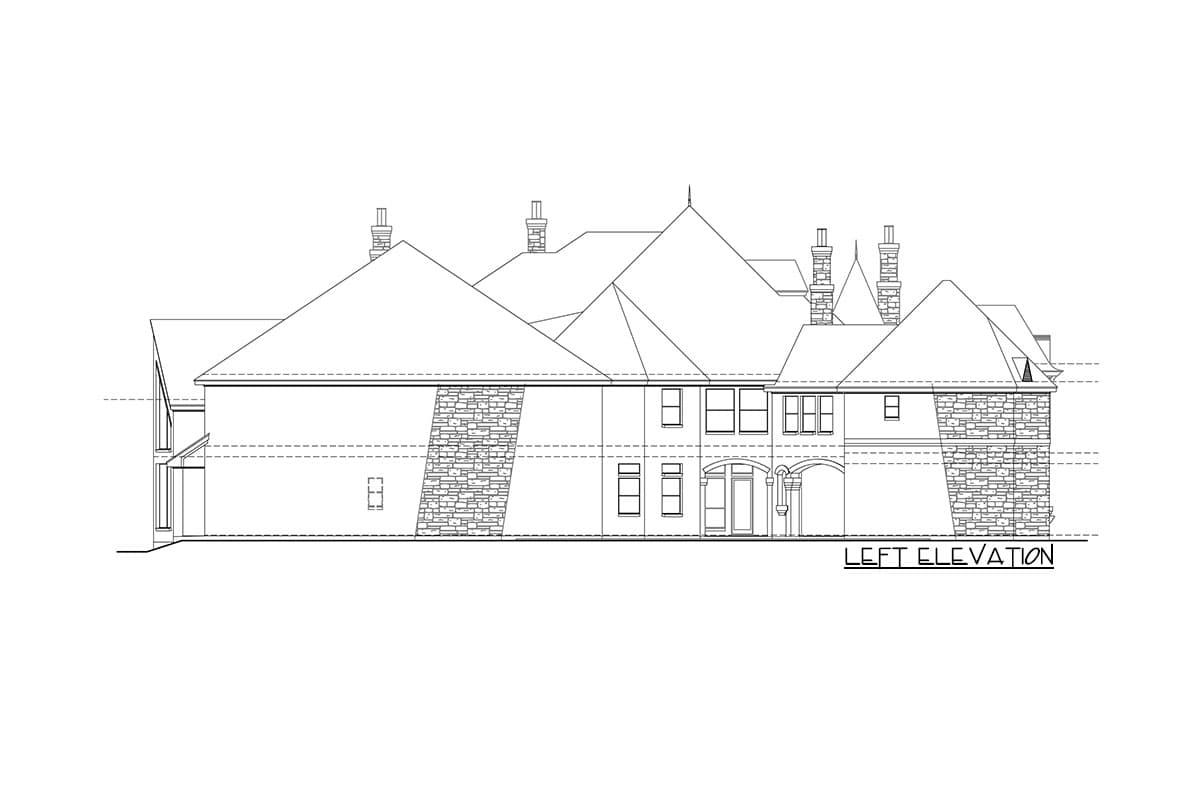

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

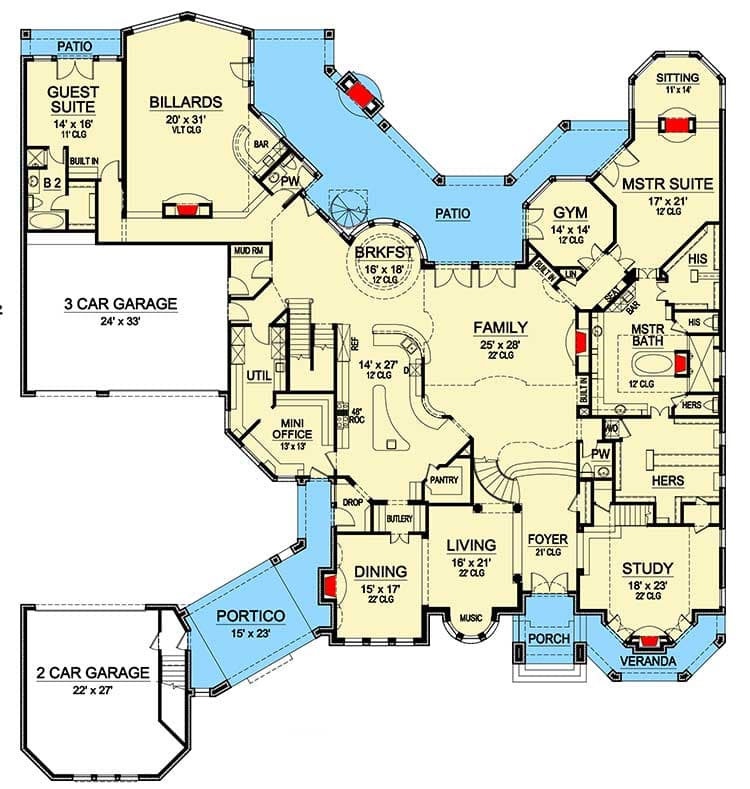

2-Story Ceilings Abound - 36353TX floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

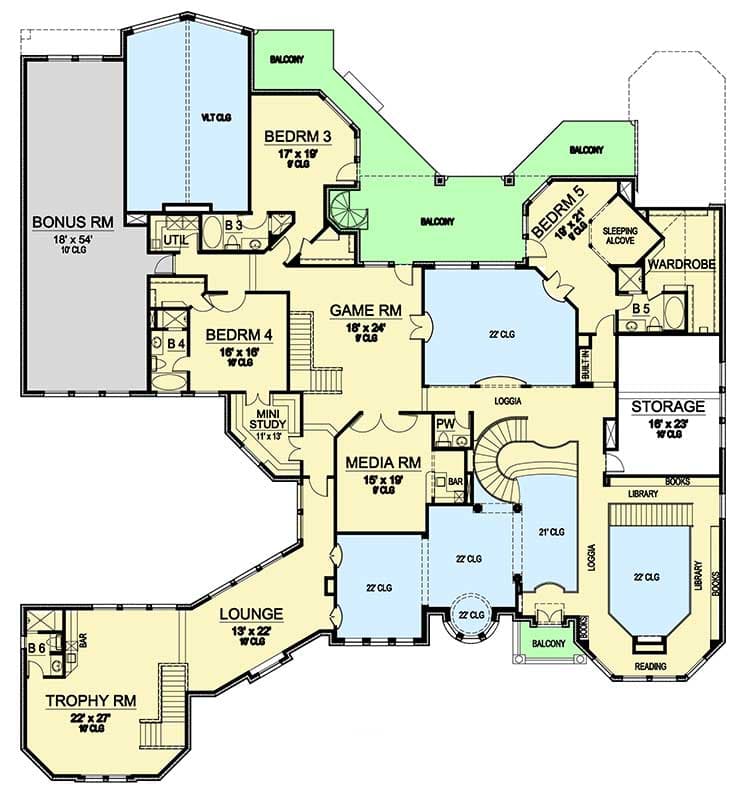

2-Story Ceilings Abound - 36353TX floor plan - Second Level

Wine Cellar

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story Ceilings Abound - 36353TX floor plan - Wine Cellar

Plan details

Square Footage Breakdown

  • Total Heated Area: 12,268 sq. ft.
  • Lower Level: 482 sq. ft.
  • 1st Floor: 6,815 sq. ft.
  • 2nd Floor: 4,971 sq. ft.
  • Bonus: 1,078 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 115' 0"
  • Depth: 126' 0"
  • Max ridge height: 47' 0"

Garage

  • Type: Attached
  • Area: 1627 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front, Rear

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 11' 0" Second Floor / 10' 0"
Room Type Height
Kitchen Flat 12' 0"
Master Bath Flat 12' 0"

Architectural Style

Special features

Plan Collections



2-Story Ceilings Abound

  • 12,268

    Heated s.f.

  • 5

    Beds

  • 8

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $9,995
  • CAD - Single-Build $10,195
  • 5 Sets $10,195
  • View all purchase option online

About This Plan

  • Steep roof lines and plenty of windows create a sophisticated aura around this 5 bedroom luxury home plan.
  • The spacious first-floor plan including a large patio with a fireplace, veranda, and guest suite balcony is great for entertaining family and friends.
  • You'll enjoy having the elegant master suite on the main floor. It provides privacy and relaxation with a special feature of a fireplace separating the suite and sitting area.
  • The chef's kitchen serves the dining room through the butler's pantry.
  • The library, like many rooms on this floor, has soaring 2-story ceilings. And the library stair gives you access to the upper loggia and yet another way to get upstairs.
  • The first level also features a fitness area and billiards.
  • The second floor boasts three-bedroom suites as well as a trophy room, media room, lounge, and bonus area.
  • An underground wine cellar lies underneath a small section of the home by the breakfast nook or you can choose to keep the foundation all slab.

Floor Plans

  • Main Level

  • Second Level

  • Wine Cellar

Plan Details

Square Footage Breakdown

  • Total Heated Area: 12,268 sq. ft.
  • Lower Level: 482 sq. ft.
  • 1st Floor: 6,815 sq. ft.
