Plan 86130BW
2-Story Coastal Contemporary House Plan with 2 Master Suites - 5570 Sq Ft
Heated S.F.
5,570
Beds
5
Baths
5.5+
Stories
2
Cars
3
Floor Plan

Plan 86130BW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 86130BW

1-800-854-7852

1-262-521-4596

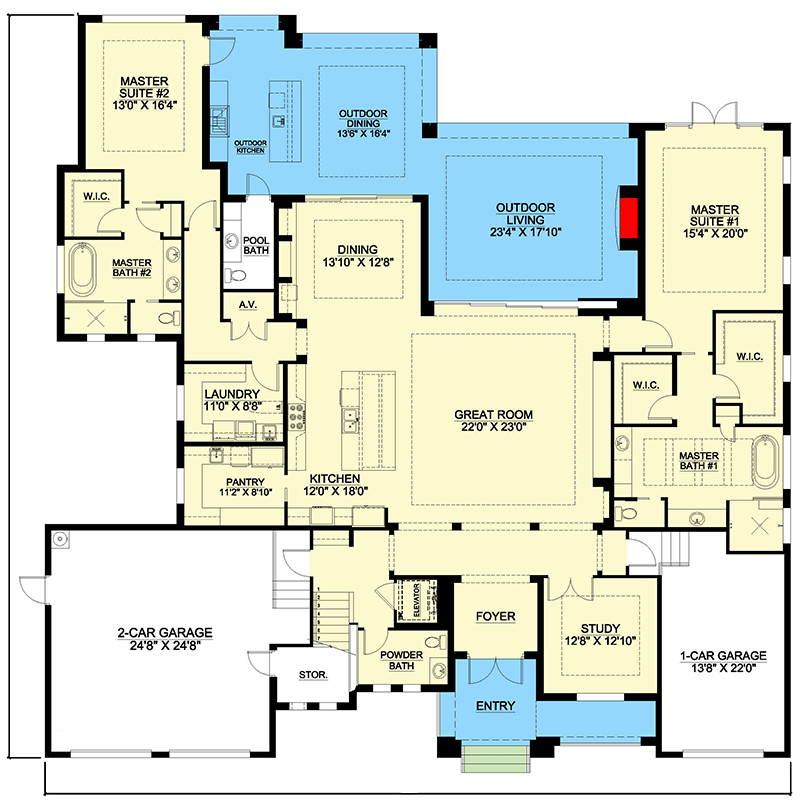

Main Level
floor plan image Main Level

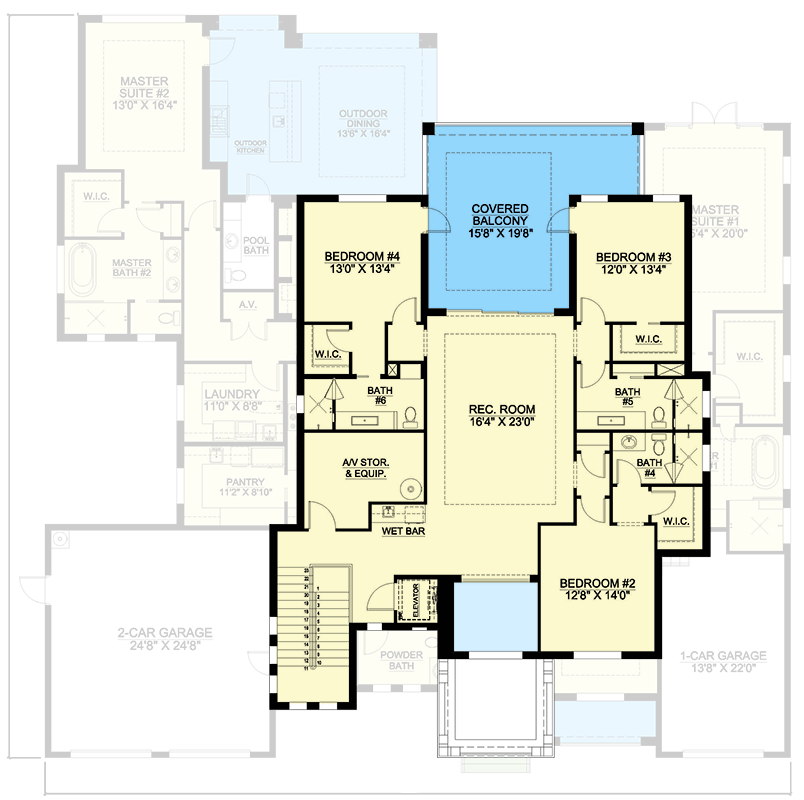

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-story coastal contemporary house plan gives you 5 bedrooms, 5 bathrooms, 2 half baths and 5570 square feet of heated living space. A total of 3 car garage spaces - divided between a 2-car and a 1-car garage - give you 1071 square feet of covered parking.
  • This home plan is designed with a slab foundation, concrete block exterior walls, flat cement roof tile and stucco/lap siding finish.
  • Main floor amenities include a great room open to the island kitchen, large walk-in pantry, dining room, study and a dedicated laundry room.
  • The master bedroom suite #1 features 2 walk-in closets, soaking tub, shower and dual sinks.  There is also another master suite that includes a walk-in closet, dual sinks, soaking tub and shower.
  • The lanai features a fireplace and an outdoor kitchen.
  • Upstairs, easily accessible by an elevator, includes a rec room, wet bar, 3 secondary bedrooms and baths and a large balcony.
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,570 sq. ft.

1st Floor

3,647 sq. ft.

2nd Floor

1,923 sq. ft.

Entry

183 sq. ft.

Balcony / Veranda

396 sq. ft.

Lanai

942 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

83' 0"

Depth

82' 8"

Max Ridge Height

29' 8"

Garage

Type

Attached

Area

1071 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

Square Footage Breakdown

Total Heated Area

5,570 sq. ft.

1st Floor

3,647 sq. ft.

2nd Floor

1,923 sq. ft.

Entry

183 sq. ft.

Balcony / Veranda

396 sq. ft.

Lanai

942 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

83' 0"

Depth

82' 8"

Max Ridge Height

29' 8"

Garage

Type

Attached

Area

1071 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss
