2 Story Craftsman Bungalow With Options

1,786 3 3 2 2
Pageloader

2 Story Craftsman Bungalow With Options

Plan 12733MA

  • 1,786

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

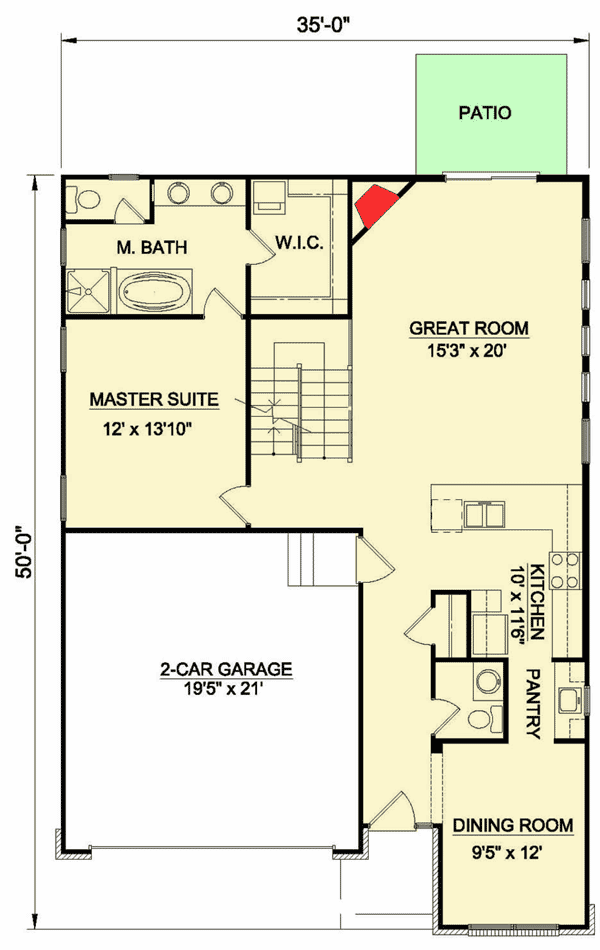

  • A well-equipped galley kitchen with a snack bar opens to the great room.
  • The formal dining room is connected to the kitchen by a butler's pantry
  • The master suite with luxury bath and walk-in closet is located on the main level for your convenience.

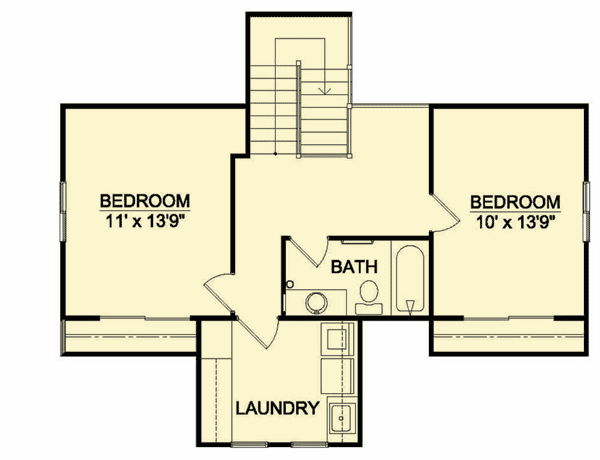

  • The stairway leads to the upper level where two generous bedrooms are located.
  • A large laundry room is conveniently located on the upper floor.
  • Related Plans: Get alternate exteriors with house plans 12732MA and 12734MA.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

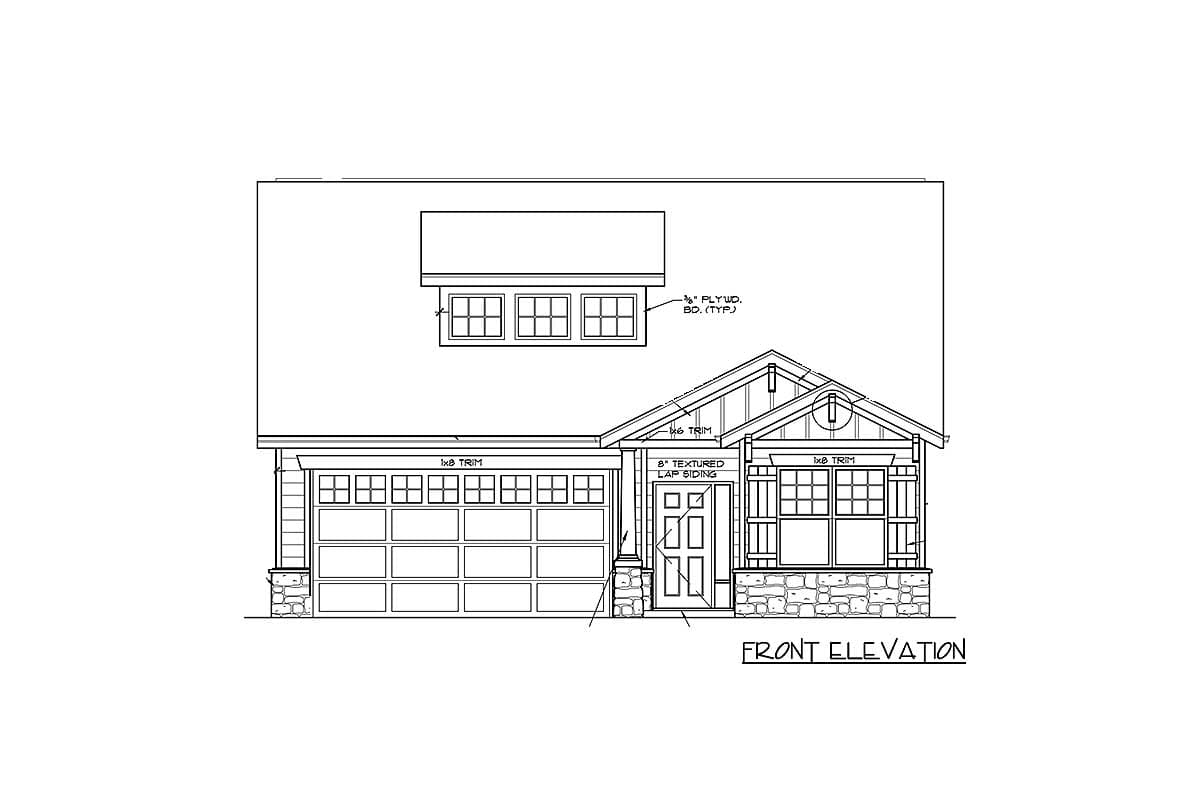

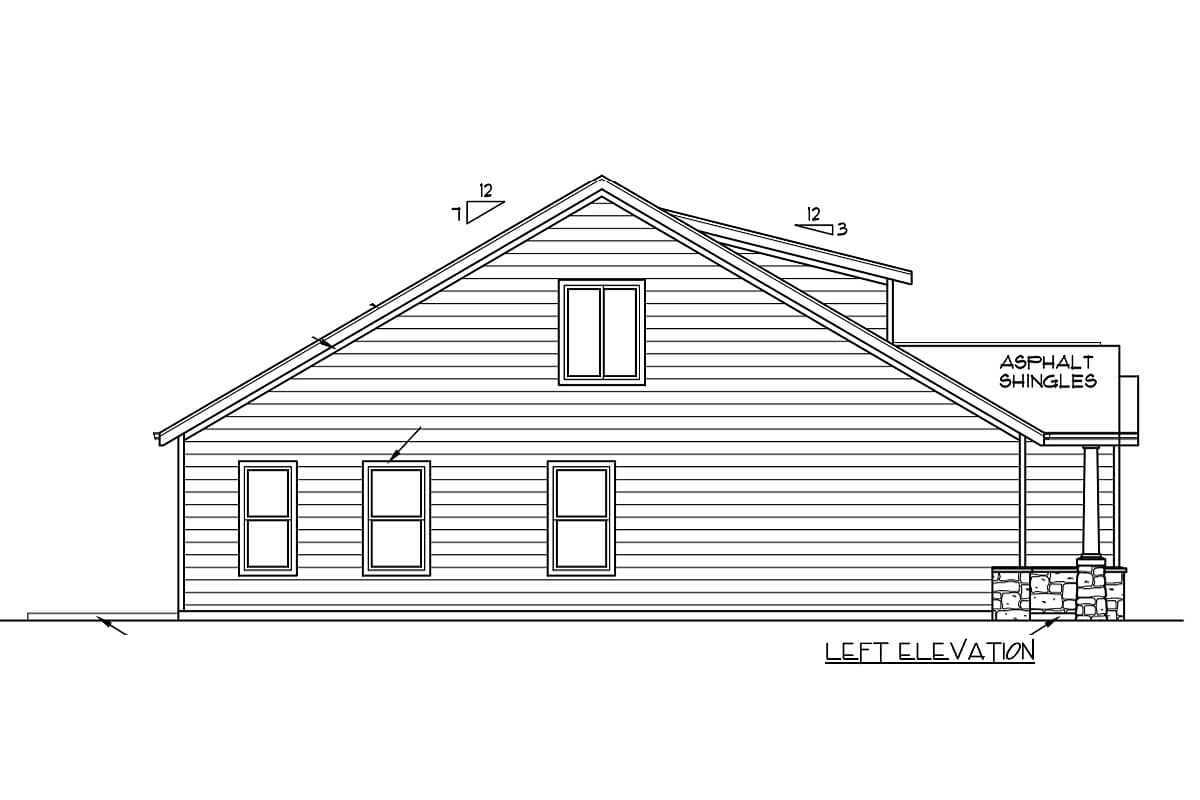

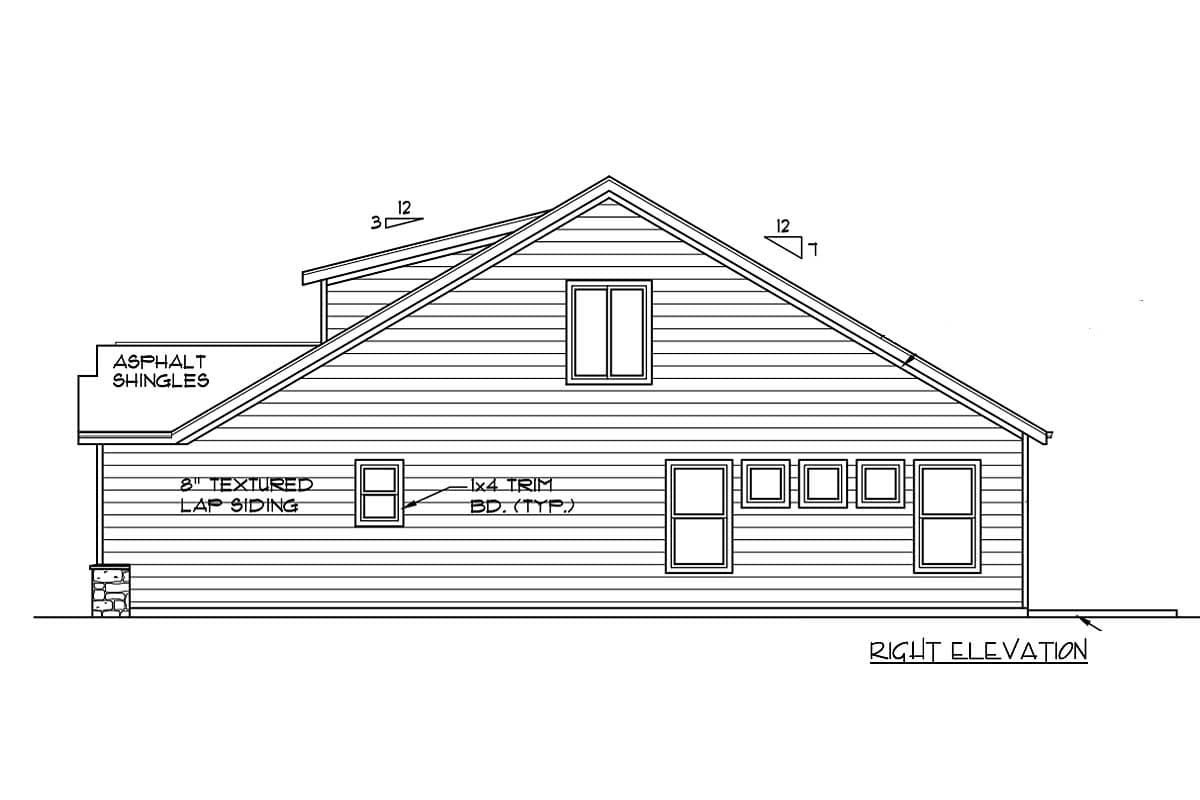

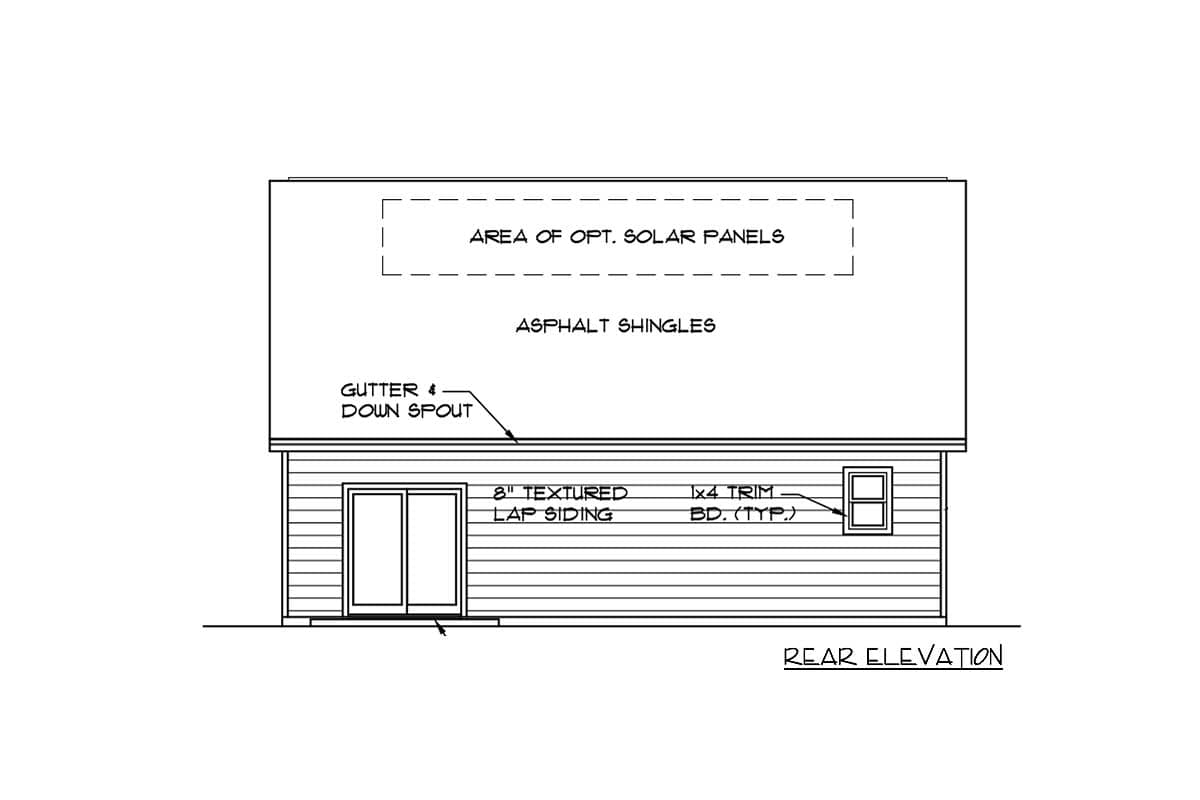

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations (when available)

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Plan details



2 Story Craftsman Bungalow With Options

  • 1,786

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $550
  • 8 Sets $635
  • Reproducible Set $900
  • PDF - single-use $900
  • CAD $1,100
  • View all purchase option online

About This Plan

  • A well-equipped galley kitchen with a snack bar opens to the great room.
  • The formal dining room is connected to the kitchen by a butler's pantry
  • The master suite with luxury bath and walk-in closet is located on the main level for your convenience.
  • The stairway leads to the upper level where two generous bedrooms are located.
  • A large laundry room is conveniently located on the upper floor.
  • Related Plans: Get alternate exteriors with house plans 12732MA and 12734MA.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,786 sq. ft.
  • 1st Floor: 1,196 sq. ft.
  • 2nd Floor: 560 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 50' 0"
  • Max ridge height: 17' 10"

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Bungalow
  • Cottage
  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • PDF
