Plan 42728DB

2-Story Duplex with Matching 2045 Square Foot Units with Flex Room

Heated S.F.
4,090
Units
2
Width
Depth

Floor Plan

Plan 42728DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42728DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

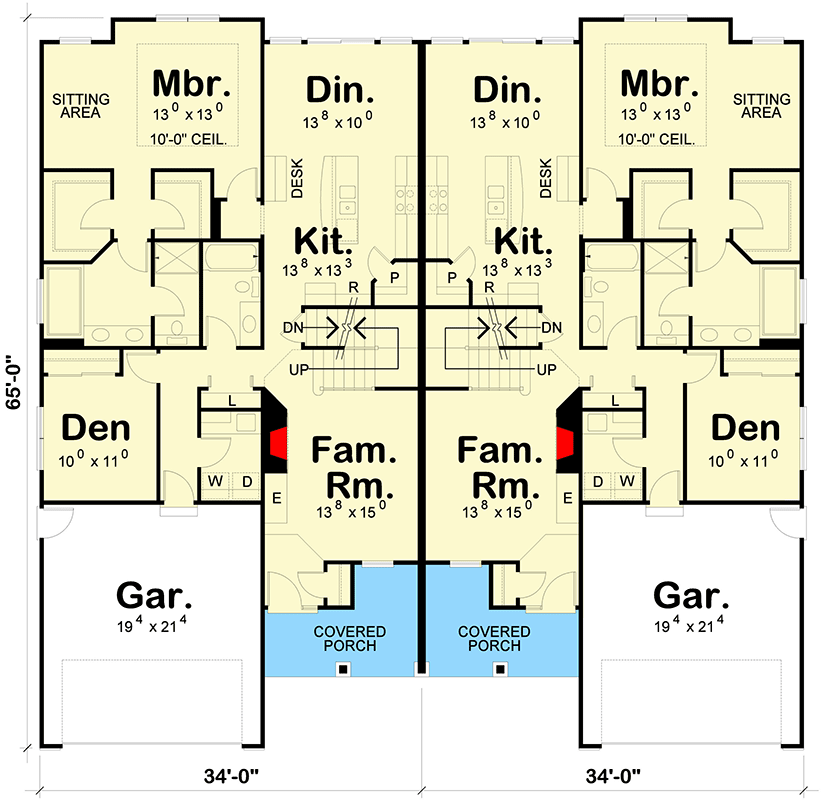

Plan 42728DB: 2-Story Duplex with Matching 2045 Square Foot Units with Flex Room - Floor Plan - Main Level - Craftsman, New American, Northwest

2nd Floor

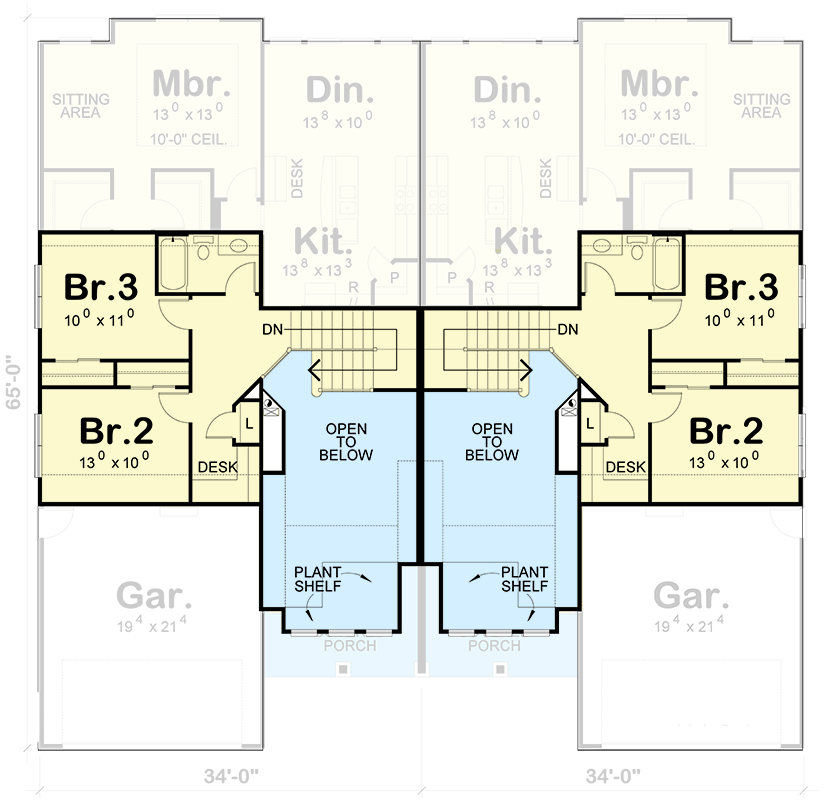

Plan 42728DB: 2-Story Duplex with Matching 2045 Square Foot Units with Flex Room - Floor Plan - 2nd Floor - Craftsman, New American, Northwest

Plan Details

  • This 2-story duplex house plan gives you side-by-side 2,045 square foot units with 1,542 square feet on the first floor and 503 square feet on the upper floor.
  • The units are attached with the garages in the middle - 2 cars, 430 square foot each - maximizing your privacy.
  • A den off the foyer has a closet and access to a full bath across the hall, making it possible to use this room as a fourth bedroom.
Unit A
Heated Area
2,045Sq. Ft.
1542 Sq. Ft. 1st
503 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
430 Sq. Ft.
Dimensions
34'width
68'depth
25'height
Unfinished Areas
430 Sq. Ft. Garage
Unit B
Heated Area
2,045Sq. Ft.
1542 Sq. Ft. 1st
503 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
430 Sq. Ft.
Dimensions
34'width
68'depth
25'height
Unfinished Areas
430 Sq. Ft. Garage

What's Included

  • General Notes

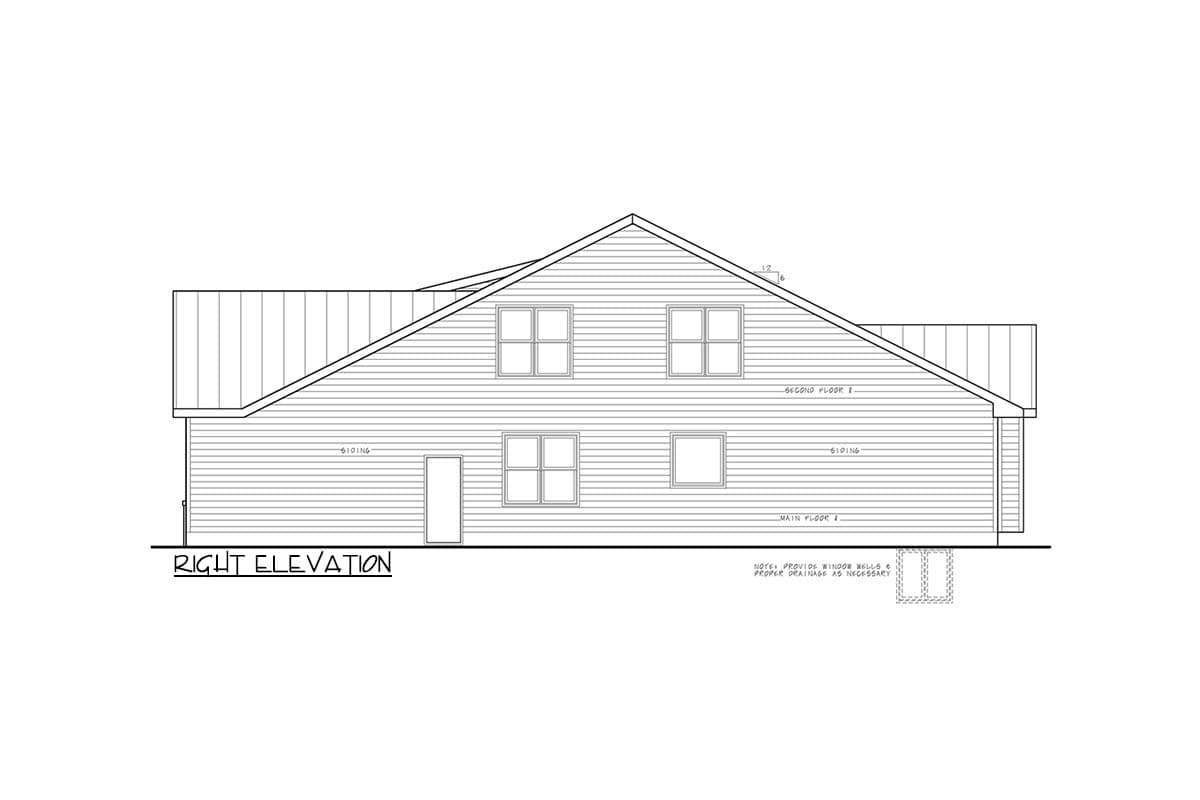

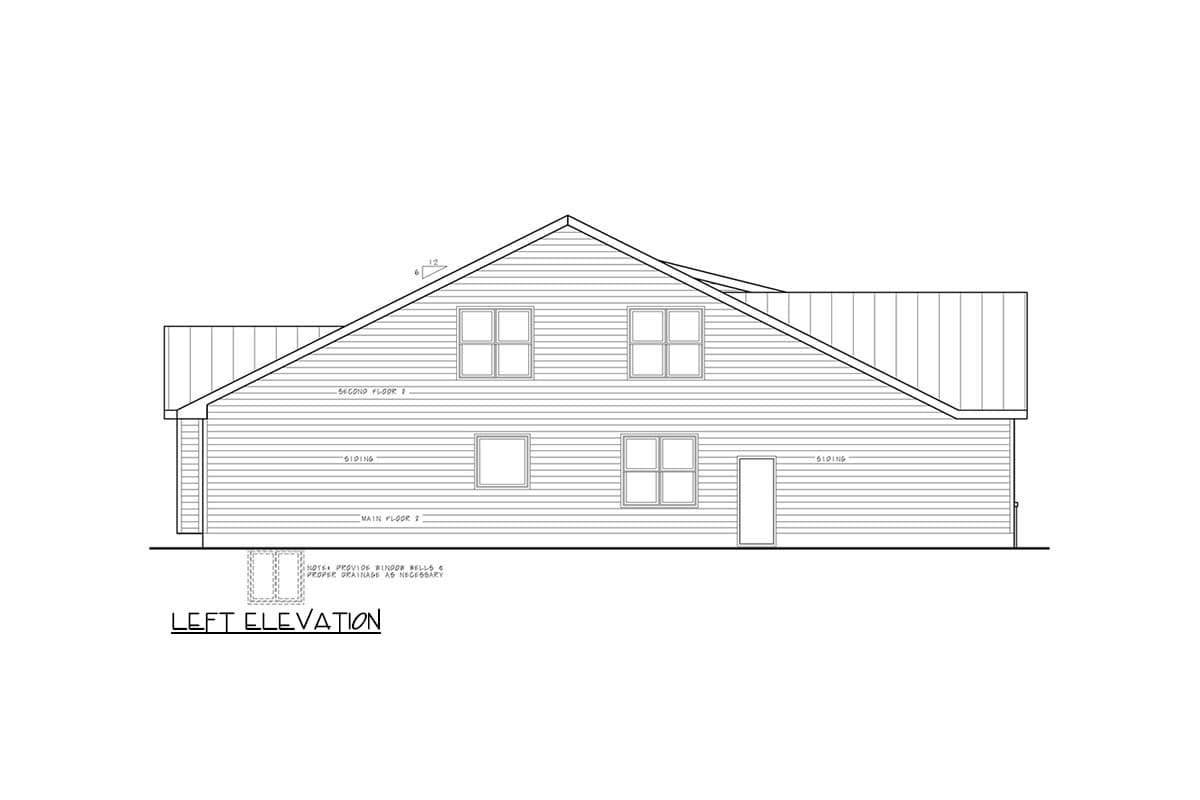

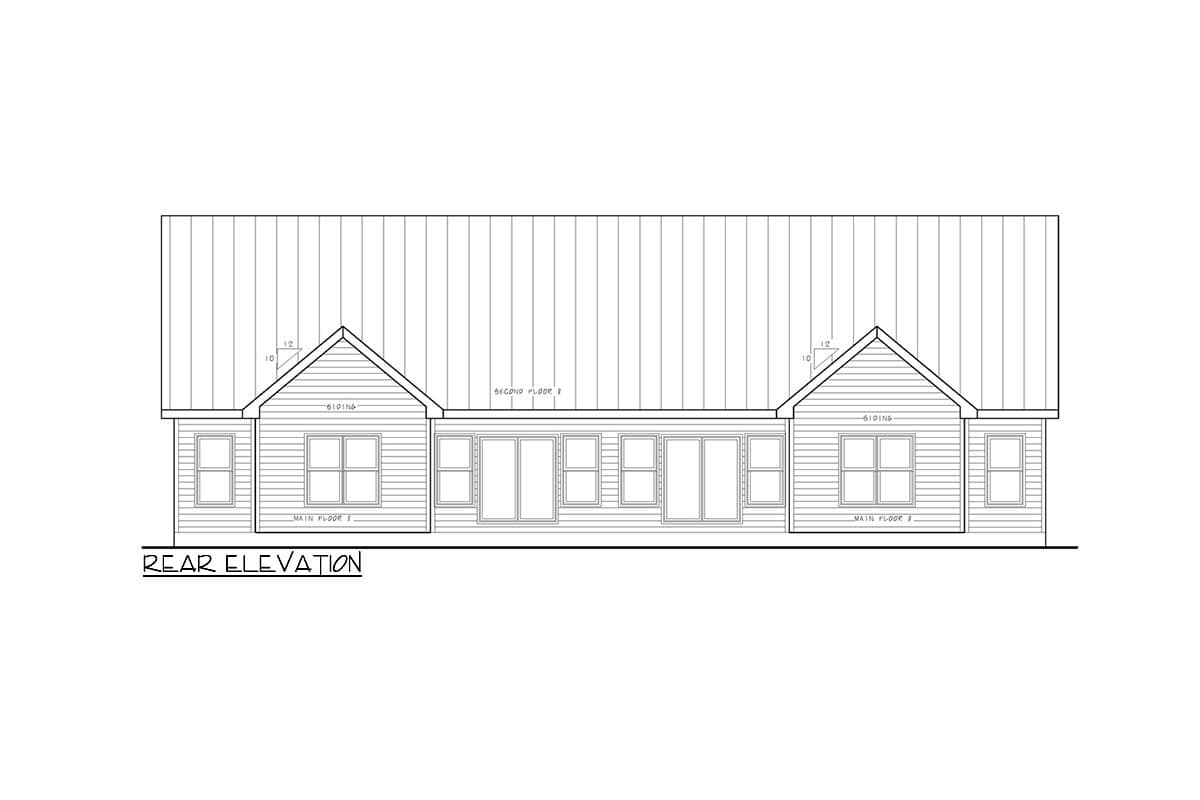

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,090 sq. ft.

1st Floor

3,084 sq. ft.

2nd Floor

1,006 sq. ft.

Porch, Front

364 sq. ft.

Beds/Baths

Bedrooms

6, 7, or 8

Full bathrooms

6

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

65' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

430 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

New American

Northwest

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

4,090 sq. ft.

1st Floor

3,084 sq. ft.

2nd Floor

1,006 sq. ft.

Porch, Front

364 sq. ft.

Beds/Baths

Bedrooms

6, 7, or 8

Full bathrooms

6

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

65' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

430 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

New American

Northwest

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
