Plan 710060BTZ

2-Story House Plan with Craftsman Accents

Pageloader

2-Story House Plan with Craftsman Accents

Plan 710060BTZ

  • 2,338

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • The façade of this 2-story house plan is eye-catching and original with its unique windows, battered columns, and varied exterior materials. Its Craftsman accents create a casual and welcoming feel from the street.
  • Its main floor houses the master suite, as well as an additional bedroom that makes an ideal guest bedroom with a bath in close proximity.
  • A vaulted breakfast area connects to the kitchen, complete with double ovens and a serving bar.
  • Additional niceties include an arched opening leading to the family room from the foyer and a linen closet in the master suite.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



2-Story House Plan with Craftsman Accents

  • 2,338

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,490
  • Reproducible Set $1,565
  • CAD - multi-use $2,850
  • View all purchase option online

About This Plan

  • The façade of this 2-story house plan is eye-catching and original with its unique windows, battered columns, and varied exterior materials. Its Craftsman accents create a casual and welcoming feel from the street.
  • Its main floor houses the master suite, as well as an additional bedroom that makes an ideal guest bedroom with a bath in close proximity.
  • A vaulted breakfast area connects to the kitchen, complete with double ovens and a serving bar.
  • Additional niceties include an arched opening leading to the family room from the foyer and a linen closet in the master suite.

Floor Plans

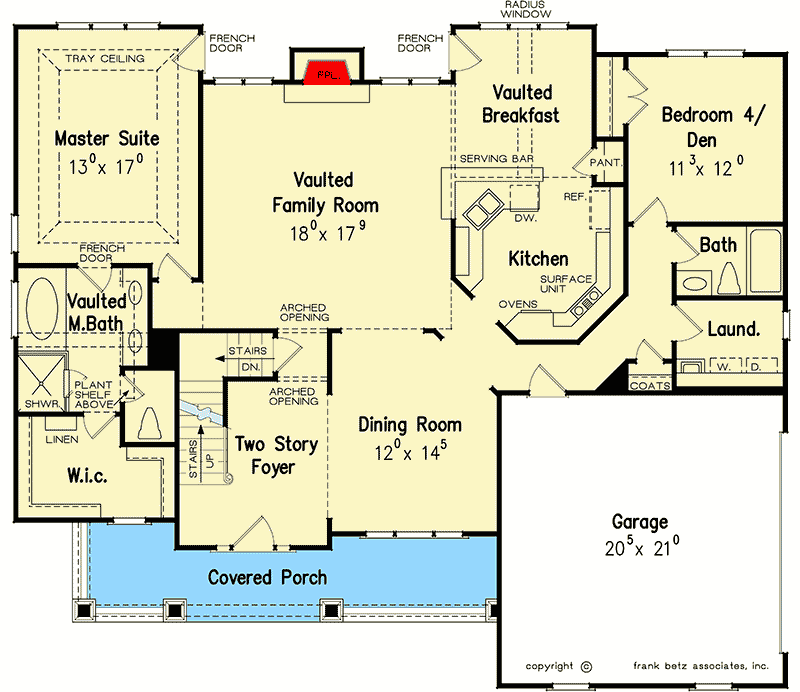

  • Main Level

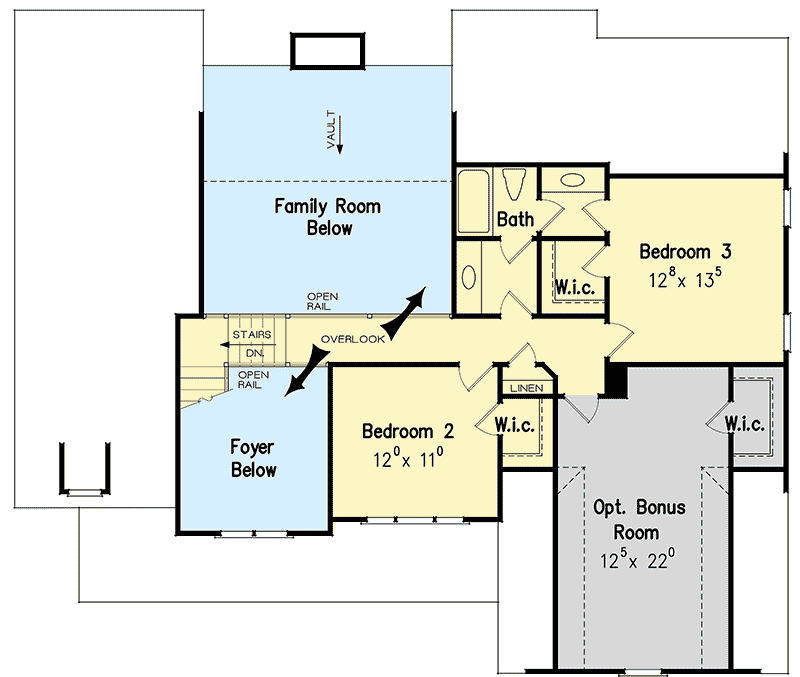

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,338 sq. ft.
  • 1st Floor: 1,761 sq. ft.
  • 2nd Floor: 577 sq. ft.
  • Bonus: 305 sq. ft.
  • Basement Unfinished: 1,761 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 56' 0"
  • Depth: 48' 0"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
