Plan 89891AH
2 Story Tudor With Northwest Touch
Heated S.F.
3,043
Beds
4
Baths
2.5
Stories
2
Cars
3
Videos
What's Included
Plan Details
  • Tudor style is combined with a Northwest hint to make this 2-story home plan a winner.
  • A spacious great room with 2-story ceiling draws you into the main living area of the home where a see-through fireplace opens to the kitchen and dining areas.
  • The main floor master suite is found to the right of the home and includes a spacious walk-in closet, dual sinks and 10-foot ceiling.
  • Upstairs, you'll find three additional bedrooms, each with a walk-in closet and private bath.
  • A 3-stall garage completes the house plan.
  • VIDEO: See this house plan from all angles in our YouTube video.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2 Story Tudor With Northwest Touch

  • 3,043

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

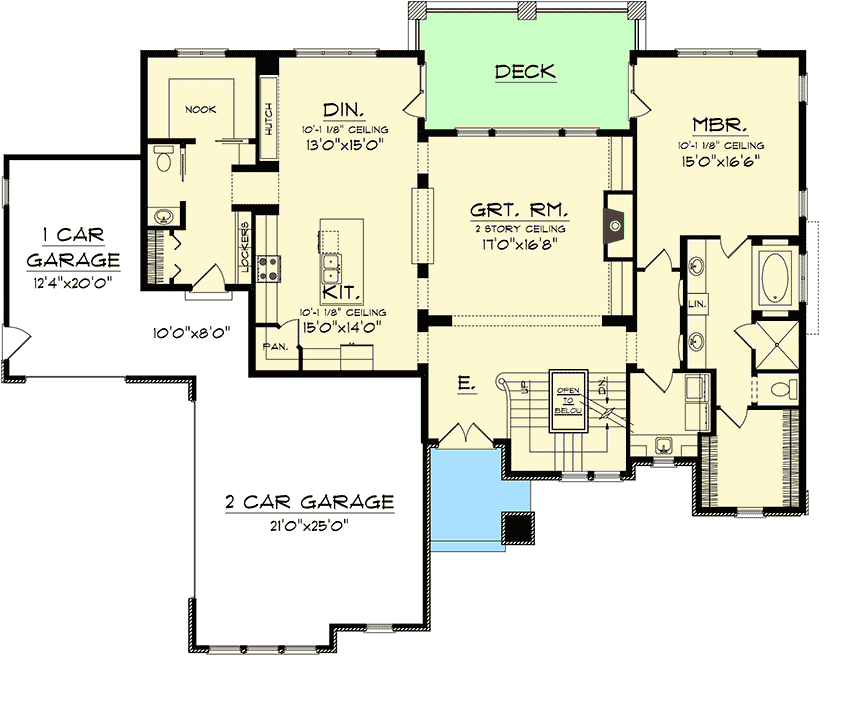

  • Main Level

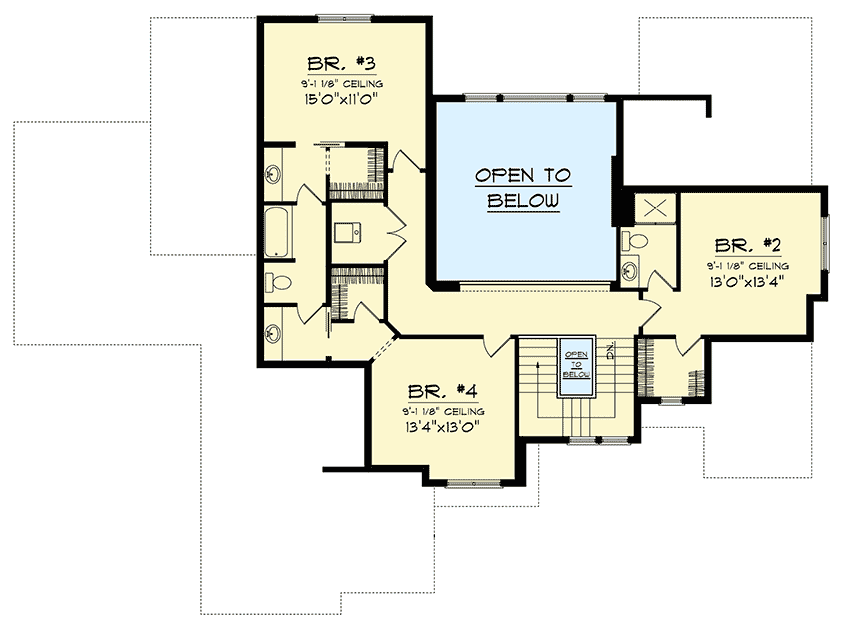

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,043 sq. ft.
  • 1st Floor: 1,950 sq. ft.
  • 2nd Floor: 1,093 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 55' 4"
  • Max ridge height: 30' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 874 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
