Plan 83121DC

2 Unit Townhouse With 2 Car Garage - 1795 Sq Ft 3 Bed Units

Heated S.F.
3,752
Units
2
Width
Depth

Floor Plan

Plan 83121DC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 83121DC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

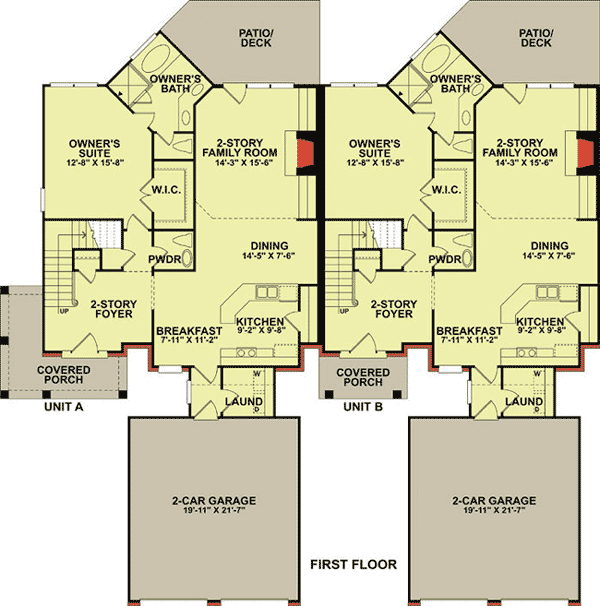

Plan 83121DC: 2 Unit Townhouse With 2 Car Garage - 1795 Sq Ft 3 Bed Units - Floor Plan - Main Level - Traditional

2nd Floor

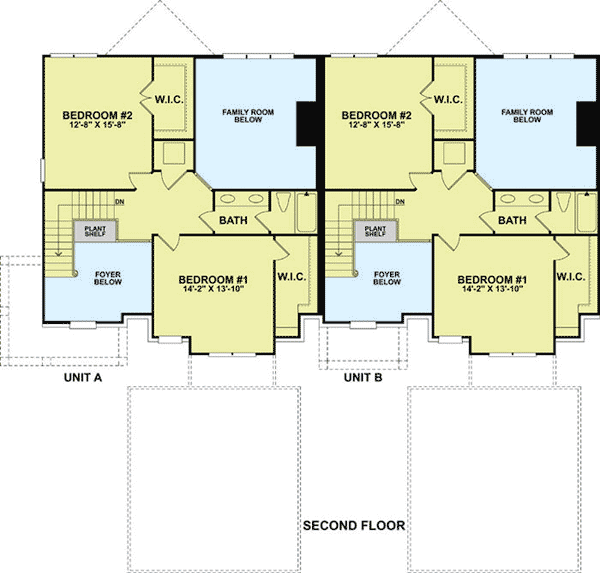

Plan 83121DC: 2 Unit Townhouse With 2 Car Garage - 1795 Sq Ft 3 Bed Units - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This is a 2 unit townhouse design with each 2-story unit consisting of 3 bedrooms and 2 full and 1 half bath.
  • First floor of each unit is 1,186 sq. ft. and the second floor is 690 sq. ft. each.
  • Each unit has its own 2 car garage and rear deck.
  • The roof pitch is 10:12.



Unit A
Heated Area
1,795Sq. Ft.
1186 Sq. Ft. 1st
690 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
430 Sq. Ft.
Dimensions
33' 2"width
61' 8"depth
Unfinished Areas
430 Sq. Ft. Garage
Unit B
Heated Area
1,795Sq. Ft.
1186 Sq. Ft. 1st
690 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
430 Sq. Ft.
Dimensions
33' 2"width
61' 8"depth
Unfinished Areas
430 Sq. Ft. Garage

What's Included

  • Foundation plan
  • Floor plans with electrical
  • Elevations
  • Cross sections
  • Firewall and other details
  • Roof Plan
  • Floor framing plans for each floor
  • Ceiling framing Plan
  • Rafter plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,752 sq. ft.

1st Floor

2,372 sq. ft.

2nd Floor

1,380 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 4"

Depth

61' 8"

Garage

Type

Attached

Area

860 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,752 sq. ft.

1st Floor

2,372 sq. ft.

2nd Floor

1,380 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 4"

Depth

61' 8"

Garage

Type

Attached

Area

860 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
