Plan 83122DC

2 Unit Townhouse With Bonus Room - 2212 Sq Ft 3 Bedroom Units

Heated S.F.
4,424
Units
2
Width
Depth

Floor Plan

Plan 83122DC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 83122DC

M-F 9am-5pm EST |

1-203-761-8500

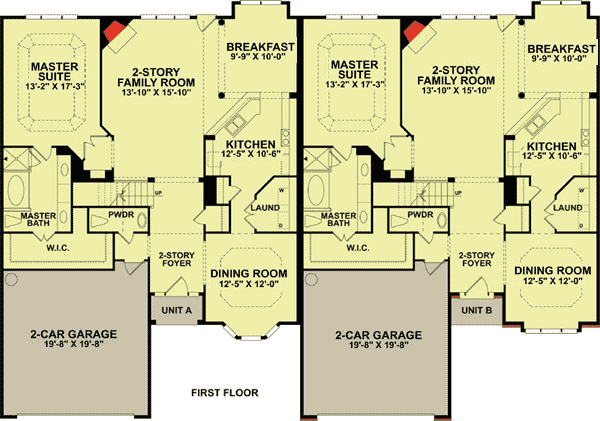

Main Level

Plan 83122DC: 2 Unit Townhouse With Bonus Room - 2212 Sq Ft 3 Bedroom Units - Floor Plan - Main Level - Traditional

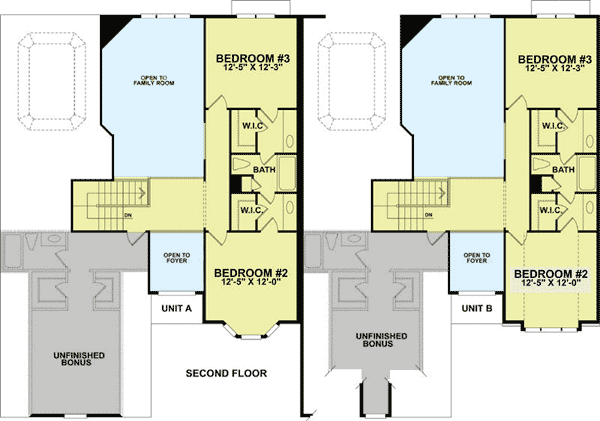

2nd Floor

Plan 83122DC: 2 Unit Townhouse With Bonus Room - 2212 Sq Ft 3 Bedroom Units - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This is a 2 unit townhouse design with options for bonus rooms.
  • Each unit has 3 bedrooms and 2 full baths.
  • Each unit has a first floor with 1,574 sq. ft. and a second floor of 638 sq. ft.
  • The roof pitch is 8:12.
Unit A
Heated Area
2,212Sq. Ft.
1574 Sq. Ft. 1st
638 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
387 Sq. Ft.
Dimensions
41'width
57'depth
Unfinished Areas
387 Sq. Ft. Garage
Unit B
Heated Area
2,212Sq. Ft.
1574 Sq. Ft. 1st
638 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
387 Sq. Ft.
Dimensions
41'width
57'depth
Unfinished Areas
387 Sq. Ft. Garage

What's Included

  • Foundation plan
  • Floor plans with electrical
  • Elevations
  • Cross sections
  • Firewall and other details
  • Roof Plan
  • Floor framing plans for each floor
  • Ceiling framing Plan
  • Rafter plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,424 sq. ft.

1st Floor

3,148 sq. ft.

2nd Floor

1,276 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

82' 0"

Depth

57' 0"

Garage

Type

Attached

Area

774 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Square Footage Breakdown

Total Heated Area

4,424 sq. ft.

1st Floor

3,148 sq. ft.

2nd Floor

1,276 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

82' 0"

Depth

57' 0"

Garage

Type

Attached

Area

774 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room
