Plan 83648CRW 2100 Square Foot Traditional Country Home Plan with Front-Facing Garage

2,158 3 2 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2100 Square Foot Traditional Country Home Plan with Front-Facing Garage

Plan 83648CRW

  • 2,158

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

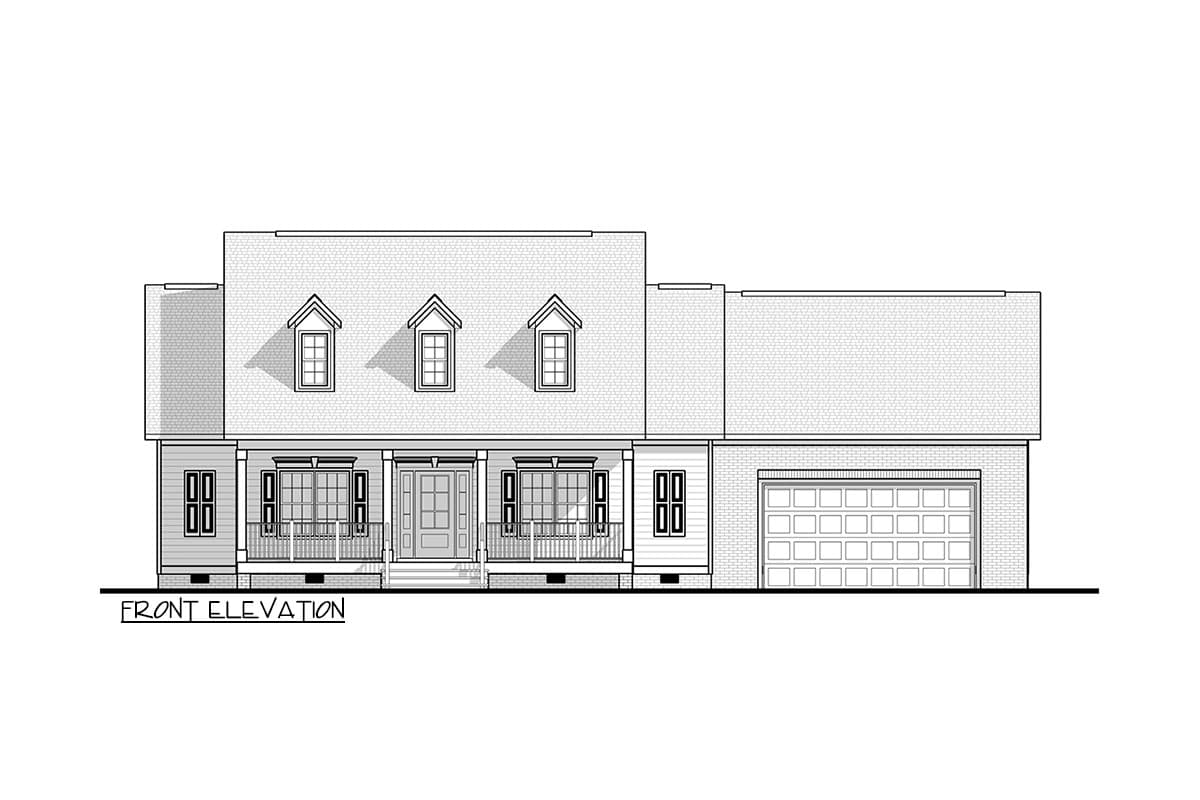

  • Three false dormers above an 8'-deep front porch give this 2,158 square foot house plan traditional country house plan apppeal
    A 2-car front-facing garage has a brick exterior and gives you 560 square feet of parking inside.
  • The family room, kitchen, and breakfast nook merge together to present a desirable open-concept living space. The kitchen island anchors the open and airy space, and a nearby pantry provides ample room for storage.
  • Enjoy meals with family and friends in the intimate dining room with views overlooking the front porch.
  • The owner's bedroom is privately situated behind the double garage and includes a 5-fixture bathroom with pocket-door access to the toilet room. The laundry room is conveniently located next door.
  • Two family bedrooms can be found on the opposite side of the home and share the hall bath.
  • Related Plan: Get an alternate elevation with house plan 83625CRW.

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

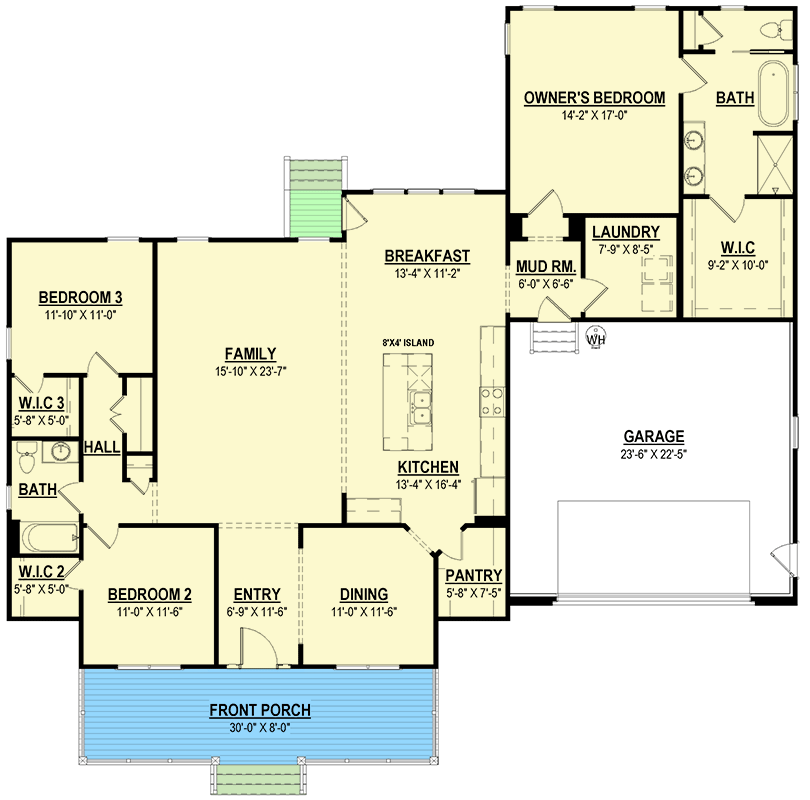

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2100 Square Foot Traditional Country Home Plan with Front-Facing Garage - 83648CRW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,158 sq. ft.
  • 1st Floor: 2,158 sq. ft.
  • Porch, Front: 240 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 66' 0"
  • Depth: 55' 4"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

2100 Square Foot Traditional Country Home Plan with Front-Facing Garage

  • 2,158

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets + PDF $1,695
  • View all purchase option online

About This Plan

  • Three false dormers above an 8'-deep front porch give this 2,158 square foot house plan traditional country house plan apppeal
    A 2-car front-facing garage has a brick exterior and gives you 560 square feet of parking inside.
  • The family room, kitchen, and breakfast nook merge together to present a desirable open-concept living space. The kitchen island anchors the open and airy space, and a nearby pantry provides ample room for storage.
  • Enjoy meals with family and friends in the intimate dining room with views overlooking the front porch.
  • The owner's bedroom is privately situated behind the double garage and includes a 5-fixture bathroom with pocket-door access to the toilet room. The laundry room is conveniently located next door.
  • Two family bedrooms can be found on the opposite side of the home and share the hall bath.
  • Related Plan: Get an alternate elevation with house plan 83625CRW.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,158 sq. ft.
  • 1st Floor: 2,158 sq. ft.
  • Porch, Front: 240 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 66' 0"
  • Depth: 55' 4"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
