2106 Square Foot One-Story 4-Bed House Plan

Plan 82319KA

  • 2,106

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 1

    Cars

  • This 4 bed, 3 bath house plan gives you 2,106 square feet of heated living space and has a stucco and stone exterior.
  • Two bedrooms are located off the entry and share a hall bath and the remaining ones - each ensuite - line the left side of the home.
  • An open concept layout gives you the kitchen, dining room and great room front to back.
  • Sliding doors on the back wall of the living room take you to a covered lanai.
  • Related Plan: Get an alternate exterior with house plan 82318KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

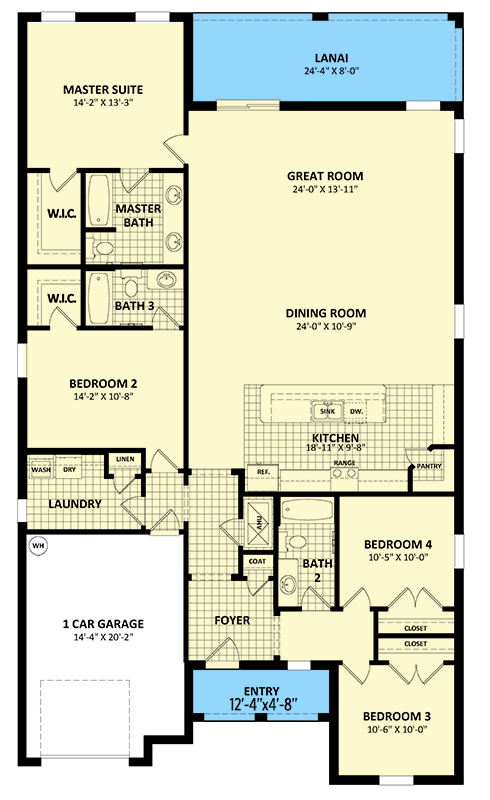

2106 Square Foot One-Story 4-Bed House Plan - 82319KA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,106 sq. ft.
  • 1st Floor: 2,106 sq. ft.
  • Porch, Rear: 195 sq. ft.
  • Porch, Front: 58 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 40' 0"
  • Depth: 69' 4"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 312 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Special features

2106 Square Foot One-Story 4-Bed House Plan

  • 2,106

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $2,300
  • PDF - Single-Build $2,700
  • CAD - Single-Build $2,700
  • View all purchase option online

About This Plan

  • This 4 bed, 3 bath house plan gives you 2,106 square feet of heated living space and has a stucco and stone exterior.
  • Two bedrooms are located off the entry and share a hall bath and the remaining ones - each ensuite - line the left side of the home.
  • An open concept layout gives you the kitchen, dining room and great room front to back.
  • Sliding doors on the back wall of the living room take you to a covered lanai.
  • Related Plan: Get an alternate exterior with house plan 82318KA.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,106 sq. ft.
  • 1st Floor: 2,106 sq. ft.
  • Porch, Rear: 195 sq. ft.
  • Porch, Front: 58 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 40' 0"
  • Depth: 69' 4"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 312 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
Plan 82319KA
