Plan 62901DJ

22'-Wide House Plan for the Very Narrow Lot

Heated S.F.
1,848
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 62901DJ

Main Level
Main Level

Plan 62901DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

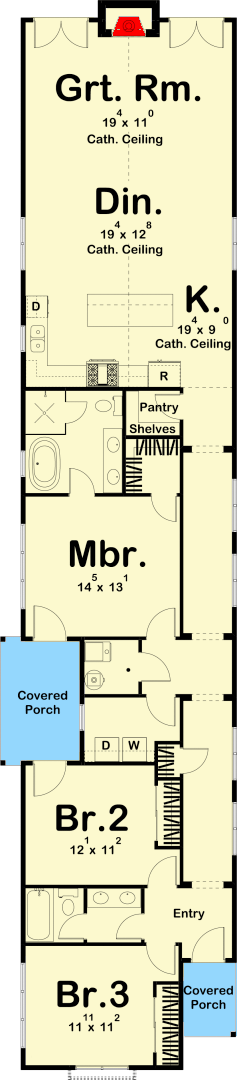

Plan 62901DJ: 22'-Wide House Plan for the Very Narrow Lot - Floor Plan - Main Level - Country

Plan Details

  • If you've been challenged with the task of building on a narrow strip of property, this efficient 22'-wide home plan is perfect for you. Whether you are building on an infill lot or trying to replace an older house in an urban environment, this plan accommodates even the narrowest of lots.

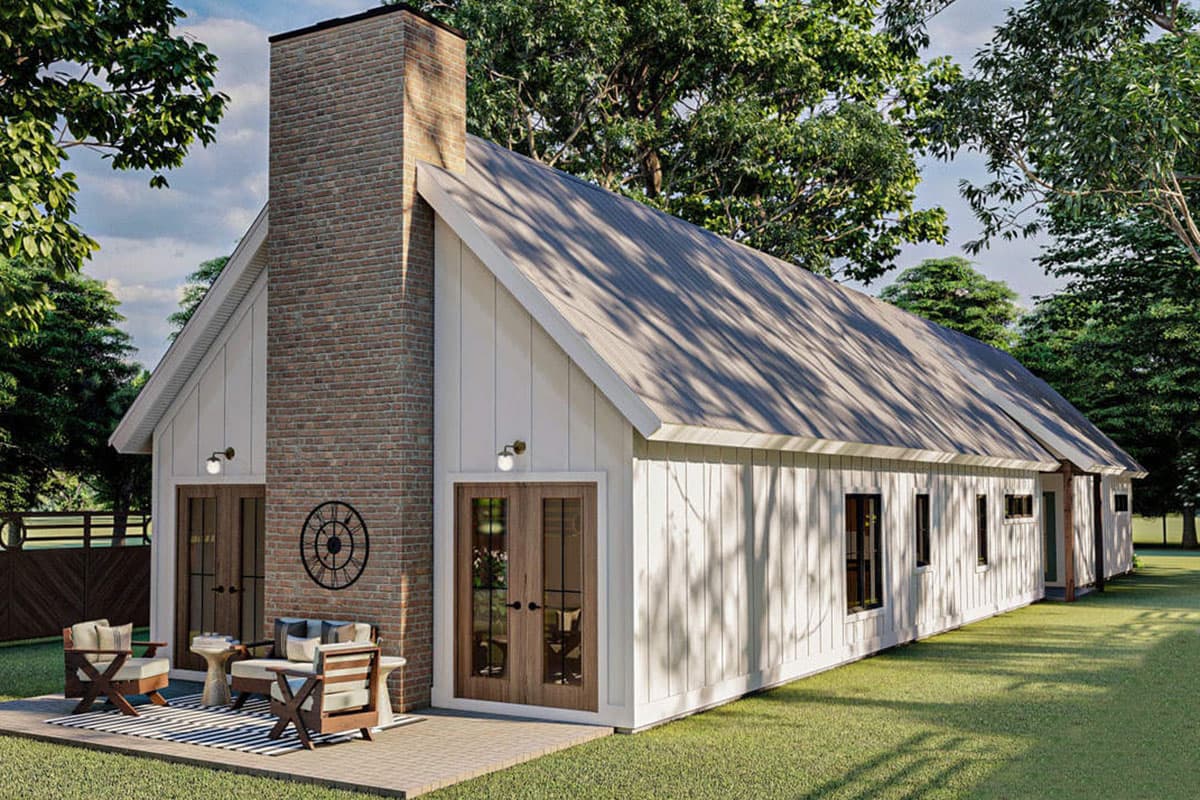

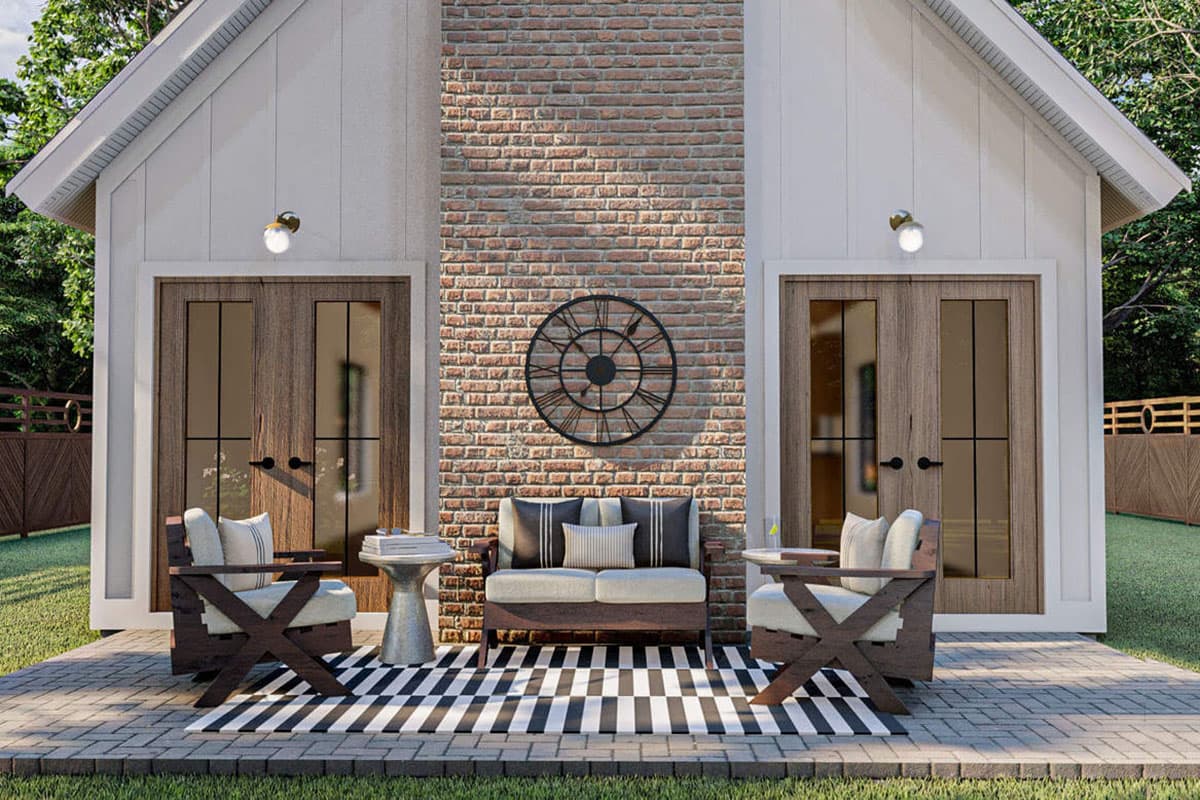

  • Inside the home, the great room, dining room, and kitchen flow perfectly in an open layout. The kitchen includes an island and a walk-in pantry. The great room is warmed by a fireplace and allows plenty of natural light through its double set of french doors.
  • The master bedroom includes his/her vanities and a soaking tub. Bedrooms 2 and 3 share a centrally located bathroom.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,848 sq. ft.

1st Floor

1,848 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

22' 0"

Depth

100' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Architectural Style

Country

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,848 sq. ft.

1st Floor

1,848 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

22' 0"

Depth

100' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Architectural Style

Country

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
