25'-wide Cottage with 3 Bedrooms and a Rear-access Garage

Plan 521009TTL

  • 1,679

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Just 25 feet wide, this 3-bedroom home plan is perfect for narrow plot lines. The front porch spans the width of the home, adding to the curb appeal of this exclusive floor plan.
  • Step inside to find a flex room to the right of the foyer, while the living room, kitchen, and dining area line the right side of the design.
  • L-shaped cabinets help define the kitchen in the center of everyday living, and a central prep island increases workspace. A side porch offers a great place to enjoy a cup of coffee.
  • The master bedroom is situated towards the back of the home and features a 5-fixture bathroom and walk-in closet.
  • Bedrooms 2 and 3 are identical in size and separated by a shared full bath.

  • Cover sheet
  • Foundation plan
  • Floor plan
  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

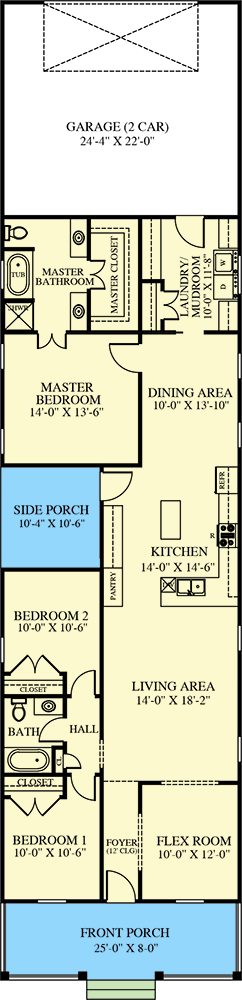

25'-wide Cottage with 3 Bedrooms and a Rear-access Garage - 521009TTL floor plan - Main Level
