Plan 623229DJ 2780 Square Foot 3-Bed Craftsman Farmhouse with Parking for 3 Cars

2,780 3 2.5 1 3
watch
video Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2780 Square Foot 3-Bed Craftsman Farmhouse with Parking for 3 Cars

Plan 623229DJ

  • 2,780

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • The house plan features a spacious and welcoming open concept living space, perfect for entertaining and family gatherings. The main floor includes two bedrooms, providing comfortable accommodations for family members or guests. The great room, dining area, and kitchen are all integrated into a single, expansive living space, with plenty of room for cooking, dining, and relaxation. The kitchen is designed with modern appliances and ample counter and storage space, making it a joy to cook and entertain in.
  • The main floor master suite offers privacy and comfort for the homeowner and includes a spacious walk-in closet and a luxurious ensuite bathroom, featuring a soaking tub, dual vanities, and a separate shower.
  • The second floor of the house plan includes an additional bedroom and bathroom, providing a private space for a teenager or visiting family member. The upstairs bedroom could also be used as a home office or gym, offering flexibility to the homeowner.
  • The house plan also features split garages, providing plenty of space for two cars and extra storage. This design allows for easy access to the garage from the main living area and provides additional privacy for the homeowner.
  • Choose the optional finished lower level - available for an extra fee from the Options menu - and gives you a fourth bedroom, home theater and more.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

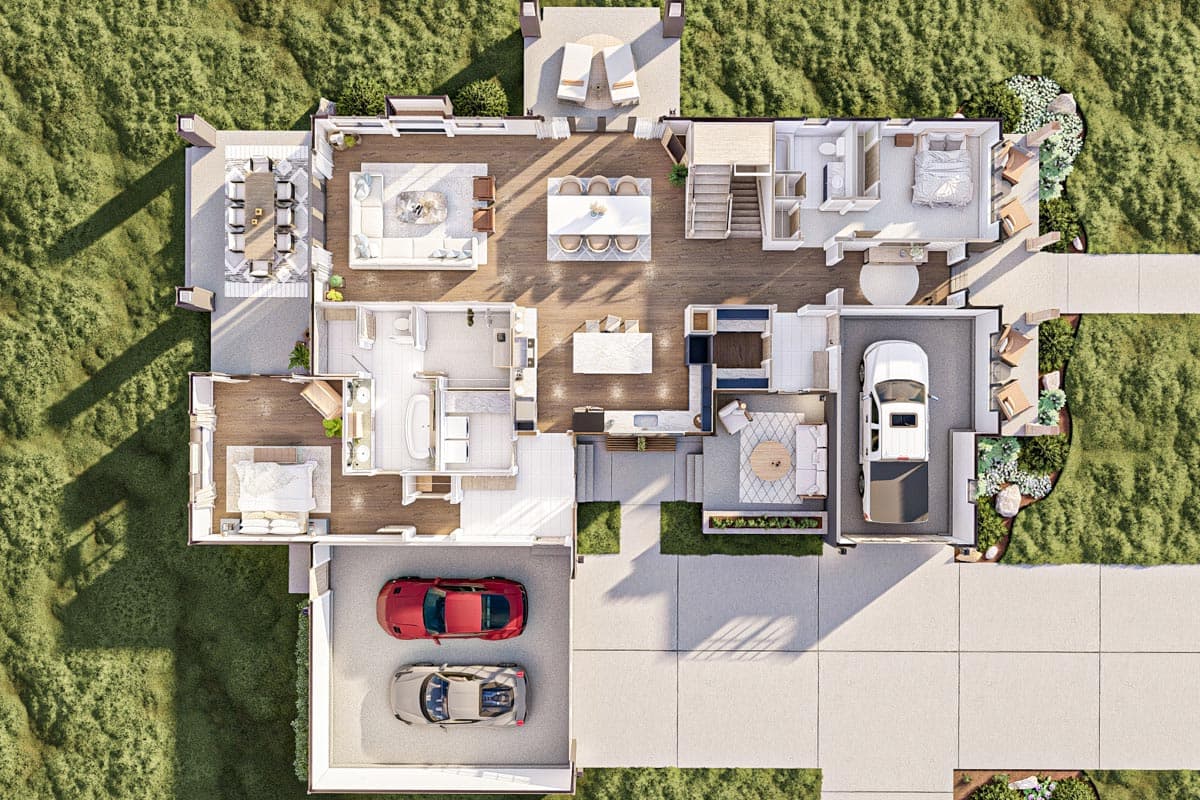

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

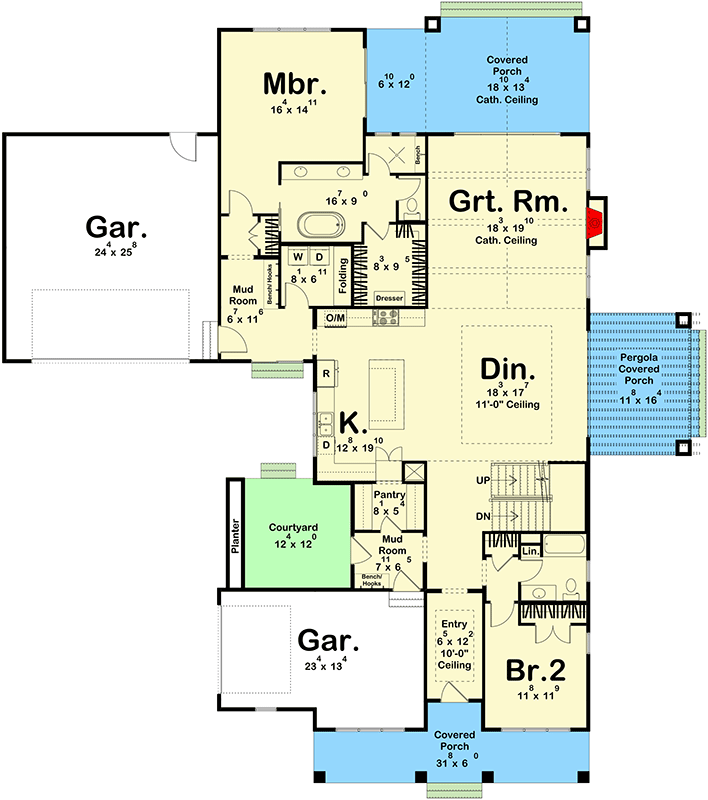

2780 Square Foot 3-Bed Craftsman Farmhouse with Parking for 3 Cars - 623229DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

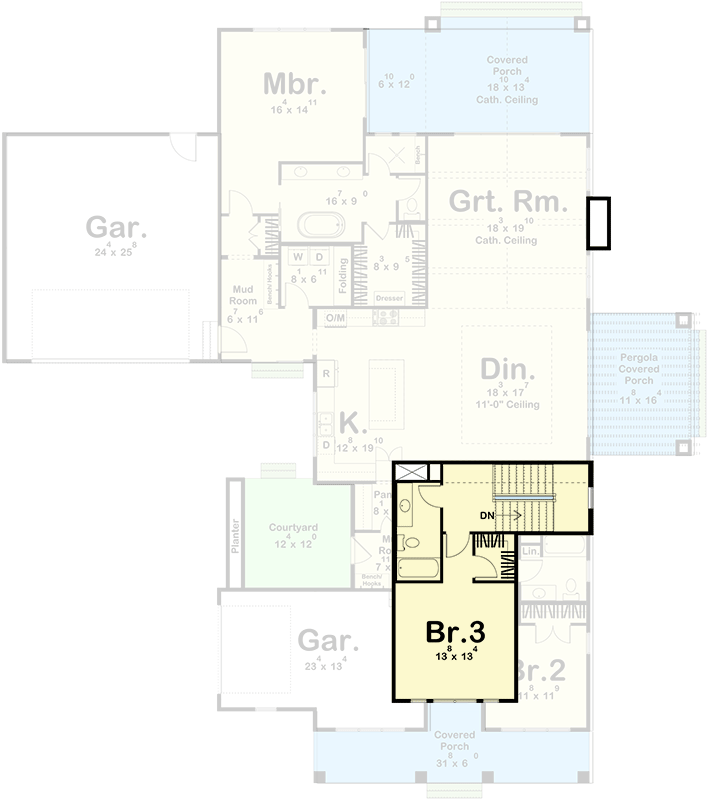

2780 Square Foot 3-Bed Craftsman Farmhouse with Parking for 3 Cars - 623229DJ floor plan - 2nd Floor

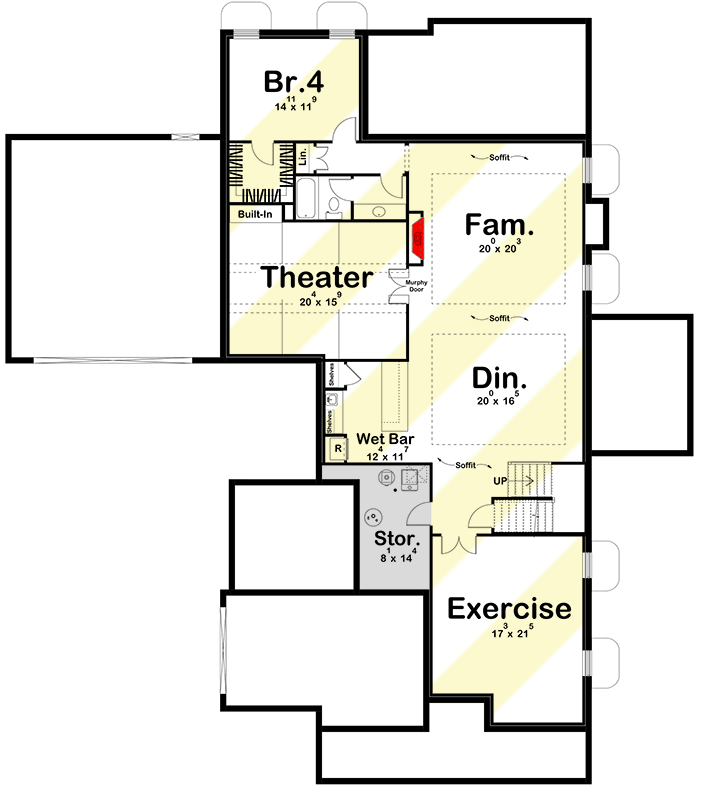

Optional Lower Level Layout (+$250)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2780 Square Foot 3-Bed Craftsman Farmhouse with Parking for 3 Cars - 623229DJ floor plan - Optional Lower Level Layout (+$250)

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,780 sq. ft.
  • 1st Floor: 2,402 sq. ft.
  • 2nd Floor: 378 sq. ft.
  • Porch, Combined: 544 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 88' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 1009 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

2780 Square Foot 3-Bed Craftsman Farmhouse with Parking for 3 Cars

  • 2,780

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • 5 Sets + PDF $1,850
  • PDF - Unlimited Build $2,100
  • CAD + PDF - Single-Build $2,100
  • CAD Unlimited + PDF $2,600
  • View all purchase option online

About This Plan

  • The house plan features a spacious and welcoming open concept living space, perfect for entertaining and family gatherings. The main floor includes two bedrooms, providing comfortable accommodations for family members or guests. The great room, dining area, and kitchen are all integrated into a single, expansive living space, with plenty of room for cooking, dining, and relaxation. The kitchen is designed with modern appliances and ample counter and storage space, making it a joy to cook and entertain in.
  • The main floor master suite offers privacy and comfort for the homeowner and includes a spacious walk-in closet and a luxurious ensuite bathroom, featuring a soaking tub, dual vanities, and a separate shower.
  • The second floor of the house plan includes an additional bedroom and bathroom, providing a private space for a teenager or visiting family member. The upstairs bedroom could also be used as a home office or gym, offering flexibility to the homeowner.
  • The house plan also features split garages, providing plenty of space for two cars and extra storage. This design allows for easy access to the garage from the main living area and provides additional privacy for the homeowner.
  • Choose the optional finished lower level - available for an extra fee from the Options menu - and gives you a fourth bedroom, home theater and more.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level Layout (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,780 sq. ft.
  • 1st Floor: 2,402 sq. ft.
  • 2nd Floor: 378 sq. ft.
  • Porch, Combined: 544 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 88' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 1009 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
Plan 623229DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623229DJ
|
Need Help? 800-854-7852
|
Plan 623229DJ
