Plan 360118DK
3-Bay Garage Plan with 1208 Square Feet of Parking
Heated S.F.
0
Stories
1
Cars
3
What's Included
Plan Details
  • This detached garage plan gives you 1,208 square feet of parking space and 3 bays, one for each vehicle.
  • The left and right bays have 10' by 8' overhead doors and the center bay has a 12' by 8' overhead door.
  • A gable in the center bay allows for the ceiling inside to be vaulted.
  • Doors in back open to 1,208 square feet of covered space.
What's Included
  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bay Garage Plan with 1208 Square Feet of Parking

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

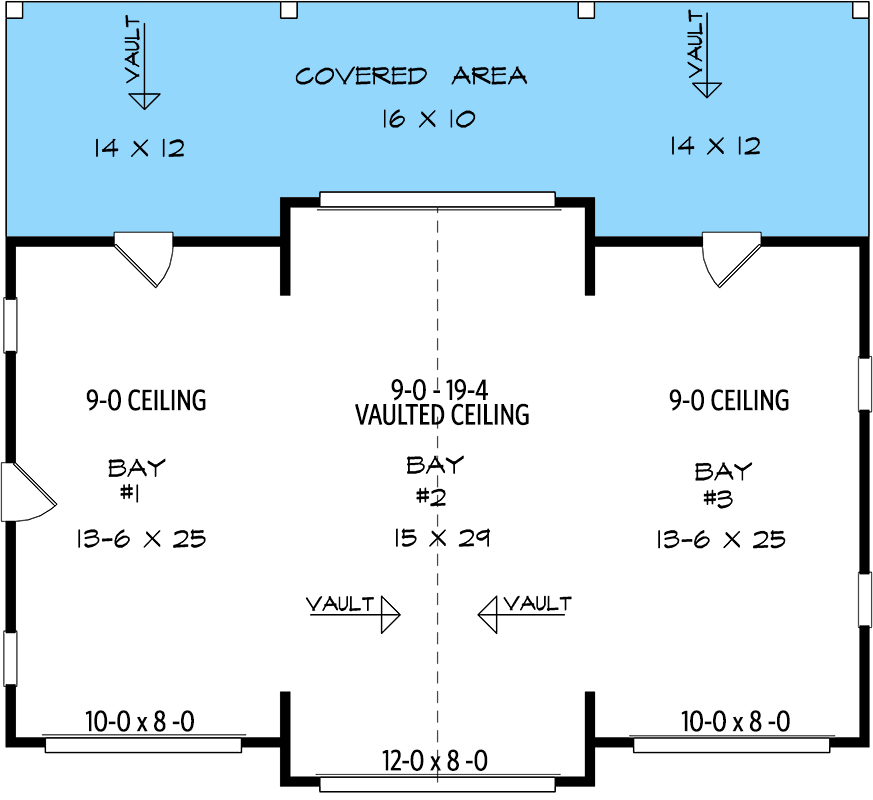

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 40' 0"
  • Max ridge height: 20' 1"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: RV Garage, Detached
  • Area: 1208 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 2.5 on 12
