3-Bed 1800 Square Foot Southern Home Plan with 945 Square Feet of Porch Space

Plan 521028TTL

  • 1,827

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Six columns support the porch that runs across the entire front (and partially wraps around each corner) of this 3 bed, 2.5 bath, 1,827 square foot house plan.
  • Step inside to and find the dining room set off to your right and the living room with fireplace and kitchen straight ahead.
  • L-shaped cabinets help define the kitchen, and a central prep island increases workspace. An L-shaped rear porch off the living area leads to the double garage, while providing an ideal space for a grill.
  • The master bedroom is situated towards the back of the home and features a 5-fixture bathroom and two walk-in closets.
  • Bedrooms 2 and 3 are located towards the front and share a bath. Laundry is conveniently located to both.

  • Cover sheet
  • Foundation plan
  • Floor plan

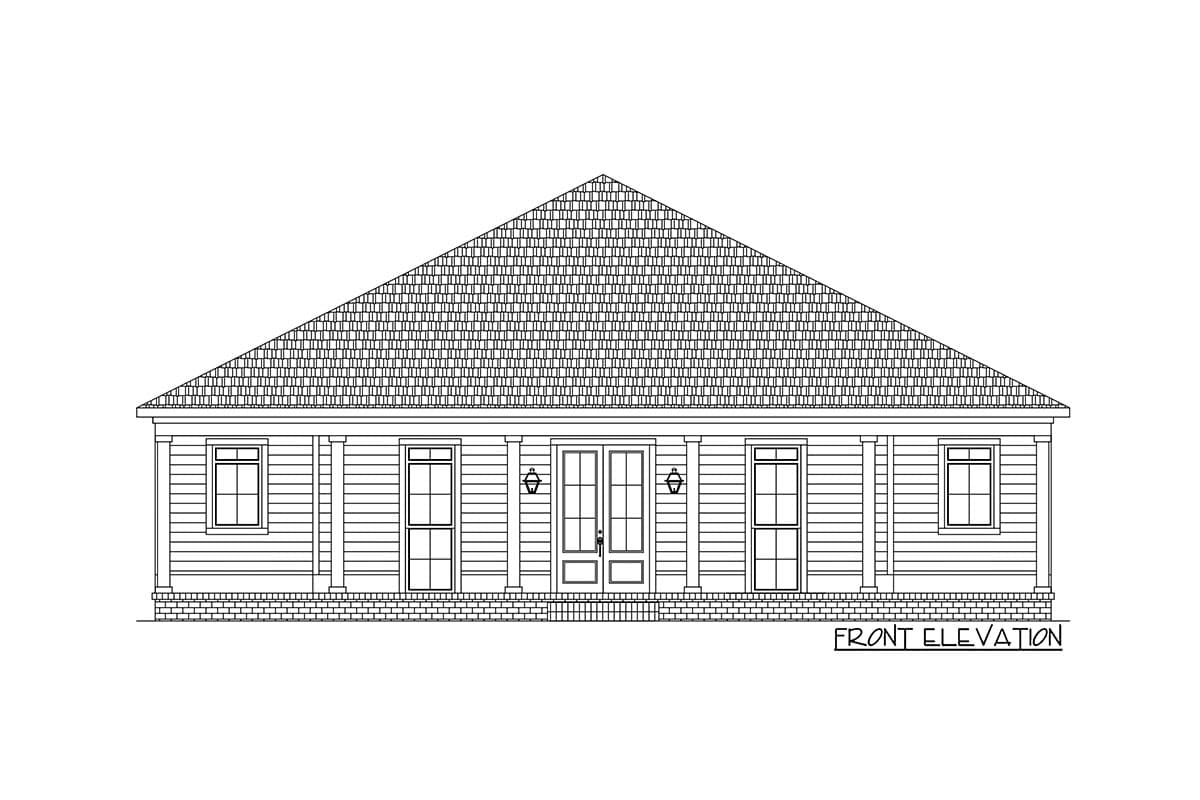

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

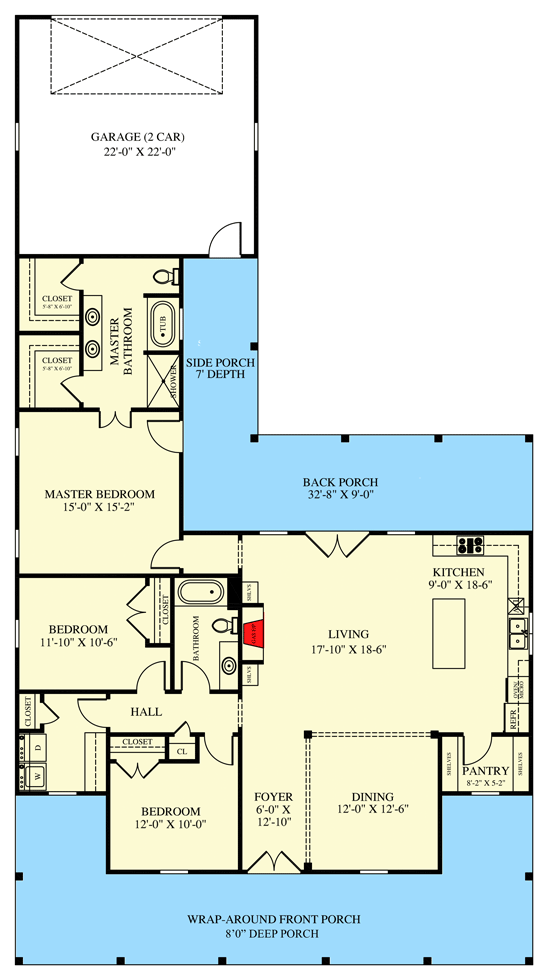

3-Bed 1800 Square Foot Southern Home Plan with 945 Square Feet of Porch Space - 521028TTL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,827 sq. ft.
  • 1st Floor: 1,827 sq. ft.
  • Porch, Combined: 945 sq. ft.
  • Porch, Rear: 409 sq. ft.
  • Porch, Front: 536 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 49' 2"
  • Depth: 89' 6"
  • Max ridge height: 24' 1"

Garage

  • Type: Attached
  • Area: 509 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

3-Bed 1800 Square Foot Southern Home Plan with 945 Square Feet of Porch Space

  • 1,827

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • 5 Sets + PDF $1,700
  • PDF - Unlimited Build $2,150
  • CAD + PDF - Unlimited Build $2,450
  • View all purchase option online

About This Plan

  • Six columns support the porch that runs across the entire front (and partially wraps around each corner) of this 3 bed, 2.5 bath, 1,827 square foot house plan.
  • Step inside to and find the dining room set off to your right and the living room with fireplace and kitchen straight ahead.
  • L-shaped cabinets help define the kitchen, and a central prep island increases workspace. An L-shaped rear porch off the living area leads to the double garage, while providing an ideal space for a grill.
  • The master bedroom is situated towards the back of the home and features a 5-fixture bathroom and two walk-in closets.
  • Bedrooms 2 and 3 are located towards the front and share a bath. Laundry is conveniently located to both.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,827 sq. ft.
  • 1st Floor: 1,827 sq. ft.
  • Porch, Combined: 945 sq. ft.
  • Porch, Rear: 409 sq. ft.
  • Porch, Front: 536 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 49' 2"
  • Depth: 89' 6"
  • Max ridge height: 24' 1"

Garage

  • Type: Attached
  • Area: 509 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick Or Truss
