3 Bed Acadian-Style House Plan with Carport - 1705 Sq Ft

Plan 185003PHD

  • 1,705

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

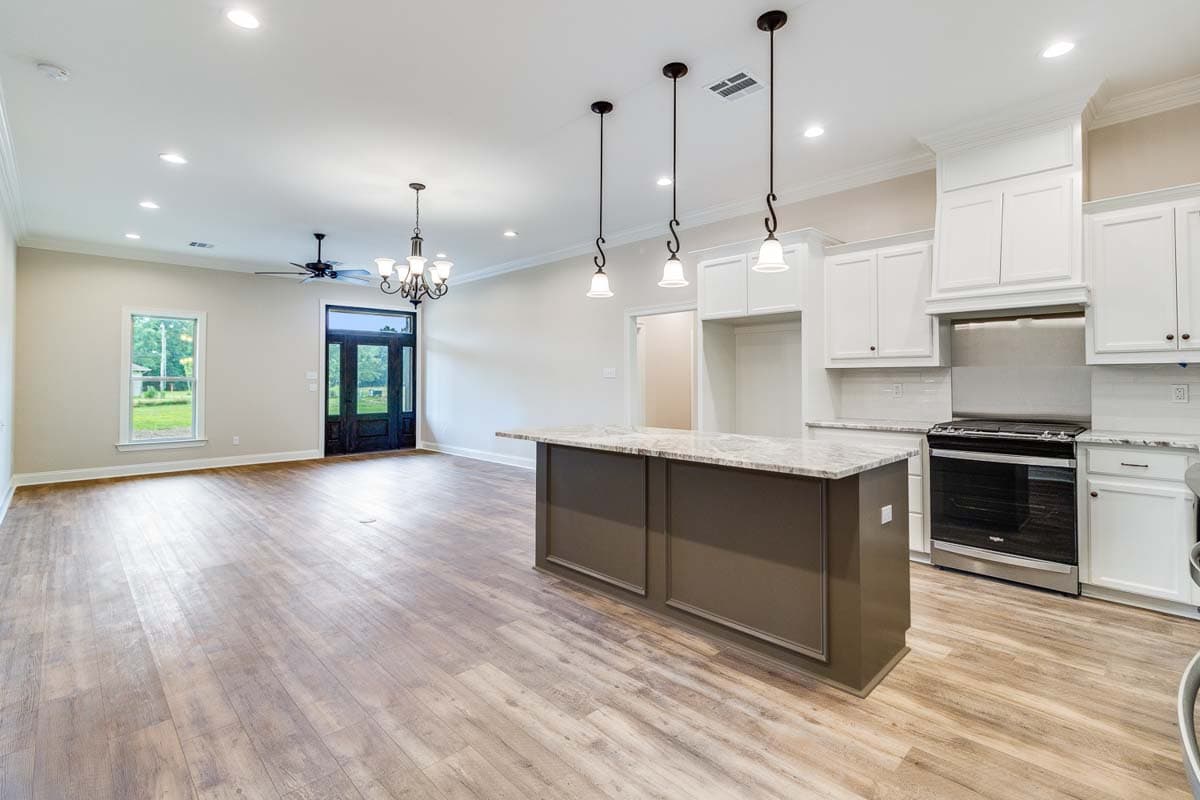

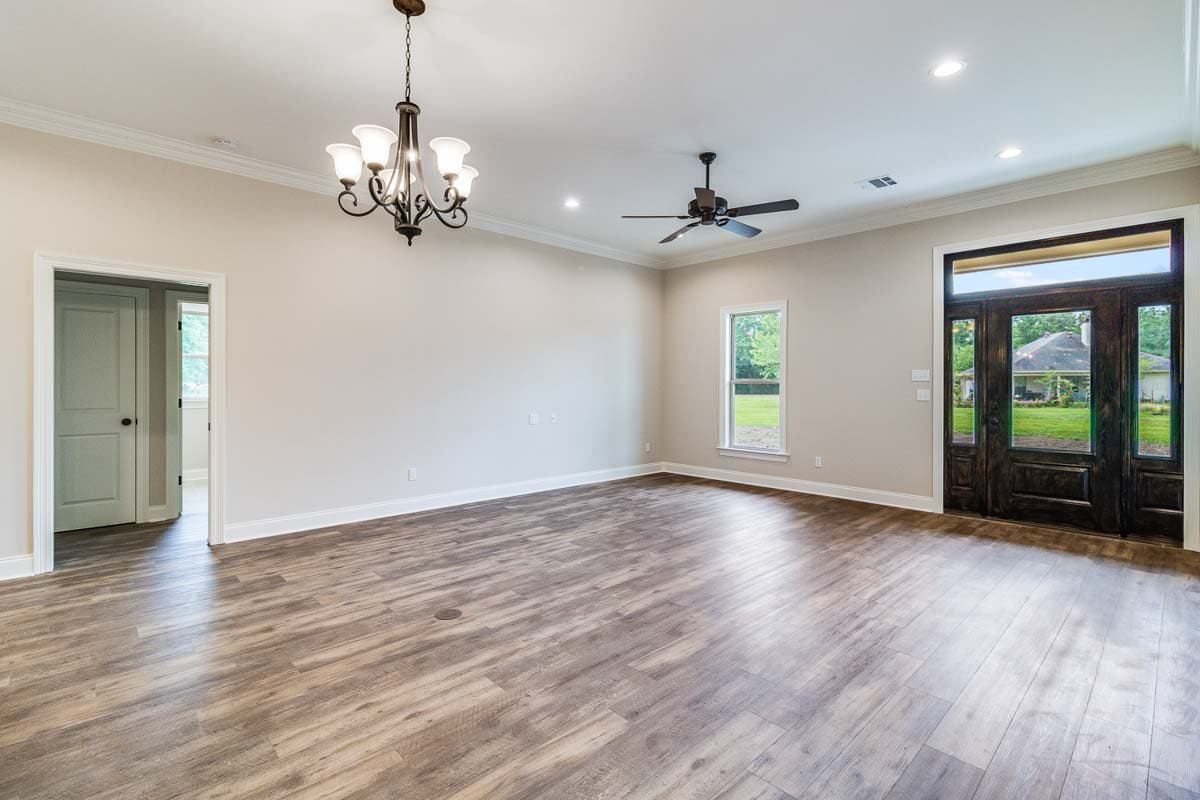

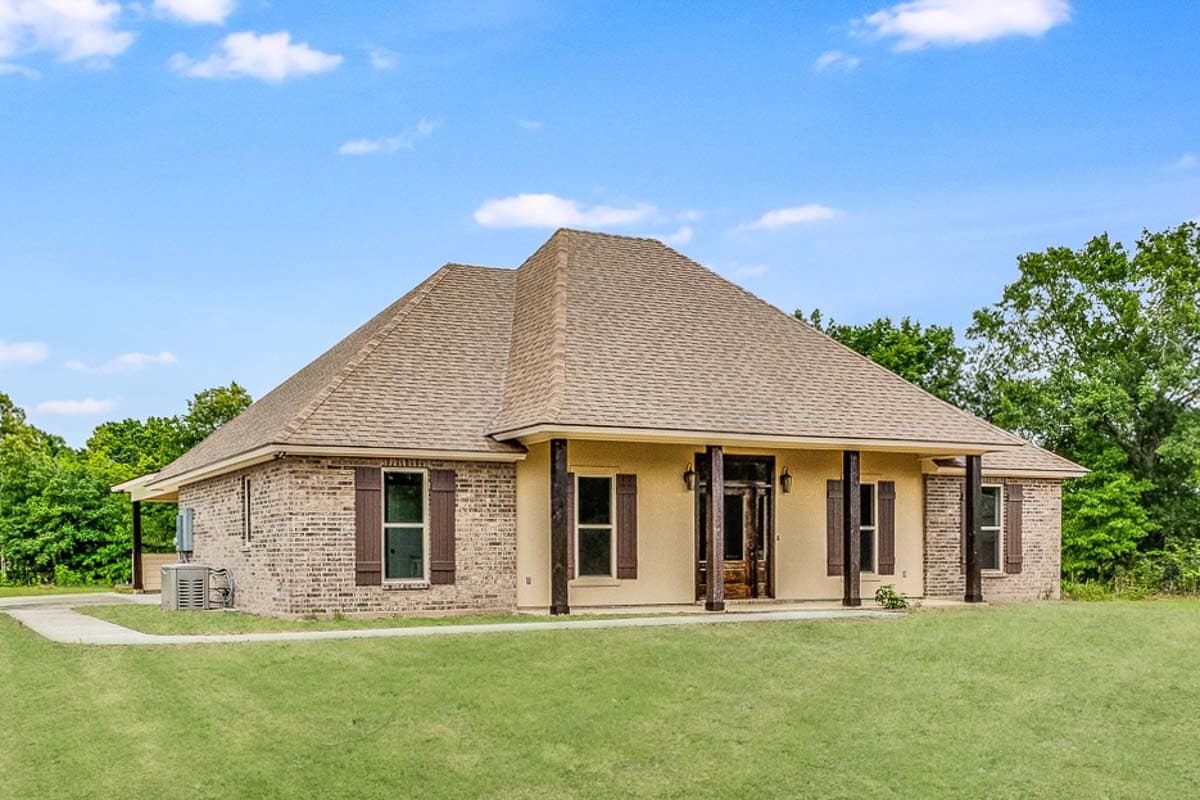

  • This 3 bed, 2 bath Acadian-style house plan gives you 1,705 square feet of heated living and has a 2-car carport in back. The front door is a welcoming entry into the open living, dining, kitchen floor plan.

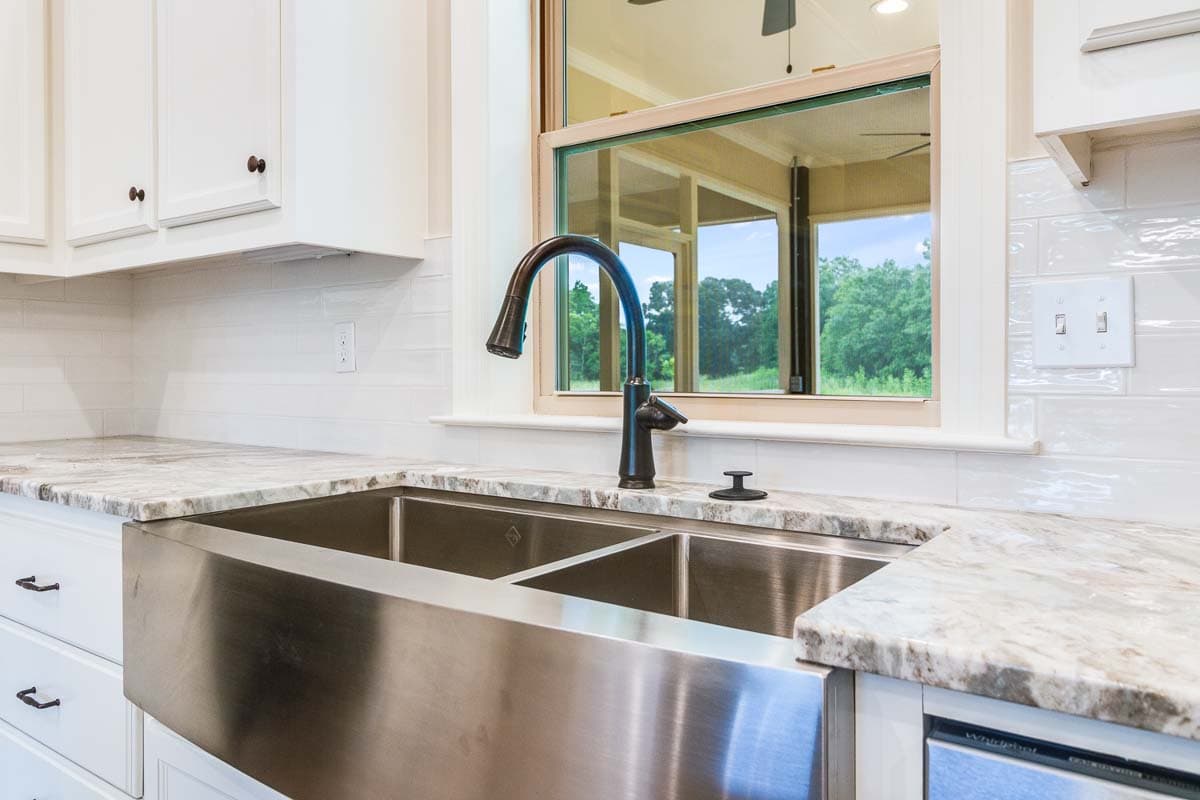

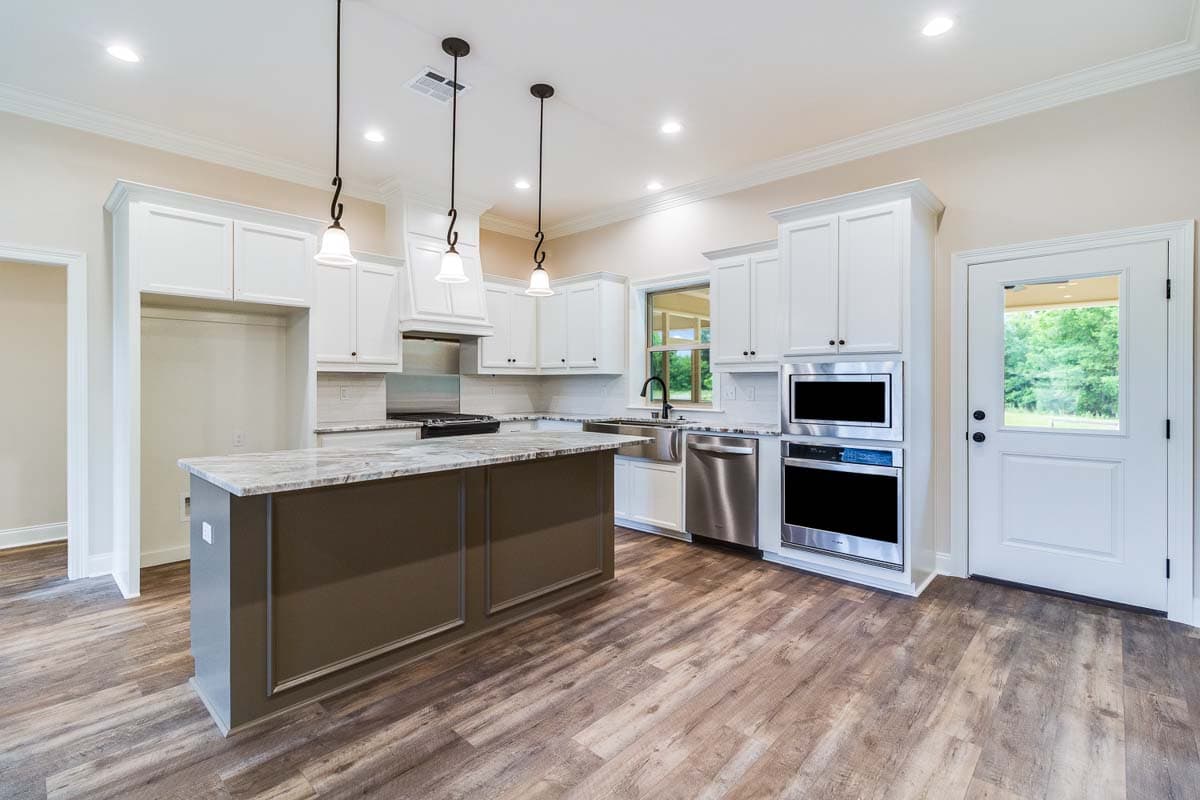

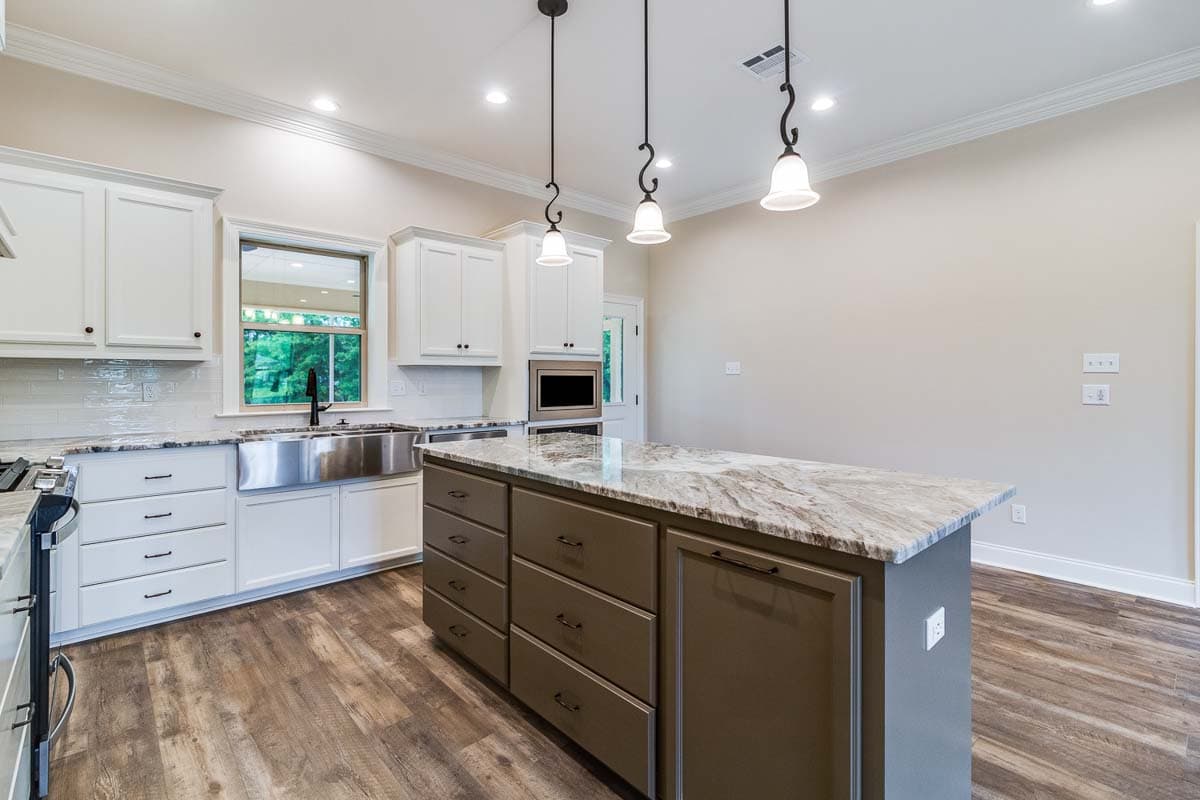

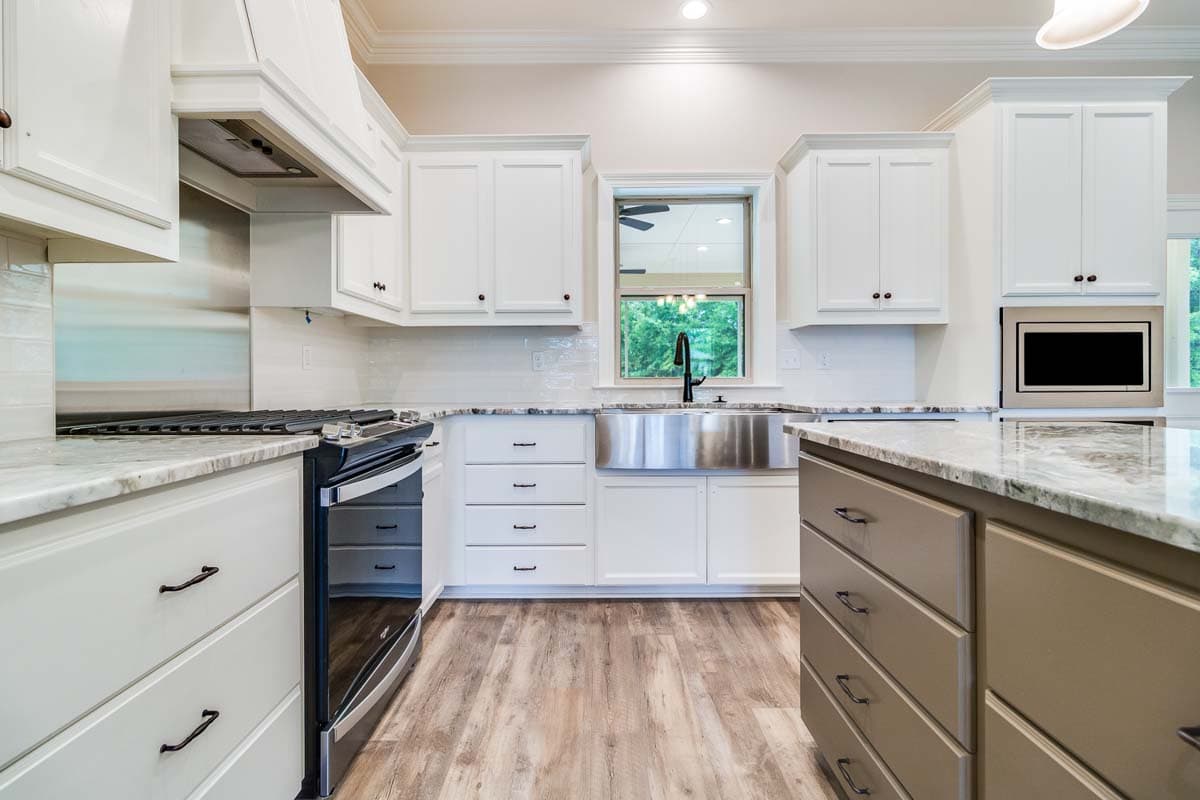

  • The kitchen features a gas stove, built in oven and microwave, large kitchen island, as well as a walk-in pantry. The large utility was designed with a sink, rod/shelf, broom closet and space to keep an extra freezer and refrigerator for all the client’s extra storage needs.

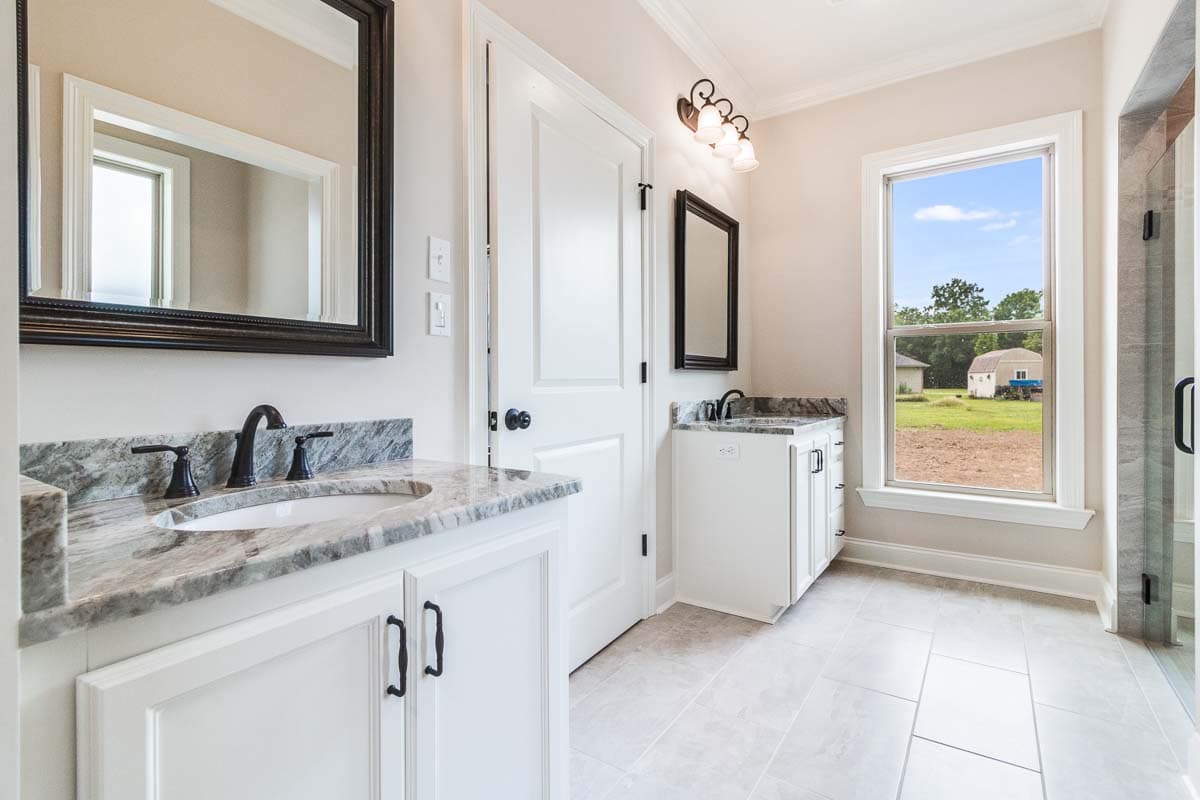

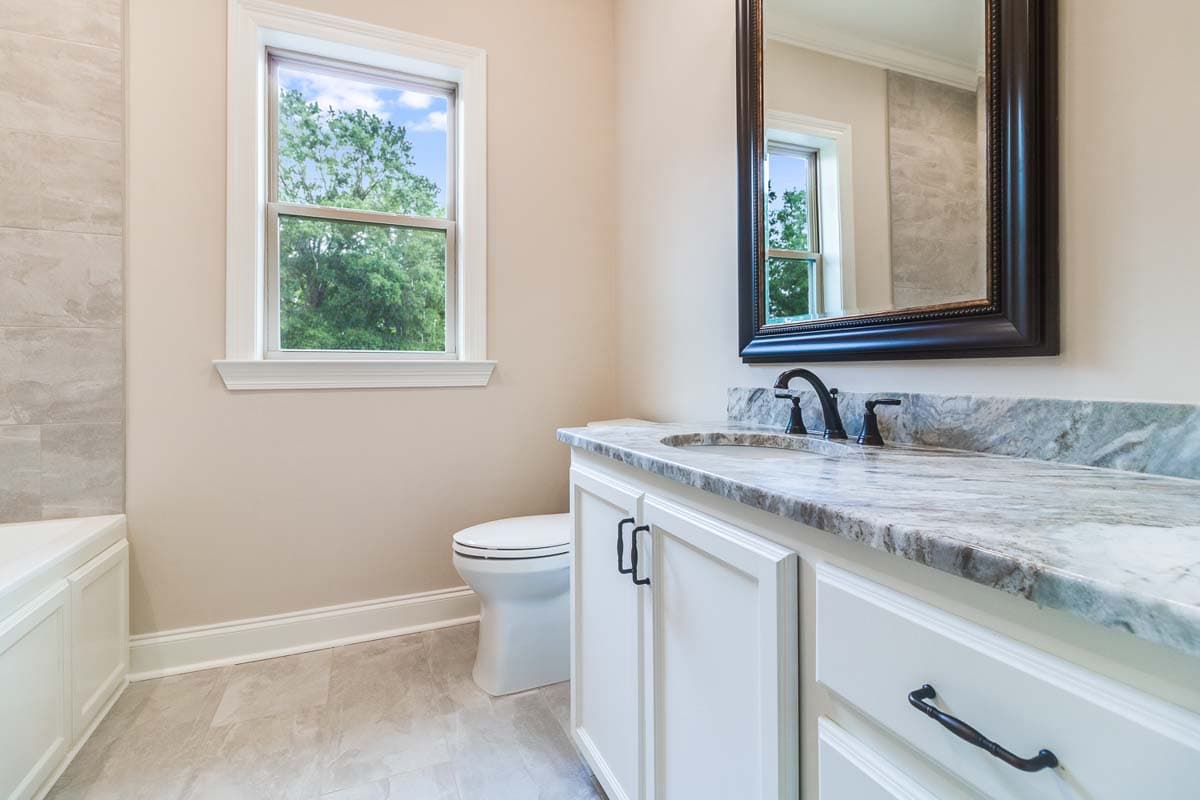

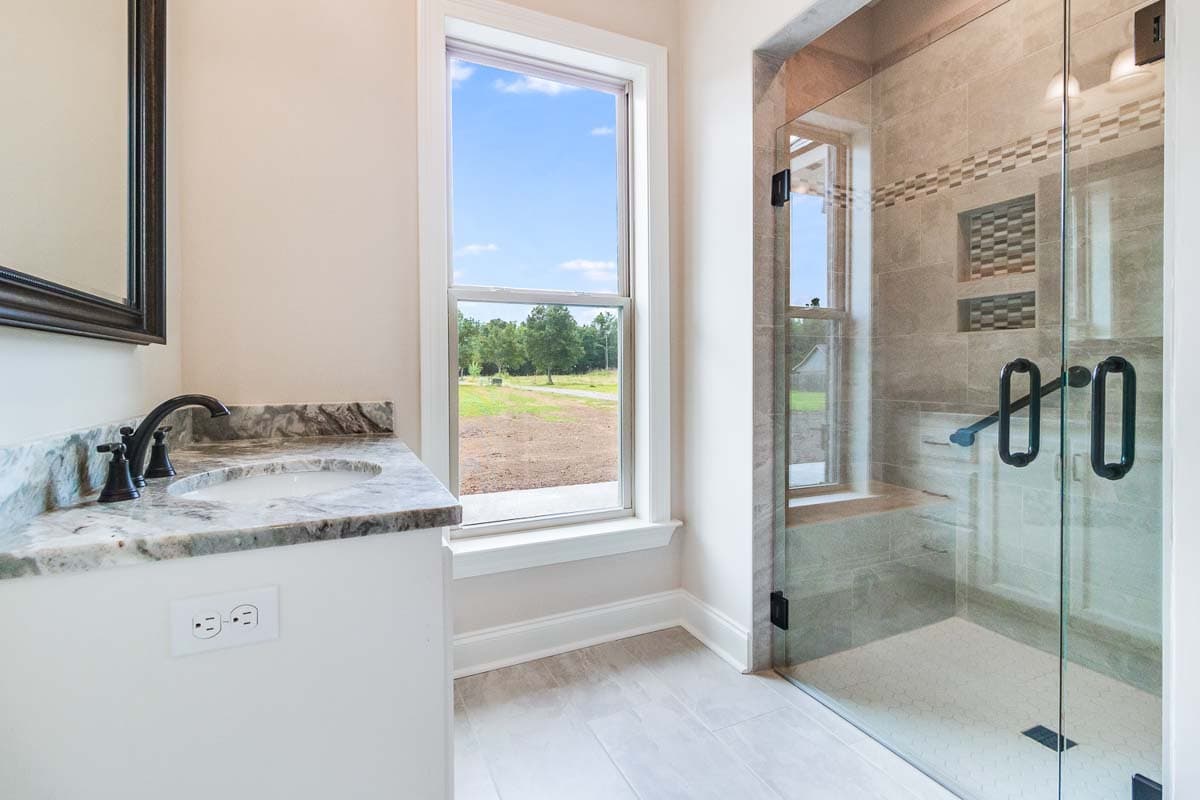

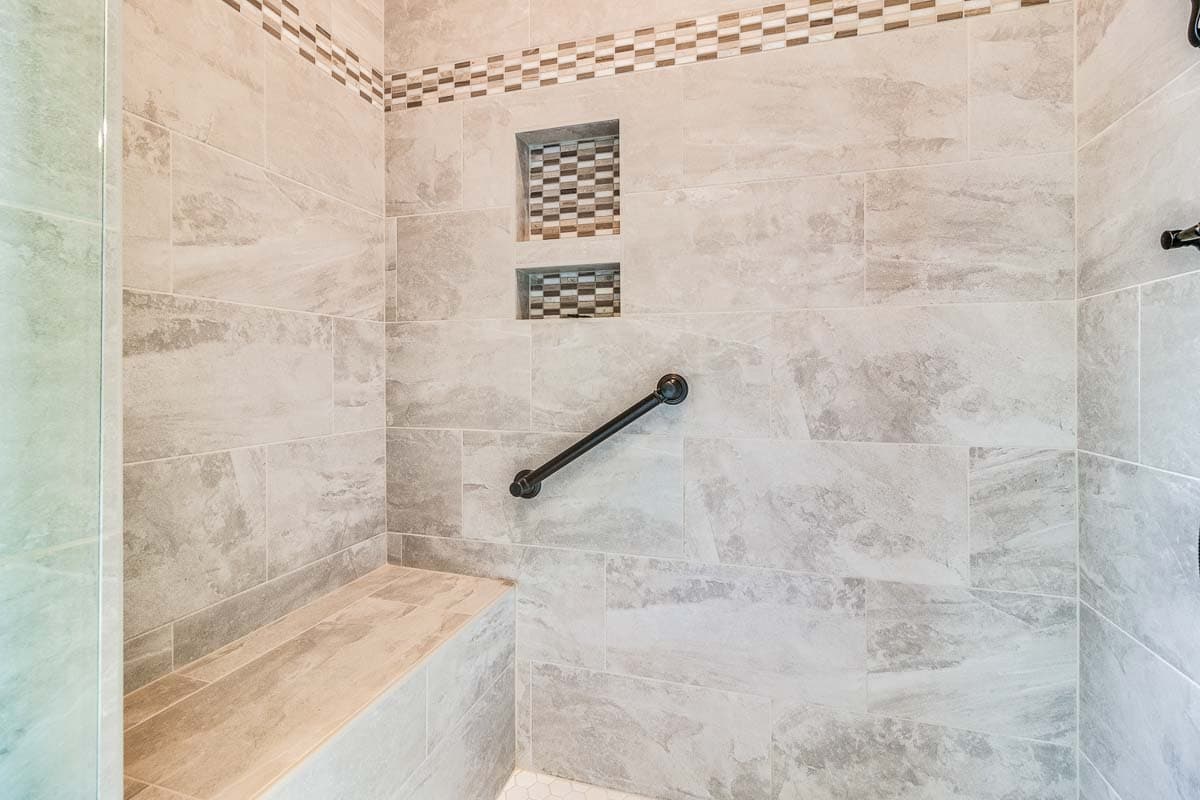

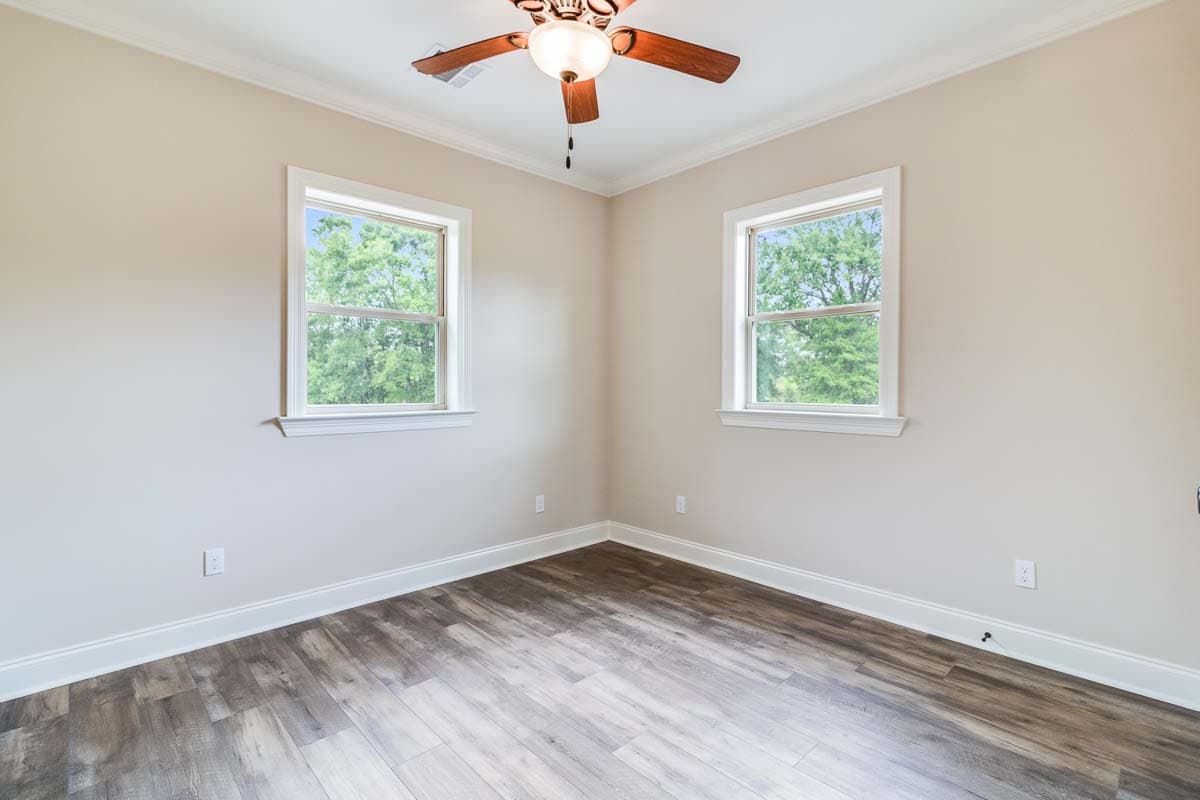

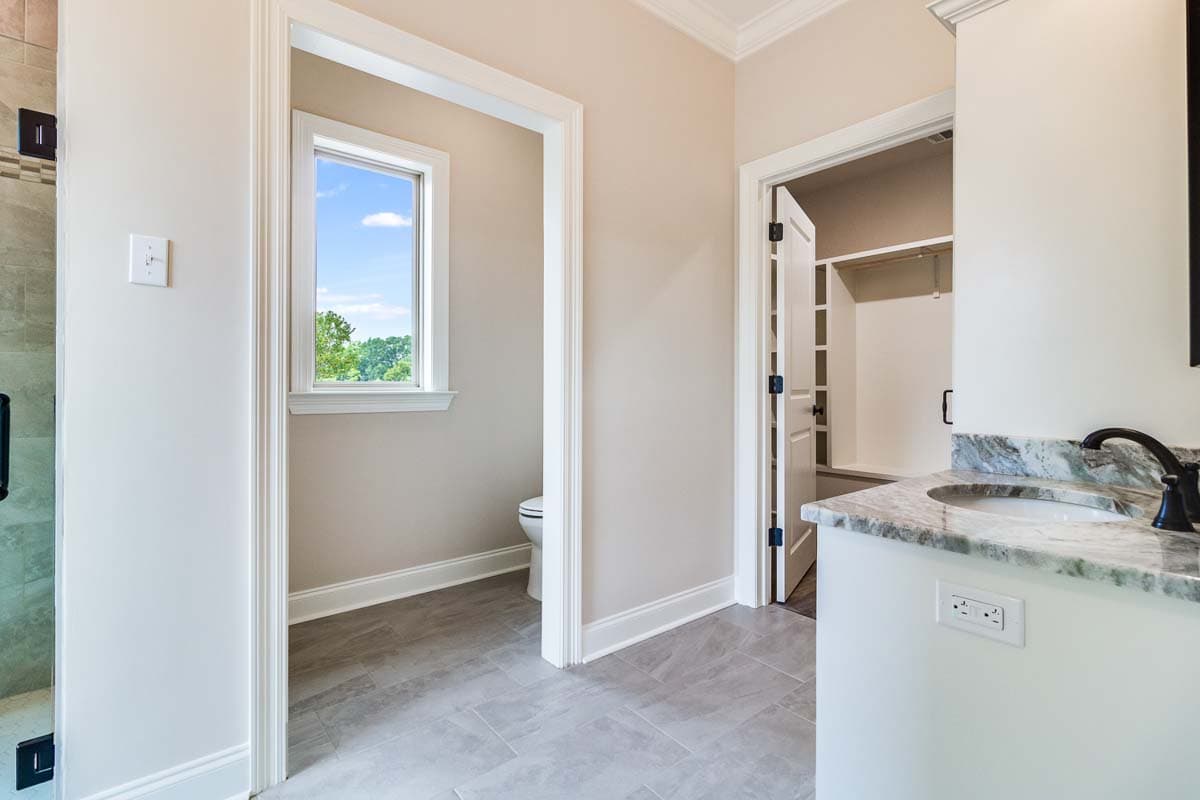

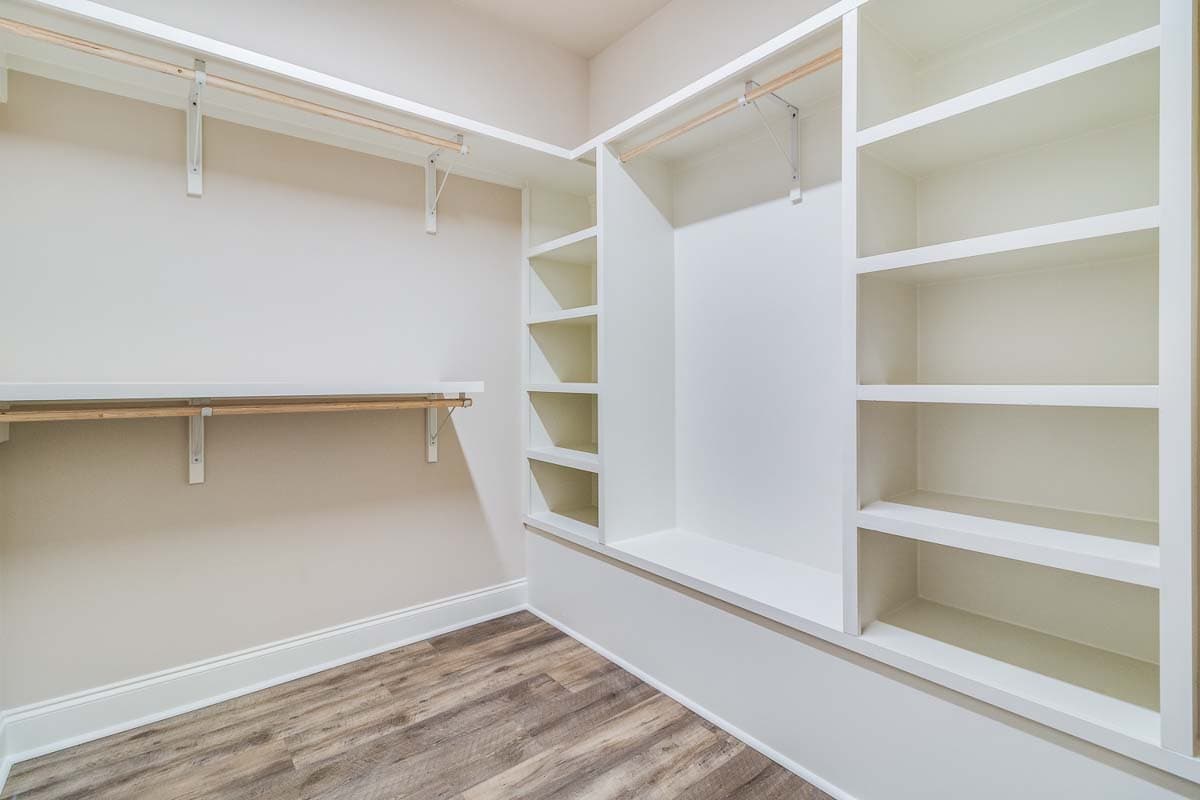

  •  The master bathroom offers separate vanities, large shower, toilet closet, large window for plenty of natural light, as well as entry to the master closet with custom built ins. The two guest rooms share a bathroom by a connected hallway.

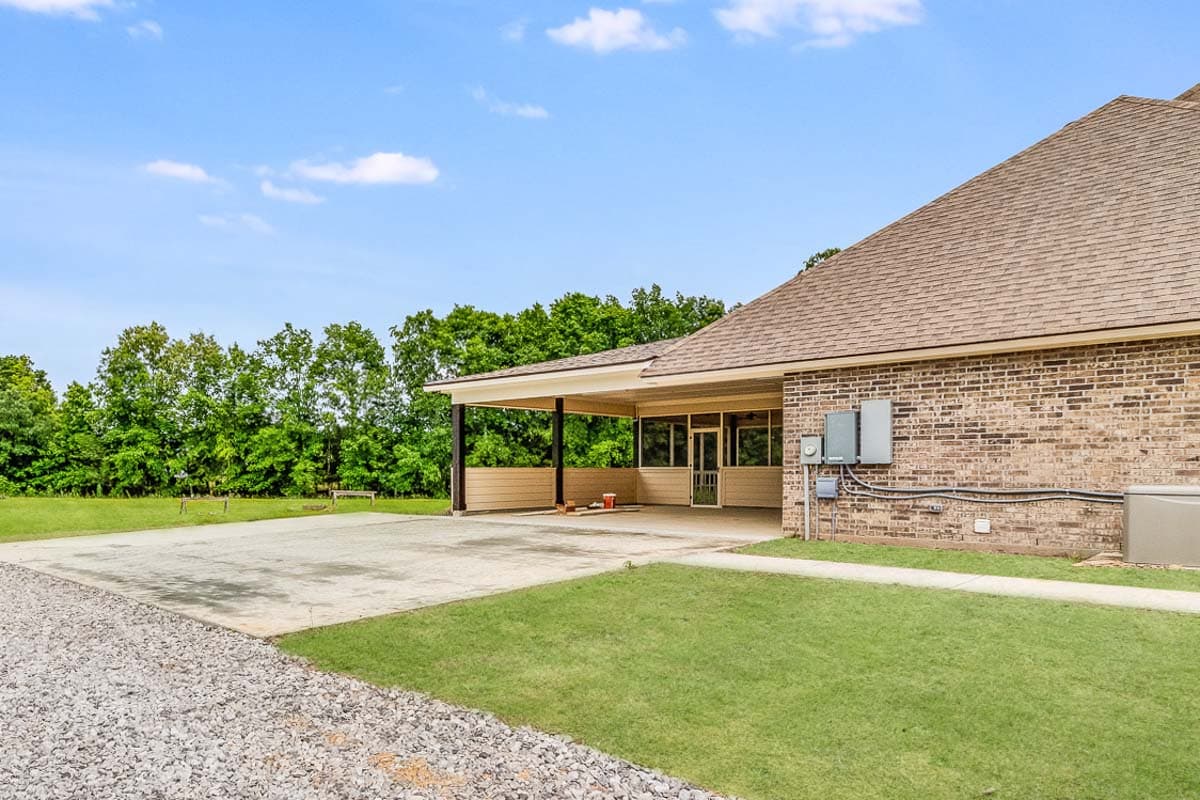

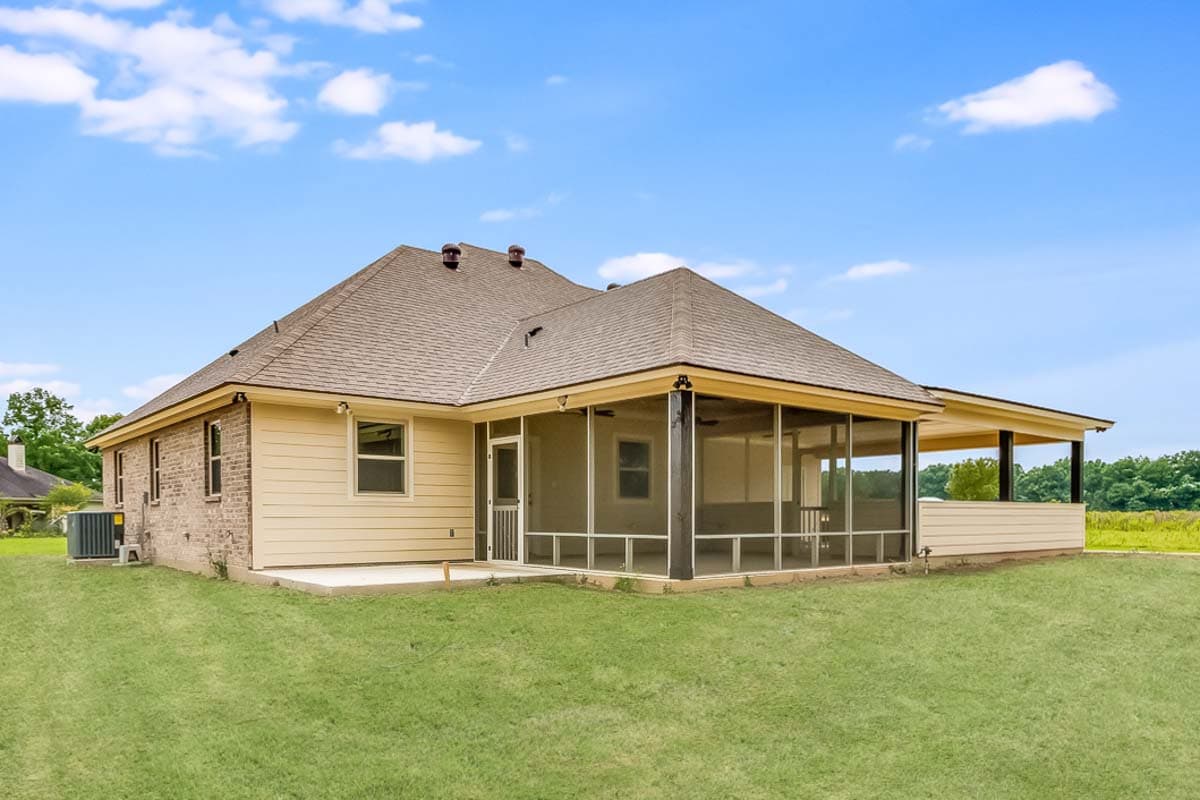

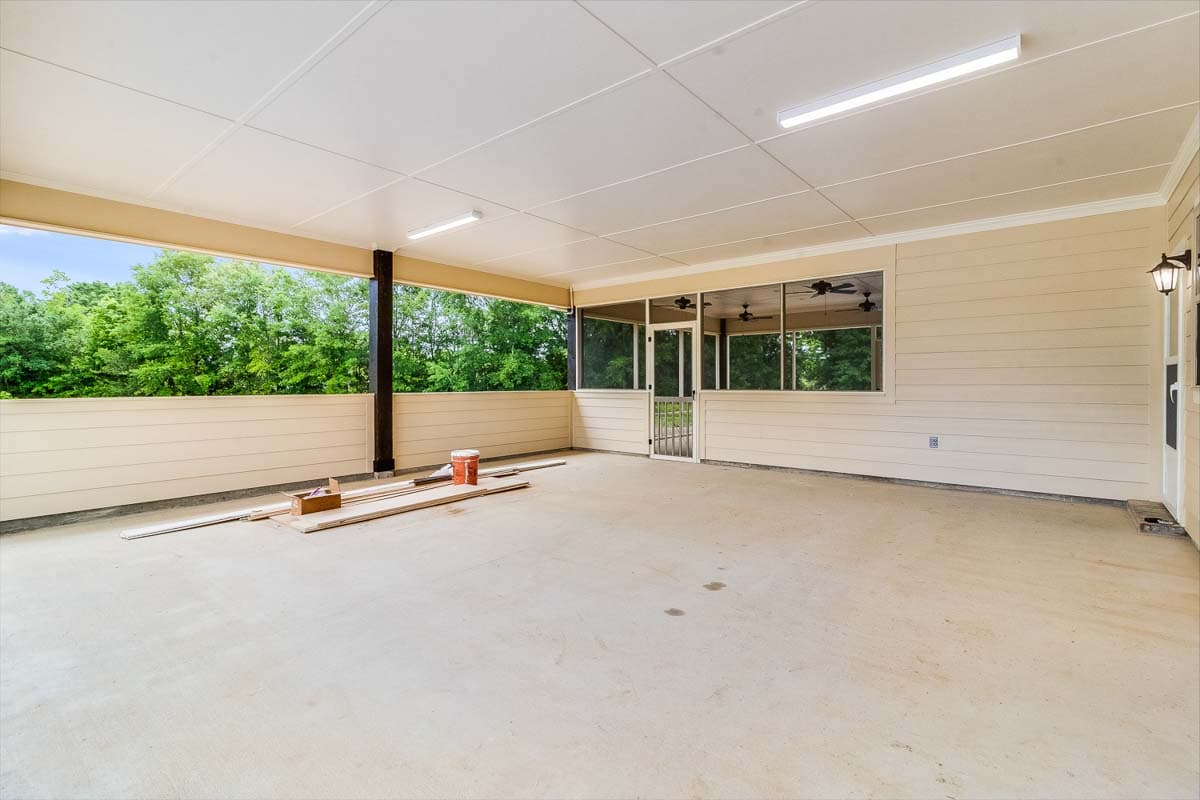

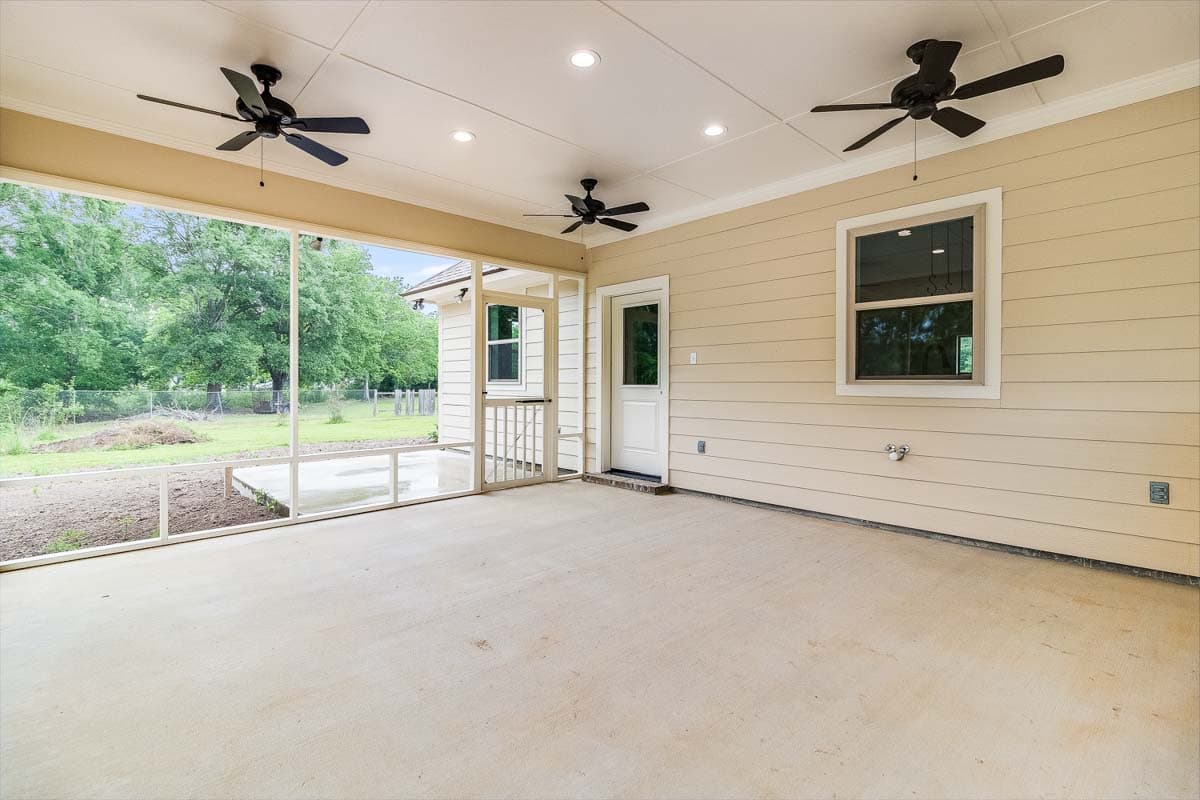

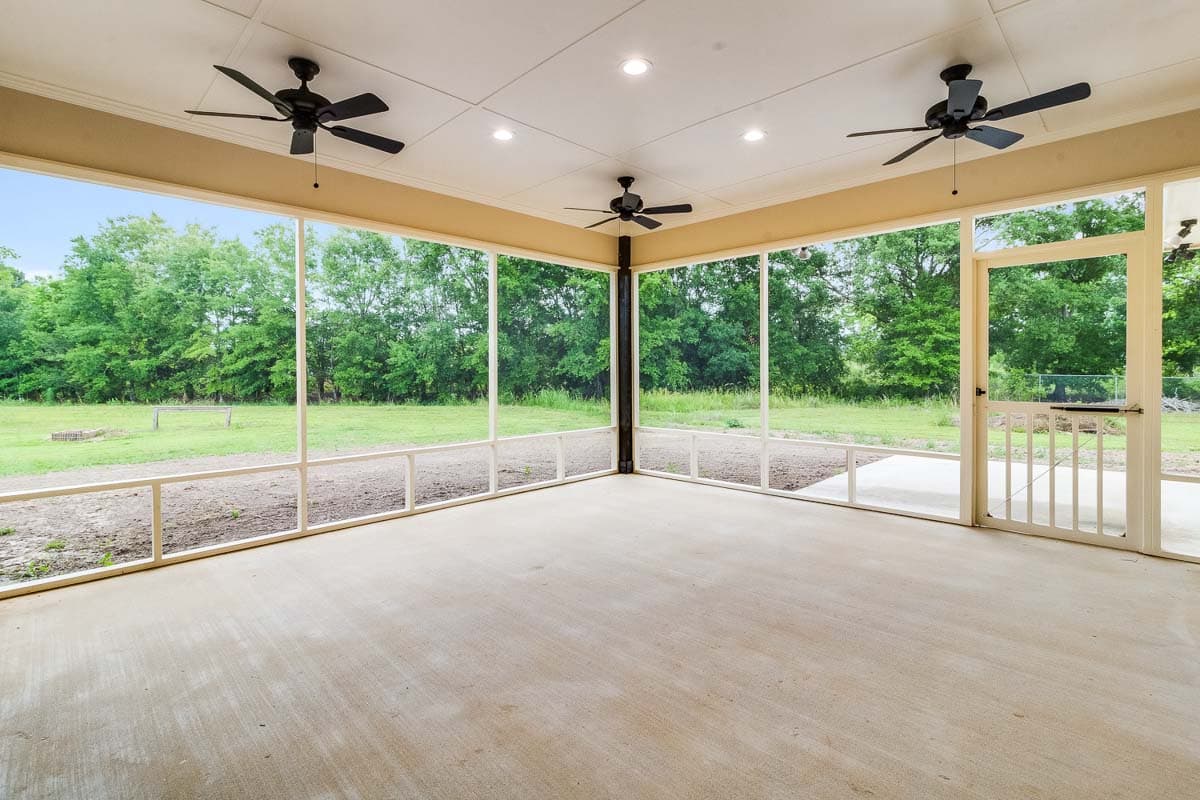

  • This house makes it easy to enjoy the outdoors with a large screened in porch. Other features include a carport, storage closet, and an open patio.

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

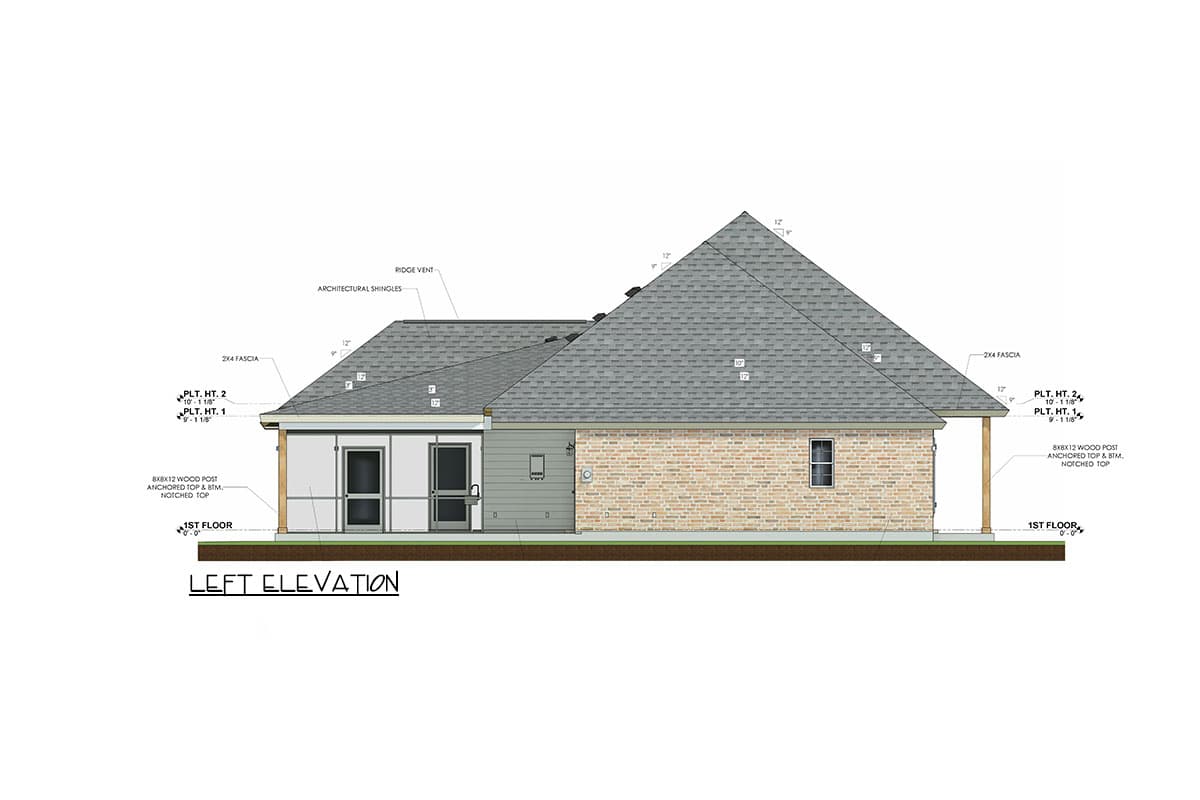

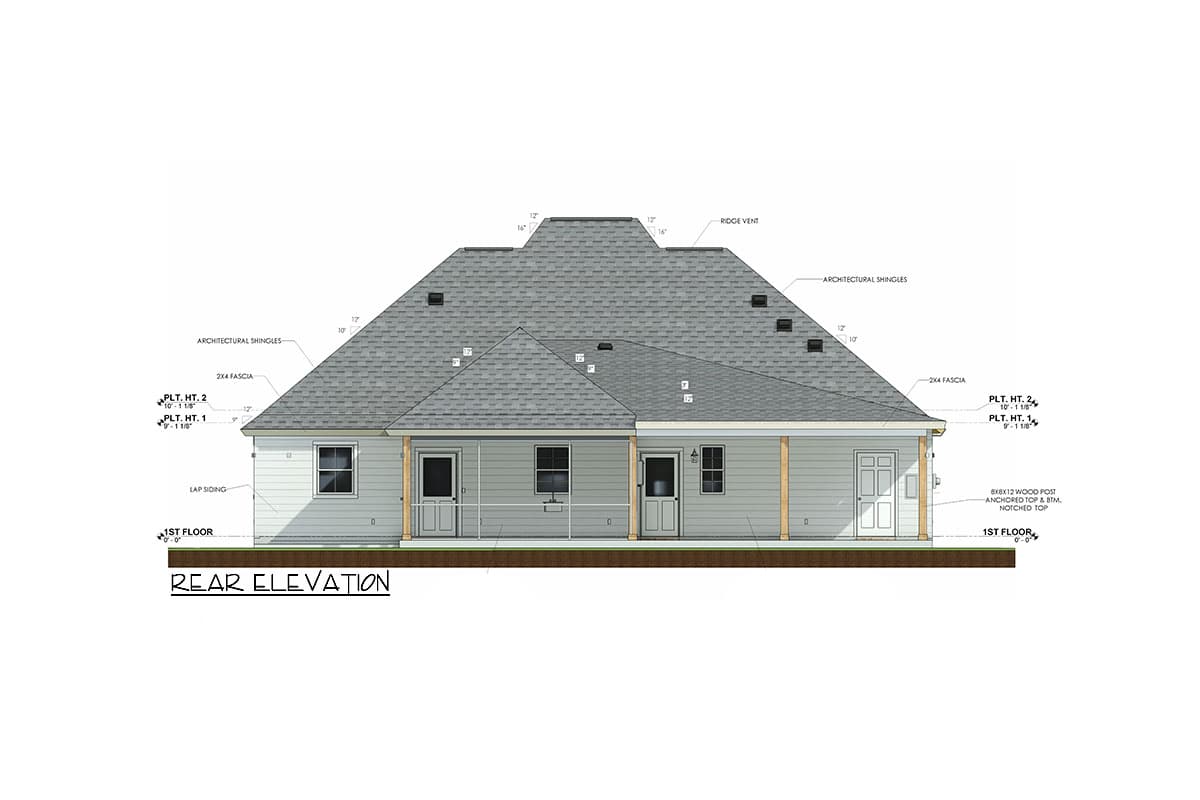

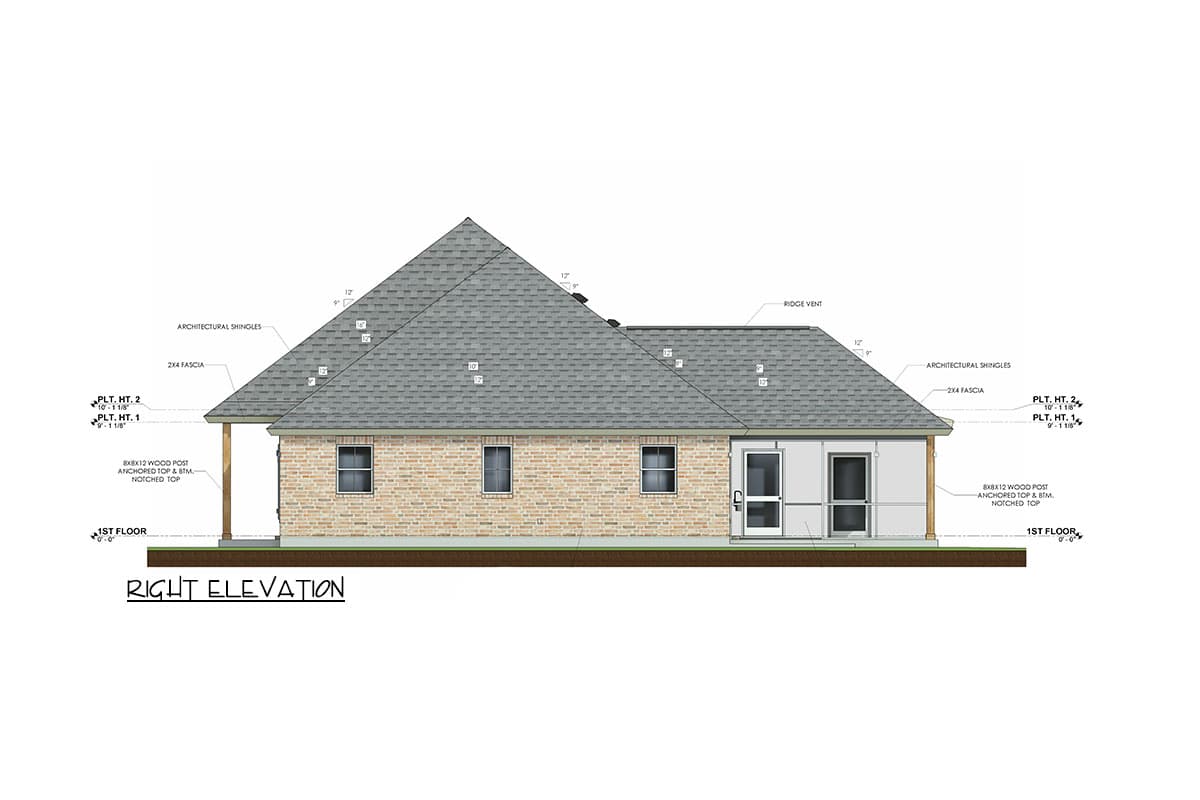

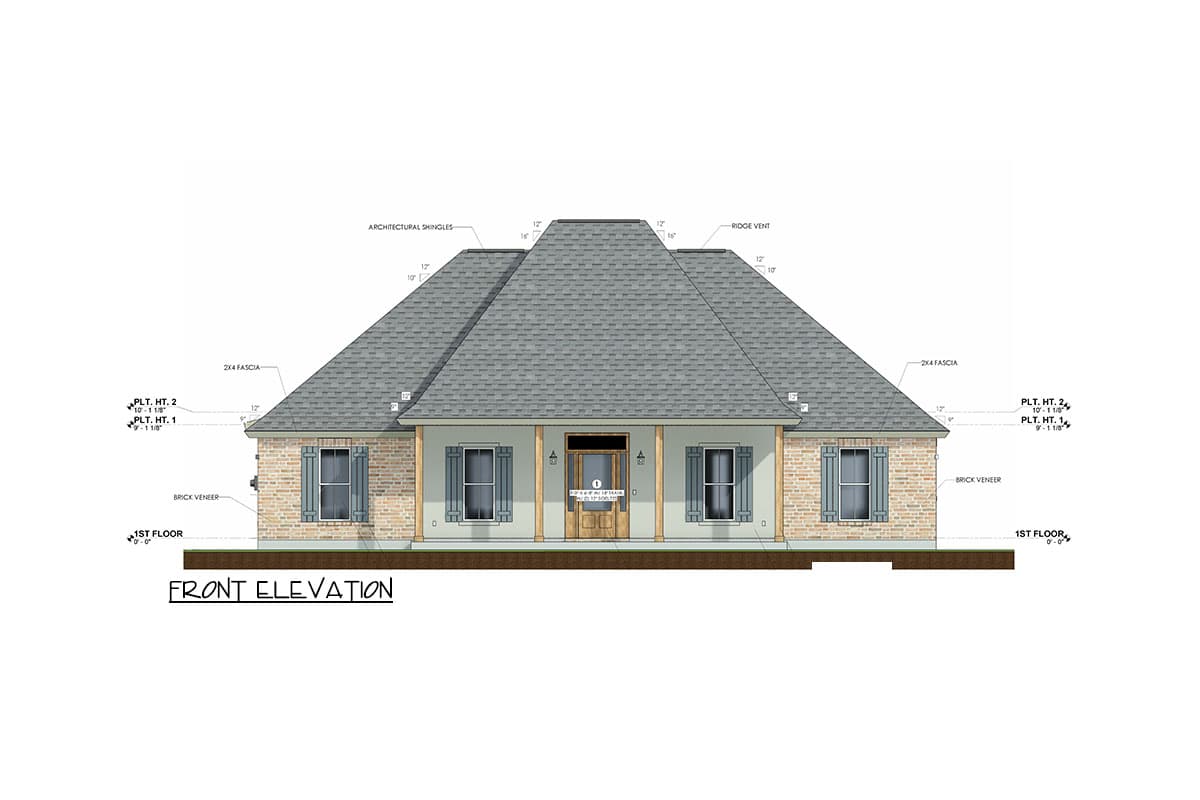

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

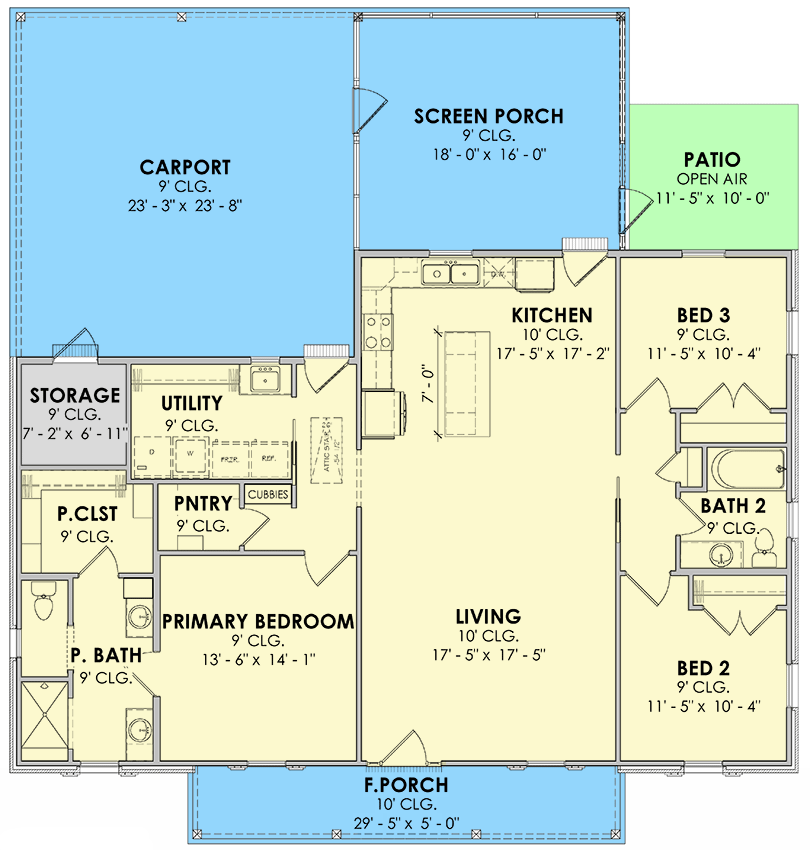

3 Bed Acadian-Style House Plan with Carport - 1705 Sq Ft - 185003PHD floor plan - Main Level

Architectural Style

Special features

Plan Collections

3 Bed Acadian-Style House Plan with Carport - 1705 Sq Ft

  • 1,705

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,705 sq. ft.
  • 1st Floor: 1,705 sq. ft.

Dimensions

  • Width: 54' 3"
  • Depth: 57' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached, Carport
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" Living Room 10' 0"
