Plan 135144GRA
3-Bed Barndominium with ADU and Oversized Garage
Heated S.F.
2,109
Beds
3
Baths
2
Stories
1
Cars
5
Plan Details
  • A skillion, metal roof tops this 3-bedroom Barndominium offering multi-generational living and boasting a central 1,344 square foot garage dividing the two living units. The left side has 1,311 square feet of heated living with 2 beds and the right side has 798 square feet with a single bedroom.
  • Clerestory windows let light pour into the home which has a ceiling that slopes from the front to the back.
  • An 8'-deep, covered porch spans the entire length of the home, welcoming you inside to both the main home and to the 1-bedroom apartment.
  • On the left, you will find the primary home with an open living space, warmed by a fireplace, as well as a den offering a quieter space to relax.
  • Two bedrooms, a 4-fixture bathroom, and a sizable laundry room with access to the garage completes the main living quarters.
  • The 1-bedroom apartment is attached to the right side of the garage and is perfect for in-laws, an income property, or a child ready for more independence.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plan: Get an alternate version with house plan 135217GRA.
What's Included
  • Elevations

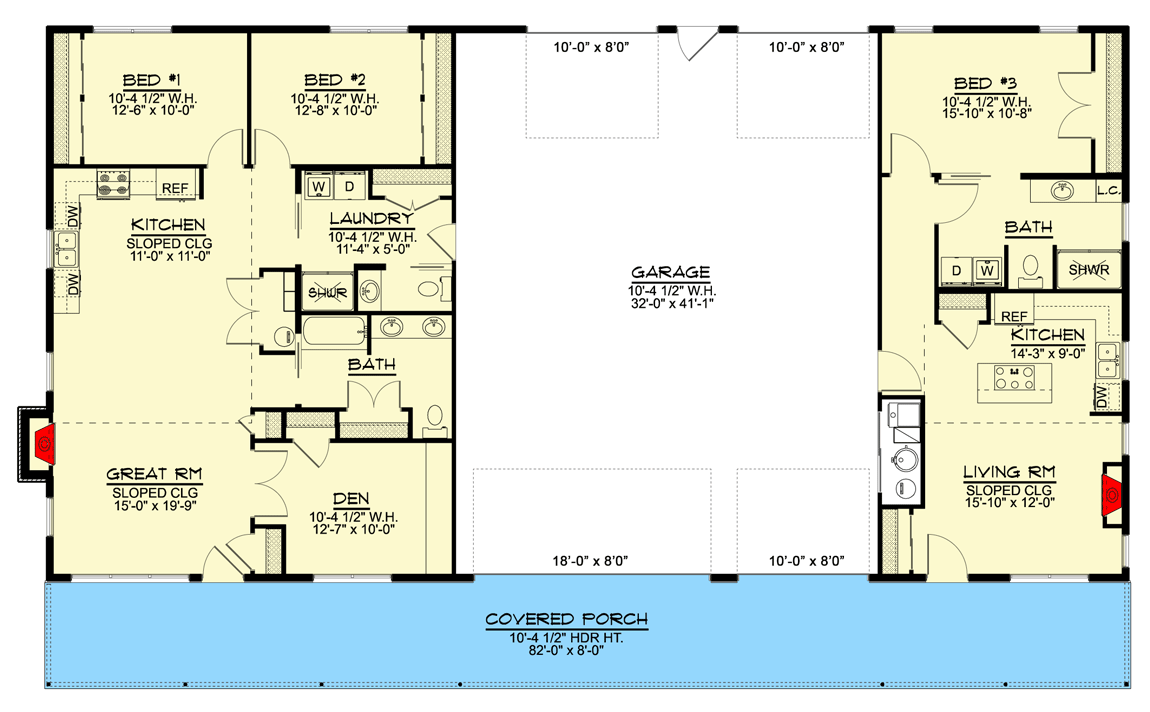

  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Barndominium with ADU and Oversized Garage

  • 2,109

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 5

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,109 sq. ft.
  • 1st Floor: 2,109 sq. ft.

Dimensions

  • Width: 82' 0"
  • Depth: 50' 0"
  • Max ridge height: 24' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 1344 sq. ft.
  • Count: 5 Cars

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
