Plan 28026J

3 Bed Bungalow Under 2200 Square Feet on a Finished Walkout Basement

Name: Plan 28026J: 3 Bed Bungalow Under 2200 Square Feet on a Finished Walkout Basement
Brand: Architectural Designs
SKU: 28026J
Price: 1595.0 USD
Availability: InStock

Heated S.F.

2,192

Beds

Baths

2.5

Stories

Cars

Floor Plan

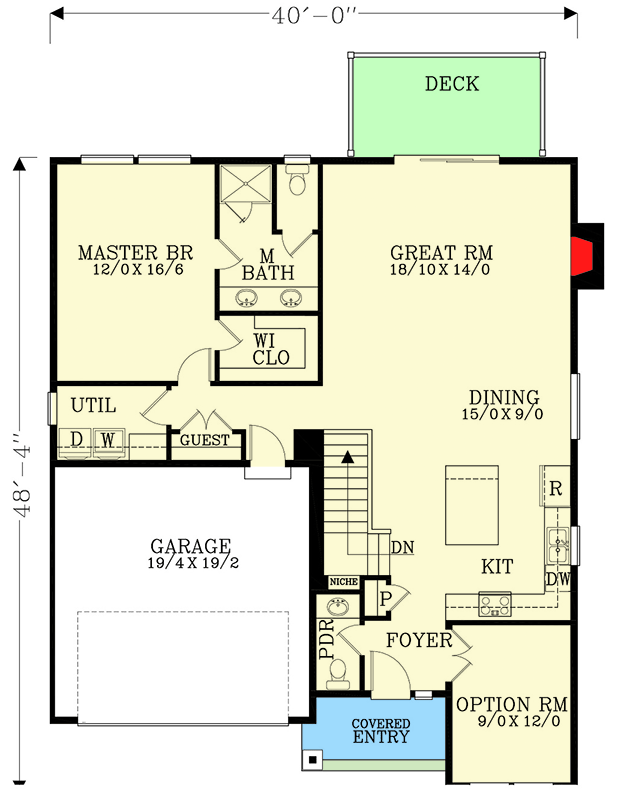

Main Level

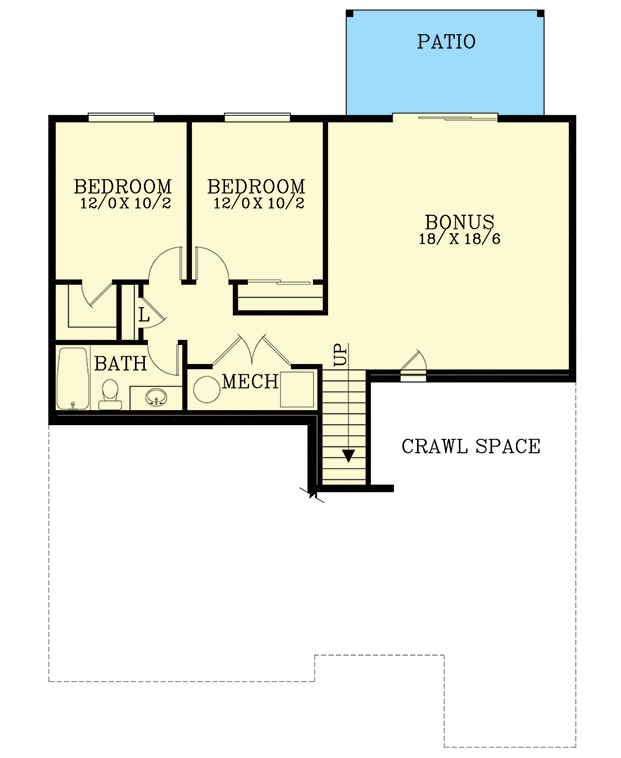

Lower Level

Plan Details

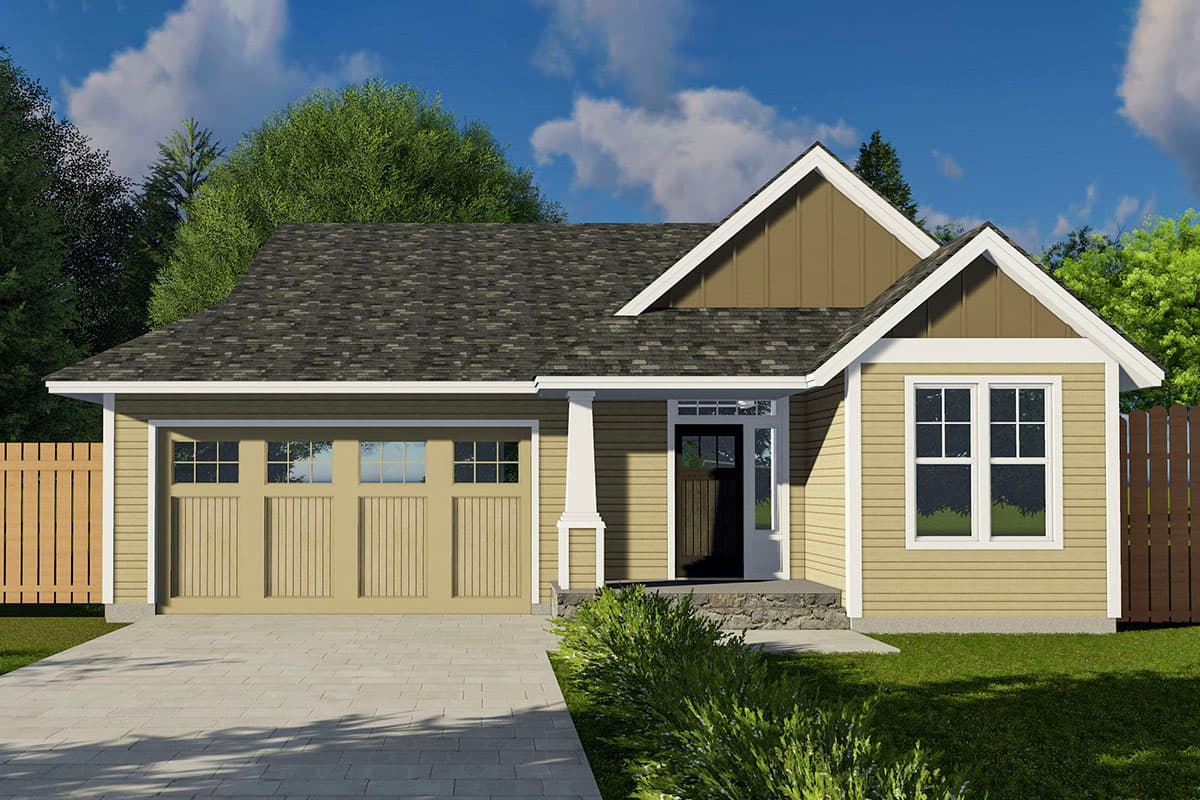

This 2,192 square foot Craftsman bungalow house plan is designed for a rear-sloping lot and places the master suite on the main floor and two more bedrooms in the walkout basement.
A flex room off the foyer can be used as a home office, a den, or whatever you choose.

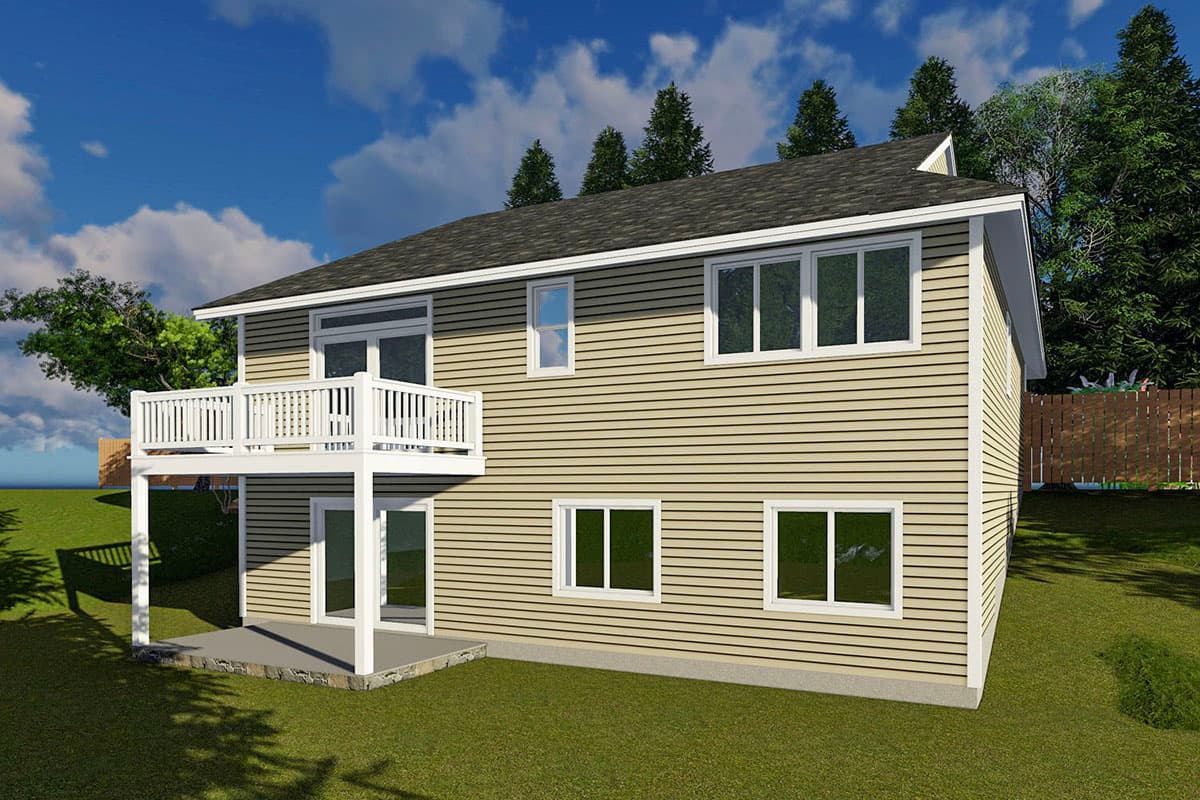

The kitchen has unobstructed views across the dining room to the great room with fireplace. Sliding doors on the back wall take you to a deck.
In the lower level, the bonus room is factored into the total living area. Use it as a family room or a game or rec room.

What's Included

Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Wall section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
