Plan 865022SHW
3-Bed Cape House Plan with Vaulted Master on Main Floor - 1544 Sq Ft
Heated S.F.
1,544
Beds
3
Baths
2
Stories
2
Plan Details
  • This 2-story country cape house plan gives you 1,544 square feet of heated living with 3 beds and 2.5 baths over a walkout basement foundation.
  • The master suite is conveniently located on the main level and features a luxurious vaulted ceiling.
  • Two additional bedroom are upstairs with a shared full bath separating them, completing this quintessential classic cape cod style home design.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet
  • 3D or Sketch Renderings
  • Foundation/Crawlspace Plan
  • Main Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Plan
  • Elevations; all 4 of them
  • Building Sections
  • Interiors (cabinet elevations)
  • Suggested electrical/lighting Plan(s)
  • General Notes
  • General Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Cape House Plan with Vaulted Master on Main Floor - 1544 Sq Ft

  • 1,544

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

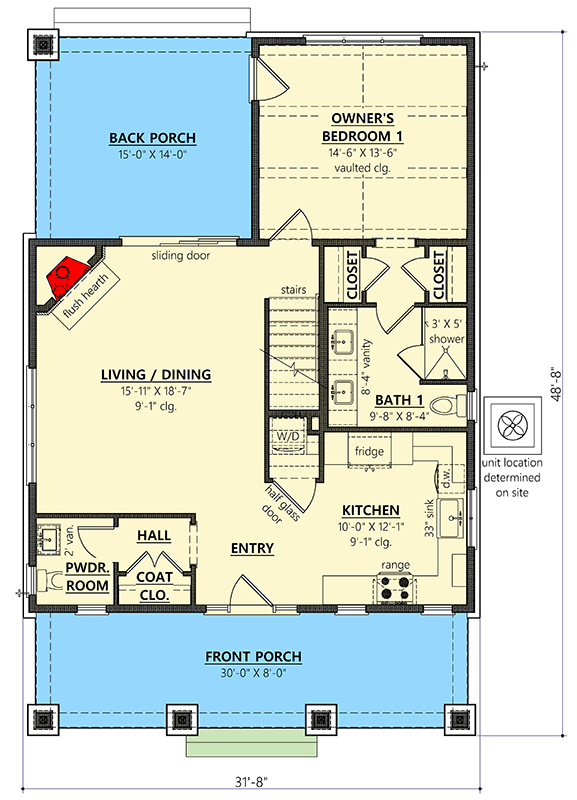

  • Main Level

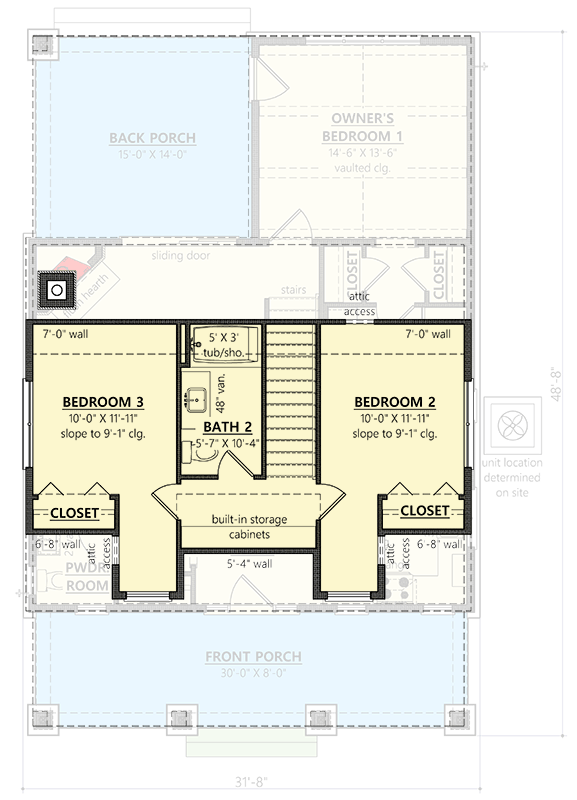

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,544 sq. ft.
  • 1st Floor: 1,023 sq. ft.
  • 2nd Floor: 521 sq. ft.

Dimensions

  • Width: 31' 8"
  • Depth: 48' 8"
  • Max ridge height: 25' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 1" Second Floor / 9' 1"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
