Plan 52315WM
3-Bed Cottage Plan with Split-bed Layout
Heated S.F.
1,671
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • Nested gables grace the front elevation of this 3-bedroom Cottage home plan that totals 1,671 square feet of living space.
  • Oriented to take advantage of the backyard views and beyond, discover an open living room with a vaulted ceiling, island kitchen, and dining area.
  • A 15' by 8' porch provides an ideal spot to grill and is accessible from the dining room.
  • The primary bedroom is set apart from bedrooms 2 and 3 and paired with a 5-fixture bathroom and walk-in closet.
  • The utility closet can be found in the double garage, while the laundry room just inside provides cabinetry for additional storage.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Cottage Plan with Split-bed Layout

  • 1,671

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

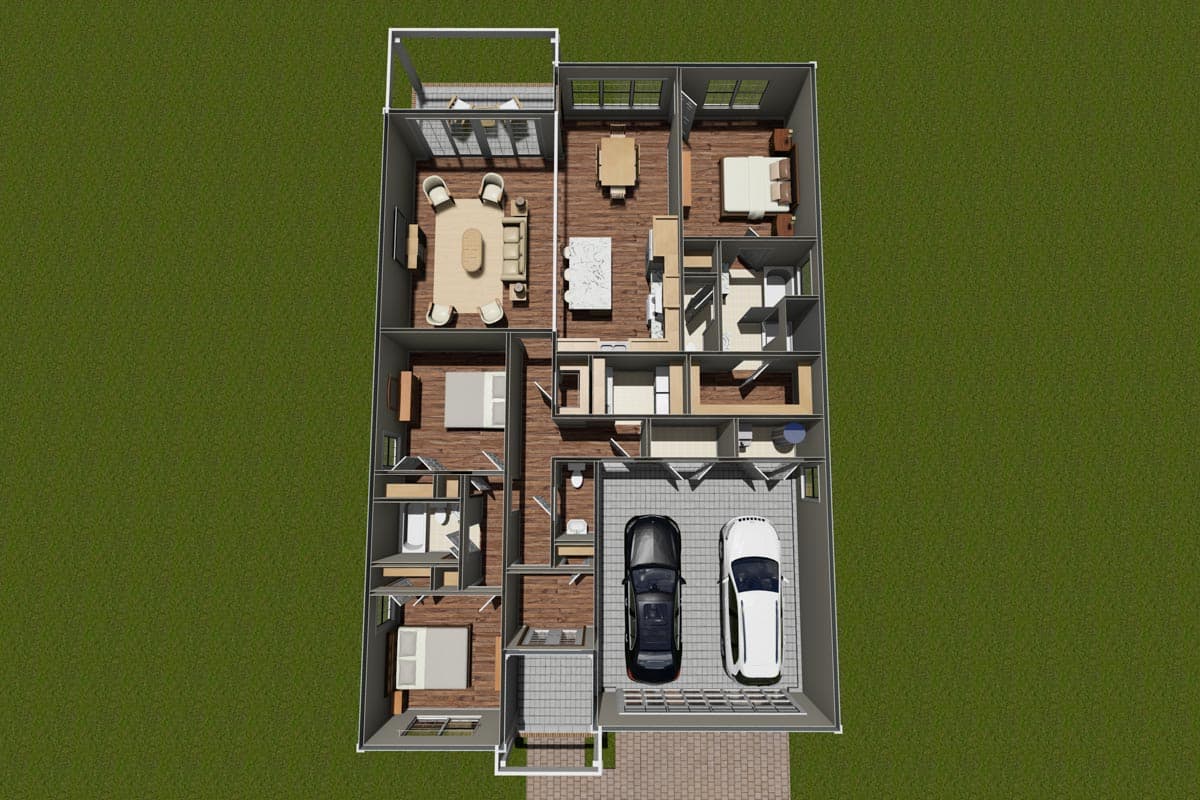

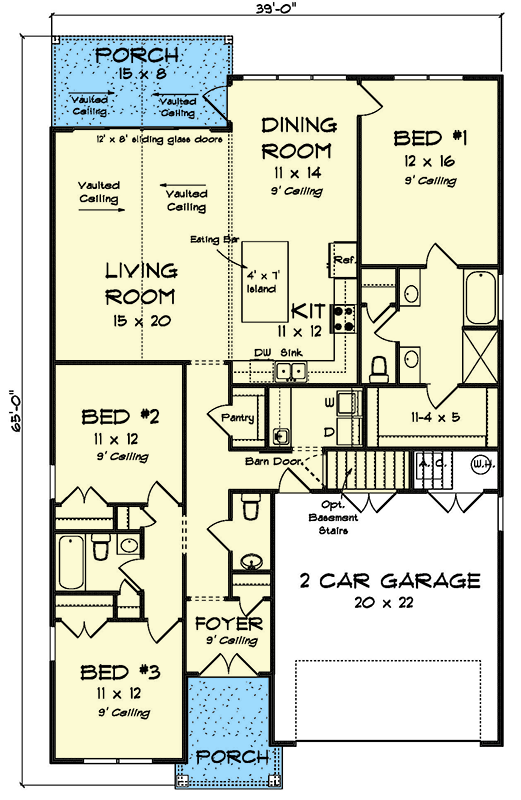

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,671 sq. ft.
  • 1st Floor: 1,671 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 65' 0"
  • Max ridge height: 19' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 496 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
