Plan 62820DJ
3-Bed Cottage-style House Plan with Open Floor Plan
Heated S.F.
1,365
Beds
3
Baths
2
Stories
1
Cars
1-2
Flyer
Videos
What's Included
Plan Details
  • This charming cottage-style plan has an exterior that features shake siding and lap siding along with sturdy columns on the front covered porch. Inside the home, you are greeted with an open floor plan.
  • The kitchen includes a walk-in pantry and a large kitchen island with a snack bar. Windows over the sink give you views to the back.
  • The master suite features a walk-in closet and a tray ceiling. Bedrooms 2 and 3 share a conveniently located hall bathroom.

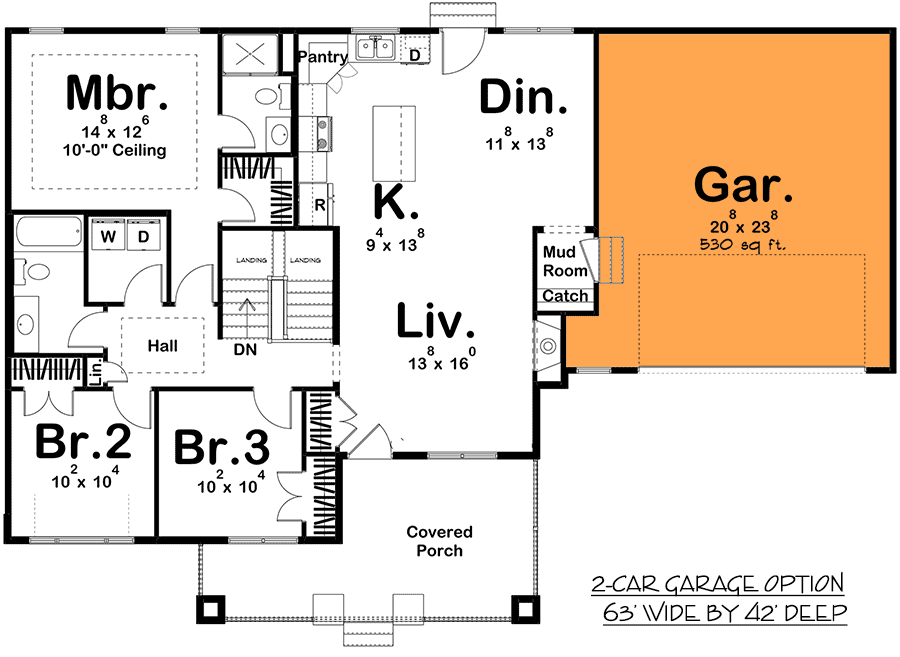

  • A 1-car garage accesses the home through a convenient mudroom that includes a wonderful catchall to help reduce clutter from getting into the rest of the home. Get a larger garage with the 2-car option (530 sq. ft.; 63' by 42' overall home dimensions).
  • NOTE: Please allow an extra few days for the 2-car option to be delivered.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

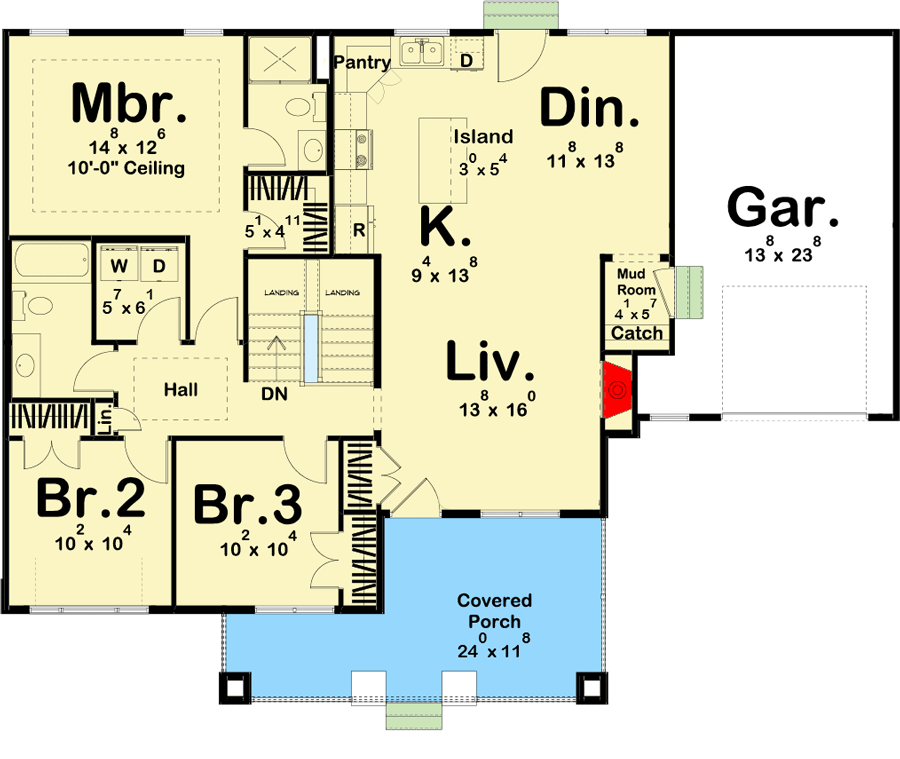

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
