Plan 52310WM

3-Bed Cottage Under 1500 Square Feet with 2-Car Garage

Heated S.F.
1,437
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 52310WM

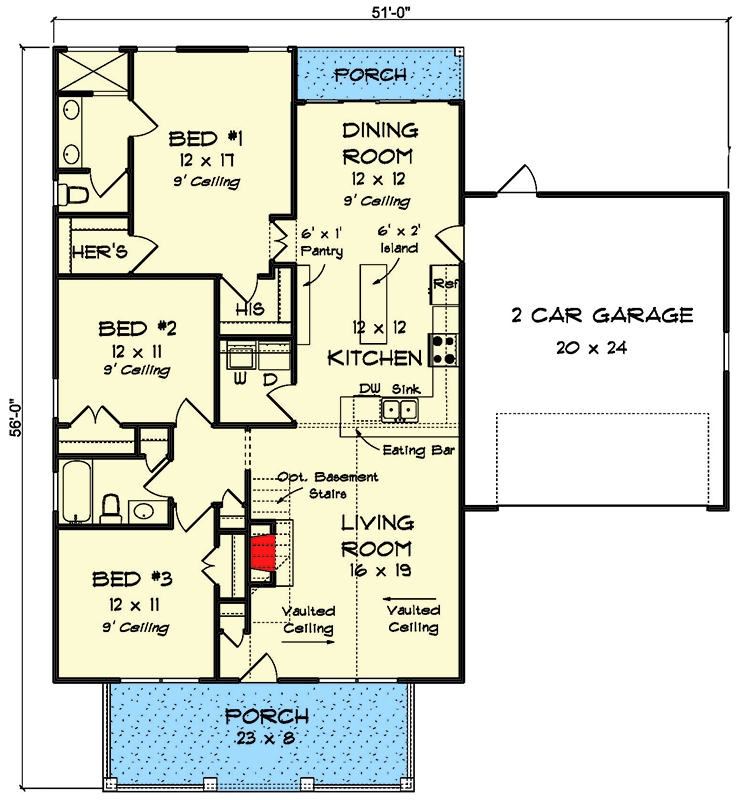

Main Level
Main Level

Plan 52310WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52310WM: 3-Bed Cottage Under 1500 Square Feet with 2-Car Garage - Floor Plan - Main Level - Bungalow, Cottage, Country, Traditional

Plan Details

  • This carefree 3 bedroom cottage house plan gives you 1,437 square feet of heated living and a 2-car 480 square foot garage.
  • The bedrooms run along the left of the home, leaving the rest for the open floor plan for family and friends.
  • The living room has an optional fireplace and stairs that run to the basement if you choose that foundation.
  • From the kitchen, you can serve guests at the counter or the dining room and have views to the front and back of the home.
  • Related Plans: Get a smaller version with house plan 52218WM (1,277 sq. ft.) and gain a study with house plan 52216WM (1,420 sq. ft.). Remove the garage with house plan 52309WM.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,437 sq. ft.

1st Floor

1,437 sq. ft.

Porch, Front

184 sq. ft.

Porch, Rear

51 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 0"

Depth

56' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Country

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
