Plan: 72784DA

3 Bed Cottage with Linked Gathering Spaces

1,603 3 2 1 2
Pageloader

3 Bed Cottage with Linked Gathering Spaces

Plan 72784DA

  • 1,603

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Slender sets of twin posts bound the front porch of this 3 bed cottage. Shingle siding adds to the visual appeal of both triangular gables, while multipaned windows sparkle across the front faзade.
  • Spacious linked gathering areas fill the right wing. Sleeping areas dominate the left side, tucked behind the two-car garage.
  • Entering, you step into a short foyer. Its angled display shelves are ideal for sharing family photos or small objects of beauty. The foyer leads on into the dining area, which is totally open to the living room behind and the kitchen up front. A door to the garage, next to the coat closet at the end of the foyer, makes for ease of unloading groceries and other household items.
  • A mess-free gas fireplace nestles into one rear corner of the living room. It's next to wide sliding glass doors that let in plenty of daylight, while providing easy, breezy access to a covered patio at the rear. This sheltered space is ideal for outdoor dining and could be screened.
  • Counters wrap around four sides of the kitchen at the opposite end of the gathering space, where a flush eating bar fronts the dining area. Cabinets line the walls above and below most of the counters. Kitchen workers standing at the sink can keep an eye on activities in the front yard, porch and patio outside, plus the dining and living areas inside.
  • Three bedrooms, two bathrooms, and a good-sized utility room cluster together on the left along with a roomy storage closet. Amenities in the owner's suite include a walk-in closet and a private bathroom with a dual vanity and separately enclosed shower and toilet.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

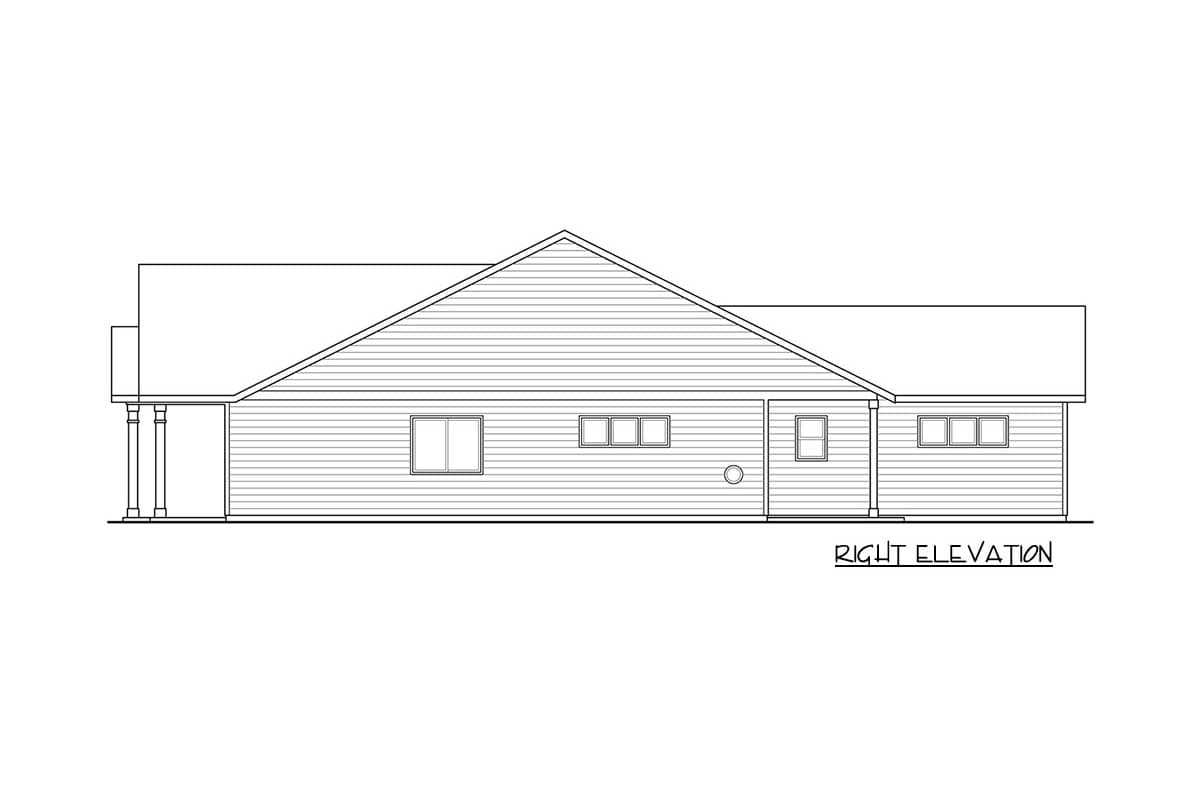

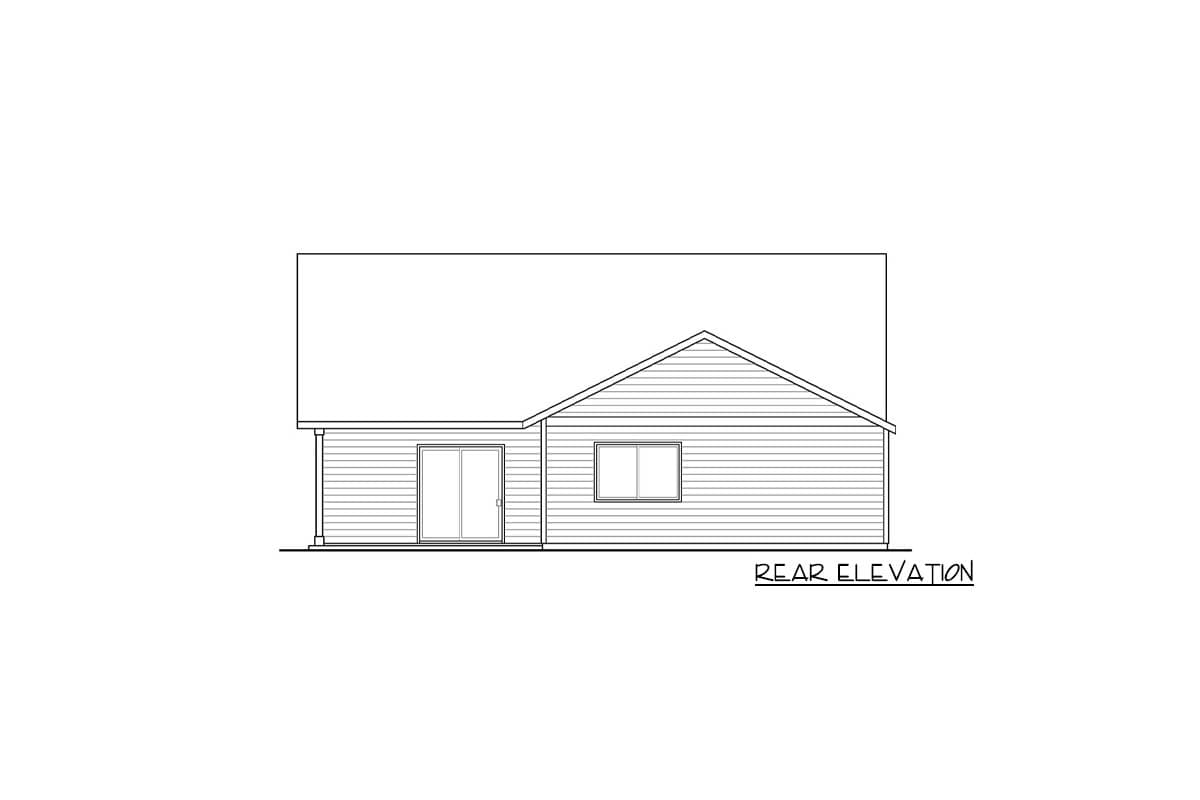

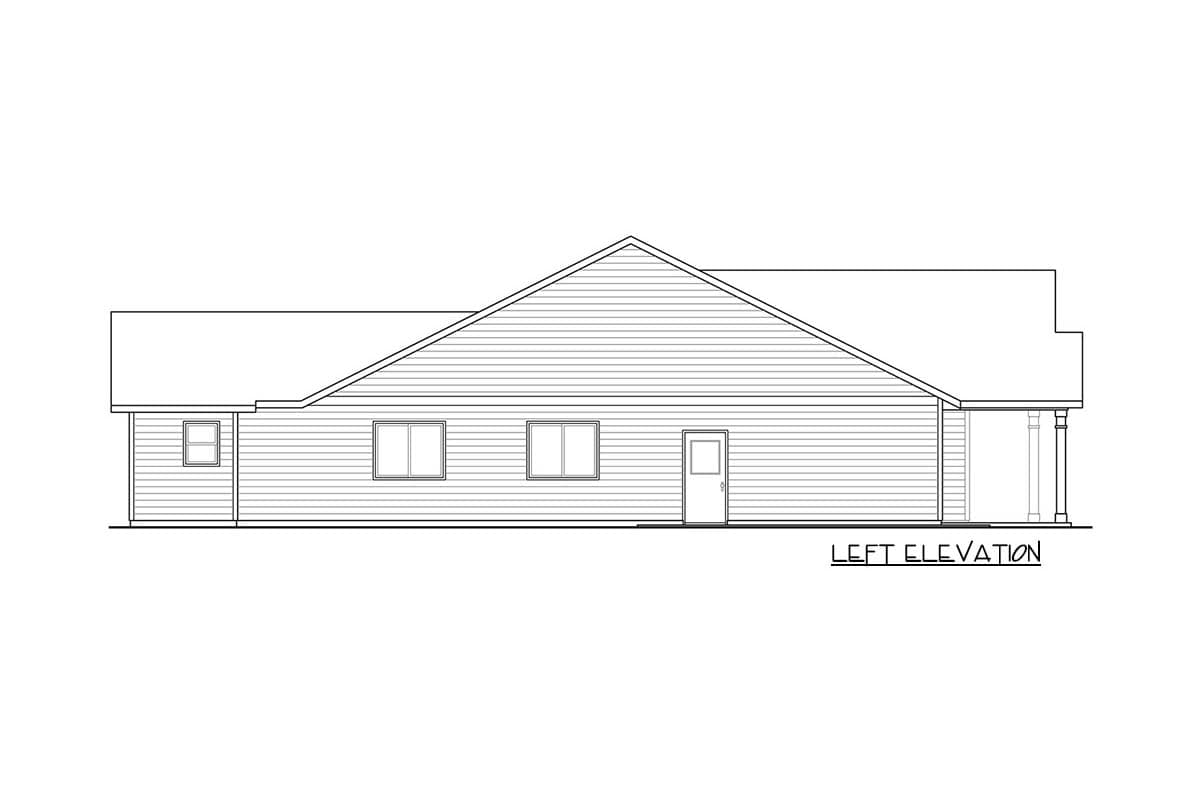

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details

Architectural Style



3 Bed Cottage with Linked Gathering Spaces

  • 1,603

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 8 Sets $1,070
  • PDF Plus $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • Slender sets of twin posts bound the front porch of this 3 bed cottage. Shingle siding adds to the visual appeal of both triangular gables, while multipaned windows sparkle across the front faзade.
  • Spacious linked gathering areas fill the right wing. Sleeping areas dominate the left side, tucked behind the two-car garage.
  • Entering, you step into a short foyer. Its angled display shelves are ideal for sharing family photos or small objects of beauty. The foyer leads on into the dining area, which is totally open to the living room behind and the kitchen up front. A door to the garage, next to the coat closet at the end of the foyer, makes for ease of unloading groceries and other household items.
  • A mess-free gas fireplace nestles into one rear corner of the living room. It's next to wide sliding glass doors that let in plenty of daylight, while providing easy, breezy access to a covered patio at the rear. This sheltered space is ideal for outdoor dining and could be screened.
  • Counters wrap around four sides of the kitchen at the opposite end of the gathering space, where a flush eating bar fronts the dining area. Cabinets line the walls above and below most of the counters. Kitchen workers standing at the sink can keep an eye on activities in the front yard, porch and patio outside, plus the dining and living areas inside.
  • Three bedrooms, two bathrooms, and a good-sized utility room cluster together on the left along with a roomy storage closet. Amenities in the owner's suite include a walk-in closet and a private bathroom with a dual vanity and separately enclosed shower and toilet.

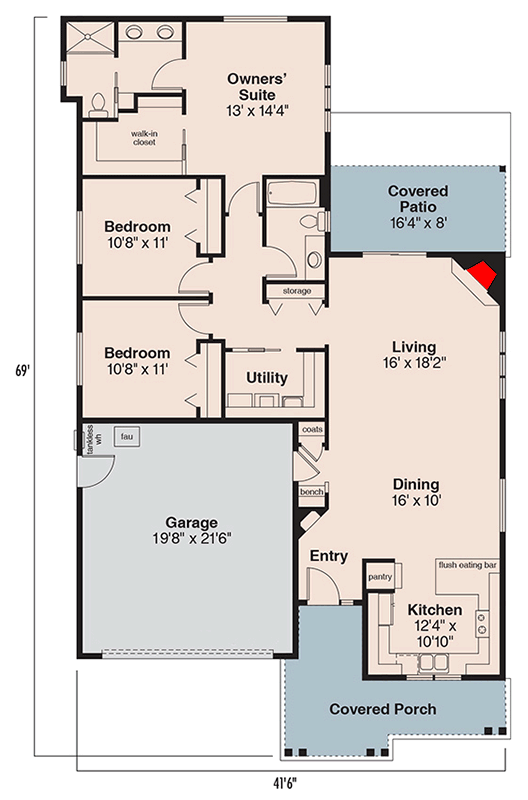

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,603 sq. ft.
  • 1st Floor: 1,603 sq. ft.
  • Deck: 131 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 6"
  • Depth: 69' 0"
  • Max ridge height: 21' 6"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Cottage
  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
