Plan 70828MK
3-Bed Country Cottage House Plan with Vaulted Living Area - 1284 Sq Ft
Heated S.F.
1,284
Beds
3
Baths
2
Stories
1
Flyer
What's Included
Plan Details
  • The warmth of this split bedroom country home plan will be apparent to your guests as they enter the foyer from the covered entry porch.
  • The attractive open concept living space has a vaulted ceiling in the great room and is open to the L-shaped kitchen and dining nook.
  • Dinner will be delicious and convenient with easy access to the kitchen from the dining room.
  • You will find seclusion in the master suite complete with spacious 'his and her' walk-in closets and private bath.
  • This southern traditional style design has all the amenities you've come to expect.
  • Related Plan: Get a rear entry garage and an enclosed kitchen with house plan 59162ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Country Cottage House Plan with Vaulted Living Area - 1284 Sq Ft

  • 1,284

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

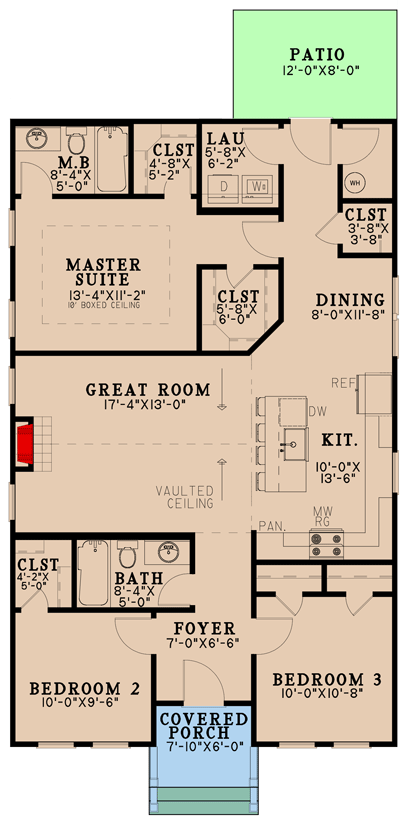

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,284 sq. ft.
  • 1st Floor: 1,284 sq. ft.

Dimensions

  • Width: 28' 4"
  • Depth: 49' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
