Plan 70801MK 3-Bed Country Craftsman Home Plan with Large Bonus Room Above 3-Car Garage

2,351 3 2.5 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Country Craftsman Home Plan with Large Bonus Room Above 3-Car Garage

Plan 70801MK

  • 2,351

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • With front and rear porches, this 3-bed Craftsman home plan defines country living.
  • French doors part to grant access into the foyer, where a formal dining room sits to the right, and the combined great room and kitchen straight ahead.
  • The vaulted ceiling with exposed beams guides your eyes to the fireplace on the left wall, and the massive island in the kitchen provides additional seating. A large pantry provides space for larger kitchen appliances and buying in bulk.
  • The master bedroom is nestled behind the garage for the utmost privacy and includes a vaulted ceiling, 5-fixture bath, and a walk-in closet that doubles as a safe room.
  • Bedrooms 2 and 3 reside on the opposite side of the home, and share a Jack-and-Jill bath.
  • Stairs lead you to bonus expansion space over the garage giving you an extra 456 square feet when built out as shown.
  • Related Plans: Get an alternate version with house plans 70640MK and 70687MK.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

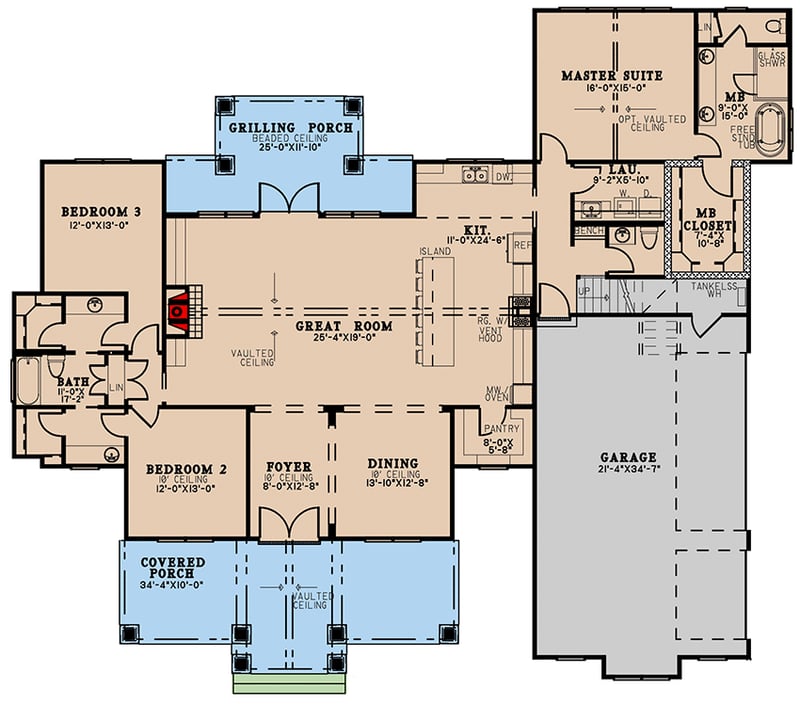

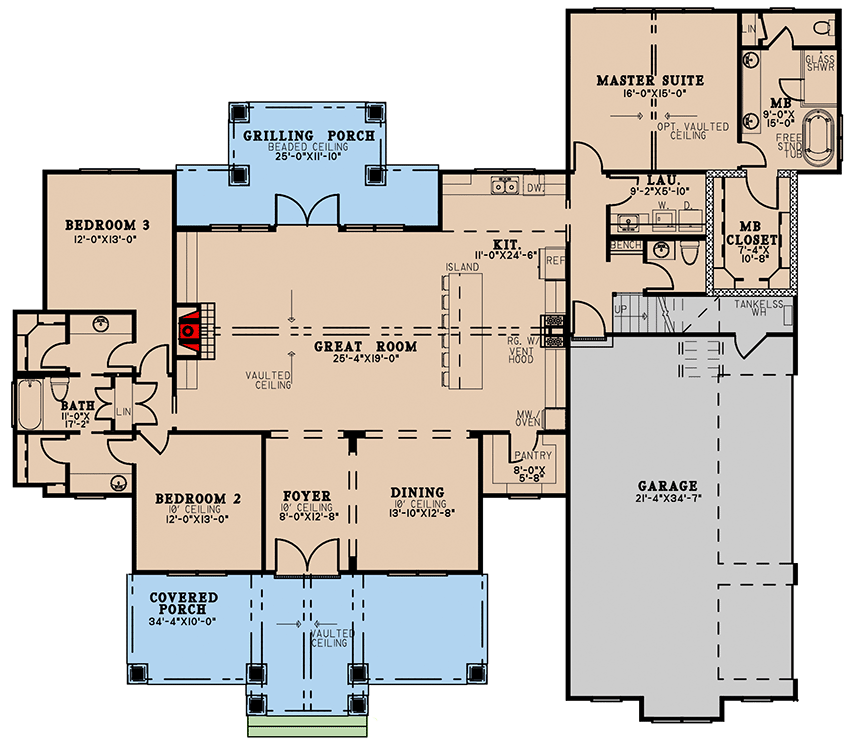

3-Bed Country Craftsman Home Plan with Large Bonus Room Above 3-Car Garage - 70801MK floor plan - Main Level

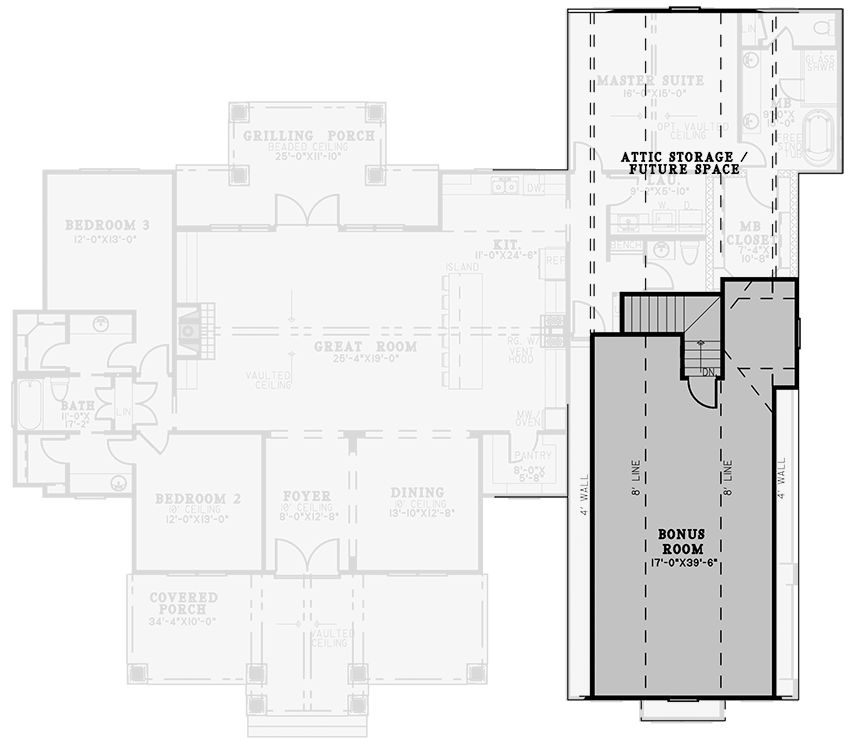

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Country Craftsman Home Plan with Large Bonus Room Above 3-Car Garage - 70801MK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,351 sq. ft.
  • 1st Floor: 2,351 sq. ft.
  • Porch, Combined: 657 sq. ft.
  • Bonus: 654 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 10"
  • Depth: 67' 10"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12

Architectural Style

Special features

3-Bed Country Craftsman Home Plan with Large Bonus Room Above 3-Car Garage

  • 2,351

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,450
  • 5 Sets + PDF $1,700
  • PDF - Unlimited Build $2,050
  • CAD Unlimited + PDF $2,700
  • View all purchase option online

About This Plan

  • With front and rear porches, this 3-bed Craftsman home plan defines country living.
  • French doors part to grant access into the foyer, where a formal dining room sits to the right, and the combined great room and kitchen straight ahead.
  • The vaulted ceiling with exposed beams guides your eyes to the fireplace on the left wall, and the massive island in the kitchen provides additional seating. A large pantry provides space for larger kitchen appliances and buying in bulk.
  • The master bedroom is nestled behind the garage for the utmost privacy and includes a vaulted ceiling, 5-fixture bath, and a walk-in closet that doubles as a safe room.
  • Bedrooms 2 and 3 reside on the opposite side of the home, and share a Jack-and-Jill bath.
  • Stairs lead you to bonus expansion space over the garage giving you an extra 456 square feet when built out as shown.
  • Related Plans: Get an alternate version with house plans 70640MK and 70687MK.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,351 sq. ft.
  • 1st Floor: 2,351 sq. ft.
  • Porch, Combined: 657 sq. ft.
  • Bonus: 654 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 10"
  • Depth: 67' 10"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
Plan 70801MK
View this and more for this plan by visiting www.architechtecturaldesigns.com/70801MK
|
Need Help? 800-854-7852
|
Plan 70801MK
