Plan 493001GNT 3-Bed Country Home Plan with Deep Front Porch and Vaulted Ceilings Throughout

2,441 3-5 3.5 - 4.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Country Home Plan with Deep Front Porch and Vaulted Ceilings Throughout

Plan 493001GNT

  • 2,441

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • An 8'-deep front porch with three dormers above give this country farmhouse plan great curb appeal.
  • Inside, a pair of French doors off the foyer open to your work-from-home office with closet to store things out of the way.
  • Ahead, a vaulted great room with fireplace opens up to the covered patio giving you great indoor/outdoor living. The space opens to the kitchen with a large (3'6" by 10') island with double sink, casual seating and work space. Check out the prep area and large pantry as well.
  • The dining room has a vaulted ceiling and enjoys access to the rear patio.
  • A vaulted ceiling in the master suite has a large walk-in closet, a five-fixture bath and is conveniently located near the laundry (as is Bed 2). Across the home, Bed 3 has a vaulted ceiling and its own bathroom and makes a great guest suite.
  • Choose the basement option and get two more bedrooms, storage, a second laundry room and lots of rec and game space to enjoy.
  • Related Plans: Get an alternate exterior with house plans 493000GNT and 493002GNT.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

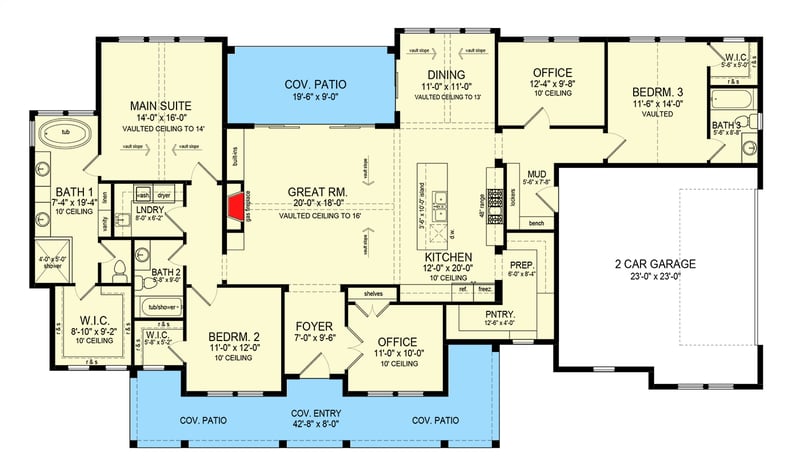

3-Bed Country Home Plan with Deep Front Porch and Vaulted Ceilings Throughout - 493001GNT floor plan - Main Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

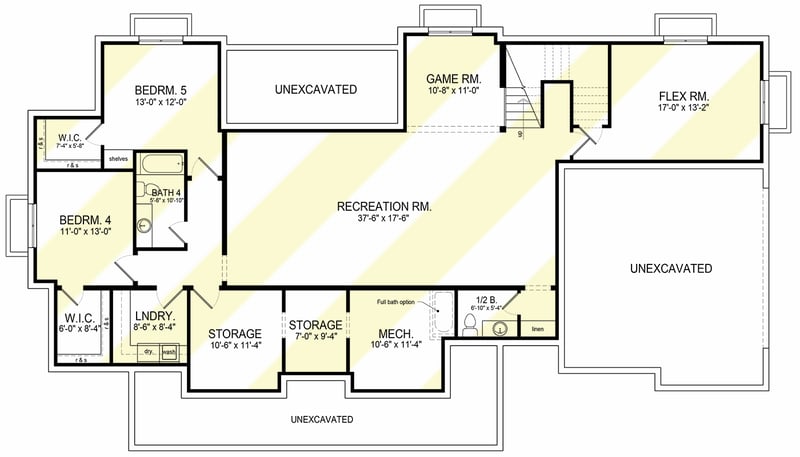

3-Bed Country Home Plan with Deep Front Porch and Vaulted Ceilings Throughout - 493001GNT floor plan - Optional Lower Level

Main Level - Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

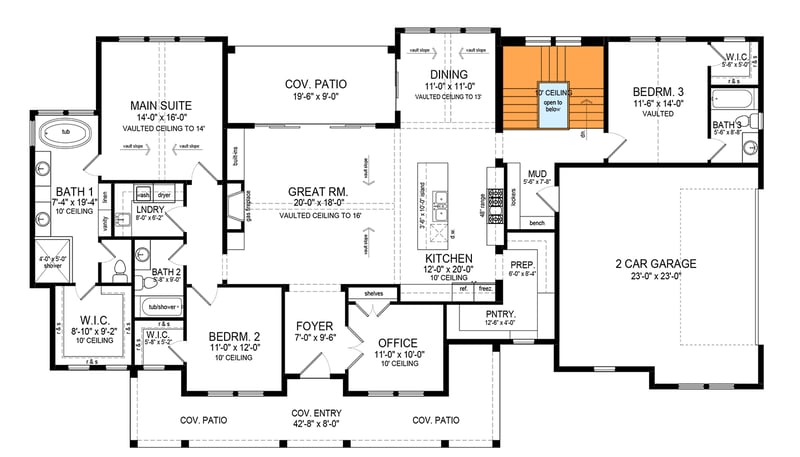

3-Bed Country Home Plan with Deep Front Porch and Vaulted Ceilings Throughout - 493001GNT floor plan - Main Level - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,441 sq. ft.
  • 1st Floor: 2,441 sq. ft.
  • Porch, Combined: 498 sq. ft.
  • Porch, Rear: 175 sq. ft.
  • Porch, Front: 323 sq. ft.
  • Optional Lower Level: 2,284 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 6"
  • Depth: 48' 4"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

3-Bed Country Home Plan with Deep Front Porch and Vaulted Ceilings Throughout

  • 2,441

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • CAD Unlimited + PDF $2,295
  • View all purchase option online

About This Plan

  • An 8'-deep front porch with three dormers above give this country farmhouse plan great curb appeal.
  • Inside, a pair of French doors off the foyer open to your work-from-home office with closet to store things out of the way.
  • Ahead, a vaulted great room with fireplace opens up to the covered patio giving you great indoor/outdoor living. The space opens to the kitchen with a large (3'6" by 10') island with double sink, casual seating and work space. Check out the prep area and large pantry as well.
  • The dining room has a vaulted ceiling and enjoys access to the rear patio.
  • A vaulted ceiling in the master suite has a large walk-in closet, a five-fixture bath and is conveniently located near the laundry (as is Bed 2). Across the home, Bed 3 has a vaulted ceiling and its own bathroom and makes a great guest suite.
  • Choose the basement option and get two more bedrooms, storage, a second laundry room and lots of rec and game space to enjoy.
  • Related Plans: Get an alternate exterior with house plans 493000GNT and 493002GNT.

Floor Plans

  • Main Level

  • Optional Lower Level

  • Main Level - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,441 sq. ft.
  • 1st Floor: 2,441 sq. ft.
  • Porch, Combined: 498 sq. ft.
  • Porch, Rear: 175 sq. ft.
  • Porch, Front: 323 sq. ft.
  • Optional Lower Level: 2,284 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 6"
  • Depth: 48' 4"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
