Plan 444283GDN

3-Bed Country Home Plan with Private Master Suite

Name: Plan 444283GDN: 3-Bed Country Home Plan with Private Master Suite
Brand: Architectural Designs
SKU: 444283GDN
Price: 1525.0 USD
Availability: InStock

Heated S.F.

1,832

Beds

2 - 3

Baths

Stories

Cars

Floor Plan

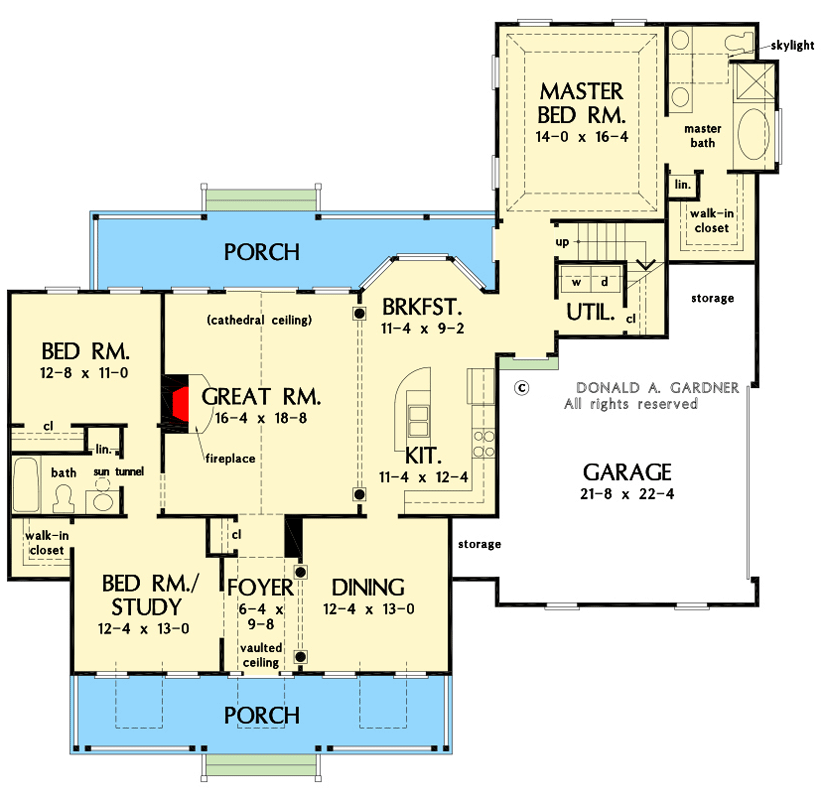

Main Level

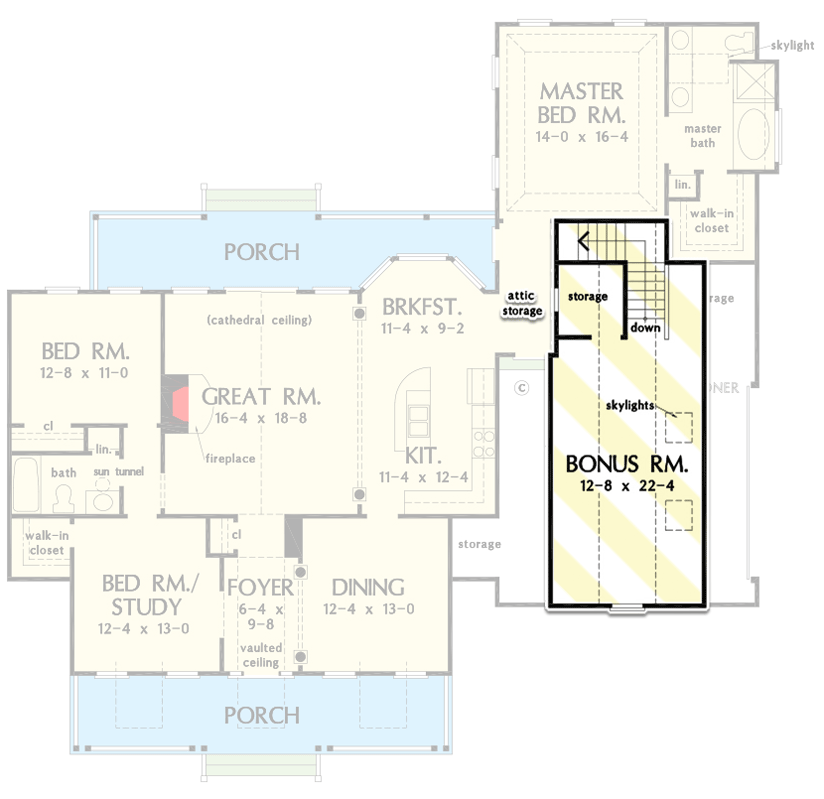

Bonus Room

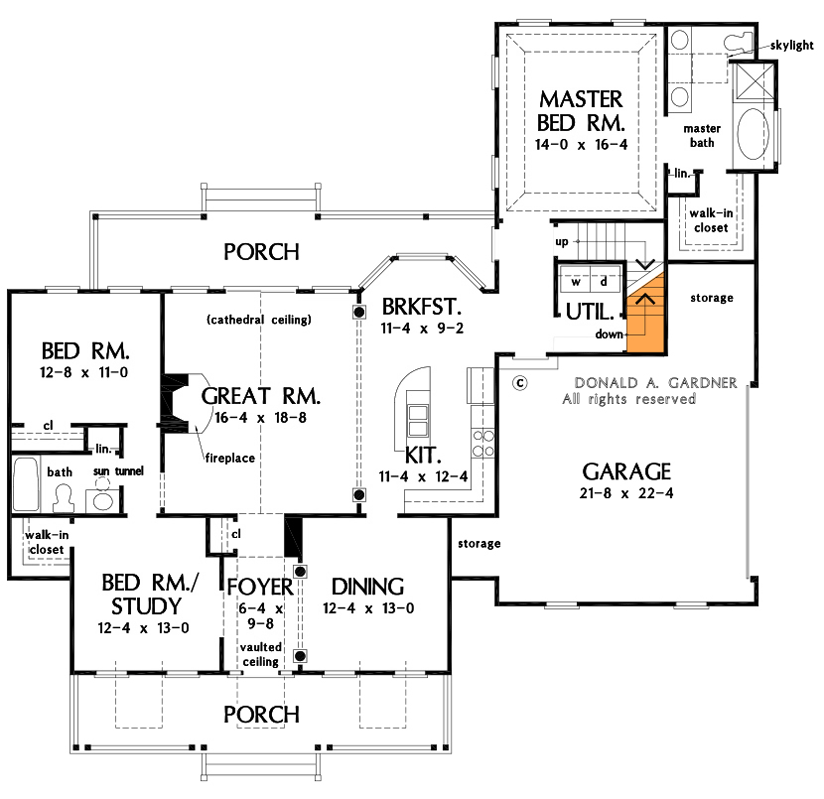

Basement Option

Plan Details

Dual 6'8"-deep porches (32'4"-wide in front and 39'10"-wide in back) , gables, and circle-top windows give this 3-bedroom Country house plan its charm.
The foyer, expanded by a vaulted ceiling, introduces a formal colonnaded dining room. The open kitchen features columns and an island for easy entertaining.
The vaulted great room (20'8" peak ceiling height) is always bright with light from the circle-top clerestory and expands onto the rear porch.
The front bedroom doubles as a study for versatility, while a tray ceiling adds volume to the private master suite featuring a skylit bath with garden tub, double-bowl vanity, and both linen and walk-in closets.
Extra room for growth is waiting in the skylit bonus room of this house plan.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
