Plan 42527DB

3-Bed Craftsman Cottage House Plan

Pageloader

3-Bed Craftsman Cottage House Plan

Plan 42527DB

  • 1,886

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

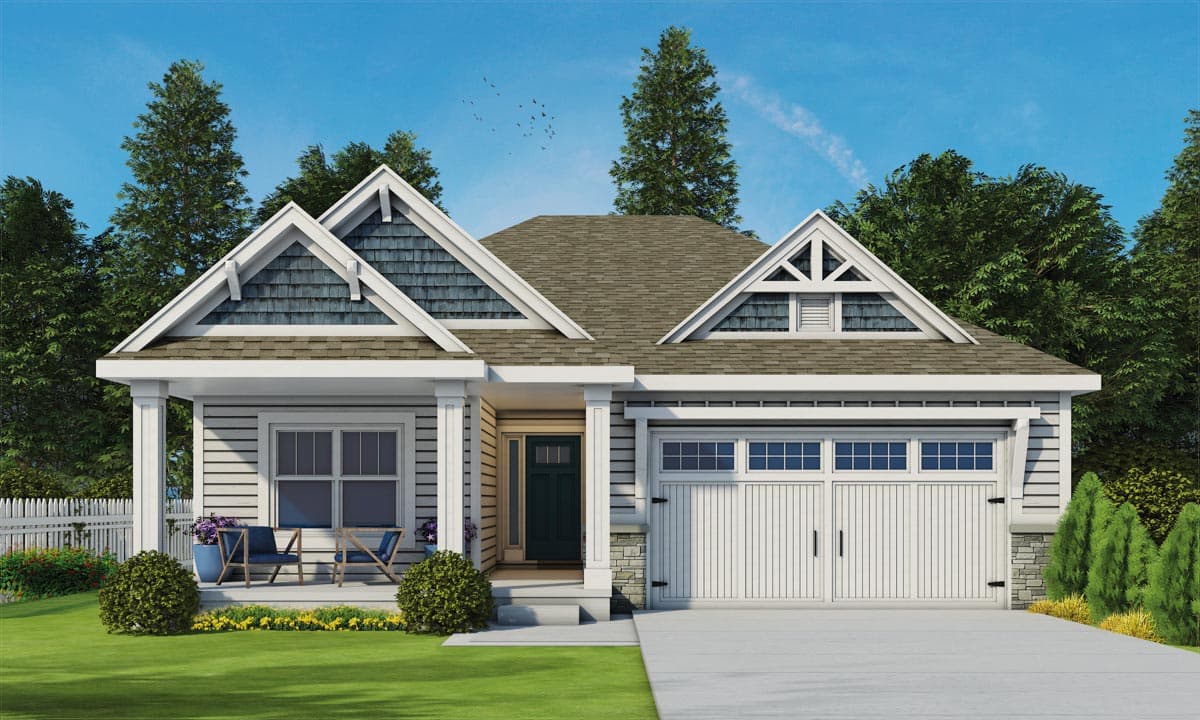

  • Nested gables and a cozy front porch add a touch of country to this 3-bed Craftsman cottage house plan.
  • Beams run across the family room with 11' ceilings and a fireplace is tucked into the back-left corner.
  • The master suite has tray ceilings, dual vanities and a walk-in closet. Two bedrooms in front share a bath.
  • The kitchen is open to the family room and eating area and there is a deck in back accessed from the eating area.
  • Related Plan: Get an alternate exterior with house plan 42508DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

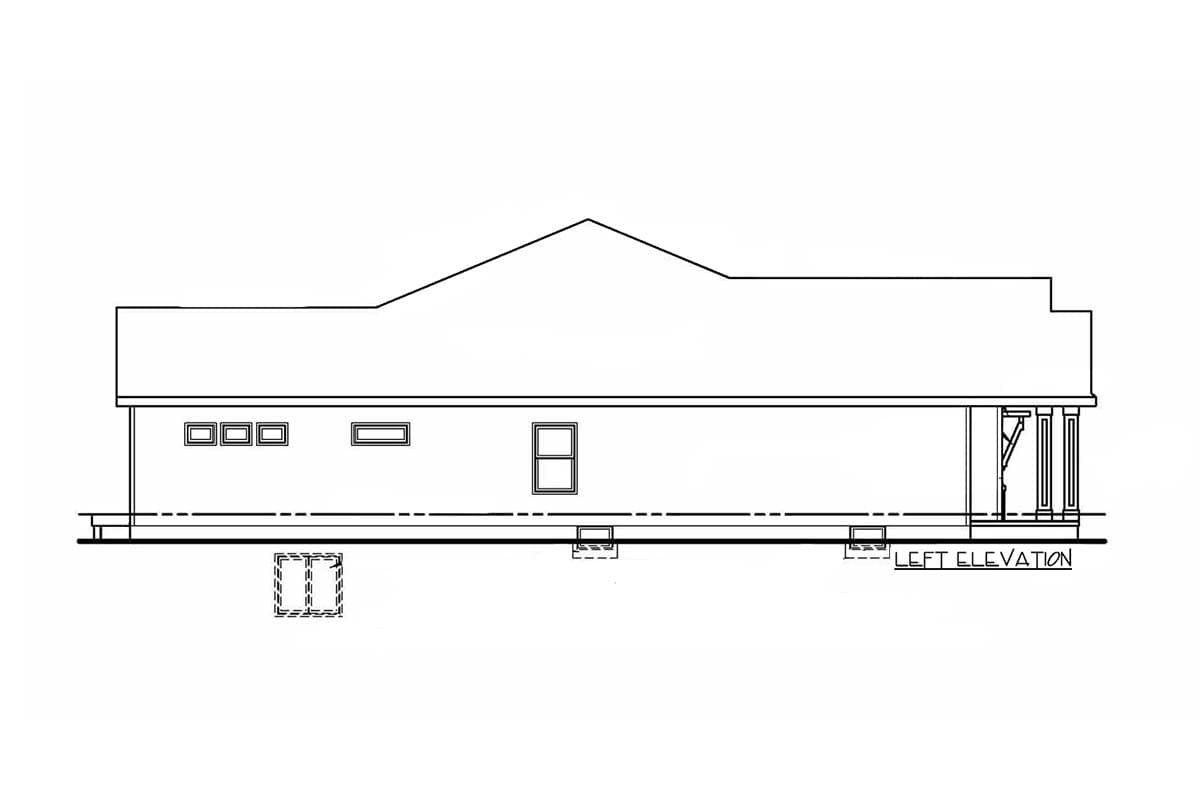

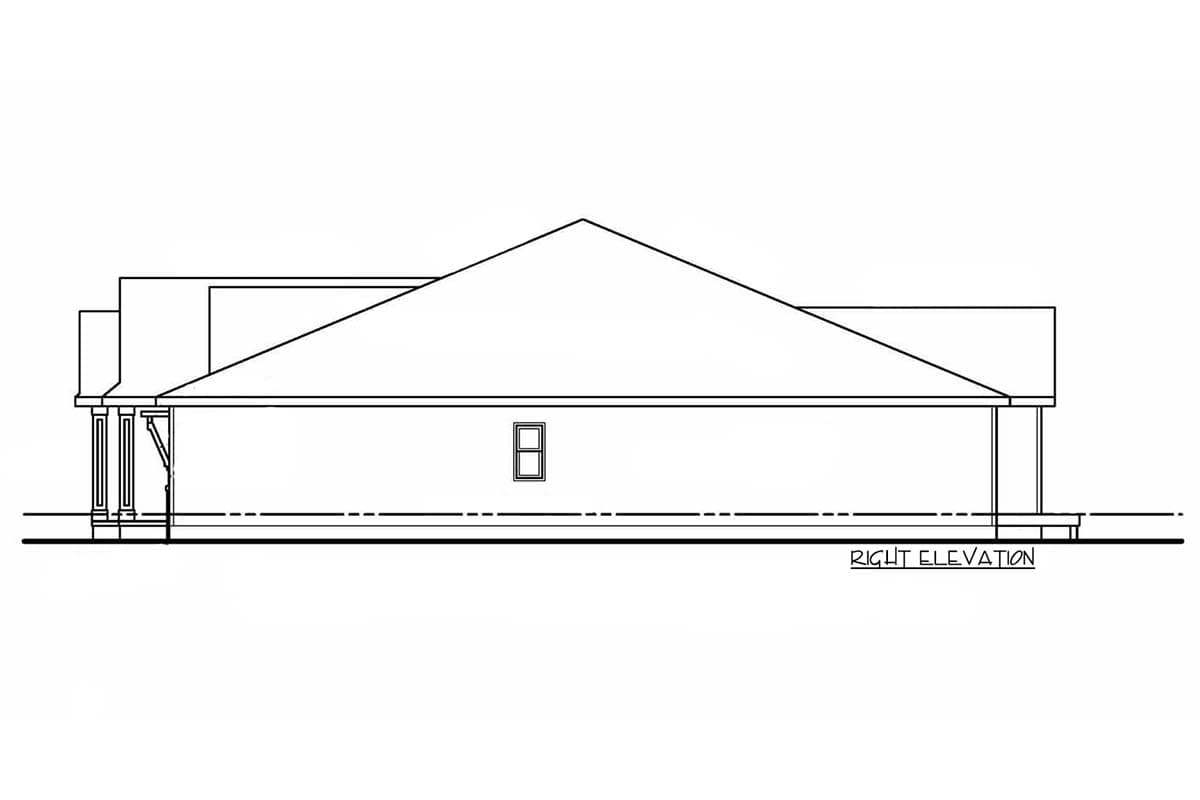

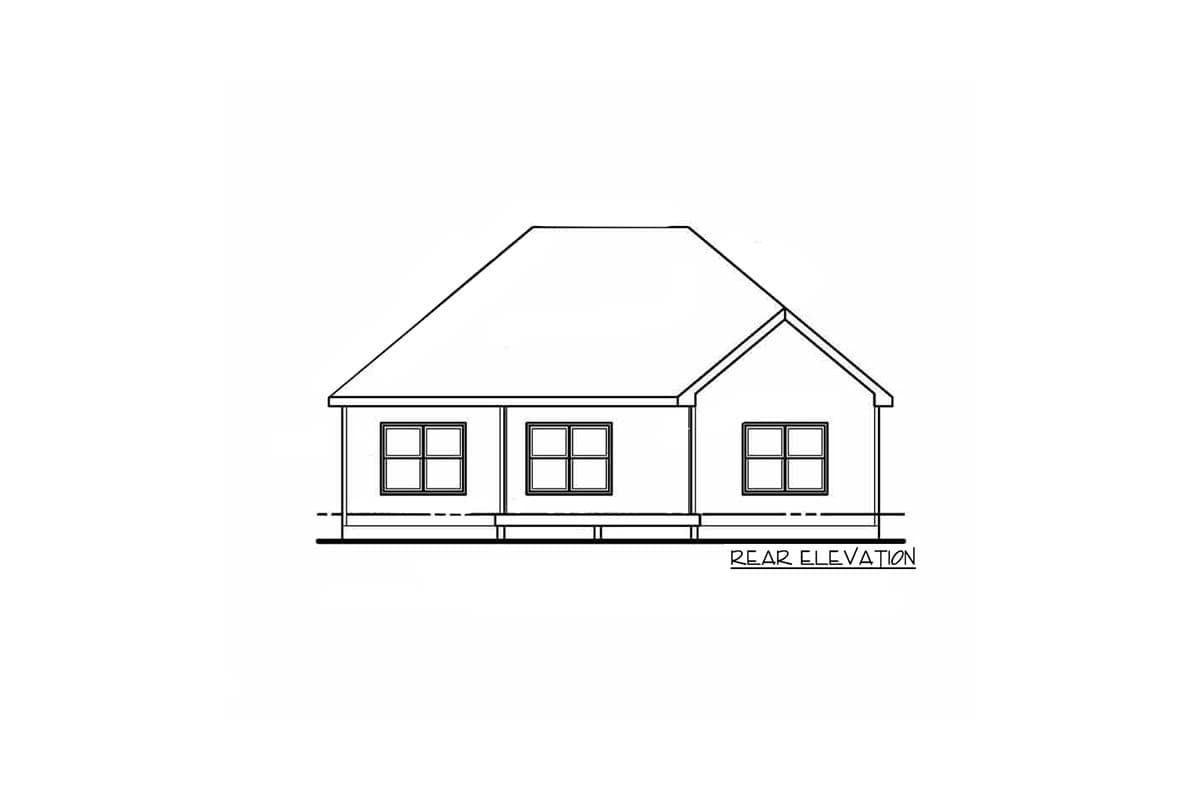

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details

Architectural Style



3-Bed Craftsman Cottage House Plan

  • 1,886

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $635
  • PDF - single-use $965
  • 5 Sets $1,090
  • 5 Sets PLUS $1,135
  • 8 Sets $1,160
  • PDF - multi-use $1,465
  • CAD $1,689
  • CAD - multi-use $2,189
  • View all purchase option online

About This Plan

  • Nested gables and a cozy front porch add a touch of country to this 3-bed Craftsman cottage house plan.
  • Beams run across the family room with 11' ceilings and a fireplace is tucked into the back-left corner.
  • The master suite has tray ceilings, dual vanities and a walk-in closet. Two bedrooms in front share a bath.
  • The kitchen is open to the family room and eating area and there is a deck in back accessed from the eating area.
  • Related Plan: Get an alternate exterior with house plan 42508DB.

Floor Plans

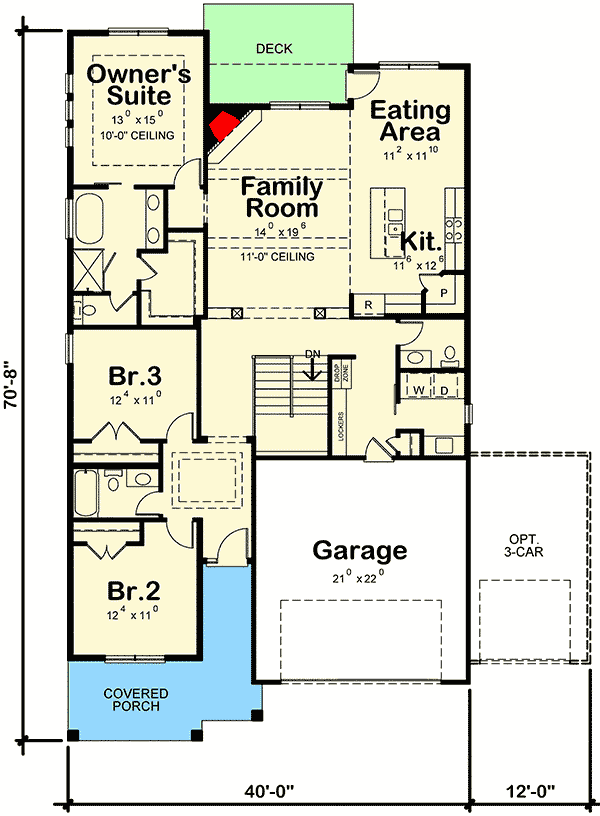

  • Main Level

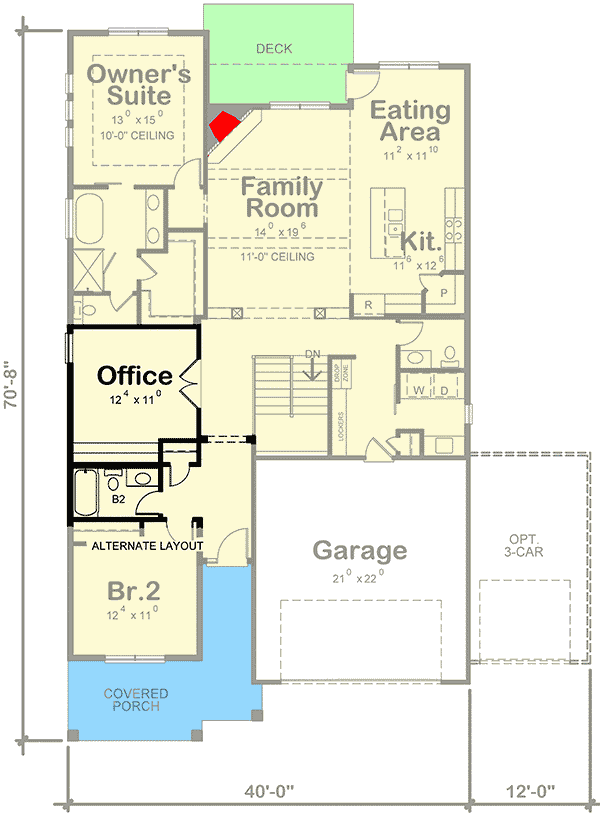

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,886 sq. ft.
  • 1st Floor: 1,886 sq. ft.
  • Porch, Front: 189 sq. ft.
  • Porch, Rear: 56 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 70' 8"
  • Max ridge height: 24' 1"

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
