Plan 70673MK

3-Bed Craftsman Cottage House Plan Under 2000 Square Feet with Bonus Room

Name: Plan 70673MK: 3-Bed Craftsman Cottage House Plan Under 2000 Square Feet with Bonus Room
Brand: Architectural Designs
SKU: 70673MK
Price: 2709.38 USD
Availability: InStock

Heated S.F.

1,986

Beds

Baths

2.5

Stories

Cars

Floor Plan

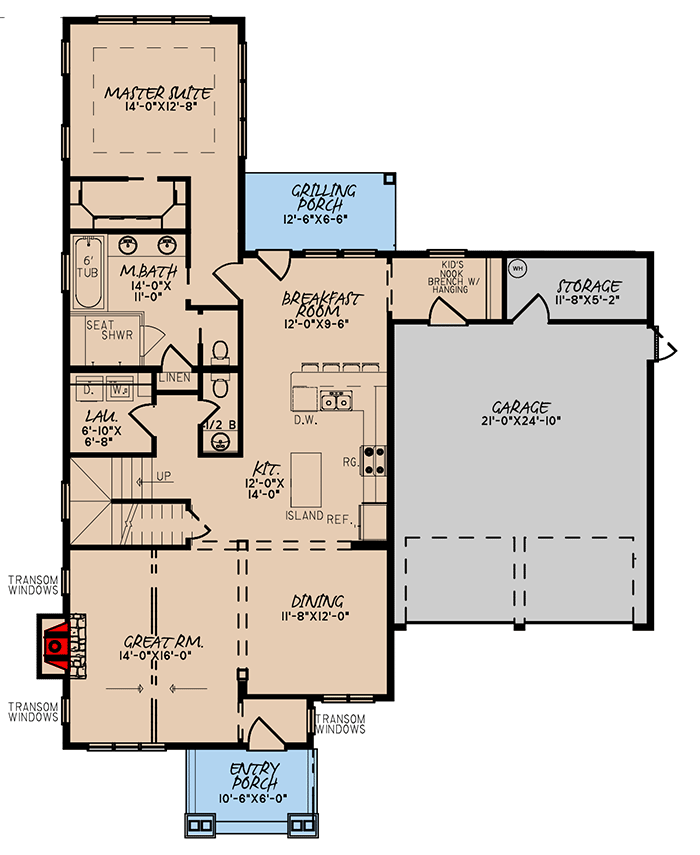

Main Level

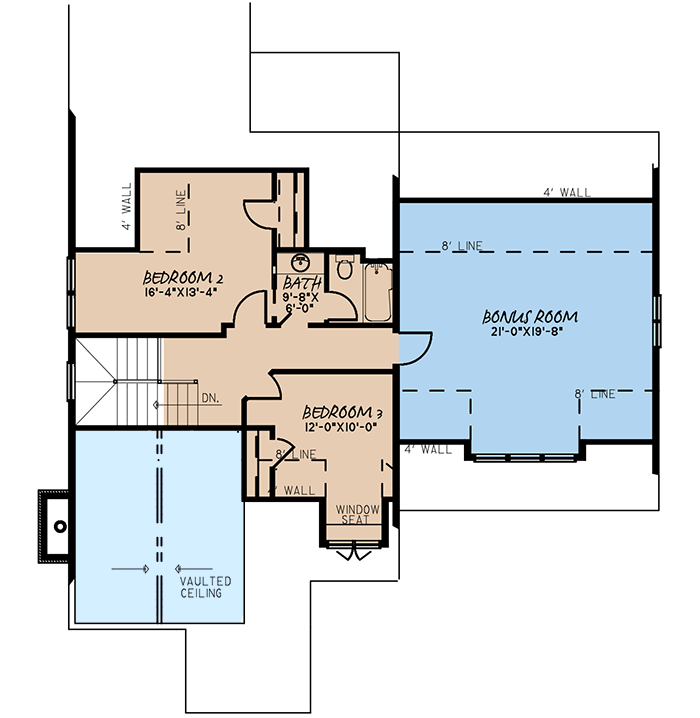

2nd Floor

Plan Details

Rich, warm wood accents complement the stone porch columns on this 3-bed Craftsman cottage house plan. The entry porch is framed with wood columns and accented with stone. Two dormers above the main living area and the garage space break up the roofline for a cozy, rustic design.
The foyer has room for a drop-off and pick-up station. A simple array of coat hooks or a table with chargers and backpack bins would be nice. The foyer leads to vaulted great room. Windows face the front property and maximize the natural lighting. A stone fireplace is located on the left wall.
Informal large openings into the dining area with front-facing transom windows allow for both impressive, formal sit-down meals and more casual gatherings.
The kitchen offers generous counter space in an L-shaped design. Additional seating is available at the high-low bar for up to four guests. A prep island allows for more cook space and storage. The rear of the kitchen features a cozy breakfast room overlooking the outdoor grilling porch.
The master suite occupies the back of the home. The bedroom has windows on three sides and a tray ceiling. The bath features a dual sink vanity, a 6’ bathtub a large enclosed shower and an enclosed toilet for added privacy.
A centrally located laundry room and half bath are located just past the staircase. Hanging racks offer quick clean-up after fresh loads finish and there is more than enough space for a side-by-side washer and dryer.
The mudroom features a kid’s nook for art projects, homework, or any special activity and leads into the 2-car garage with storage room.
Upstairs, Bedroom 2 has a side-facing window and a modest step-in closet and a unique shape making it work as a shared bedroom for similarly aged children. Bedroom 3 sits at the front of the home plan upstairs. A window seat gathers the day’s light through front-facing windows. Bedroom 3 can also operate nicely as an office. At the end of the landing, on the far right of the upper level, is the bonus room with front- and side-facing windows.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
Roof Overview Plan (1/4"=1")
An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
