3-Bed Craftsman Home Plan with Cottage Front Porch

Plan 39287ST

  • 1,463

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This charming Craftsman Style cottage boasts a large front porch, and introduces an open floor plan to meet the needs of today’s market.
  • The living room enjoys a gas fireplace and an island at the kitchen offers a space for quick family meals. The more formal dining room provides for larger gatherings.
  • Access from the garage offers easy transition to a full bath, laundry room and direct access to the kitchen.
  • The master suite is set to the rear of the home and pampers the homeowner with a double bowl vanity, larger shower enclosure and walk-in closet.
  • Two additional bedrooms and a full basement complete this period style home offering an older home character with modern conveniences.

  • General notes and specifications

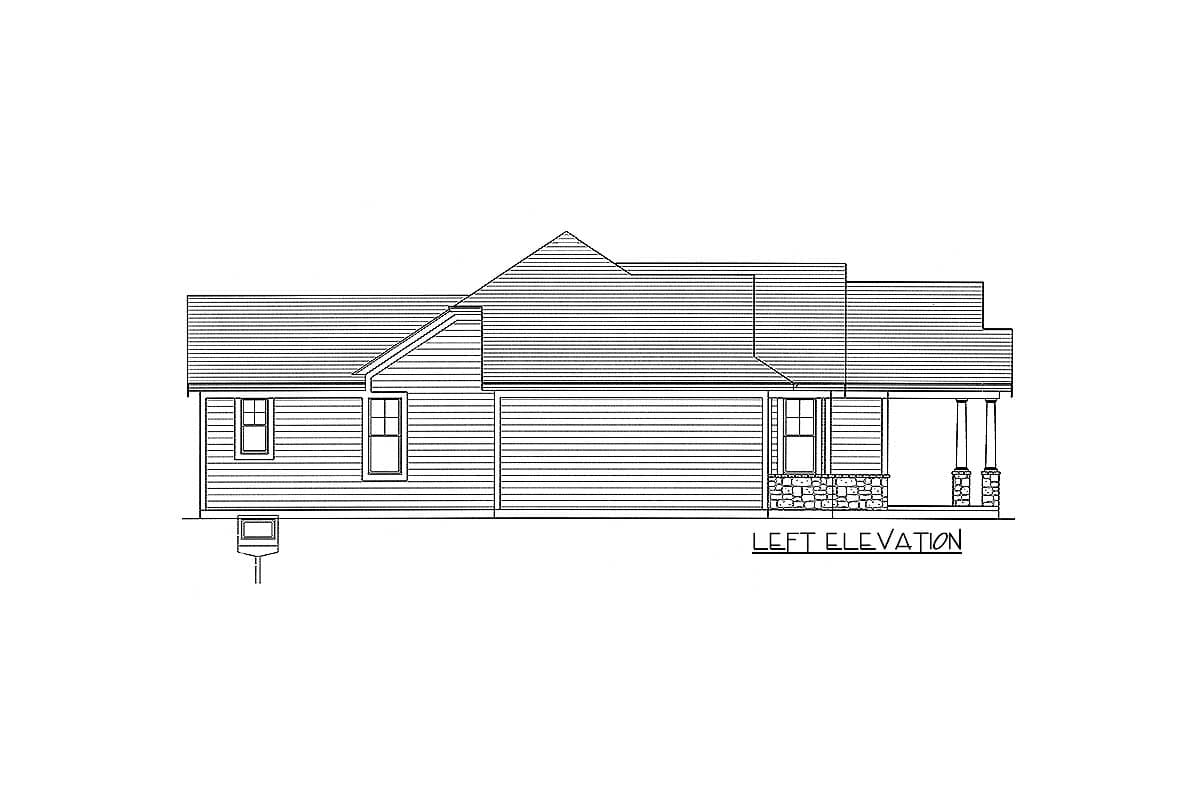

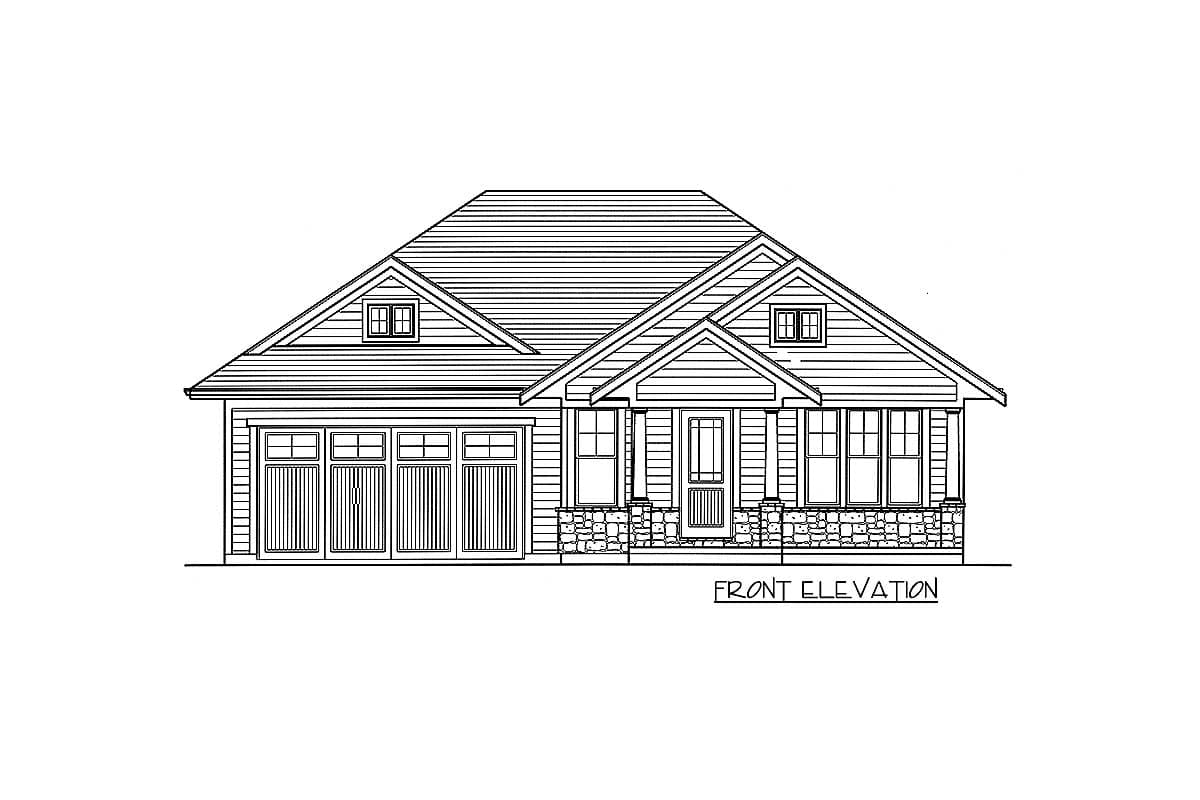

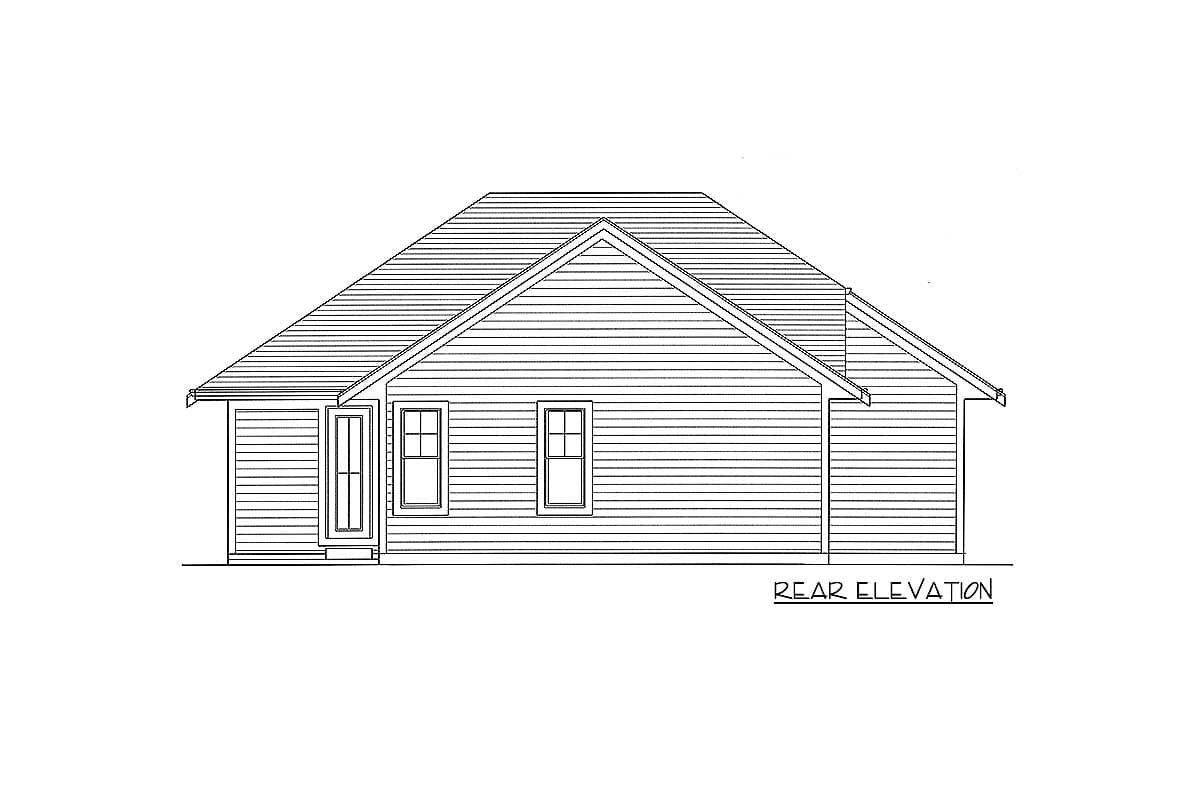

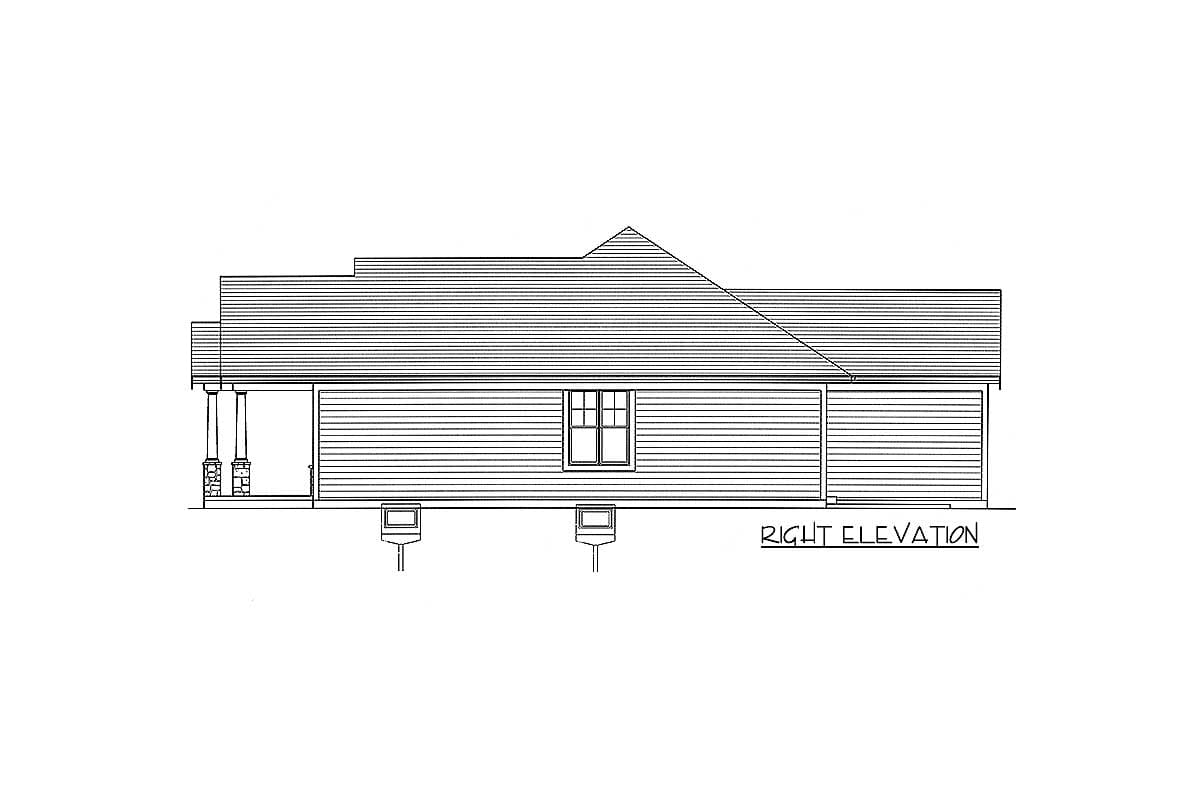

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

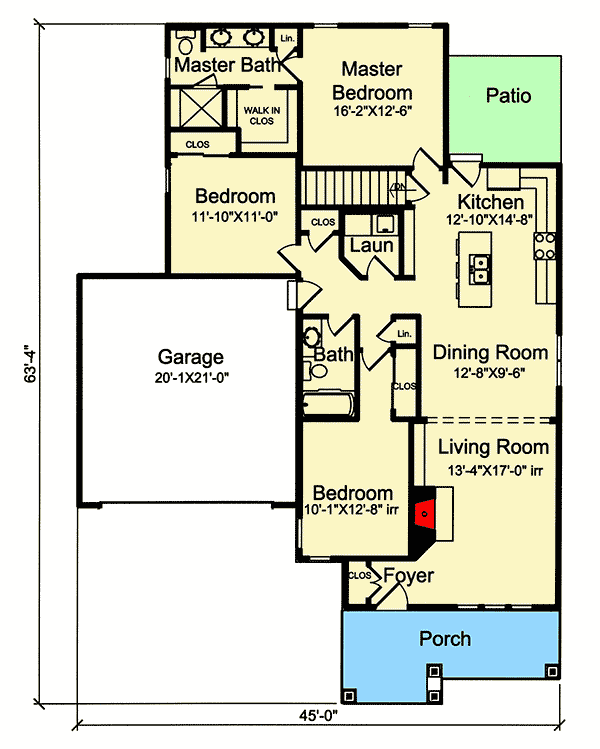

3-Bed Craftsman Home Plan with Cottage Front Porch - 39287ST floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

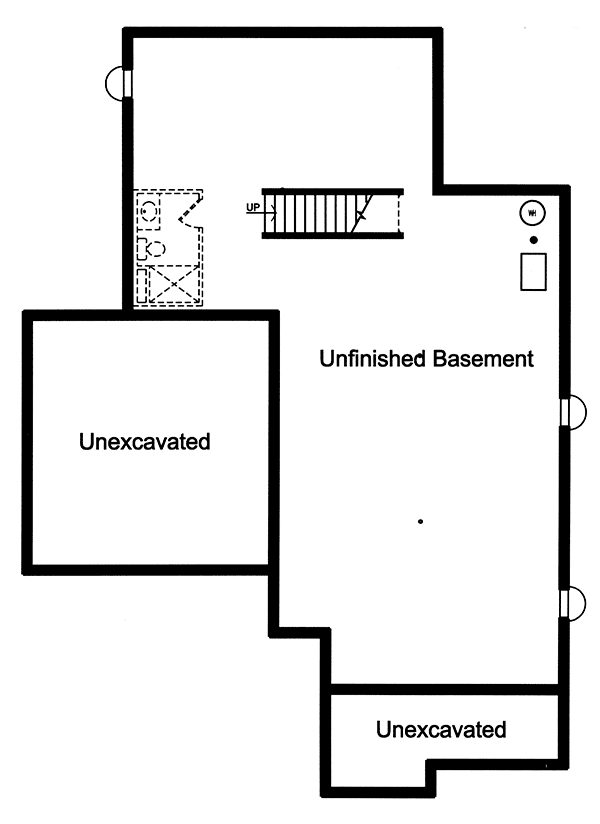

3-Bed Craftsman Home Plan with Cottage Front Porch - 39287ST floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,463 sq. ft.
  • 1st Floor: 1,463 sq. ft.
  • Porch, Front: 153 sq. ft.
  • Basement Unfinished: 1,463 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 63' 4"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 425 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

3-Bed Craftsman Home Plan with Cottage Front Porch

  • 1,463

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $695
  • PDF - Single-Build $895
  • 5 Sets + PDF $950
  • PDF - Unlimited Build $1,245
  • CAD - Unlimited Build $1,350
  • View all purchase option online

About This Plan

  • This charming Craftsman Style cottage boasts a large front porch, and introduces an open floor plan to meet the needs of today’s market.
  • The living room enjoys a gas fireplace and an island at the kitchen offers a space for quick family meals. The more formal dining room provides for larger gatherings.
  • Access from the garage offers easy transition to a full bath, laundry room and direct access to the kitchen.
  • The master suite is set to the rear of the home and pampers the homeowner with a double bowl vanity, larger shower enclosure and walk-in closet.
  • Two additional bedrooms and a full basement complete this period style home offering an older home character with modern conveniences.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,463 sq. ft.
  • 1st Floor: 1,463 sq. ft.
  • Porch, Front: 153 sq. ft.
  • Basement Unfinished: 1,463 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 63' 4"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 425 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
