3-Bed Craftsman House Plan with Bonus Room above Garage
Heated S.F.
1,808
Beds
3
Baths
2
Stories
1-2
Cars
2
What's Included
Plan Details

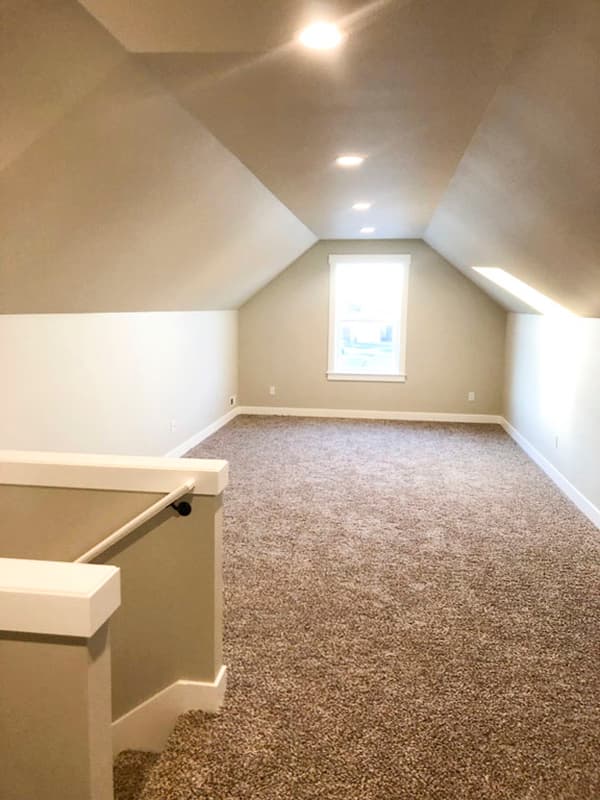

  • A bonus room is located above the forward-facing, 2-car garage on this 3-bedroom craftsman house plan. Additional space in the garage can be used as a shop or for storage.

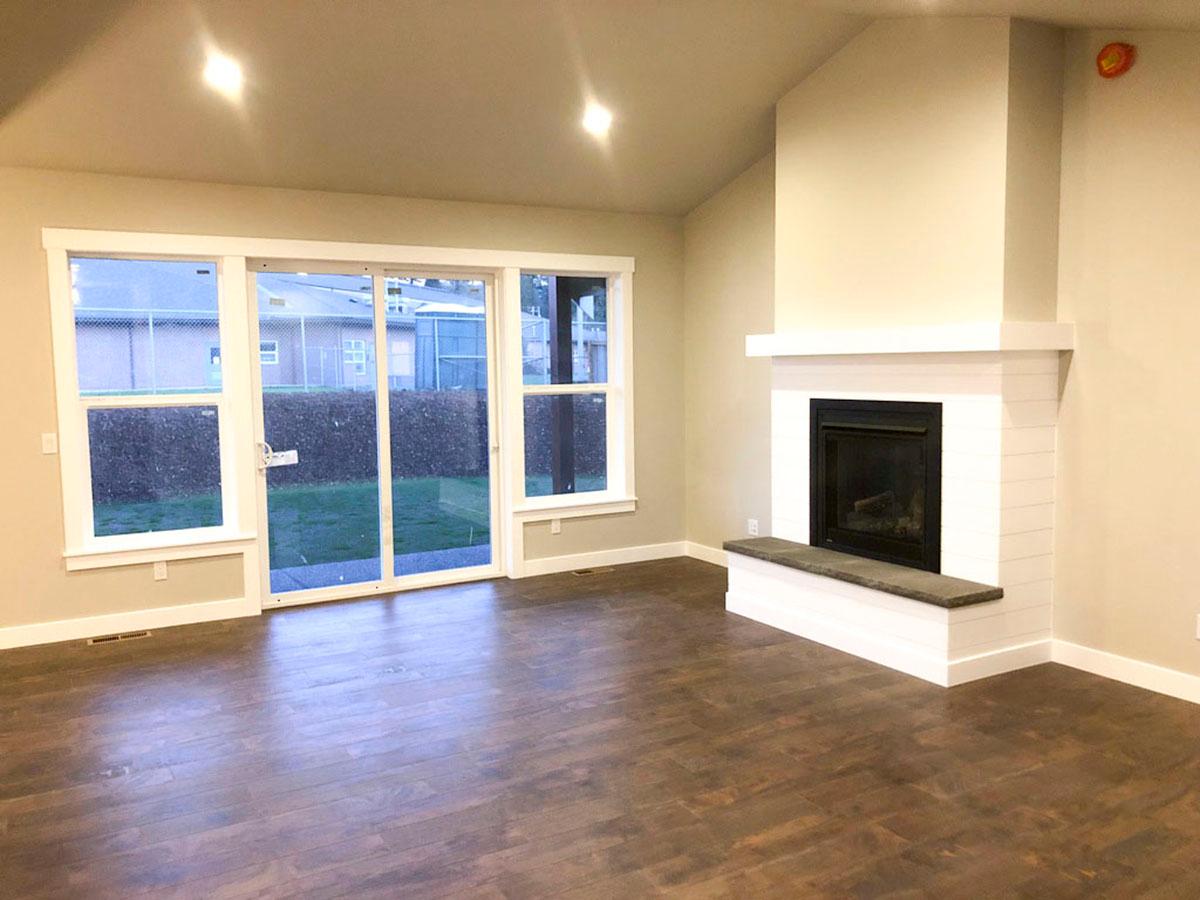

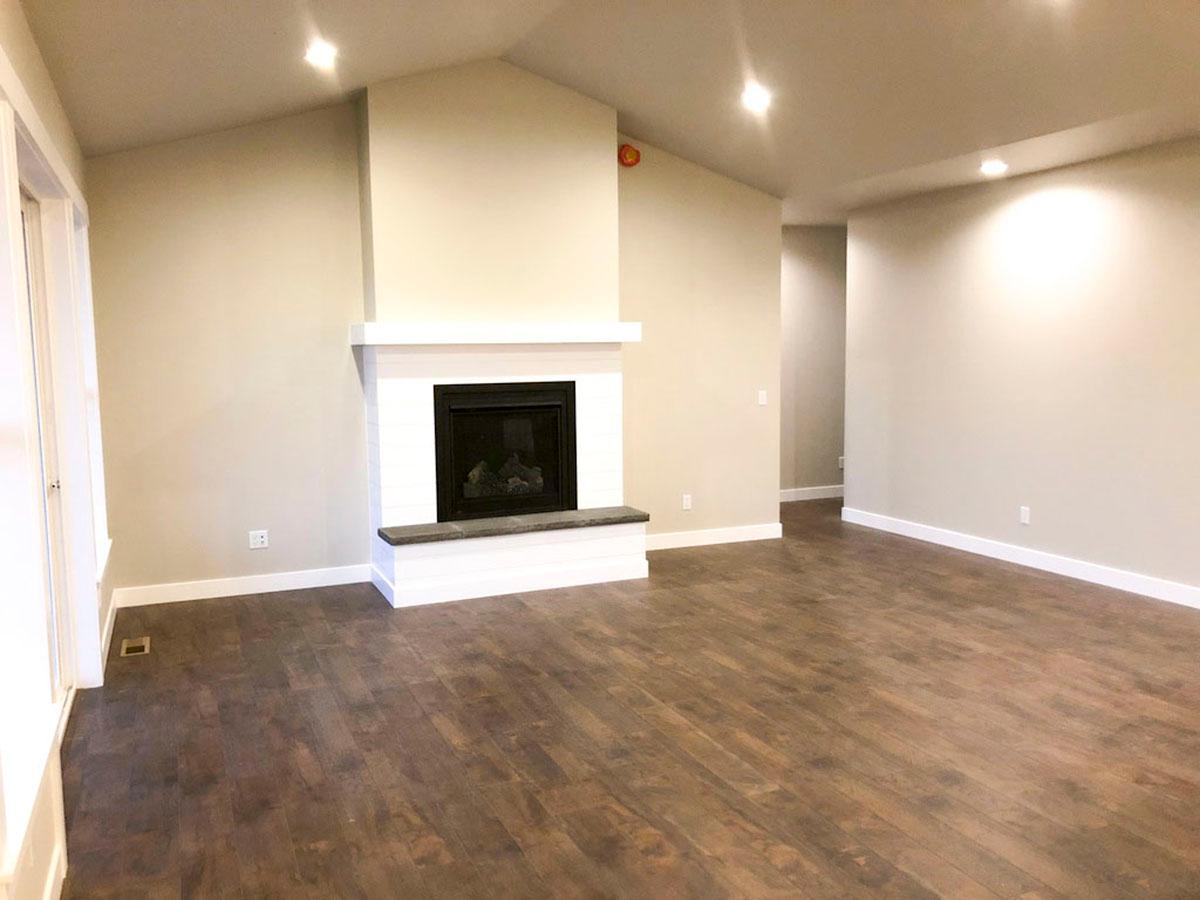

  • A fireplace in the living room serves as a focal point throughout the center of the home, and sliding doors extend the living space to the out-of-doors.

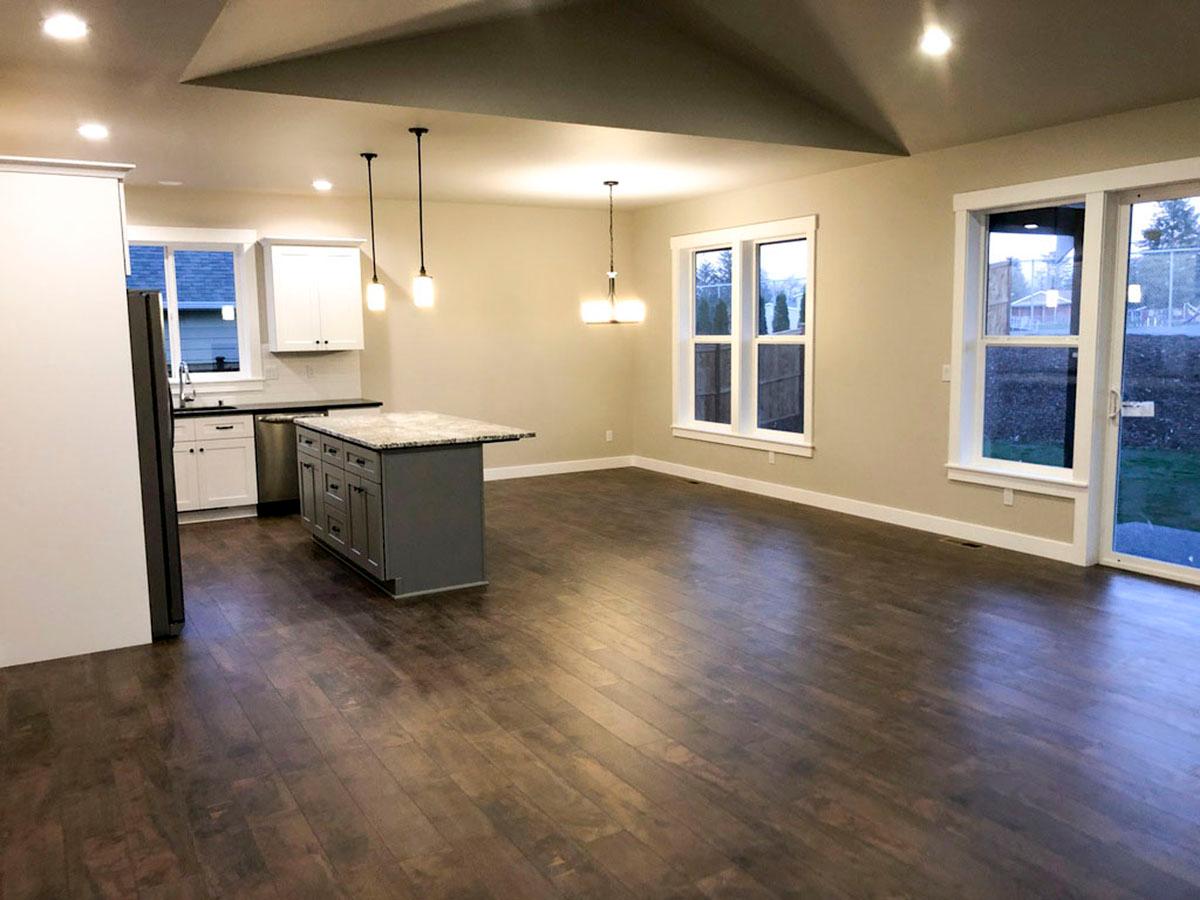

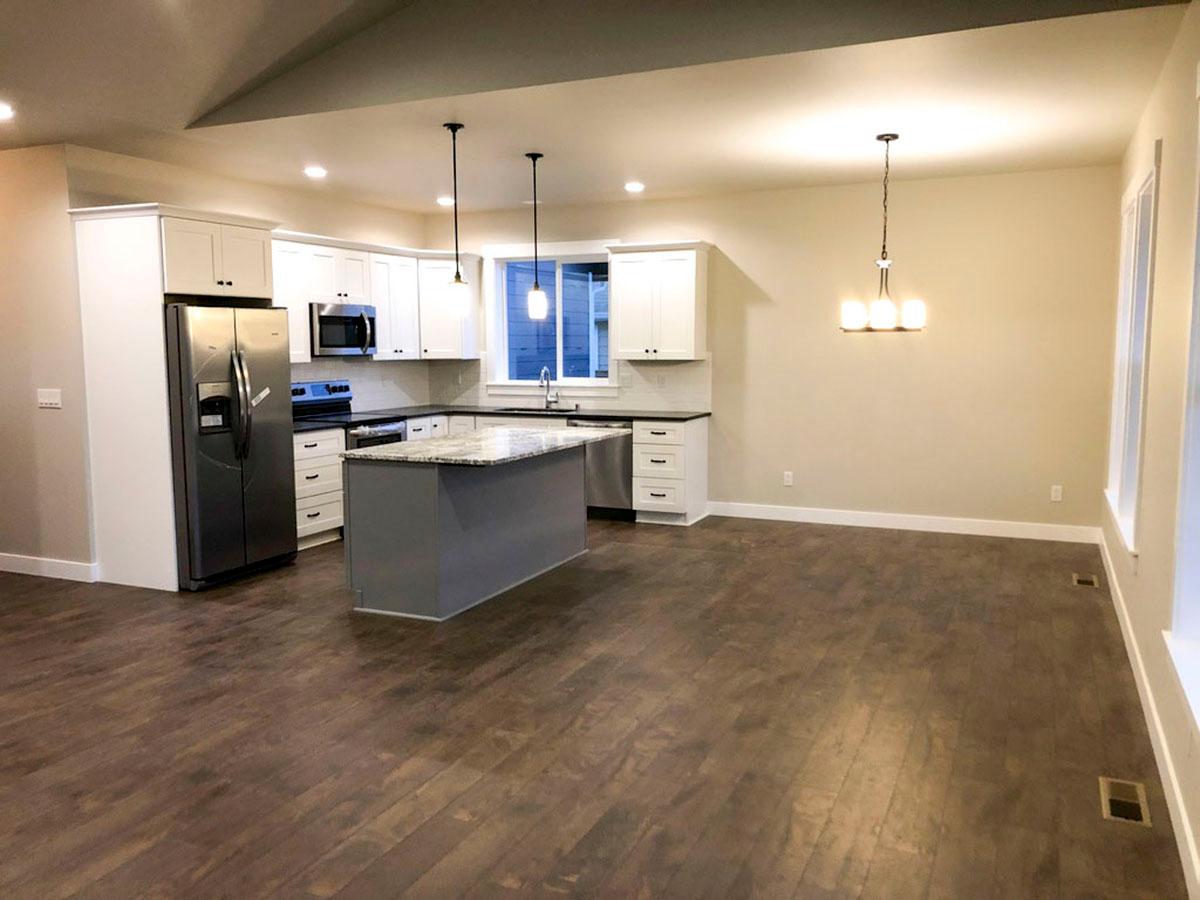

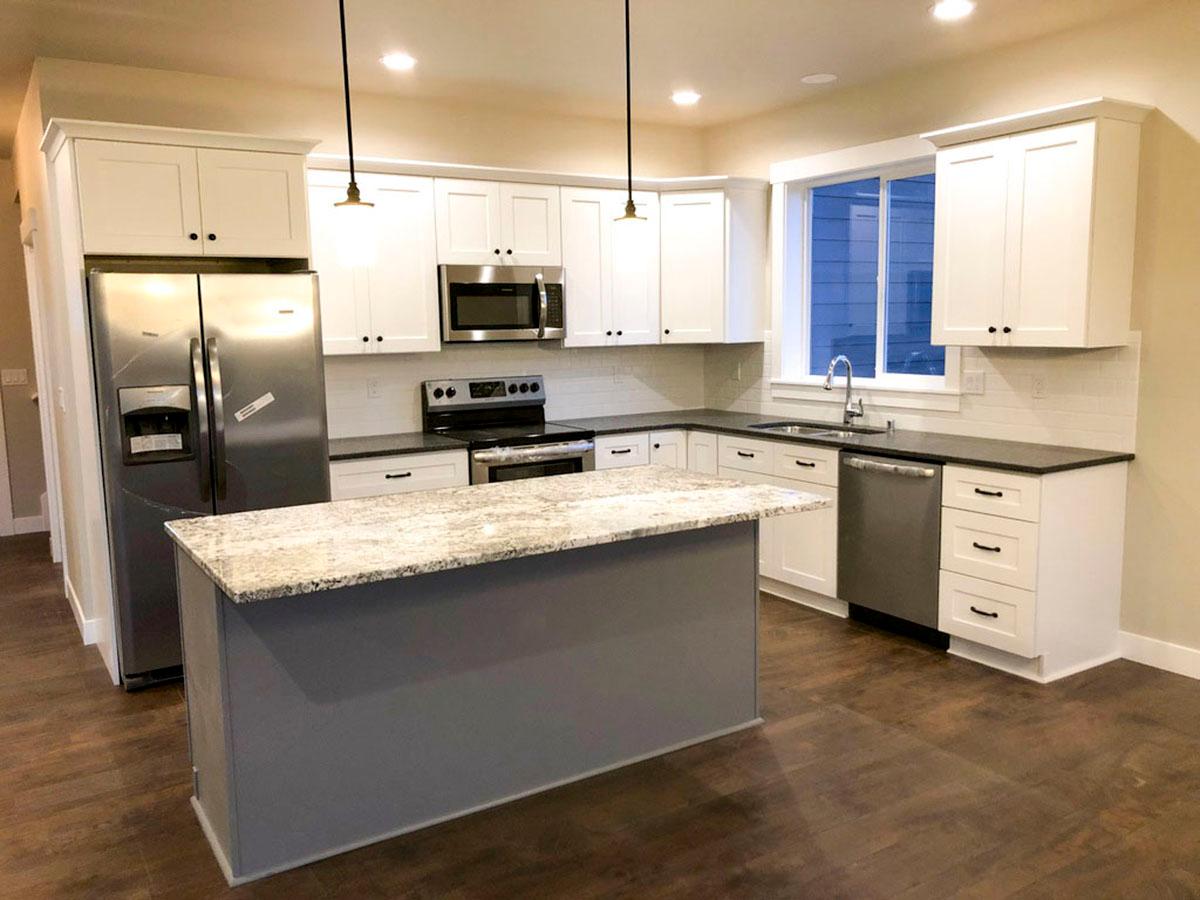

  • A large prep island in the kitchen boosts workspace, and the attached dining room offers rearward views.

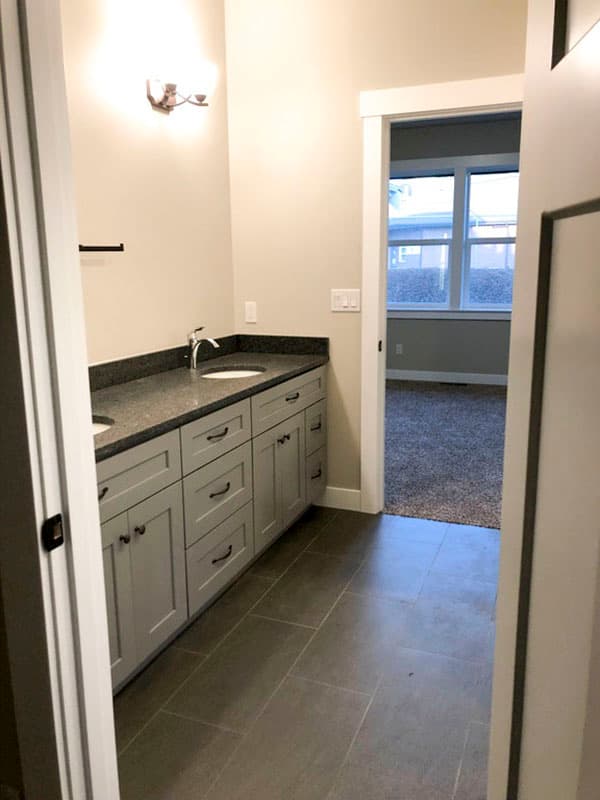

  • The master bedroom features a 4-fixture bathroom and a walk-in closet.

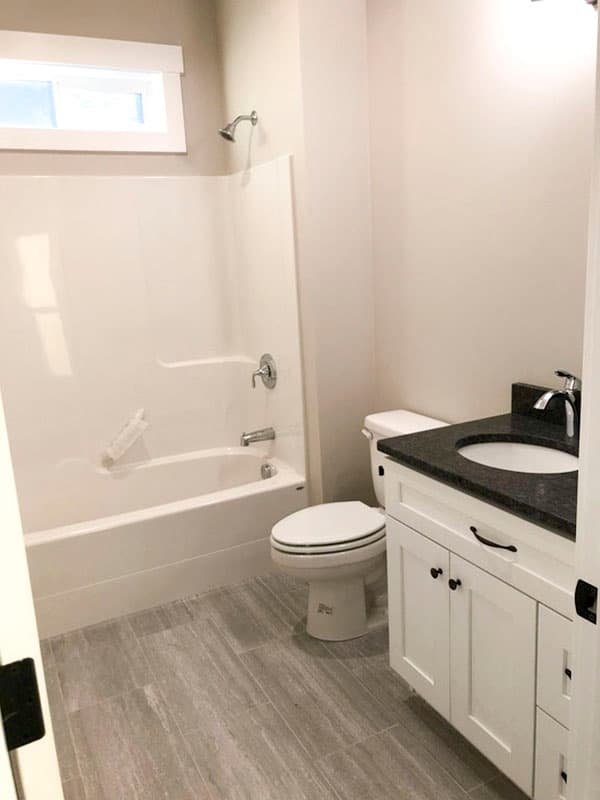

  • Bedrooms 2 and 3 reside down the hall and share a full bath.
  • IMPORTANT NOTE:  The total heated square footage included the bonus room.
What's Included

  • Exterior Elevations

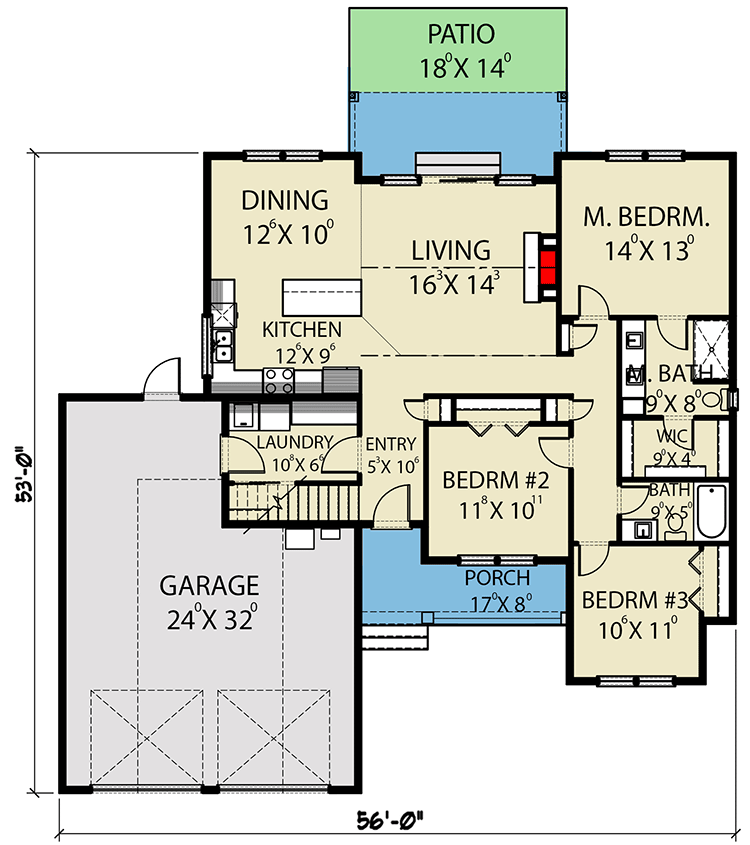

  • Main Floor Plan
  • Second level floor plan - if applicable

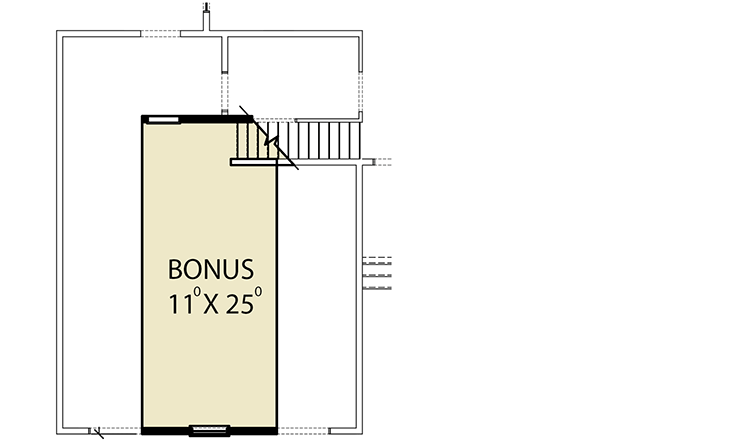

  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
