Plan 280044JWD 3-Bed Craftsman House Plan with Main-Floor Master Bedroom

3-Bed Craftsman House Plan with Main-Floor Master Bedroom

Plan 280044JWD

  • 2,515

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

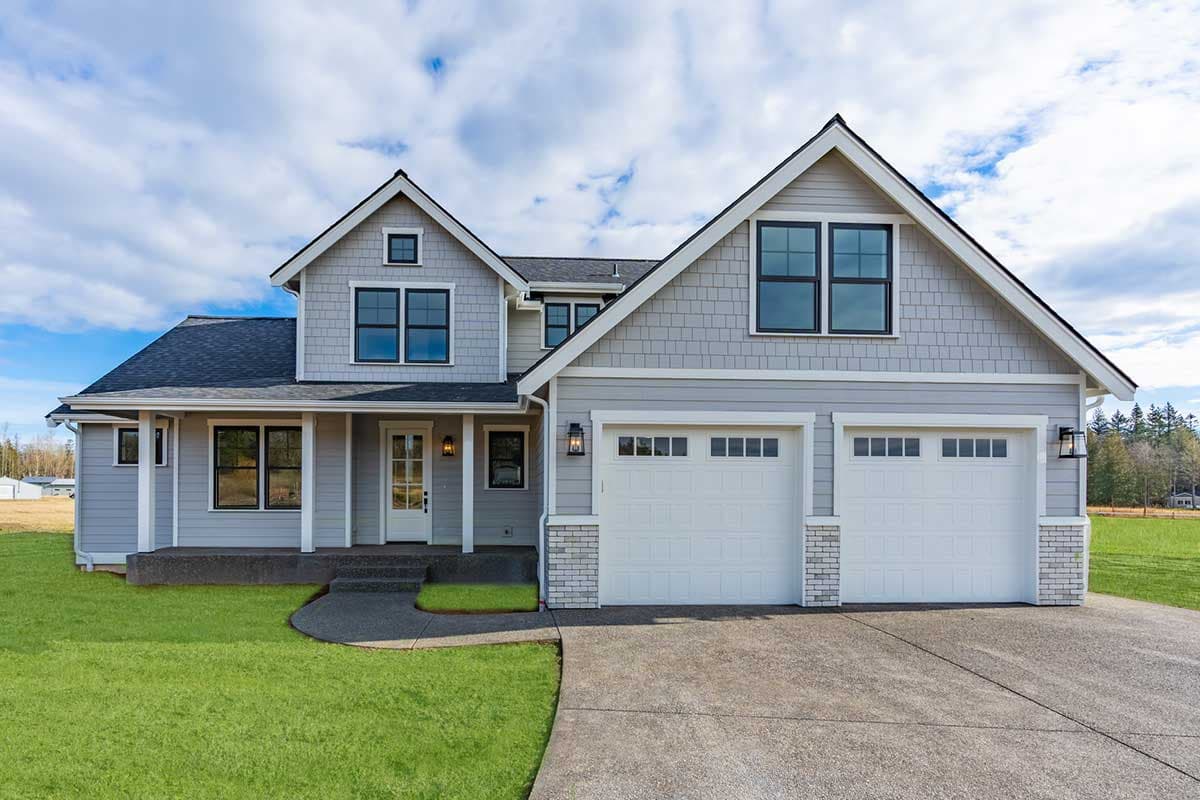

  • A gable roof rests above shake and horizontal siding on this 3-bedroom, craftsman house plan. A bonus room above the 2-car garage offers forward-facing views, while providing a common space upstairs.
  • Once inside, french doors to the left open to a quiet den, and a powder bath is immediately to your right.
  • The open floor plan consists of the family room and eat-in kitchen, with a large island anchoring the living space. The covered porch / patio provides space for a grill and lounge furniture for maximum outdoor enjoyment.
  • The main-level, master bedroom offers easy access, while considering your future needs. The master bath includes two vanities, a separate tub and shower, and a roomy walk-in closet.
  • Bedrooms 2 and 3 reside upstairs and share a 4-fixture bath.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

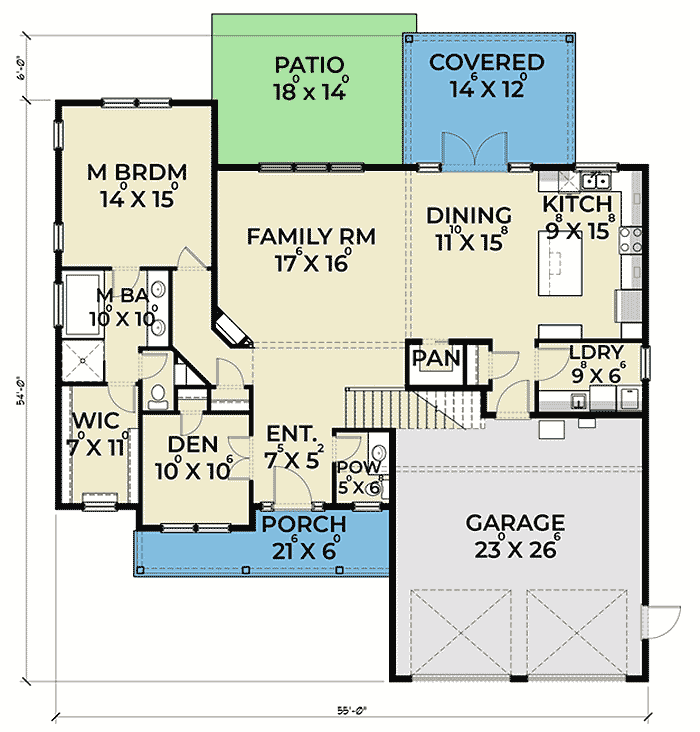

3-Bed Craftsman House Plan with Main-Floor Master Bedroom - 280044JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

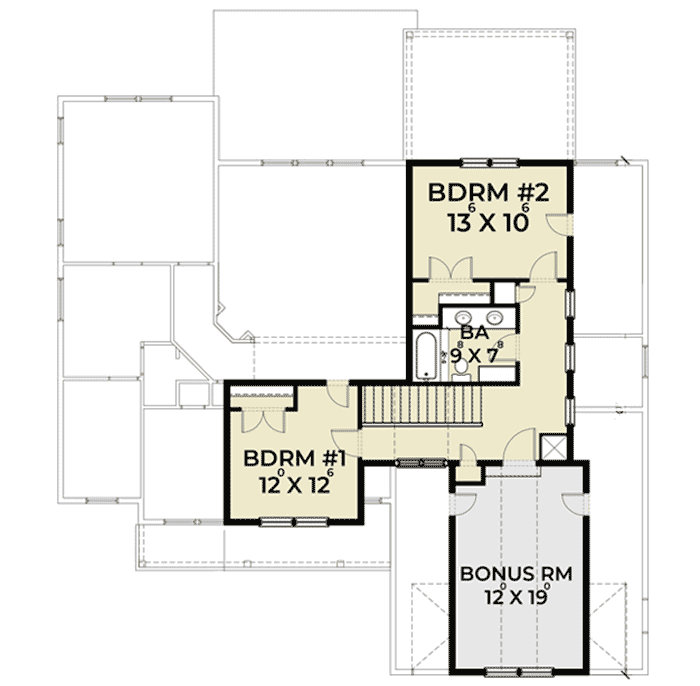

3-Bed Craftsman House Plan with Main-Floor Master Bedroom - 280044JWD floor plan - 2nd Floor

Plan details

3-Bed Craftsman House Plan with Main-Floor Master Bedroom

  • 2,515

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $1,900
  • CAD - Single-Build $2,250
  • View all purchase option online

About This Plan

  • A gable roof rests above shake and horizontal siding on this 3-bedroom, craftsman house plan. A bonus room above the 2-car garage offers forward-facing views, while providing a common space upstairs.
  • Once inside, french doors to the left open to a quiet den, and a powder bath is immediately to your right.
  • The open floor plan consists of the family room and eat-in kitchen, with a large island anchoring the living space. The covered porch / patio provides space for a grill and lounge furniture for maximum outdoor enjoyment.
  • The main-level, master bedroom offers easy access, while considering your future needs. The master bath includes two vanities, a separate tub and shower, and a roomy walk-in closet.
  • Bedrooms 2 and 3 reside upstairs and share a 4-fixture bath.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,515 sq. ft.
  • 1st Floor: 1,652 sq. ft.
  • 2nd Floor: 608 sq. ft.
  • Covered Patio: 185 sq. ft.
  • Bonus: 255 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 54' 0"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 583 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
