Plan 89988AH

3 Bed Craftsman Ranch with Open Concept Floor Plan

3 Bed Craftsman Ranch with Open Concept Floor Plan

Plan 89988AH

  • 1,934

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 3 bed Craftsman ranch house plan has decorative brackets atop each of the four gables in front and sturdy columns supporting the covered front entry.
  • Inside, 11' ceilings greet you in the entry as well as the great room beyond
  • The kitchen, dining and great rooms blend together to create an open-concept floor plan.
  • The kitchen has an angled peninsula with room for casual seating.
  • Sliding doors in the dining room take you to your back deck.
  • The master suite lies behind the garage and features a tray ceiling, spacious walk-in closet and dual sinks.
  • Two additional bedrooms lie to the left of the entry away from the master for maximum privacy.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.

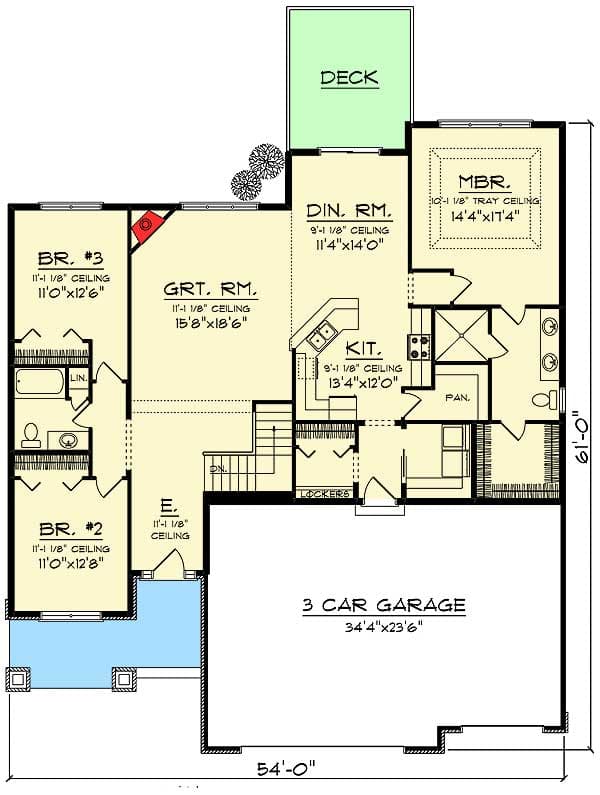

Floor Plan

Plan details



3 Bed Craftsman Ranch with Open Concept Floor Plan

  • 1,934

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $930
  • 8 Sets $980
  • Reproducible Set $1,165
  • PDF - single-use $1,165
  • CAD $1,850
  • View all purchase option online

About This Plan

  • This 3 bed Craftsman ranch house plan has decorative brackets atop each of the four gables in front and sturdy columns supporting the covered front entry.
  • Inside, 11' ceilings greet you in the entry as well as the great room beyond
  • The kitchen, dining and great rooms blend together to create an open-concept floor plan.
  • The kitchen has an angled peninsula with room for casual seating.
  • Sliding doors in the dining room take you to your back deck.
  • The master suite lies behind the garage and features a tray ceiling, spacious walk-in closet and dual sinks.
  • Two additional bedrooms lie to the left of the entry away from the master for maximum privacy.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,934 sq. ft.
  • 1st Floor: 1,934 sq. ft.
  • Porch, Combined: 147 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 61' 0"
  • Max ridge height: 22' 6"

Garage

  • Type: Attached
  • Area: 806 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
