Plan 140003RK

3-Bed Craftsman-Style House Plan with Open Kitchen and Dining Area - 1319 Sq Ft

Heated S.F.
1,319
Beds
3
Baths
2
Stories
1
Cars
2- 3

Floor Plan

Plan 140003RK

Main Level
Main Level
Optional Heated Lower Level
Optional Heated Lower Level

Plan 140003RK

M-F 9am-5pm EST |

1-203-761-8500

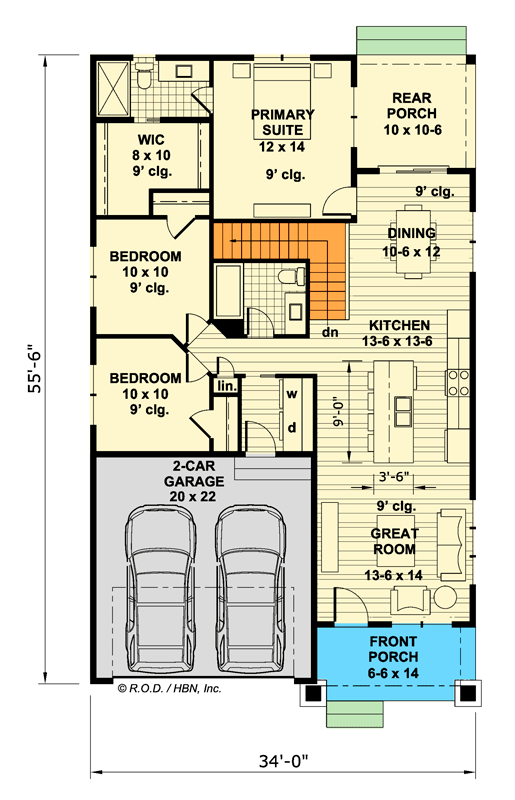

Main Level

Plan 140003RK: 3-Bed Craftsman-Style House Plan with Open Kitchen and Dining Area - 1319 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Traditional

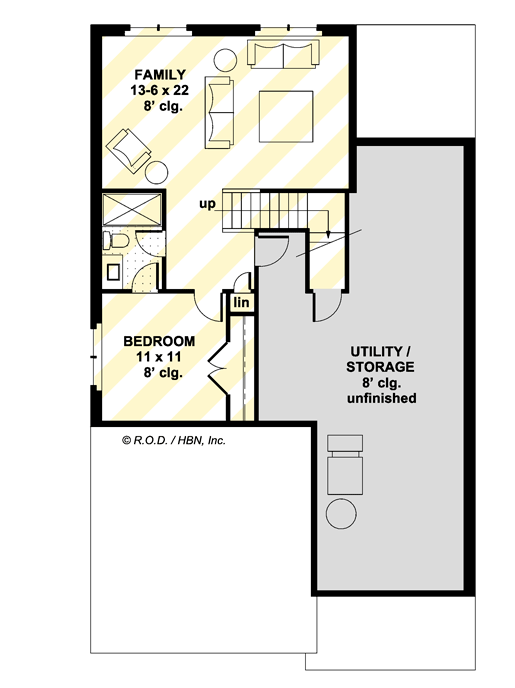

Optional Heated Lower Level

Plan 140003RK: 3-Bed Craftsman-Style House Plan with Open Kitchen and Dining Area - 1319 Sq Ft - Floor Plan - Optional Heated Lower Level - Country, Craftsman, Traditional

Plan Details

  • This 1,319 square foot Craftsman-style house plan, has 3 bedrooms and 3 bathrooms and it features a roomy culinary haven perfect for cooking and dining.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 7 to 10 business days for delivery.

What's Included

  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,319 sq. ft.

1st Floor

1,319 sq. ft.

Optional Lower Level

684 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

55' 6"

Garage

Type

Attached

Area

463 sq. ft.

Count

2 or 3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,319 sq. ft.

1st Floor

1,319 sq. ft.

Optional Lower Level

684 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

55' 6"

Garage

Type

Attached

Area

463 sq. ft.

Count

2 or 3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
