3-Bed Craftsman with Bedroom Suite Upstairs

Plan 360055DK

  • 1,891

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • From the curb, this Craftsman-inspired house plan has the appearance of a one-story home. That's where the shed dormer comes in: it provides light and volume for a full bedroom suite upstairs.
  • The entry has views that extend to the kitchen in back. A hall to the left takes you to Bed 2 which is located past the laundry room.
  • The family room has 12' ceilings and opens to the kitchen and dining room. A fireplace on the right wall gives you a point of interest.
  • Enjoy the fresh air on the covered area off the dining room and the patio extension.
  • The master suite has a tray ceiling and two walk-in closets. A barn door opens to reveal the master bath with dual vanities.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Craftsman with Bedroom Suite Upstairs - 360055DK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

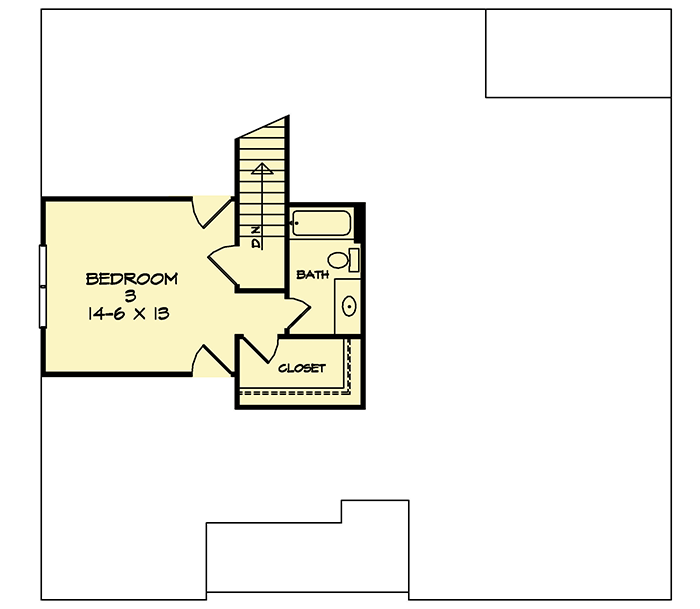

3-Bed Craftsman with Bedroom Suite Upstairs - 360055DK floor plan - 2nd Floor

3-Bed Craftsman with Bedroom Suite Upstairs

  • 1,891

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,891 sq. ft.
  • 1st Floor: 1,556 sq. ft.
  • 2nd Floor: 335 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 45' 0"
  • Max ridge height: 23' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
