Plan 72834DA

3 Bed Craftsman with One Floor Living

Heated S.F.

1,888

Beds

3-4

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

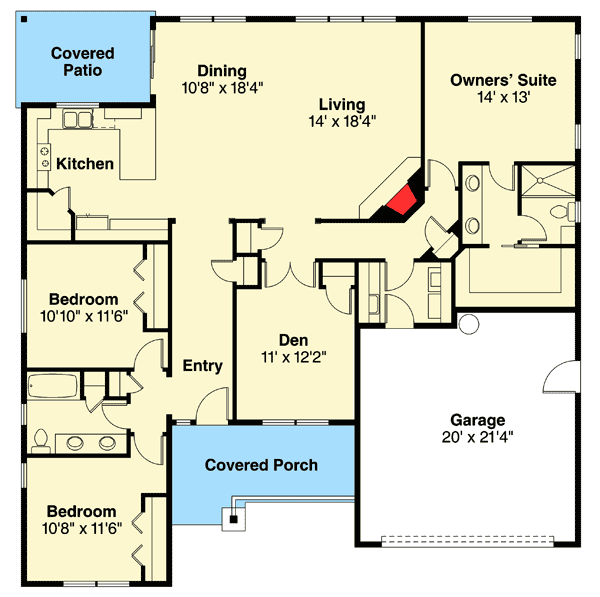

3 Bed Craftsman with One Floor Living - 72834DA floor plan - Main Level

Plan Details

This 3 bed Craftsman house plan has a gracefully arched transom over the the larger windows below the gable on the left. Balancing that, a row of small windows runs across the top of the garage door beneath the right gable.
Natural light spills into the entry through a single sidelite. Secondary bedrooms and a good-sized bathroom are to the left. A handy coat closet is near the end of the entry hall, just before it opens into the clustered gathering spaces at the rear.
Windows fill most of the rear wall in the combination living and dining room. The gas fireplace serves as a warm, bright focal point on the other side. In the opposite corner, a set of sliding glass doors offers access to the covered patio. The step-saving kitchen is open to the gathering space across a peninsula with a flush eating bar. A roomy walk-in pantry boosts the kitchen’s storage capacity.
Well-isolated from the other bedrooms, the owners’ suite boasts a large walk-in closet and a two-section bathroom.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering An artist's drawing of the home, usually viewed from the front, and general construction notes.

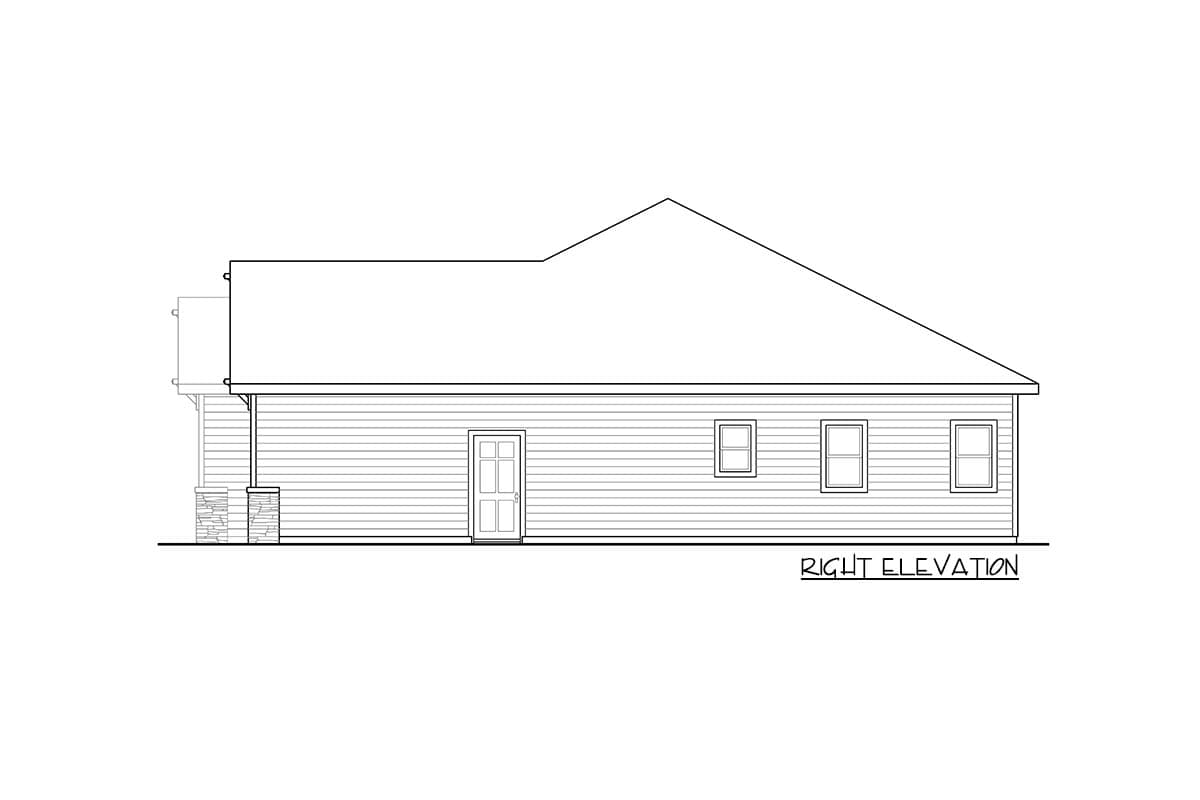

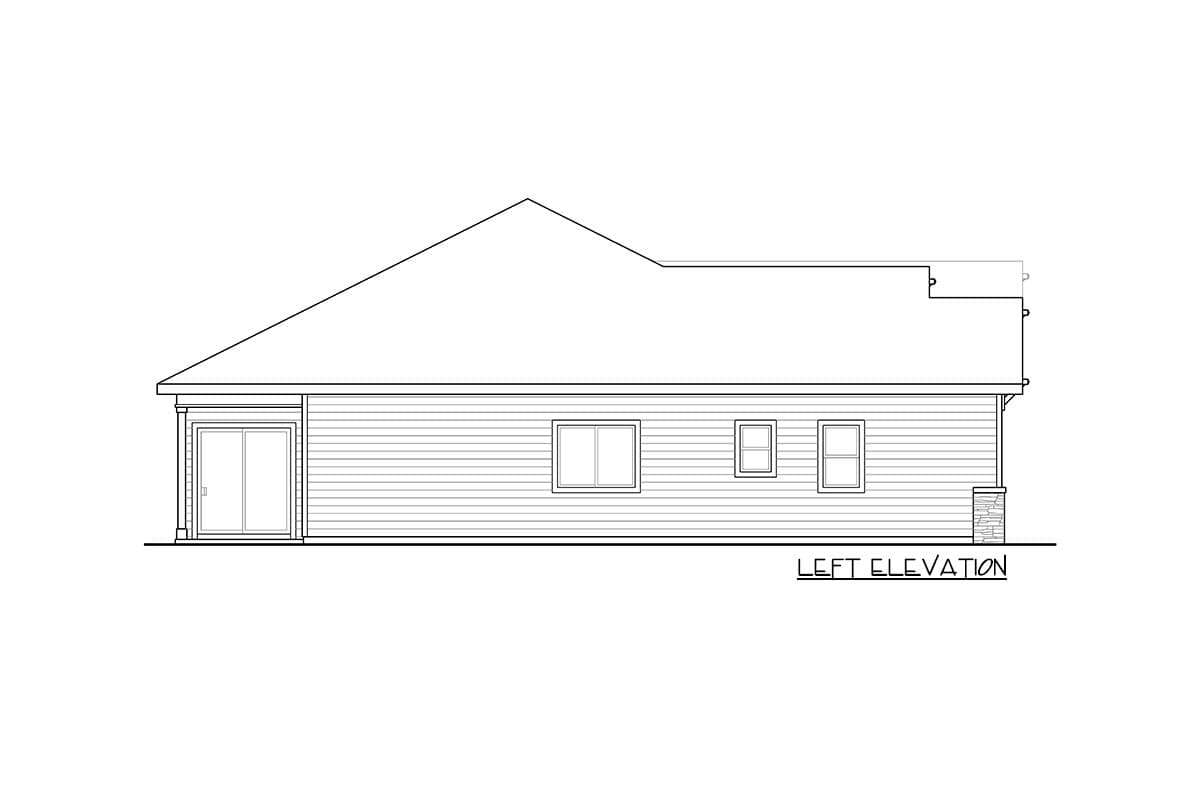

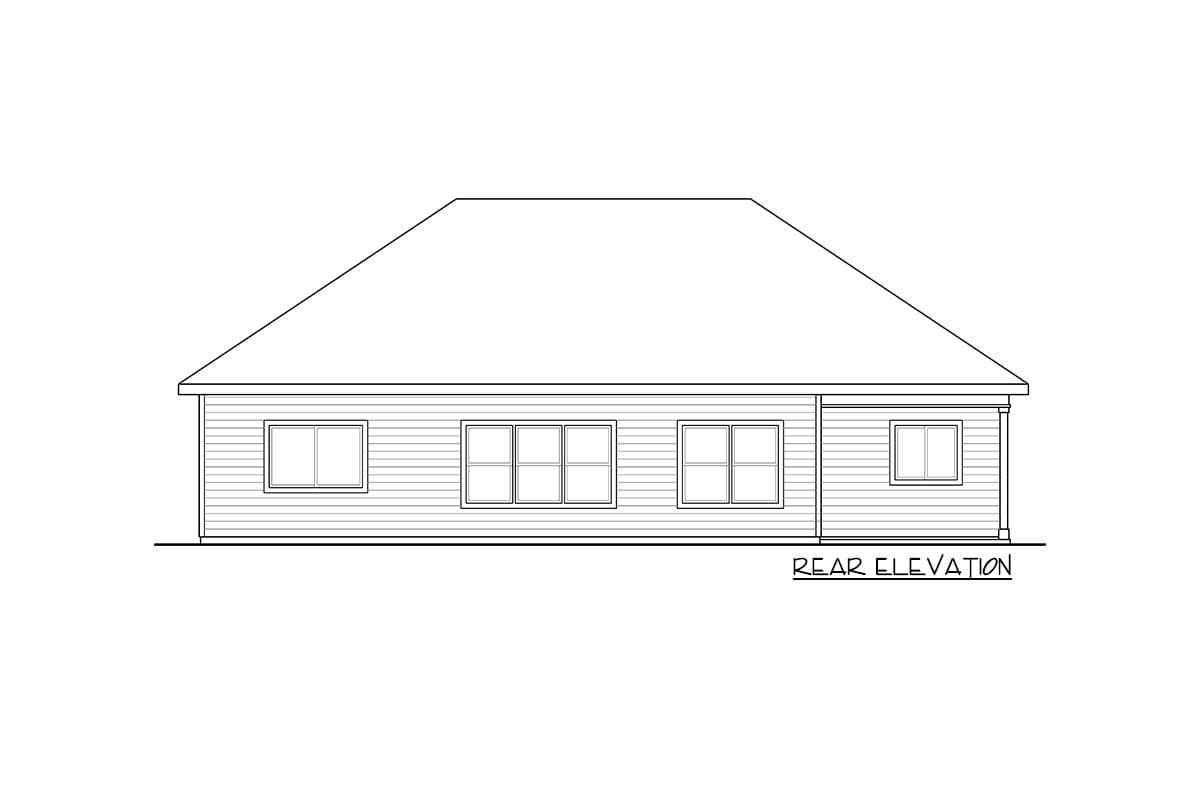

Elevations Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc. Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan A schematic layout of all lighting, switches and electrical outlets. These items are NOT included: Architectural or Engineering Stamp - handled locally if required Site Plan - handled locally when required Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,888 sq. ft.

1st Floor:

1,888 sq. ft.

Beds/Baths

Bedrooms:

3 or 4

Full bathrooms:

2

Foundation Type

Standard Foundations:

Crawl

Optional Foundations:

Basement, Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

52' 0"

Depth:

53' 0"

Max Ridge Height:

22' 3"

Garage

Type:

Attached

Area:

440 sq. ft.

Count:

2 Cars

Entry Location:

Front

Roof Details

Primary Pitch:

6 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor
