3 Bed Craftsman with Tapered Columned Porch

Plan 69605AM

  • 1,868

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • The front porch of this attractive 3 bed Craftsman house plan has tapered columns. Stone accents at the base of the hmoe are tasteful and eye-catching.
  • Inside, the sensible floor plan begins with the bright and welcoming foyer, which includes a clutter-reducing coat closet. Straight ahead, the great room will be the center of family activities; a fireplace adds warmth, while a vaulted ceiling adds drama.
  • You'll appreciate the island kitchen and its useful corner pantry. The versatile dining area is perfect for everyday meals or elegant dinners. Step out to the covered patio to enjoy al fresco dining or time with friends.
  • The vaulted master bedroom is a peaceful haven after a long day. The bath incorporates a sizable walk-in closet. Two secondary bedrooms face the front yard and share a full bath.
  • Double doors off the foyer get you into your own den or home office. Located in front, it is nicely situated to see arriving clients. A fold-out couch in the den would allow you to accommodate overnight visitors.
  • Note the well-designed garage, which gives you the option of having a good-sized workshop or a third car in the back area.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

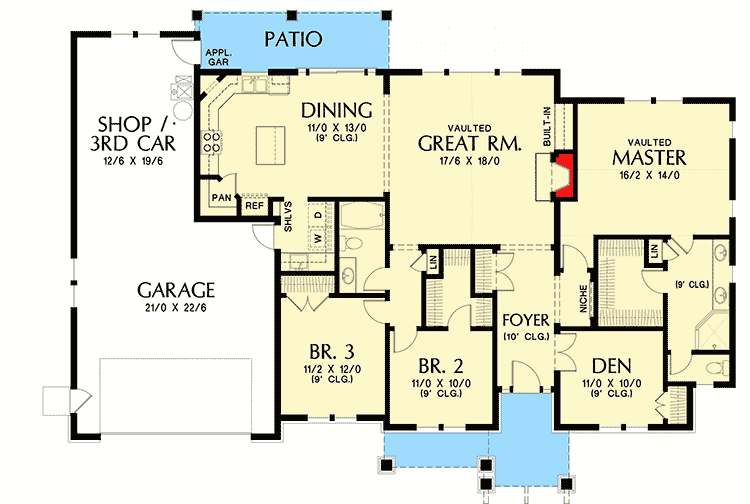

Floor Plan

Basement option

Pinit white

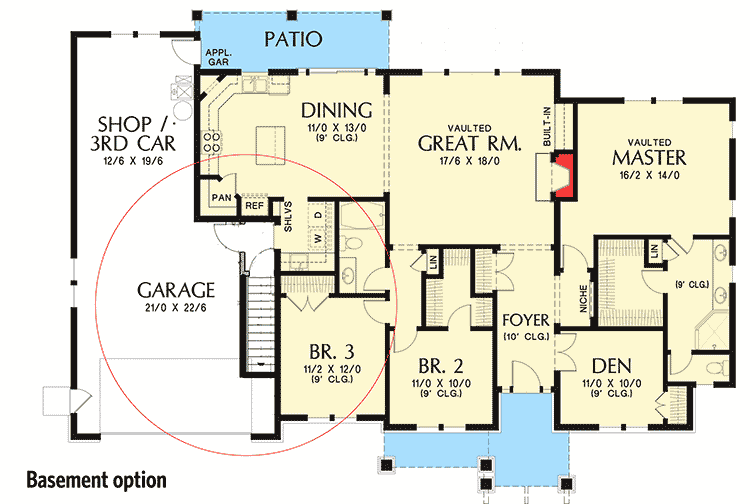

3 Bed Craftsman with Tapered Columned Porch - 69605AM floor plan - Basement option

Plan details



3 Bed Craftsman with Tapered Columned Porch

  • 1,868

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $743
  • PDF - single-use $1,093
  • 5 Sets $1,243
  • 5 Sets PLUS $1,293
  • CAD - multi-use $2,186
  • View all purchase option online

About This Plan

  • The front porch of this attractive 3 bed Craftsman house plan has tapered columns. Stone accents at the base of the hmoe are tasteful and eye-catching.
  • Inside, the sensible floor plan begins with the bright and welcoming foyer, which includes a clutter-reducing coat closet. Straight ahead, the great room will be the center of family activities; a fireplace adds warmth, while a vaulted ceiling adds drama.
  • You'll appreciate the island kitchen and its useful corner pantry. The versatile dining area is perfect for everyday meals or elegant dinners. Step out to the covered patio to enjoy al fresco dining or time with friends.
  • The vaulted master bedroom is a peaceful haven after a long day. The bath incorporates a sizable walk-in closet. Two secondary bedrooms face the front yard and share a full bath.
  • Double doors off the foyer get you into your own den or home office. Located in front, it is nicely situated to see arriving clients. A fold-out couch in the den would allow you to accommodate overnight visitors.
  • Note the well-designed garage, which gives you the option of having a good-sized workshop or a third car in the back area.

Floor Plans

  • Main Level

  • Basement option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,868 sq. ft.
  • 1st Floor: 1,868 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 50' 0"
  • Max ridge height: 22' 3"

Garage

  • Type: Attached
  • Area: 758 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
