Plan 280002JWD
3-Bed Craftsman with Upstairs Family Room for the Kids - 3079 Sq Ft
Heated S.F.
3,079
Beds
3
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 280002JWD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 280002JWD

1-800-854-7852

1-262-521-4596

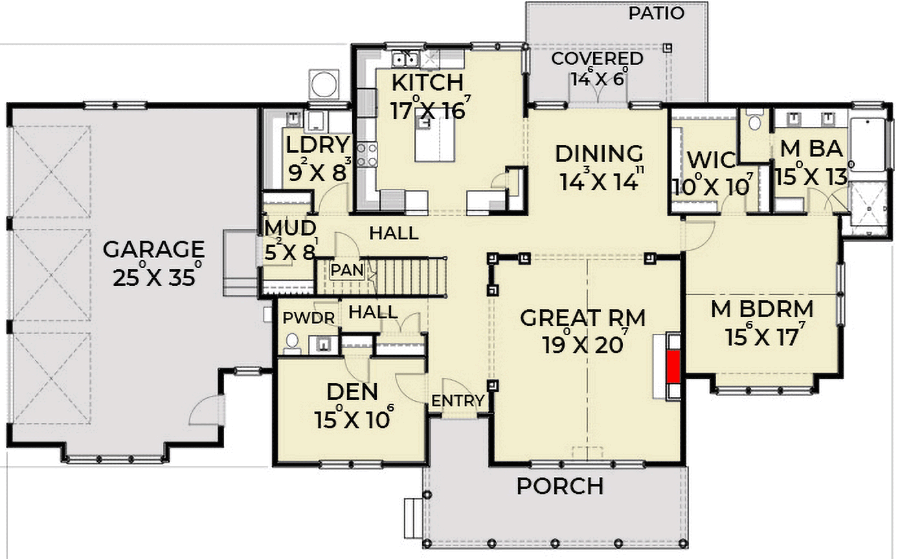

Main Level
floor plan image Main Level

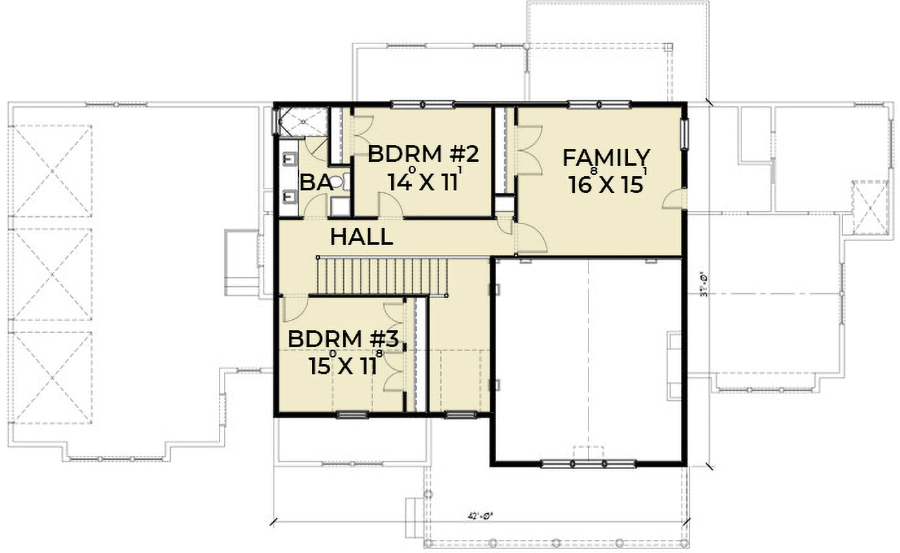

2nd Floor
floor plan image 2nd Floor
Plan Details

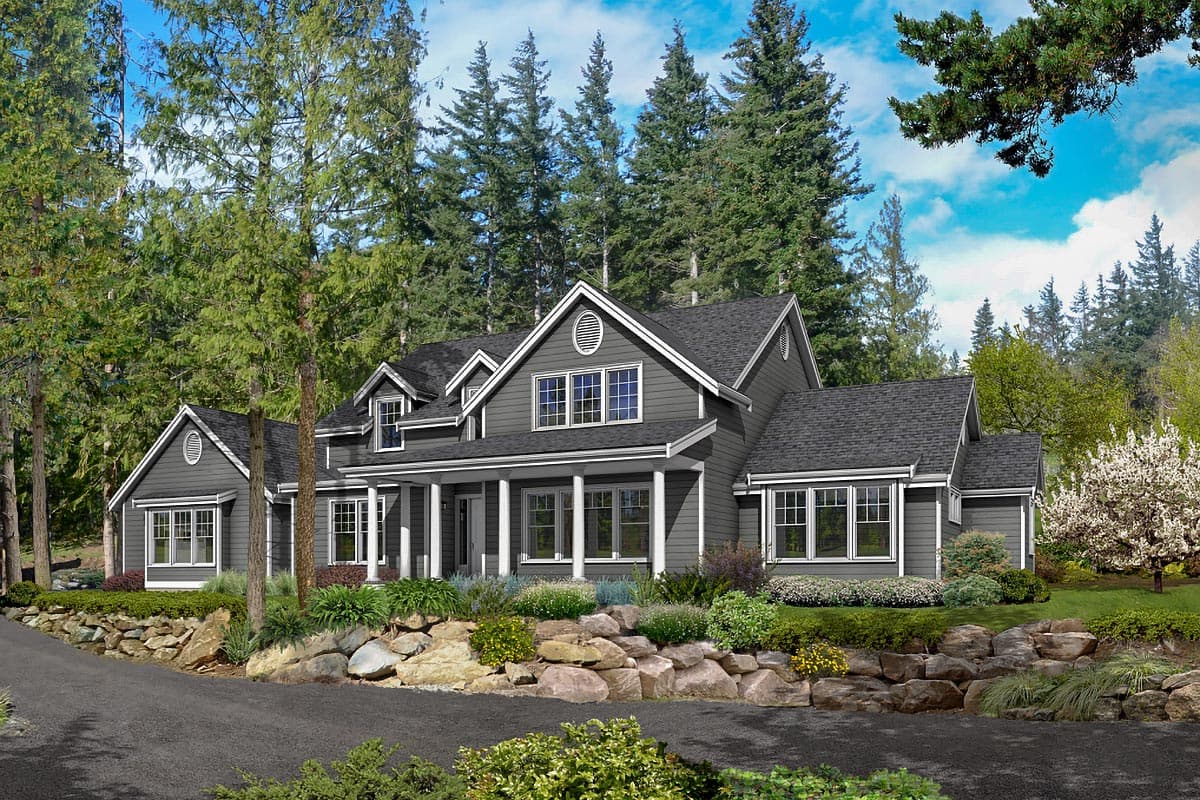

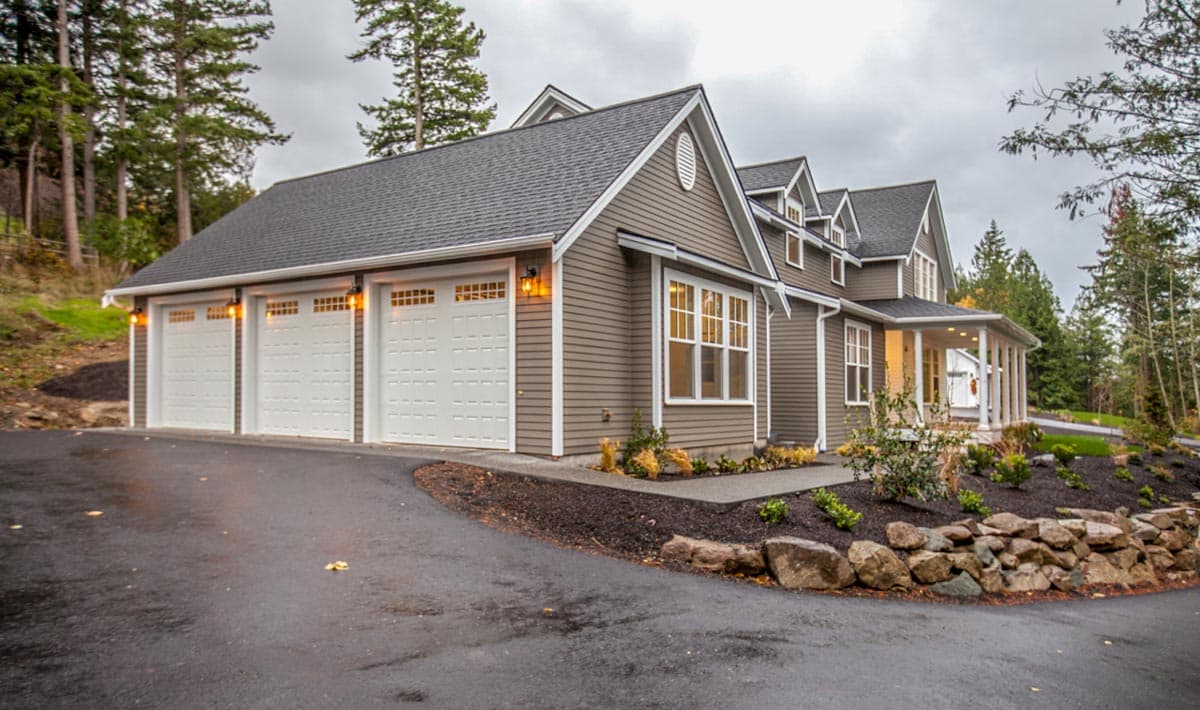

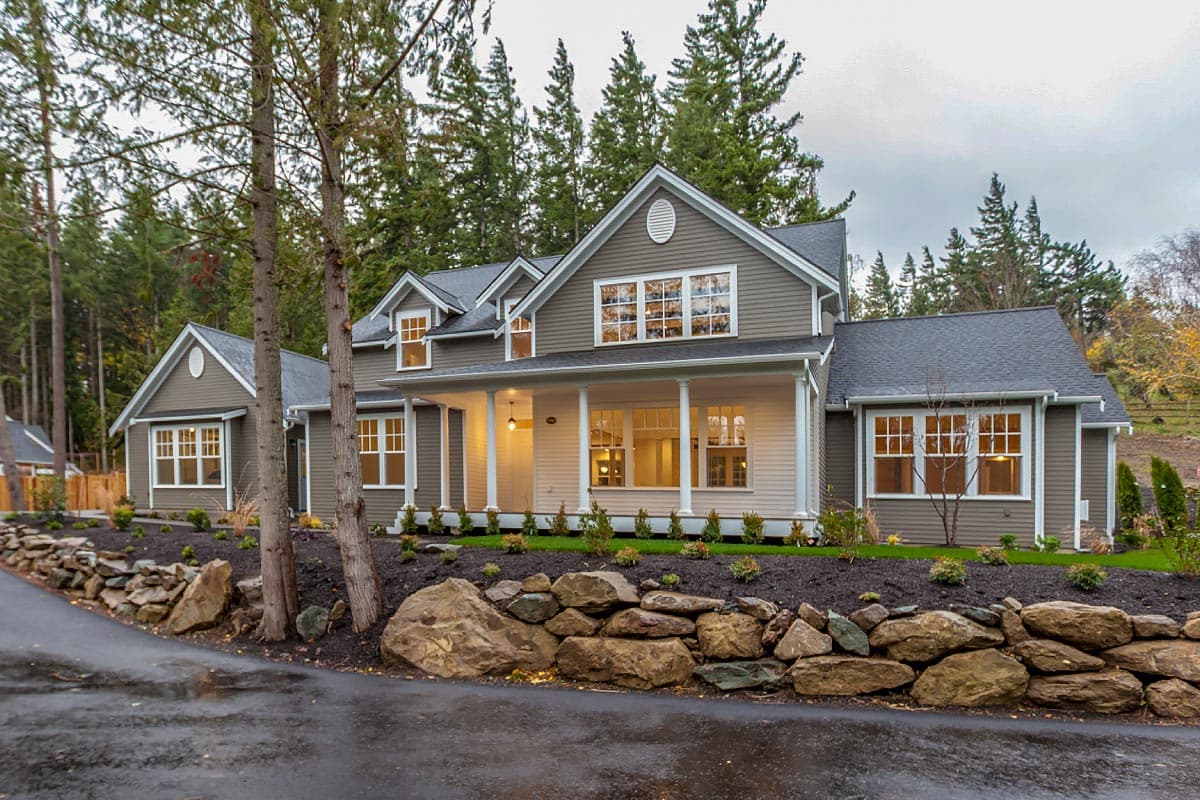

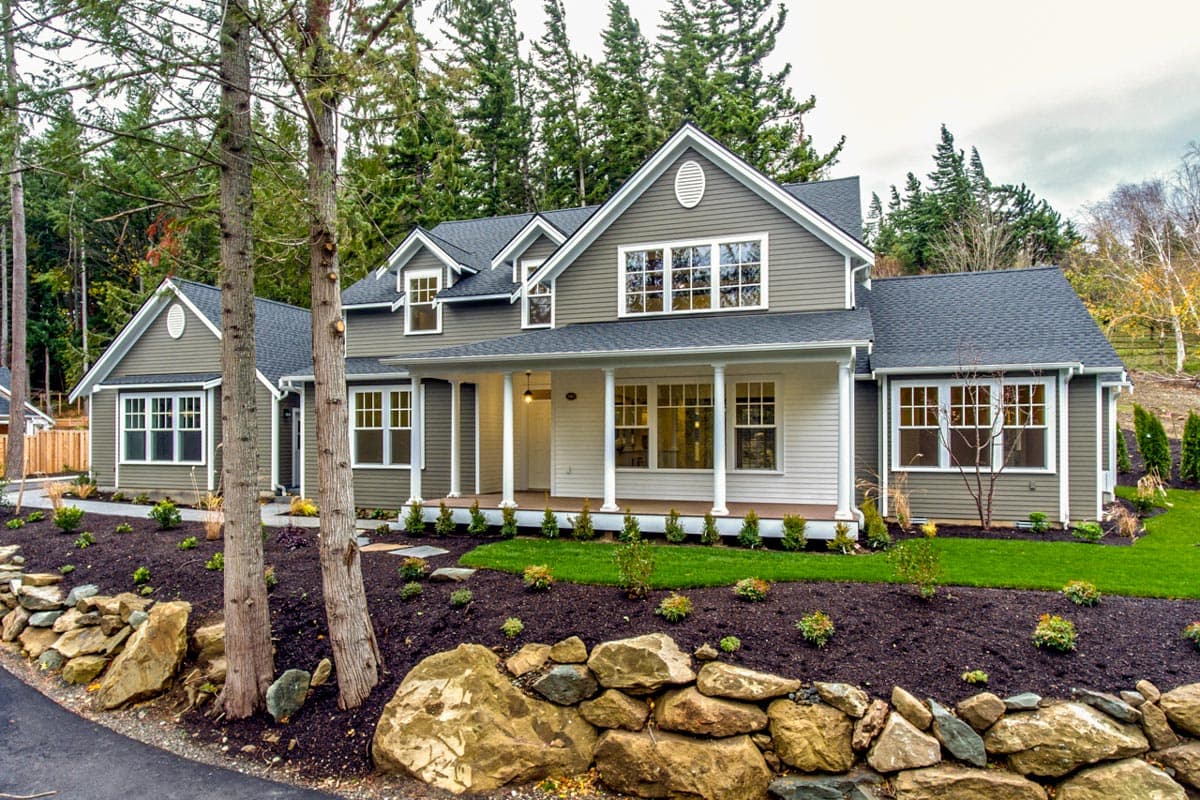

  • Six columns welcome you to the front porch of this 3-bed Craftsman home plan with 3-car side-entry garage.

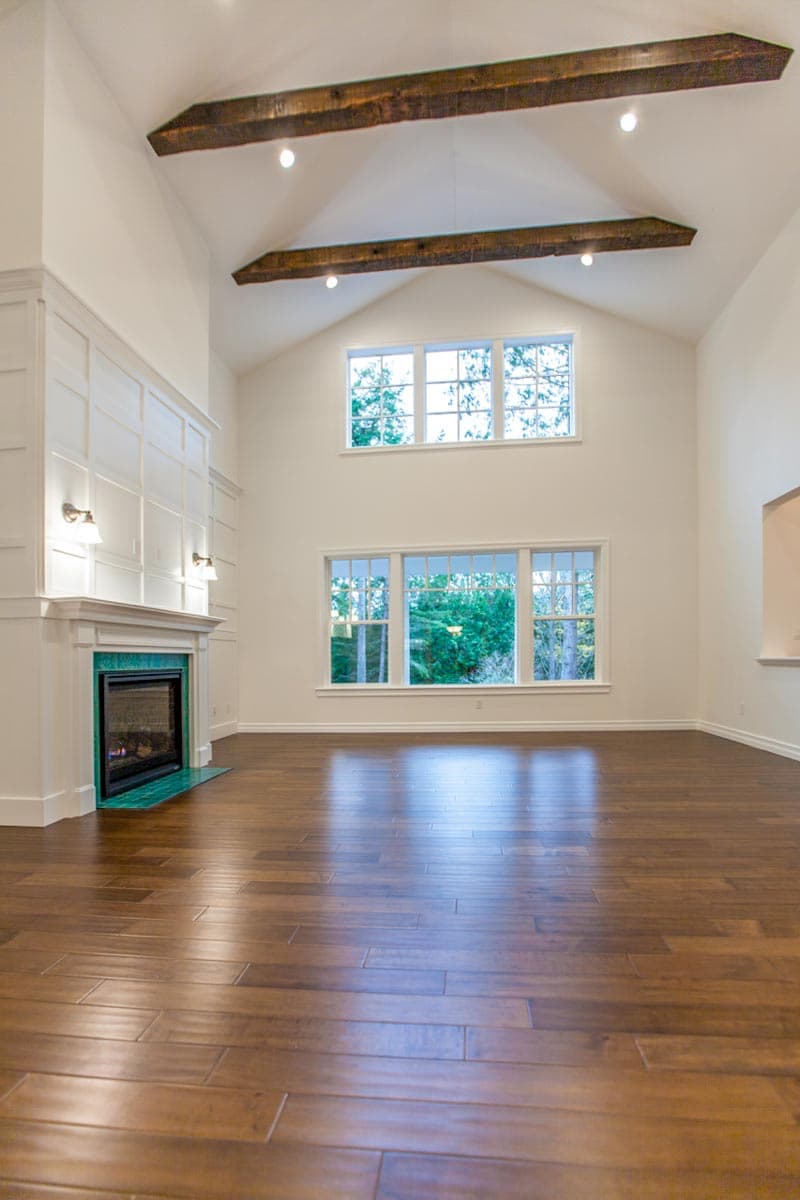

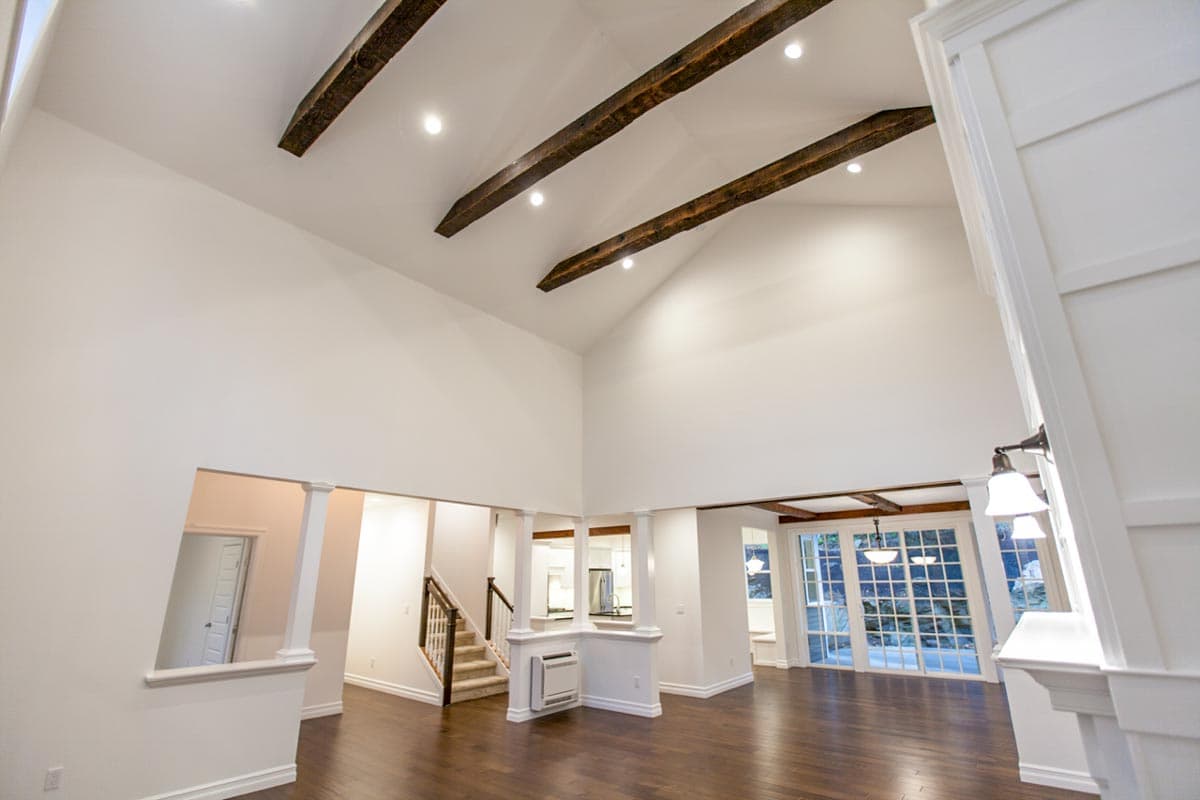

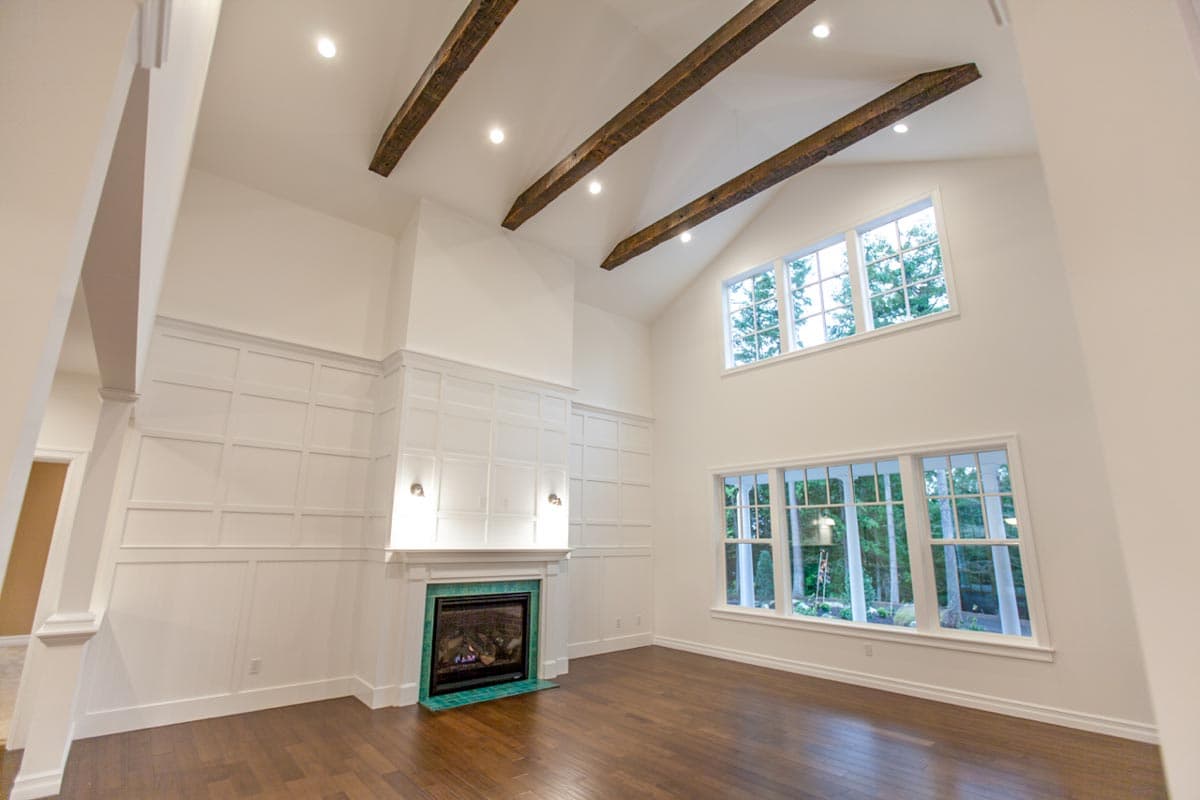

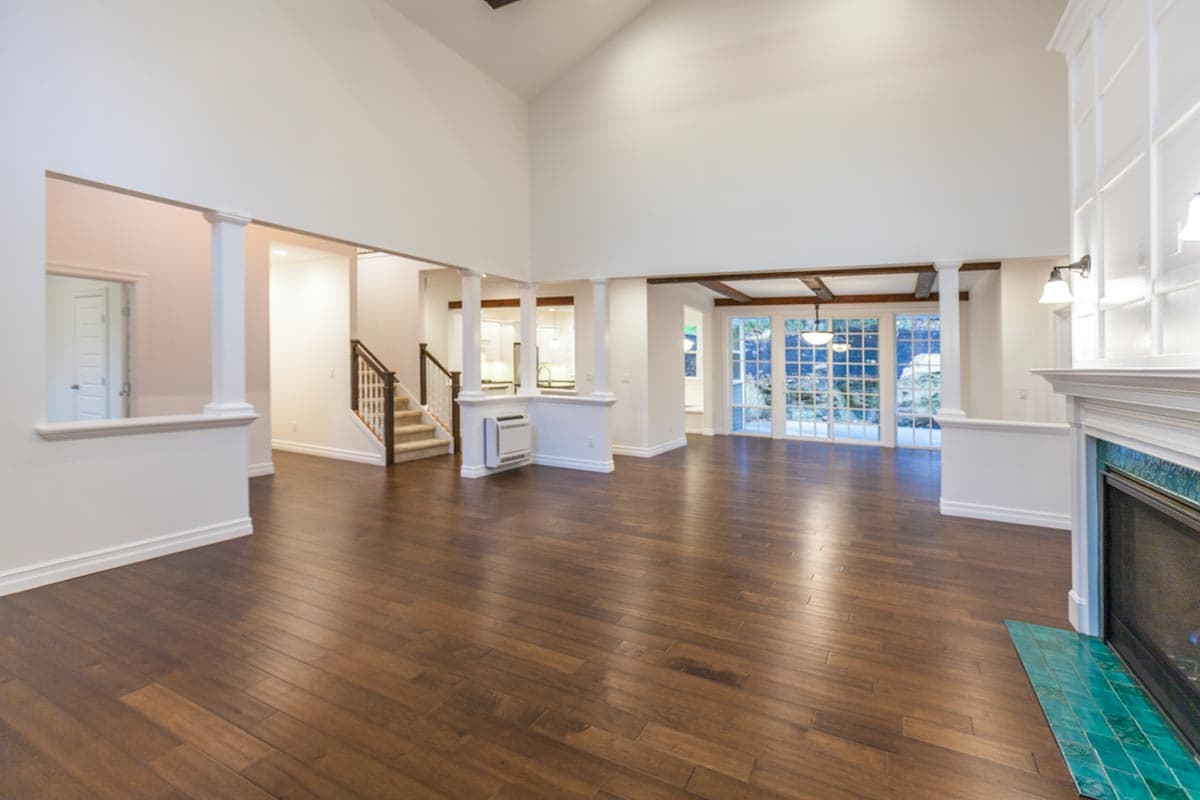

  • A vaulted great room with fireplace awaits inside just off the foyer. It opens to the dining room and has views of the covered porch in back.

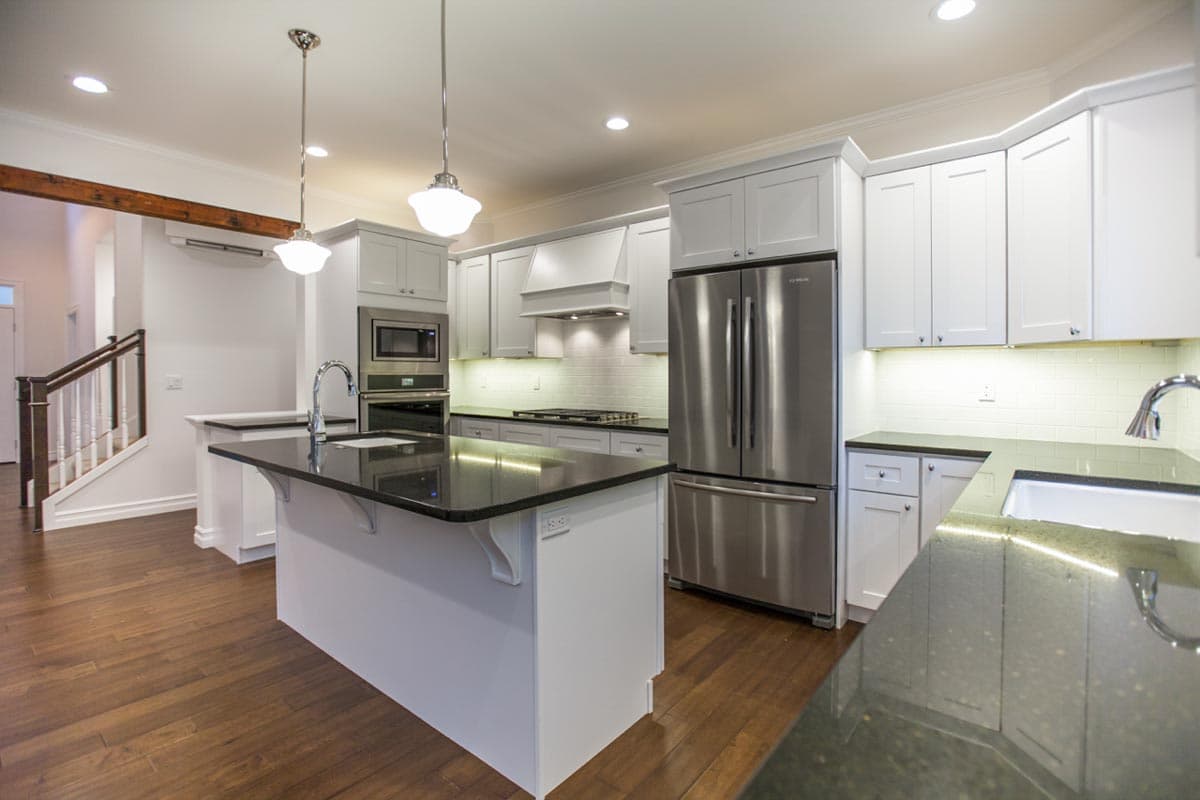

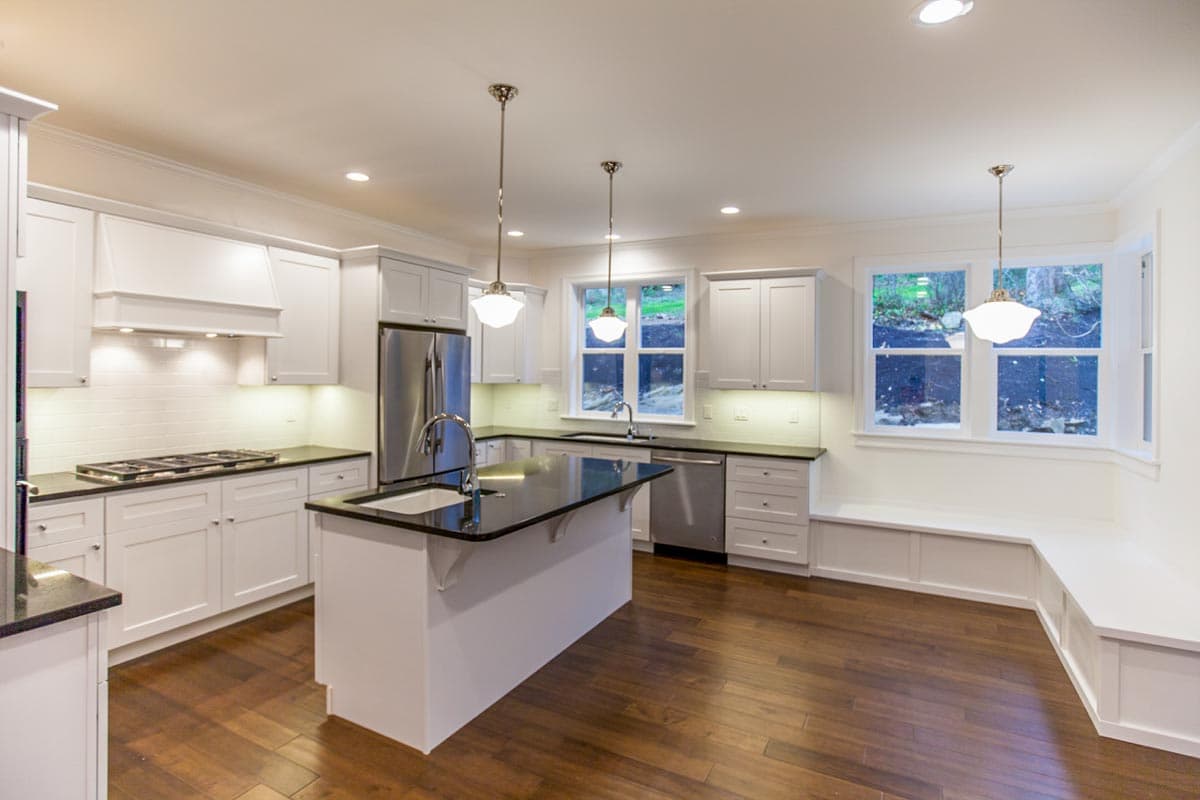

  • The kitchen is easily accessible from the garage making unloading groceries a breeze and has a functional island with casual seating and a prep sink.

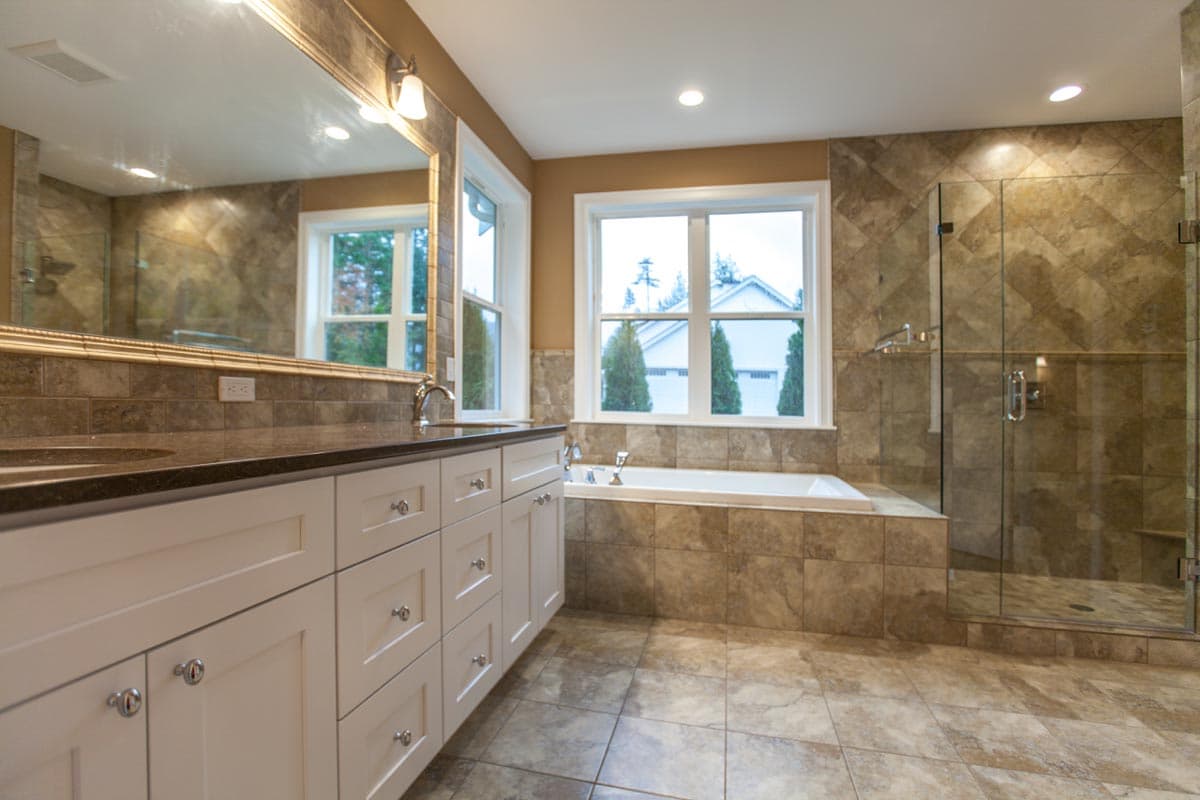

  • The master bedroom is located on the main floor and has a spa tub, two-person shower and a walk-in closet.
  • Upstairs is dedicated to the kids. The beds share a bath and use of the family room which could better be described as a kid's cave, play or game room or media room.
What's Included

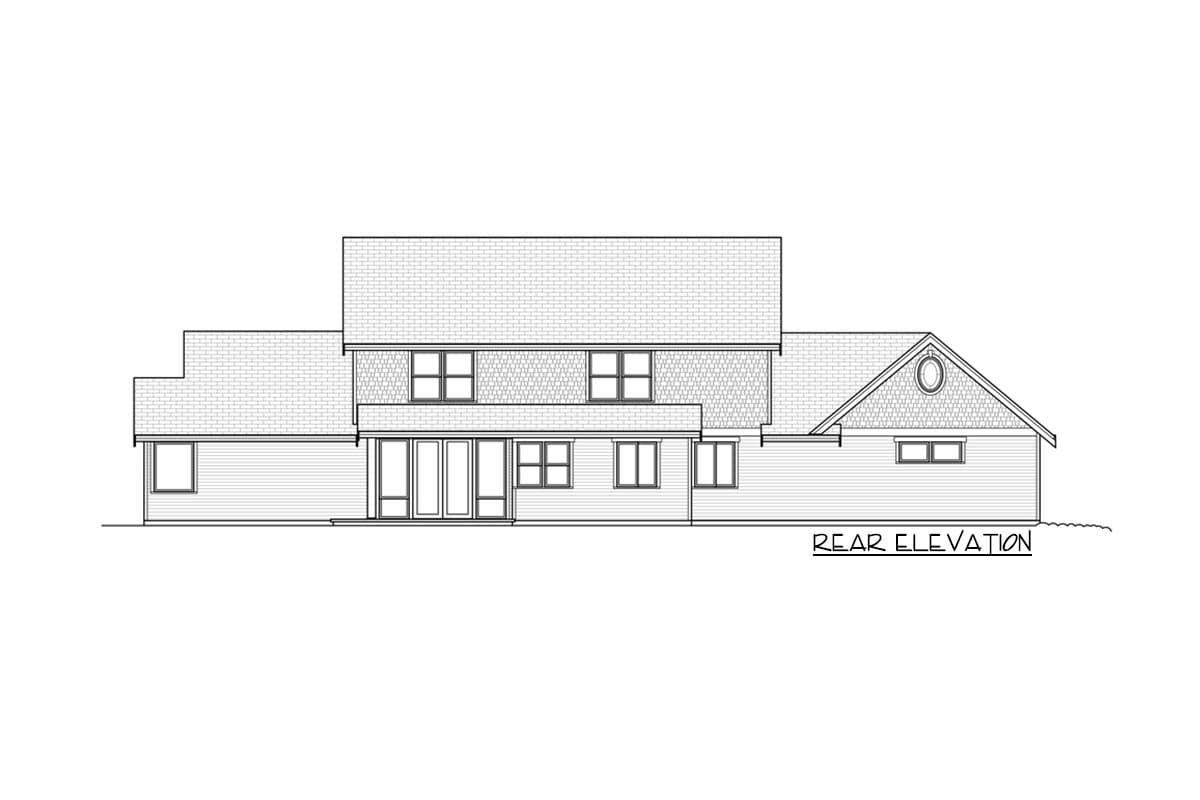

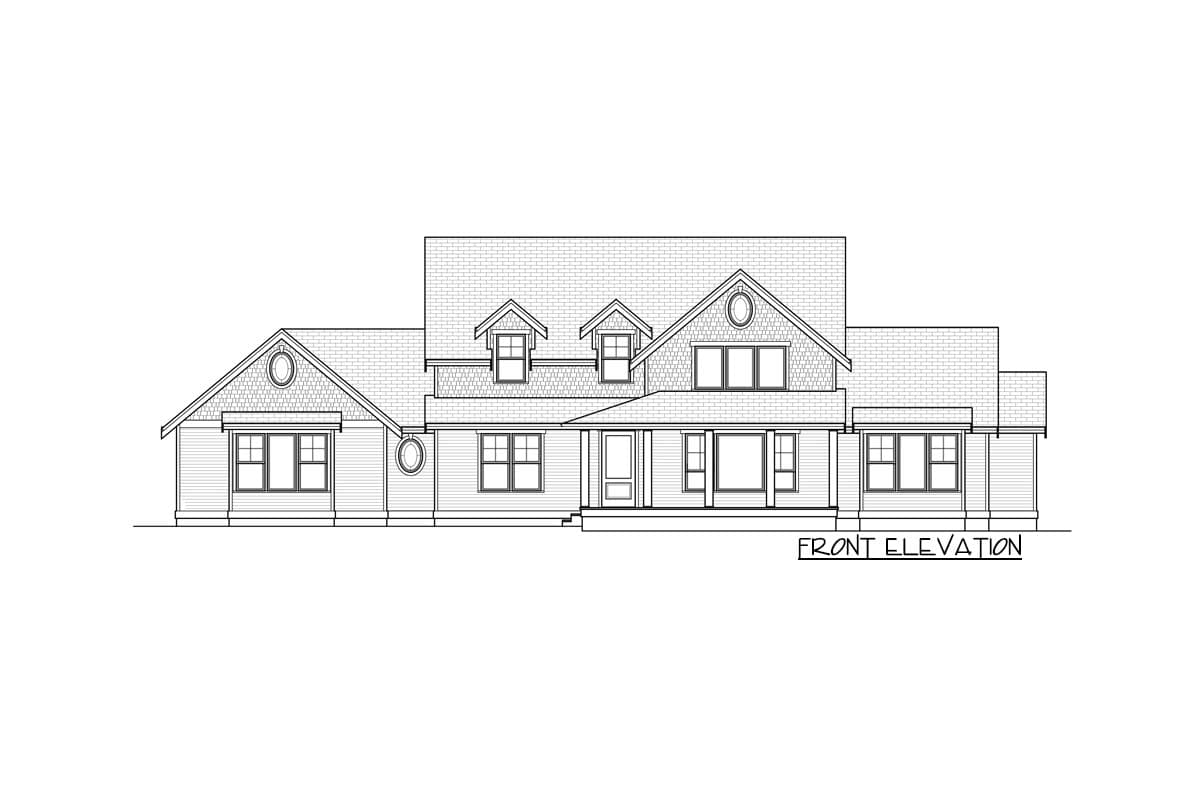

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,079 sq. ft.

1st Floor

2,197 sq. ft.

2nd Floor

882 sq. ft.

Porch, Front

220 sq. ft.

Covered Patio

329 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

43' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

894 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Framing Type

Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Den

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Plan Collections
