Plan 790021GLV

Exclusive

3-Bed Exclusive Country Craftsman Plan with Outdoor Living Room
Heated S.F.
2,499
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 790021GLV

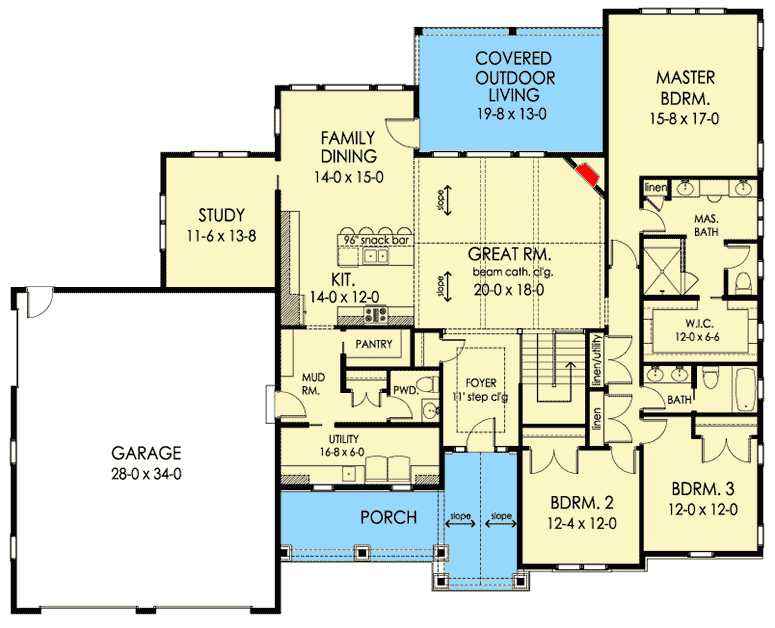

Main Level
slide image 0

Plan 790021GLV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Architectural Designs Exclusive House Plan 790021GLV has a mixed-material exterior combining stone, board and batten and shakes to give you a beautiful Craftsman home. A timbered covered entry and front porch add to the curb appeal.
  • The foyer has a raised ceilings and gives you views through to the outdoor living room in back.
  • The great room has a vaulted ceiling and corner fireplace and is open to the kitchen and family dining area.
  • Gain access to the outdoor living room from the dining room and entertain outdoors. A study is a quiet place in the home and set off from the dining area with a pocket door.
  • The kitchen island has a double sink and dishwasher on the working side and casual seating on the family side. A walk-in pantry hides behind a pocket door and access to the garage is steps away making unloading groceries a breeze.
  • The bedrooms are clustered along the right side of the home.
What's Included
This plan set has 9 pages as follows:
  1. Cover sheet with general notes

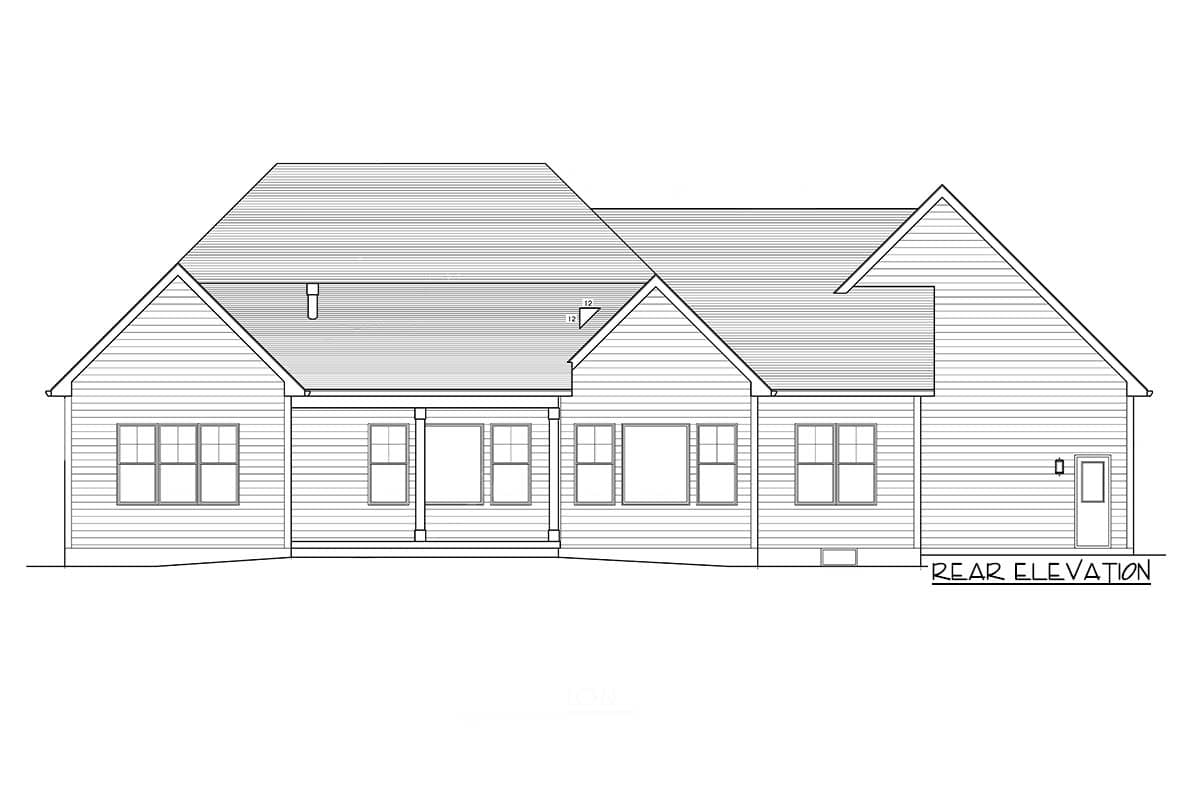

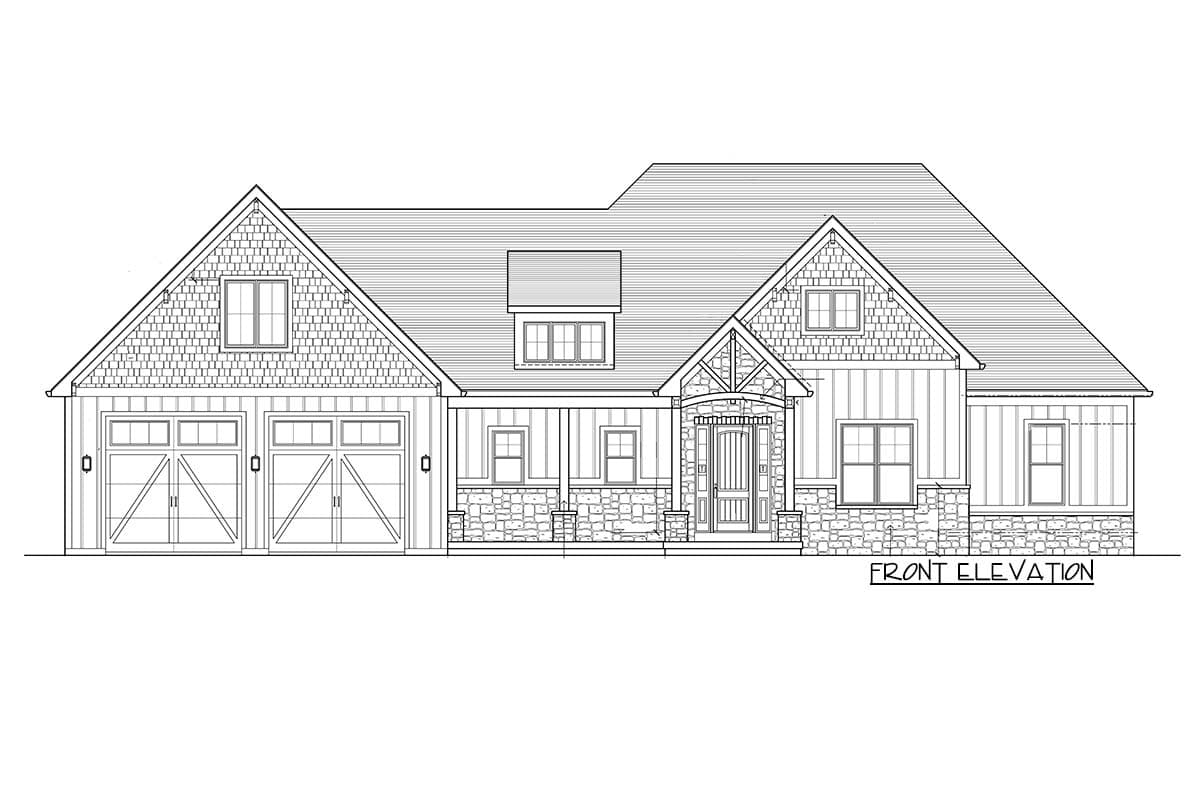

  2. Front and rear elevations
  3. Foundation plan
  4. First floor plan
  5. Building sections
  6. Roof plan and truss profiles

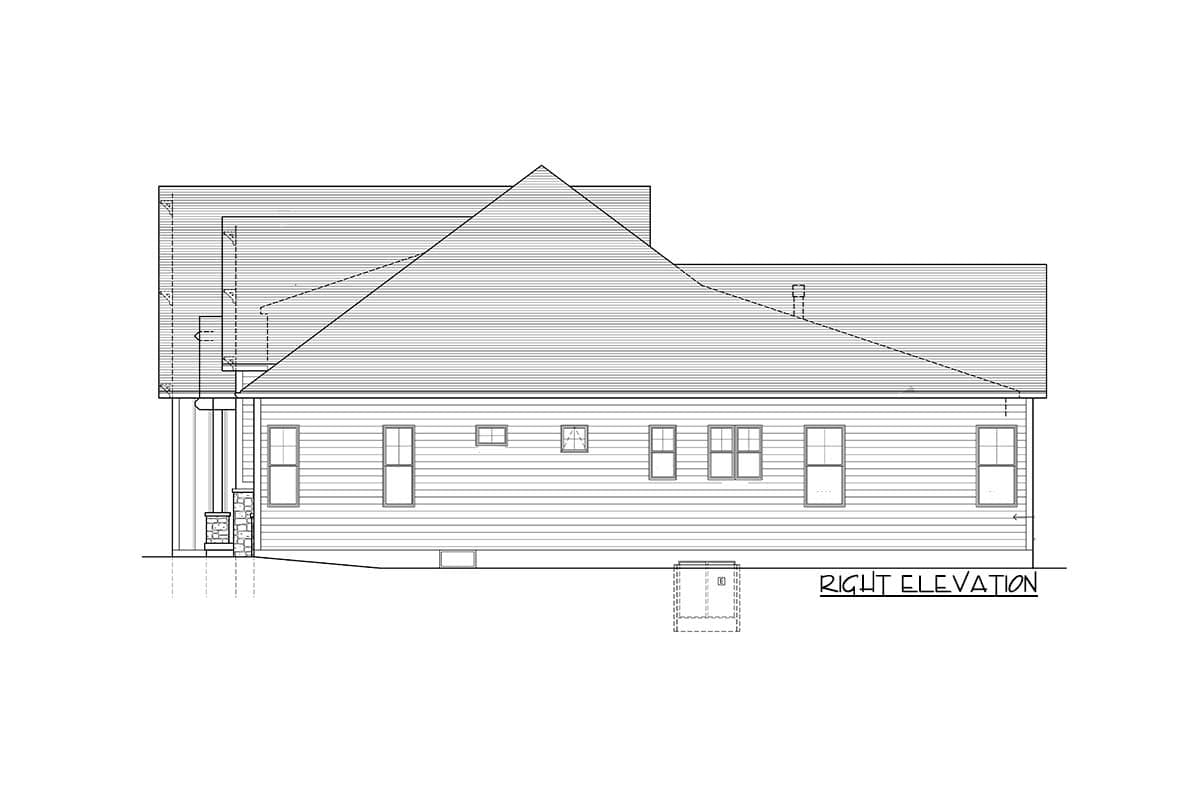

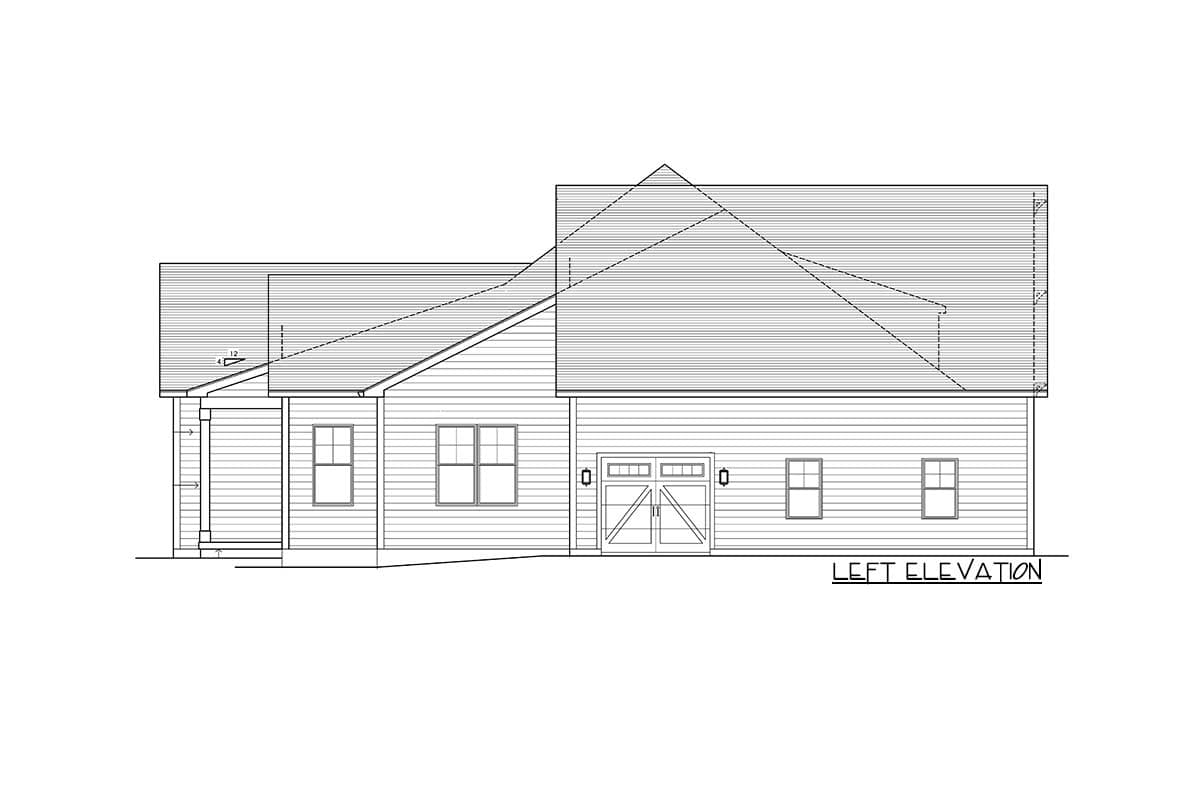

  7. Side elevations and typical wall section
  8. Details
  9. Reinforcing notes

What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,499 sq. ft.

1st Floor

2,499 sq. ft.

Optional Lower Level

2,499 sq. ft.

Porch, Combined

245 sq. ft.

Deck

253 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 8"

Depth

63' 4"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

945 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
