3 Bed French Split House Plan
Heated S.F.
1,937
Beds
3
Baths
2
Stories
1
Cars
2
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

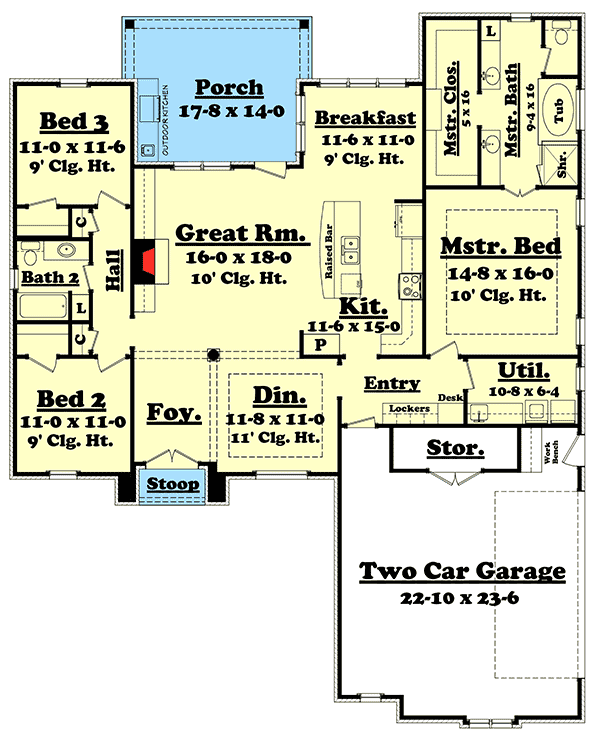

3 Bed French Split House Plan - 51714HZ floor plan - Main Level
Basement Option
Reverse Floor Plan

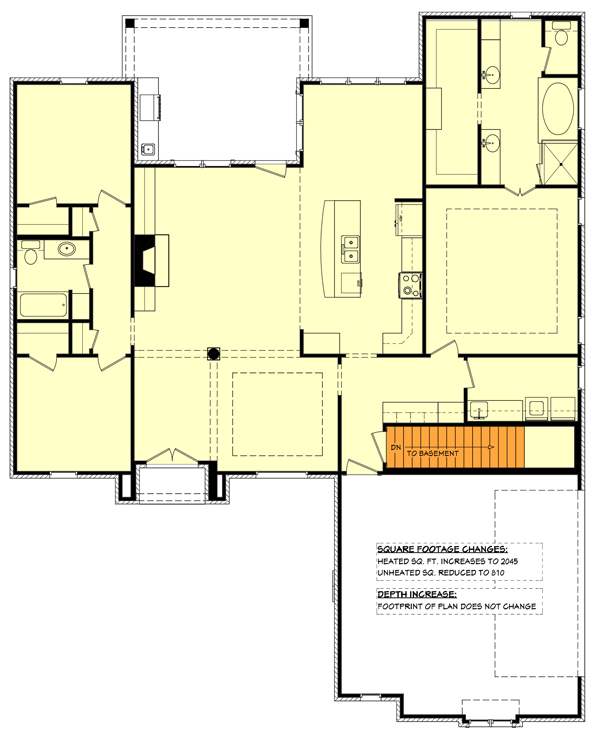

3 Bed French Split House Plan - 51714HZ floor plan - Basement Option
Plan Details
  • This gorgeous 3 bed 2 bath country French split plan is loaded with extras. The painted brick exterior with the arched top door and window give this home great curb appeal.
  • Entering in the spacious double door entry foyer sets the tone in this open plan layout. The oversized great room has a fireplace with cabinets on each side and large windows and a French door leading to the spacious rear outdoor living porch.
  • The large kitchen with island is conveniently located next to great room for all those holiday gatherings. The luxurious master suite offers a whirlpool tub, large shower, compartmented toilet, make-up area, two linen closets, and large walk-in closet.
  • The roof is stick framed with an 8:12 main pitch and a secondary pitch of 12:12.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

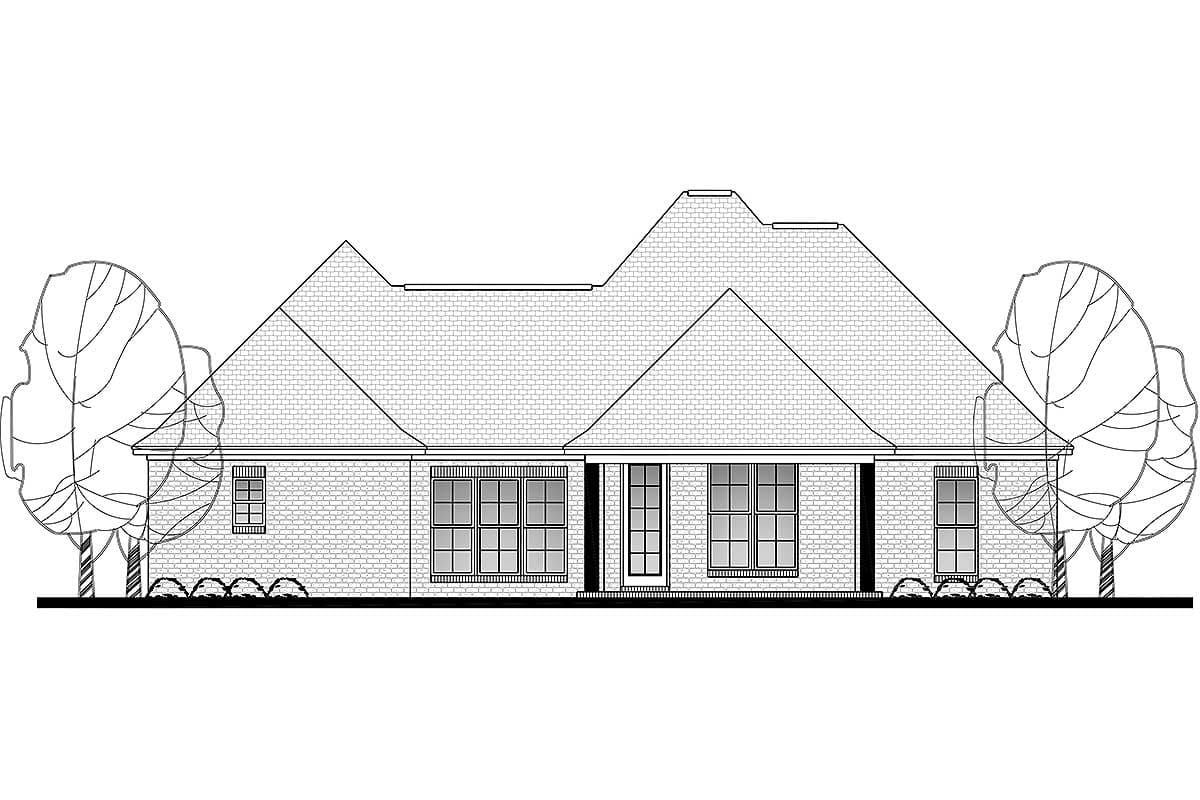

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
