3-Bed Gambrel-Dormered House Plan for a Rear-Sloping Lot

Plan 444341GDN

  • 2,977

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • Perfect for entertaining, this home plan welcomes guests through a striking 7'10"-deep front porch with columns, metal roof and lovely transom accenting the front door.
  • Inside, columns define the dining room and foyer, and spill into the great room with cathedral ceiling.
  • The breakfast room is exquisite, even for casual meals, featuring a vaulted ceiling and bay window. Overlooking the house plan's rear porch, the breakfast room also accesses a rear screen porch with fireplace.
  • On the opposite side of the home is the elegant master suite with a tray ceiling and bay window. Two walk-in closets provide space, and two vanities allow convenience.
  • The lower level of this home plan includes a sprawling porch and two bedrooms, each with their own bath, and a rec room complete with fireplace.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

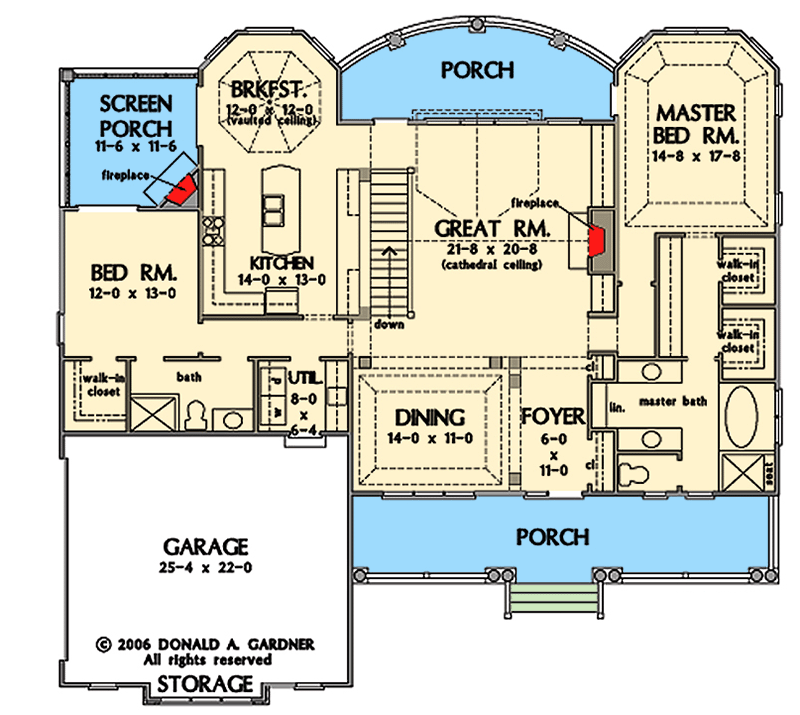

3-Bed Gambrel-Dormered House Plan for a Rear-Sloping Lot - 444341GDN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

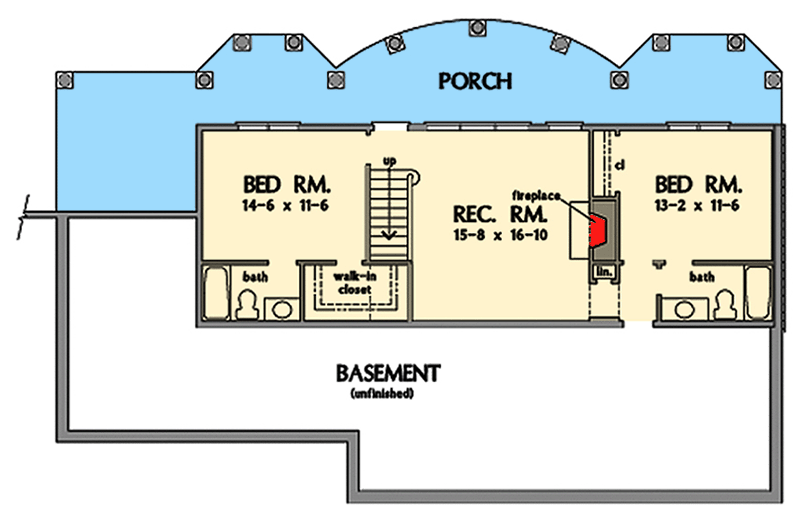

3-Bed Gambrel-Dormered House Plan for a Rear-Sloping Lot - 444341GDN floor plan - Lower Level

Plan details

3-Bed Gambrel-Dormered House Plan for a Rear-Sloping Lot

  • 2,977

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,255
  • PDF - Single-Build $1,455
  • 5 Sets + PDF $1,705
  • CAD Unlimited + PDF $2,910
  • View all purchase option online

About This Plan

  • Perfect for entertaining, this home plan welcomes guests through a striking 7'10"-deep front porch with columns, metal roof and lovely transom accenting the front door.
  • Inside, columns define the dining room and foyer, and spill into the great room with cathedral ceiling.
  • The breakfast room is exquisite, even for casual meals, featuring a vaulted ceiling and bay window. Overlooking the house plan's rear porch, the breakfast room also accesses a rear screen porch with fireplace.
  • On the opposite side of the home is the elegant master suite with a tray ceiling and bay window. Two walk-in closets provide space, and two vanities allow convenience.
  • The lower level of this home plan includes a sprawling porch and two bedrooms, each with their own bath, and a rec room complete with fireplace.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,977 sq. ft.
  • Lower Level: 921 sq. ft.
  • 1st Floor: 2,056 sq. ft.
  • Screened Porch: 152 sq. ft.
  • Porch, Combined: 1,189 sq. ft.
  • Basement Unfinished: 981 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 59' 8"
  • Max ridge height: 37' 9"

Garage

  • Type: Attached
  • Area: 593 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
