Plan 39291ST

3-Bed Home Plan with Bonus Over the Garage

Pageloader

3-Bed Home Plan with Bonus Over the Garage

Plan 39291ST

  • 1,951

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A covered front porch welcomes you to this 3-bed home plan with an open floor plan, high ceiling, an island with seating and formal dining room.
  • The first floor master bedroom enjoys an oversized shower, double bowl vanity, commode room and walk-in closet.
  • A first floor laundry room is located to be convenient to the master suite as well as the garage.
  • Two additional bedrooms, a bath with double bowl vanity and an unfinished attic space complete this family friendly home.

  • General notes and specifications

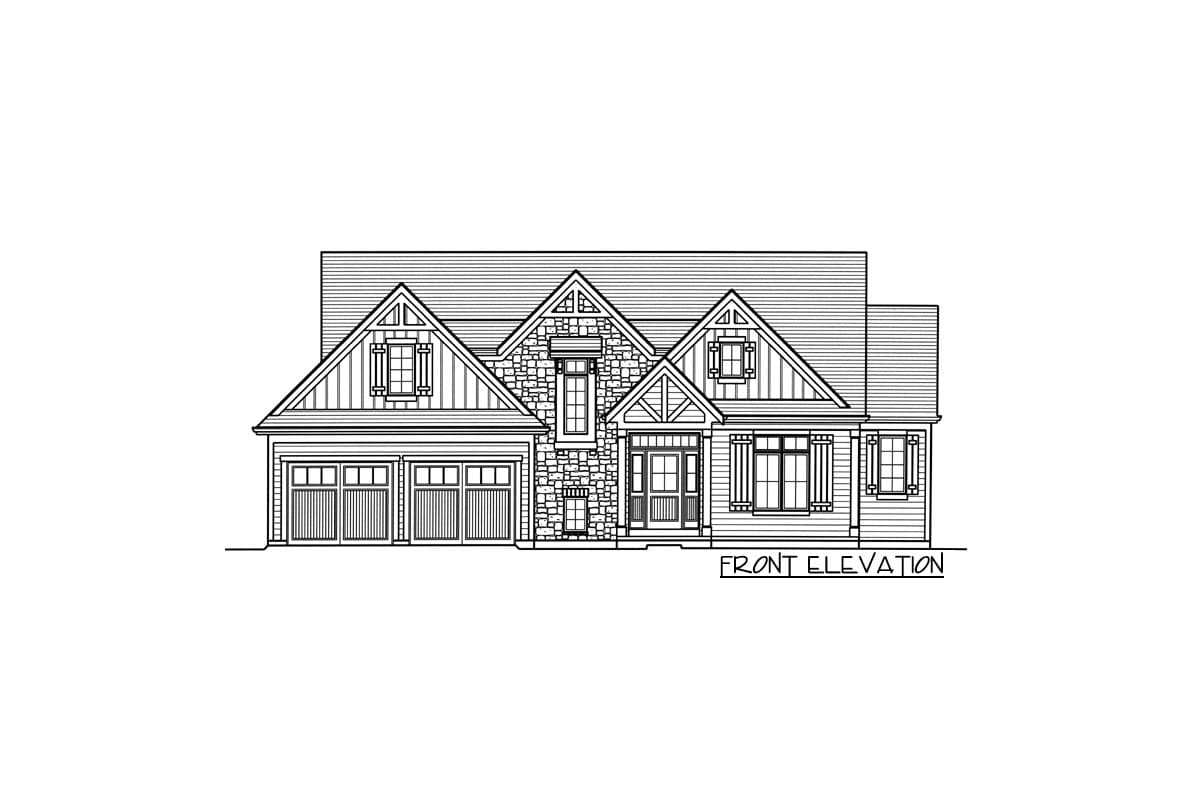

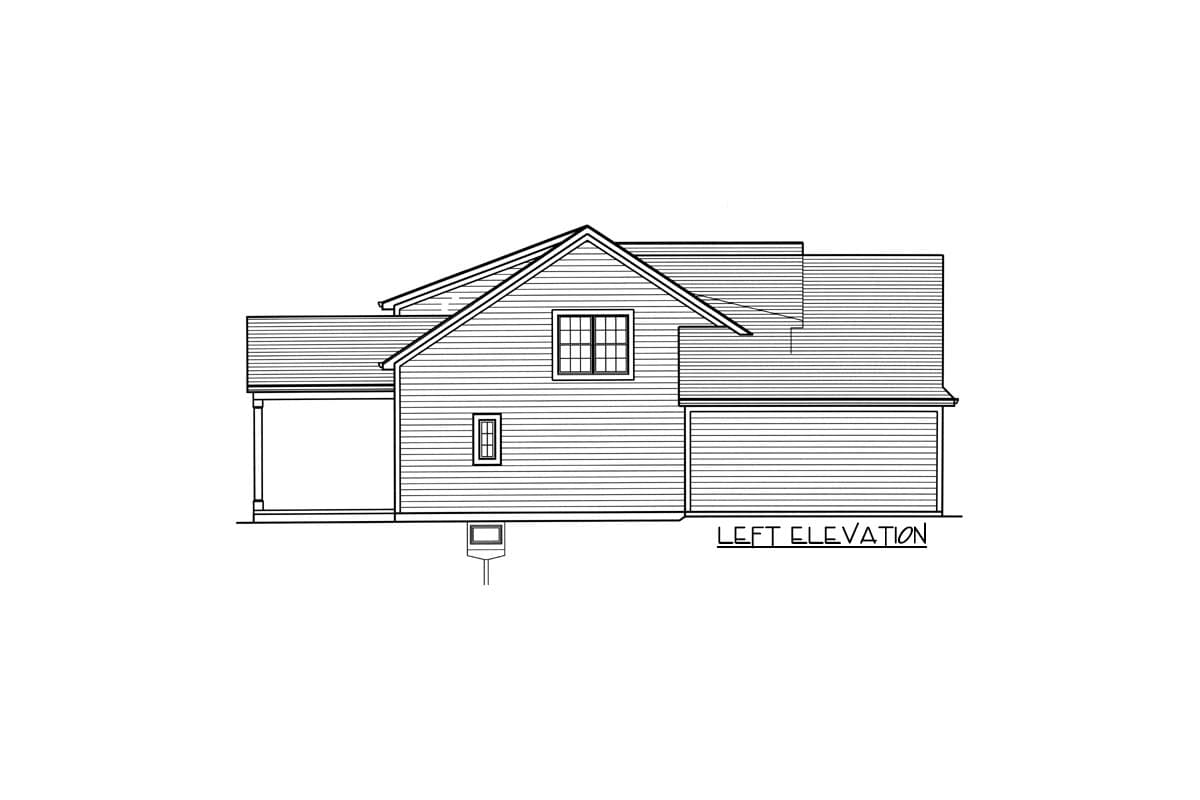

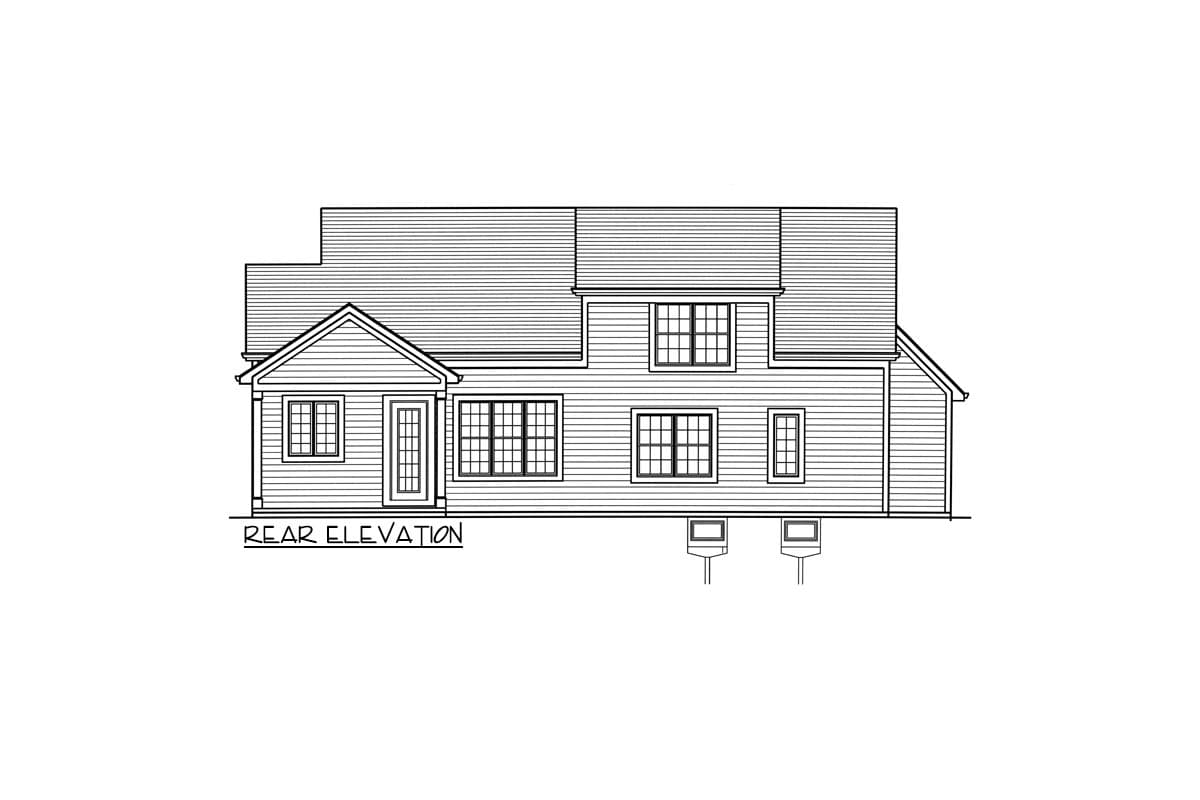

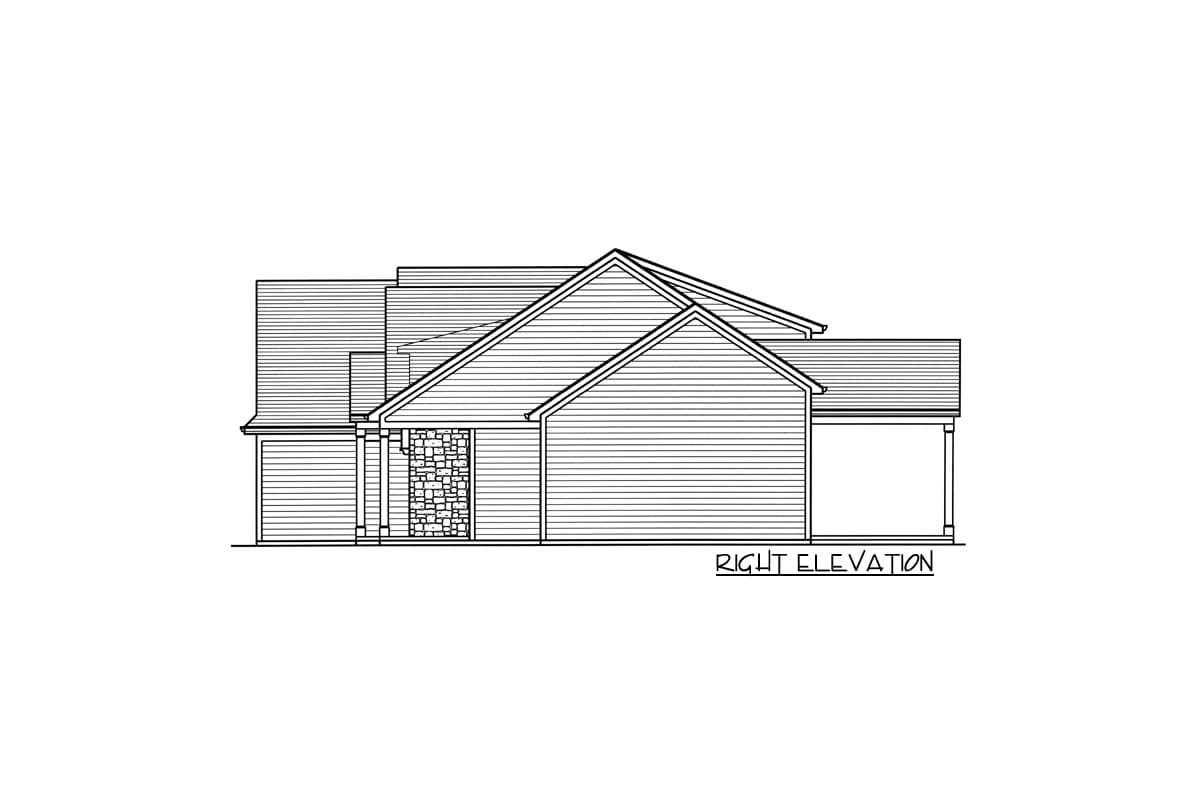

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

Plan details



3-Bed Home Plan with Bonus Over the Garage

  • 1,951

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $850
  • 5 Sets PLUS $900
  • PDF - multi-use $1,200
  • CAD $1,320
  • CAD - multi-use $1,670
  • View all purchase option online

About This Plan

  • A covered front porch welcomes you to this 3-bed home plan with an open floor plan, high ceiling, an island with seating and formal dining room.
  • The first floor master bedroom enjoys an oversized shower, double bowl vanity, commode room and walk-in closet.
  • A first floor laundry room is located to be convenient to the master suite as well as the garage.
  • Two additional bedrooms, a bath with double bowl vanity and an unfinished attic space complete this family friendly home.

Floor Plans

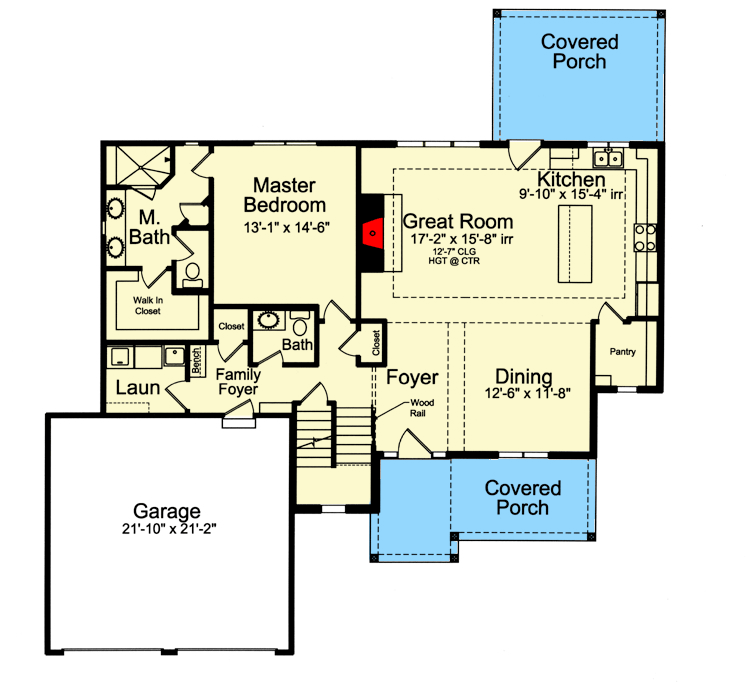

  • Main Level

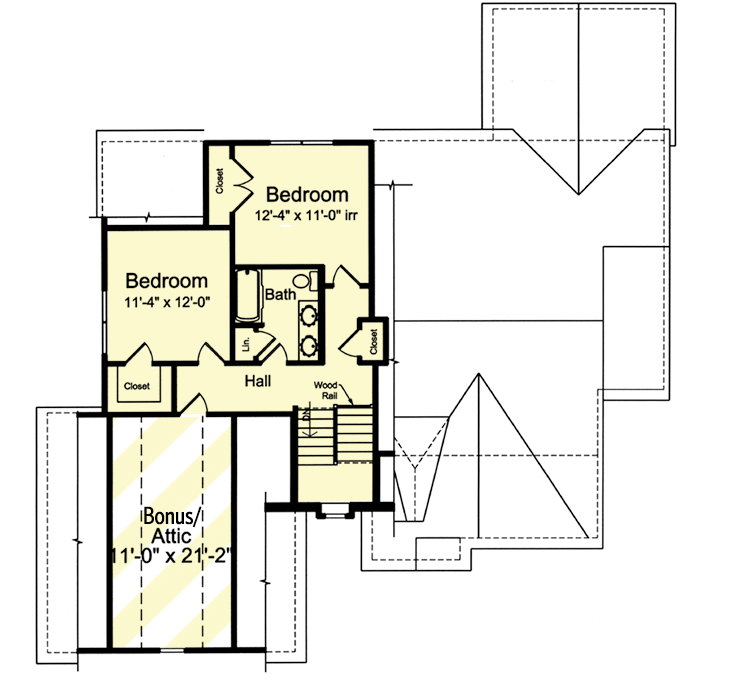

  • 2nd Floor

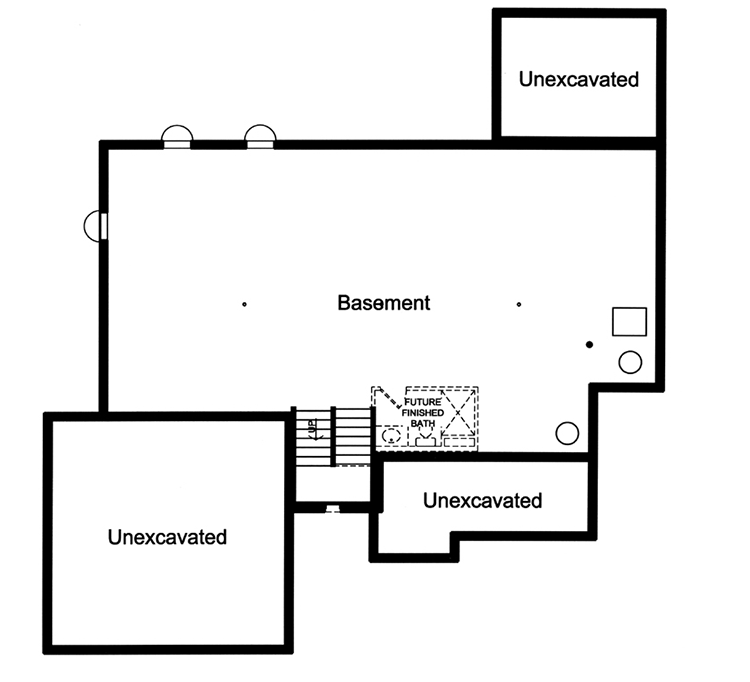

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,951 sq. ft.
  • 1st Floor: 1,403 sq. ft.
  • 2nd Floor: 548 sq. ft.
  • Porch, Rear: 180 sq. ft.
  • Porch, Front: 162 sq. ft.
  • Bonus: 354 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 58' 6"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 461 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
