Plan 72802DA

3 Bed Home Plan with Tasteful Touches

Heated S.F.
1,820
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 72802DA

Main Level
Main Level

Plan 72802DA

M-F 9am-5pm EST |

1-203-761-8500

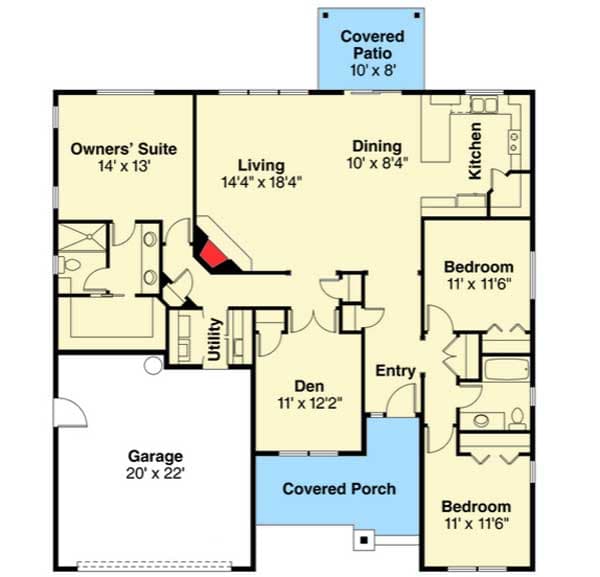

Main Level

Plan 72802DA: 3 Bed Home Plan with Tasteful Touches - Floor Plan - Main Level - Cottage, Craftsman

Plan Details

  • You'll appreciate the tasteful touches such as gridded window uppers, shingled gable fronts, decorative corbels, and cultured stone wainscoting in this 3 bedroom house plan. The railed porch invites relaxation on wicker chairs or an old-fashioned swing.
  • Natural light spills into the entry hall through a side lite and the door's glassed upper panes. The long hallway leads past an opening to the secondary bedroom wing and a coat closet, then arrives at a window-rich living/dining area, warmed and brightened by a gas fireplace.
  • You can see the fireplace from the kitchen and eating bar that rims its peninsular counter. When the weather is inviting, meals can move easily out onto the covered patio through the dining room's sliding glass doors.
  • The well-appointed owners' suite is well-isolated from the other bedrooms. Its two-section bathroom has a double vanity, plus a fully enclosed toilet and shower. A sliding door accesses a roomy walk-in closet.
  • The pass-through utility room links up with the 2-car garage.
  • The roof has an 8:12 pitch.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

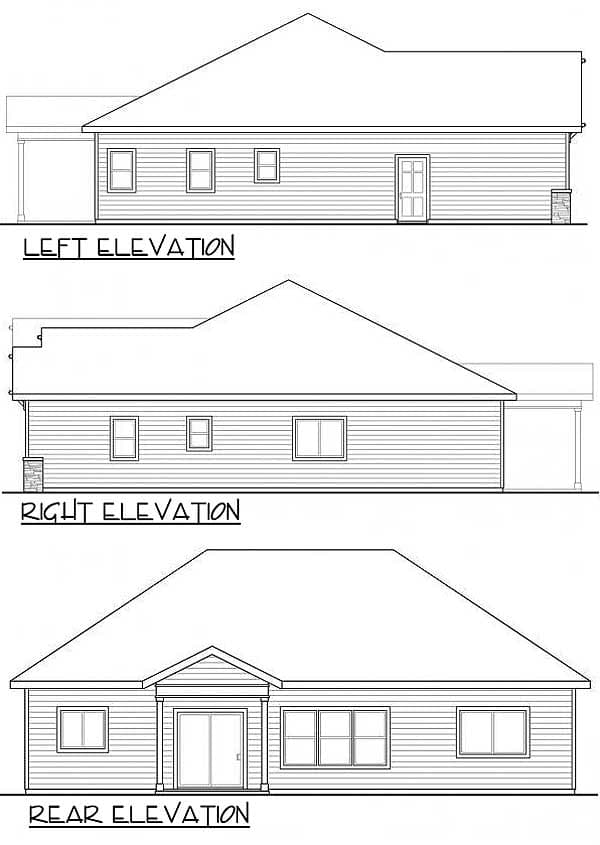

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,820 sq. ft.

1st Floor

1,820 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

58' 0"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,820 sq. ft.

1st Floor

1,820 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

58' 0"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Walk-in Pantry
