Plan 28128J
3-Bed House Plan with 1-Car Garage - 924 Sq Ft
Heated S.F.
924
Beds
3
Baths
1
Stories
1
Cars
1
What's Included
Plan Details

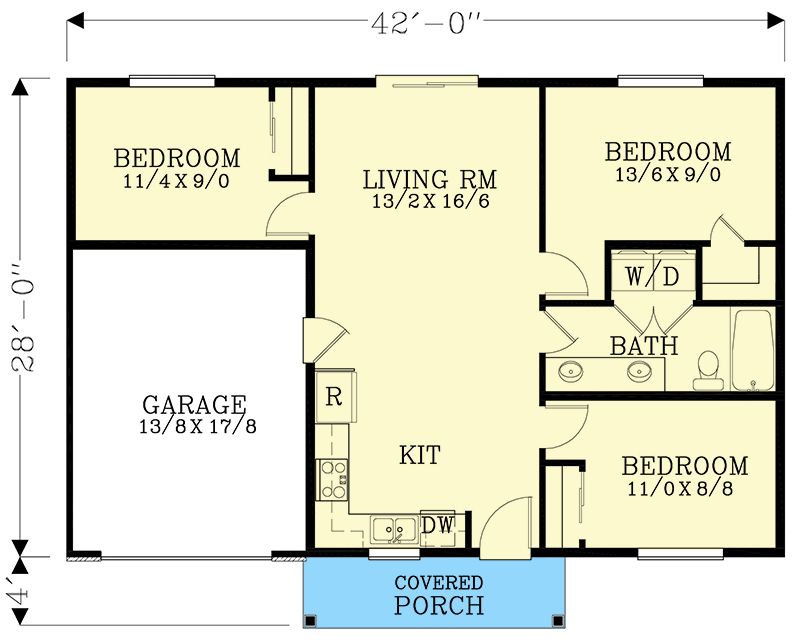

  • This 3-bed Craftsman bungalow house plan gives you 3 beds, 1 bath and 924 square feet of heated living.
  • Bedrooms are on the outside walls of the home with two beds on the right split by a bathroom with laundry and the third behind the garage on the left.
  • The center portion of the home is open front to back with the L-shaped kitchen in front and the living room in back.
  • Related Plans: Get a 2-bed version with house plan 28031J (784 sq. ft.) and a 1-bed version with house plan 28127J (650 sq. ft.).
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

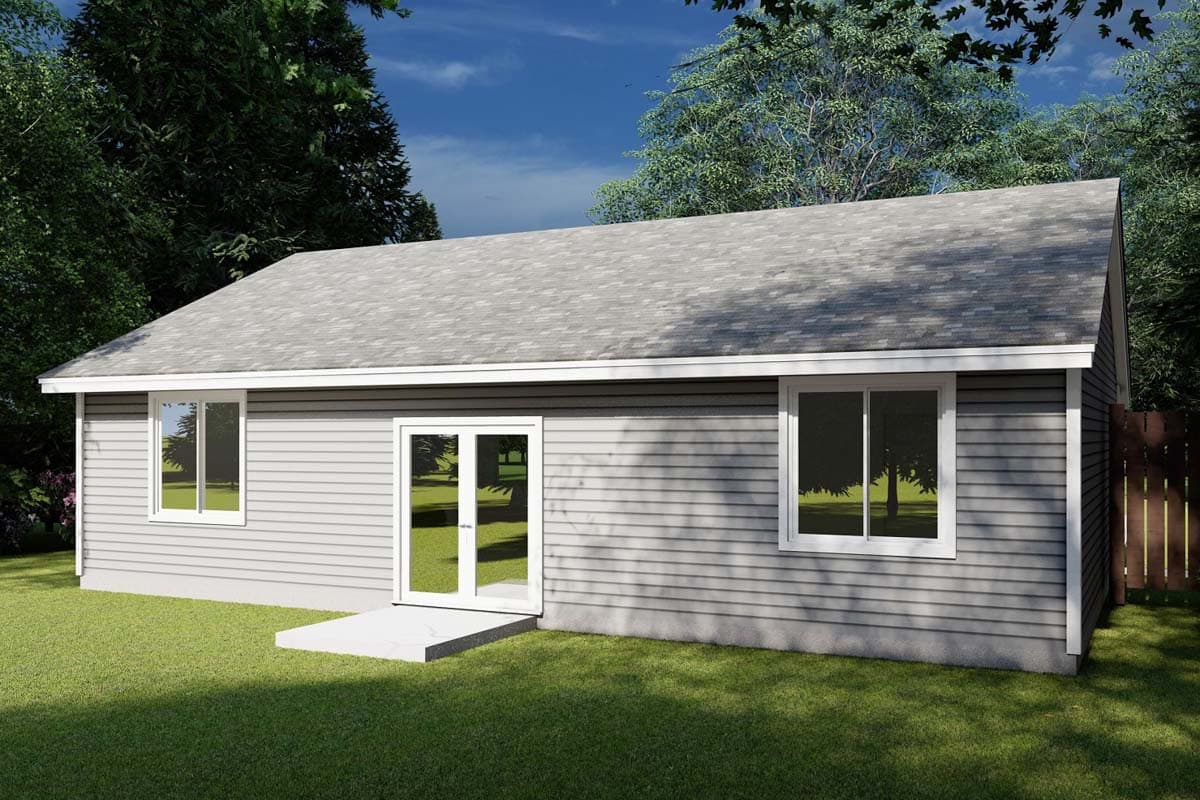

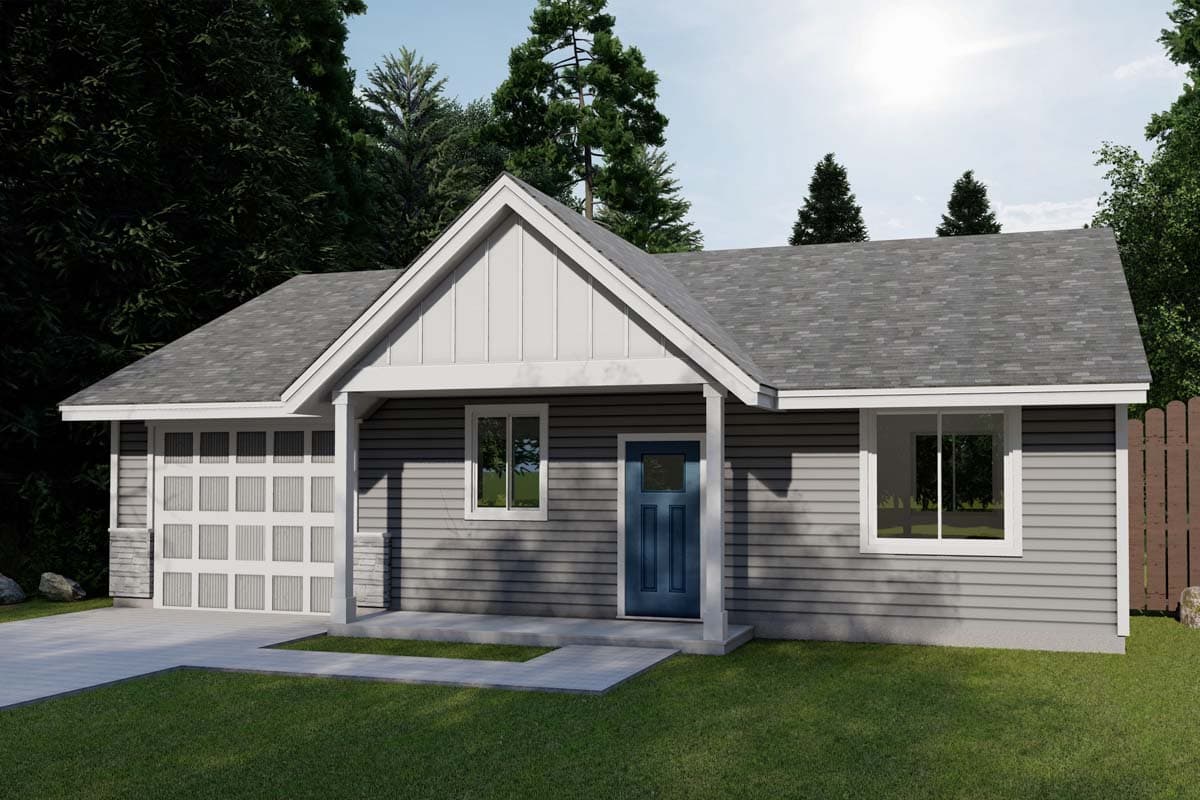

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed House Plan with 1-Car Garage - 924 Sq Ft

  • 924

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 924 sq. ft.
  • 1st Floor: 924 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 28' 0"
  • Max ridge height: 16' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 252 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Post/Beam

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 10
  • Secondary Pitch: 12 on 6
  • Framing Type: Truss
