Plan 60508ND
3 Bed House Plan with 17'-Deep Outdoor Living Room
Heated S.F.
1,960
Beds
3
Baths
2.5
Stories
1
Cars
2
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

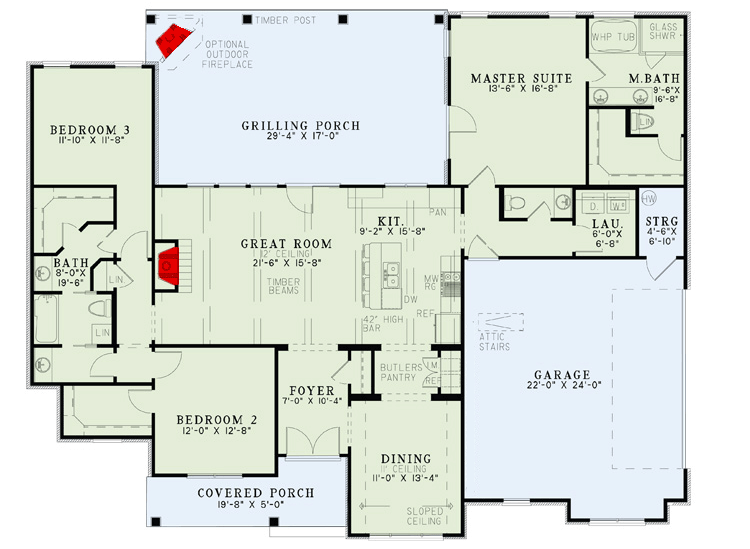

3 Bed House Plan with 17'-Deep Outdoor Living Room - 60508ND floor plan - Main Level
Main Level with Lower Level Stairs
Reverse Floor Plan

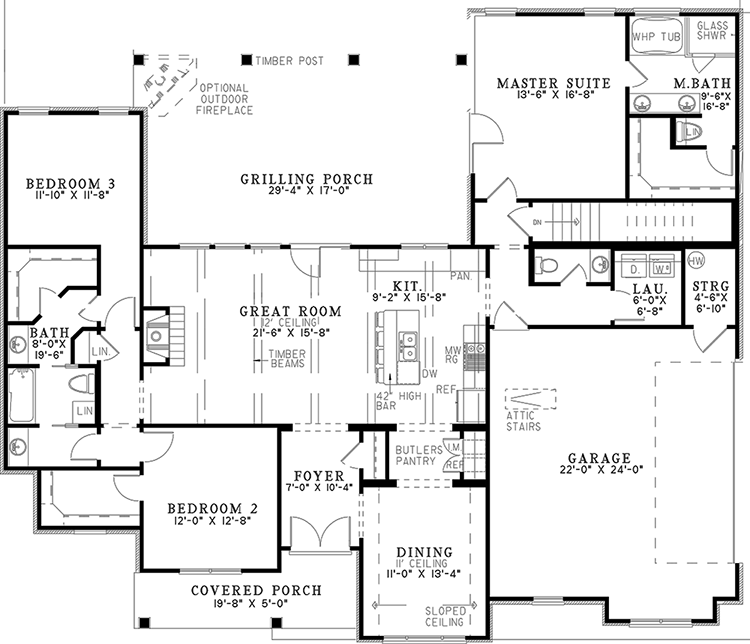

3 Bed House Plan with 17'-Deep Outdoor Living Room - 60508ND floor plan - Main Level with Lower Level Stairs
Plan Details
  • Stone and brick combine to give a rustic look to this smartly designed home with a rear outdoor grilling porch that functions as a second living room.
  • Split bedrooms place the master suite by itself in the rear of the home with French door access to the grilling porch.
  • The other two family bedrooms enjoy spacious rooms, their own walk-in closet and a shared Jack and Jill bathroom.
  • Timber beams in the great room and kitchen area also add to the rustic feel.
  • Related Plan: Get an alternate exterior with house plan 60611ND.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed House Plan with 17'-Deep Outdoor Living Room

  • 1,960

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Main Level with Lower Level Stairs

Plan Details

Square Footage Breakdown

  • Total: 1,960 sq. ft.
  • 1st Floor: 1,960 sq. ft.

Dimensions

  • Width: 65' 10"
  • Depth: 52' 4"
  • Max ridge height: 23' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 598 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
