Plan 51217MM

3 Bed House Plan with 8-Foot-Deep Front Porch - 1762 Sq Ft

Heated S.F.
1,762
Beds
3
Baths
2.5
Stories
1

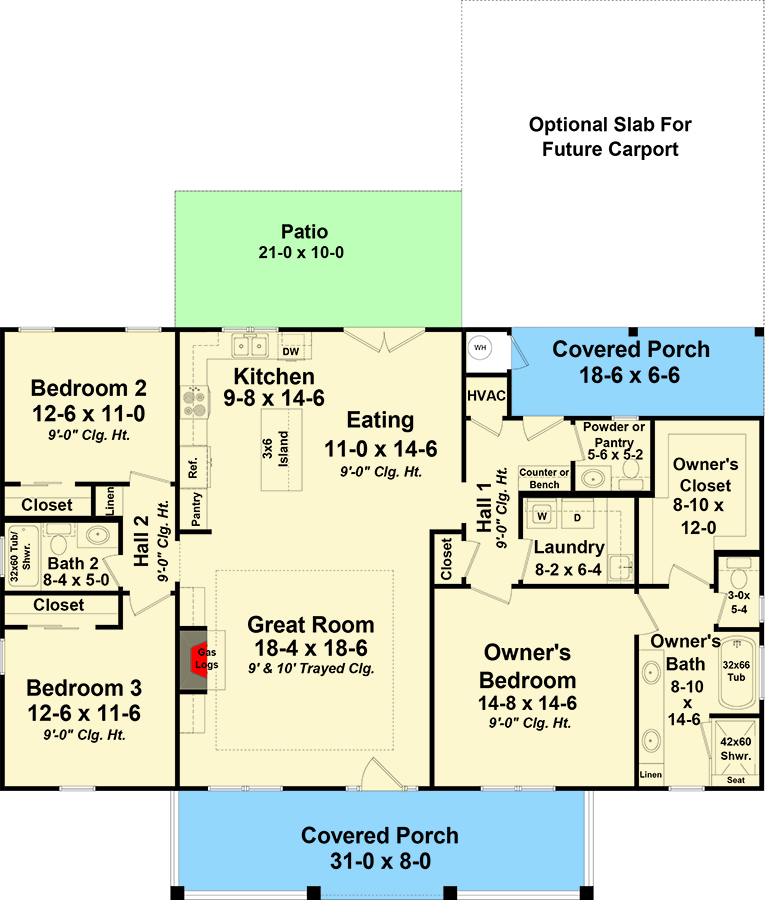

Floor Plan

Plan 51217MM

Main Level
Main Level

Plan 51217MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51217MM: 3 Bed House Plan with 8-Foot-Deep Front Porch - 1762 Sq Ft - Floor Plan - Main Level - Country, Southern, Traditional

Plan Details

  • This well-designed plan one-story house plan gives 3 beds, 2.5 baths and 1,762 square feet of heated living space. A door centered on the 8'-deep front porch opens to the great room with gas log fireplace and a 10' trayed ceiling.
  • The kitchen has a double sink centered beneath windows looking out across the back patio.
  • The rear covered porch provides 248 square feet of covered outdoor space to enjoy.
  • Architectural Designs' website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get an alternate version with house plan 51187MM (1,476 sq. ft.) and get an attached garage with house plan 51125MM (1,640 sq. ft.).

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,762 sq. ft.

1st Floor

1,762 sq. ft.

Porch, Front

248 sq. ft.

Porch, Rear

142 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

42' 0"

Max Ridge Height

20' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,762 sq. ft.

1st Floor

1,762 sq. ft.

Porch, Front

248 sq. ft.

Porch, Rear

142 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

42' 0"

Max Ridge Height

20' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
