Plan 28900JJ
3 Bed House Plan with Courtyard Entry Garage
Heated S.F.
1,957
Beds
3
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • All the bedrooms in this one-story house plan are split apart, ensuring privacy for all.
  • The main living area is one enormous great room that combines kitchen, living and dining spaces so your family can all be together.
  • Dad can escape to the office off the kitchen for some peace and quiet, however.
  • The master suite gets a lovely tray ceiling, big walk-in closet and large bathroom.
  • A side porch near the kitchen is flooded with light from four skylights.
What's Included
  • Cover Sheet
  • Fully dimensioned floor plan
  • Elevations
  • Cross Sections/ Garage elevations when available
  • Foundation Plan
  • Roof Plan
  • Lighting layout
  • 3D Interior Drawings
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed House Plan with Courtyard Entry Garage

  • 1,957

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

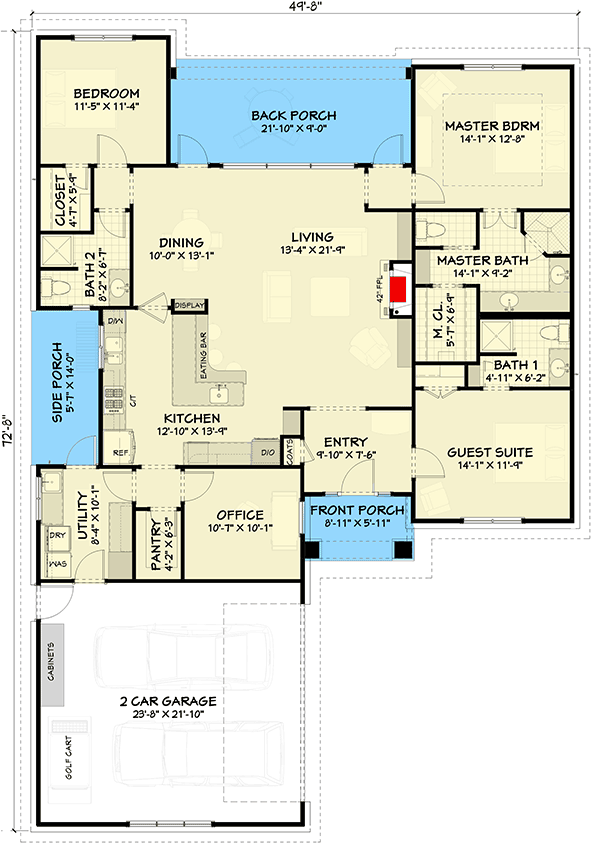

  • Main Level

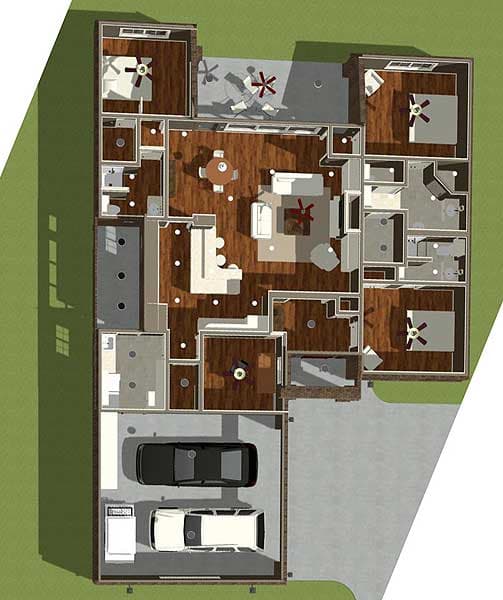

  • 3D View

Plan Details

Square Footage Breakdown

  • Total: 1,957 sq. ft.
  • 1st Floor: 1,957 sq. ft.

Dimensions

  • Width: 49' 8"
  • Depth: 72' 8"
  • Max ridge height: 22' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 557 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
