Plan 41017DB

3-Bed House Plan with Double-L Kitchen

Heated S.F.
1,392
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 41017DB

Main Level
Main Level

Plan 41017DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 41017DB: 3-Bed House Plan with Double-L Kitchen - Floor Plan - Main Level - Traditional

Plan Details

  • The double-L kitchen layout provides great work space and counter seating.
  • A sunny picture window in the master bathroom helps brighten this space.
  • The great room has a fireplace flanked by windows with views to the back.

What's Included

  • General Notes

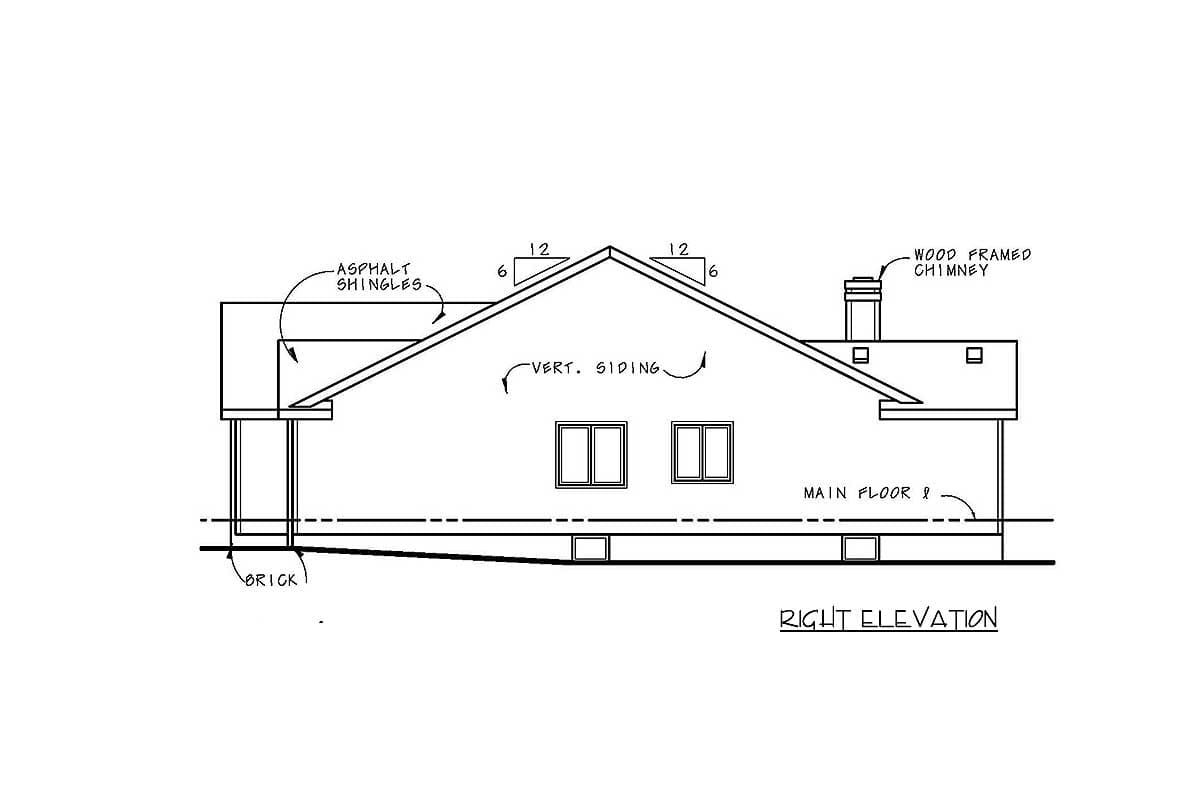

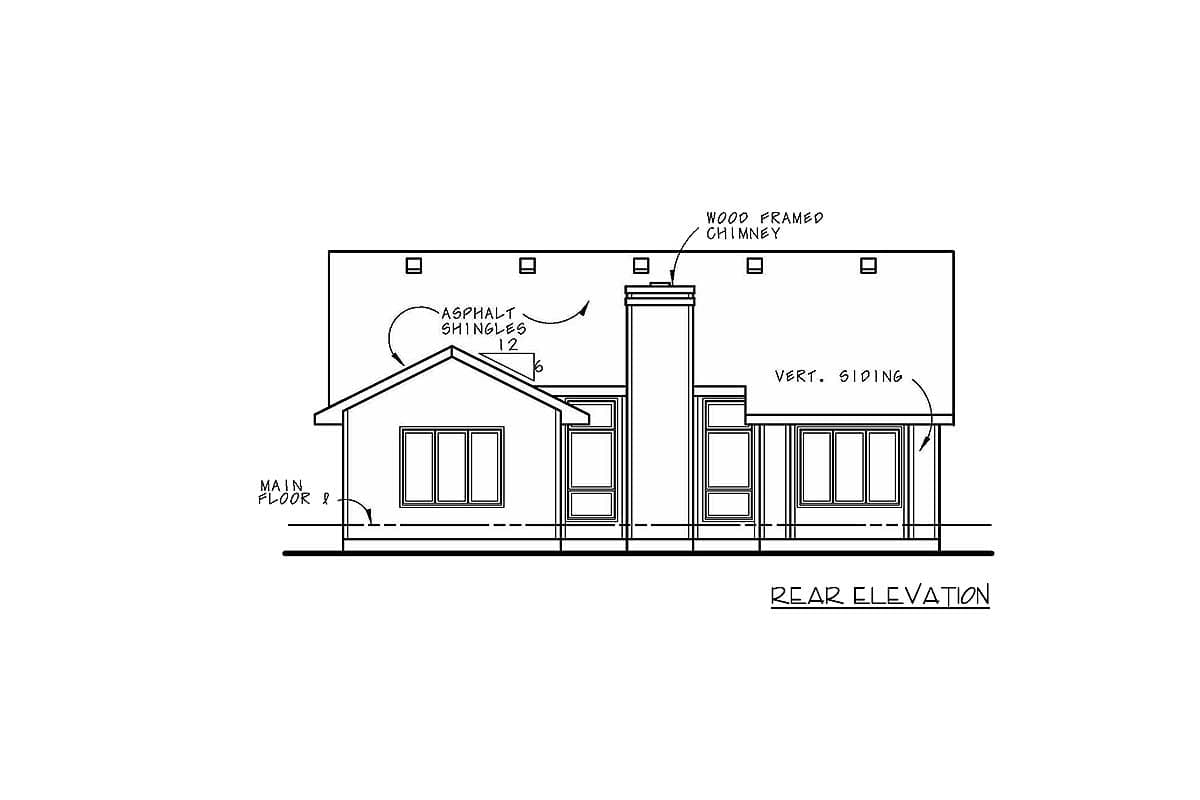

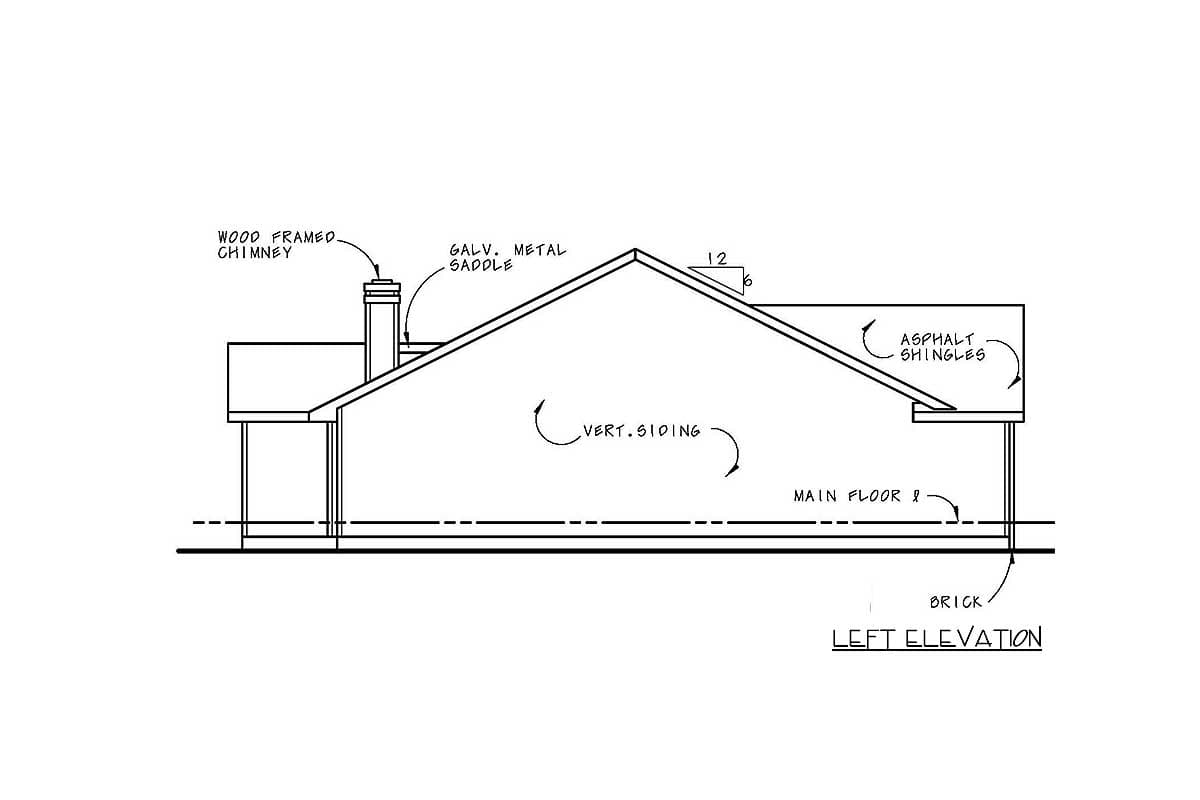

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,392 sq. ft.

1st Floor

1,392 sq. ft.

Basement Unfinished

1,392 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

54' 0"

Max Ridge Height

19' 3"

Garage

Type

Attached

Area

472 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
